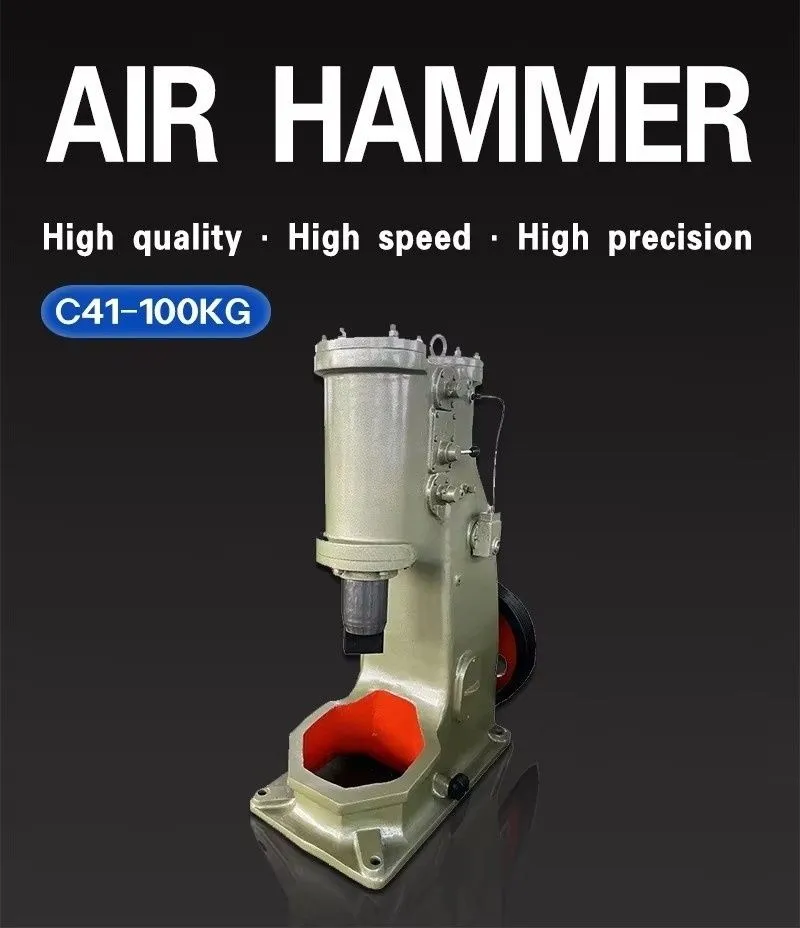

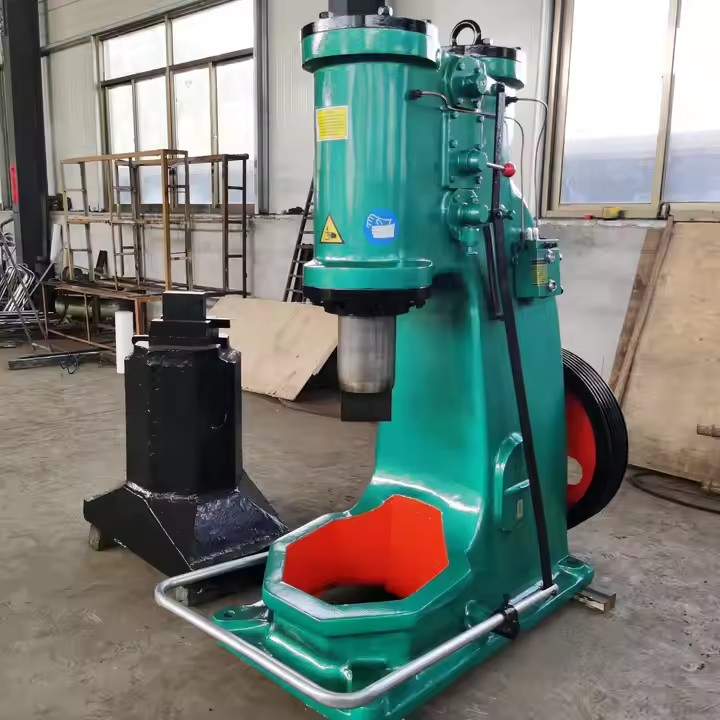

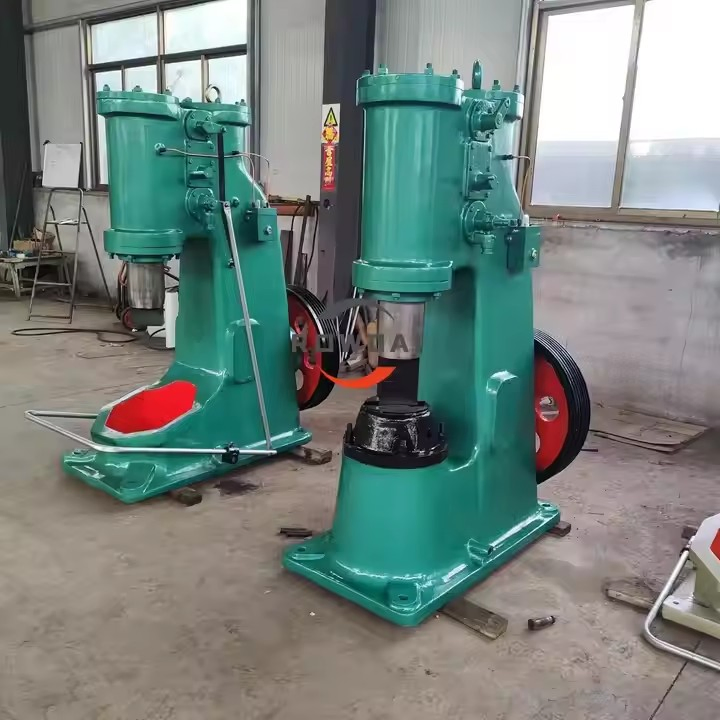

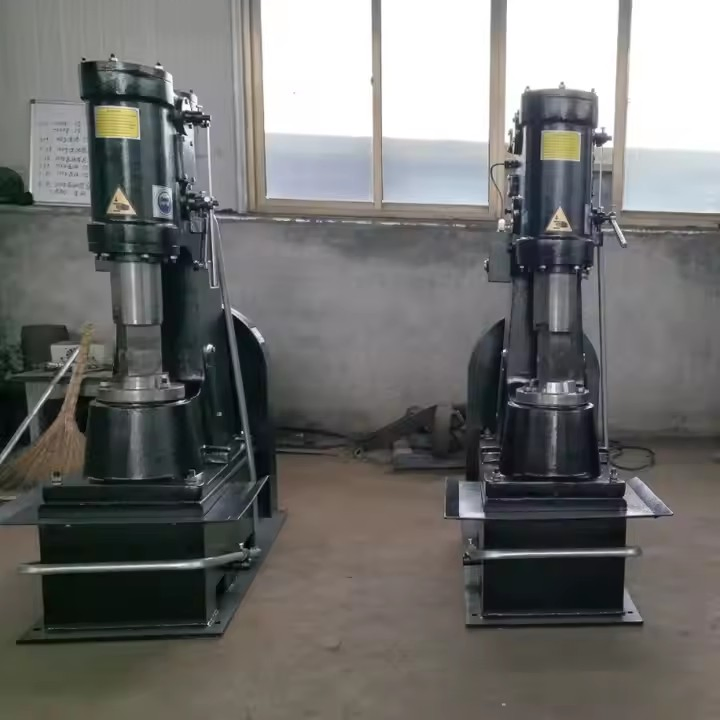

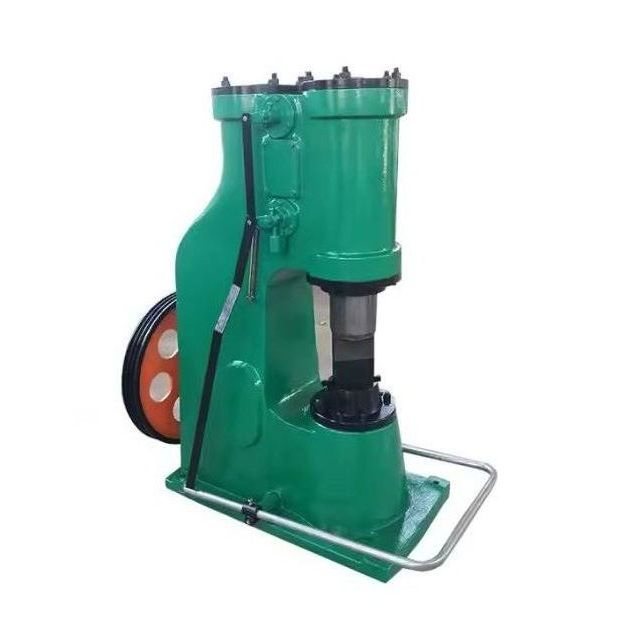

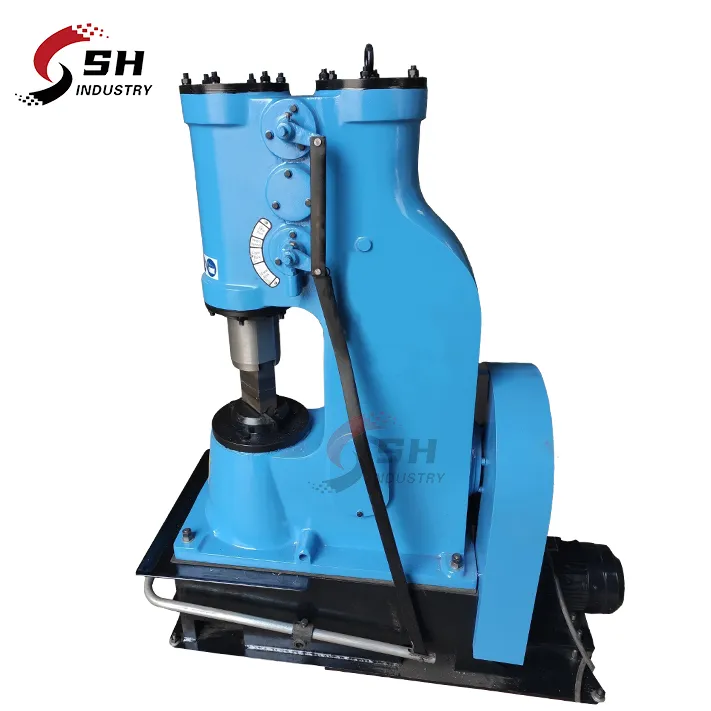

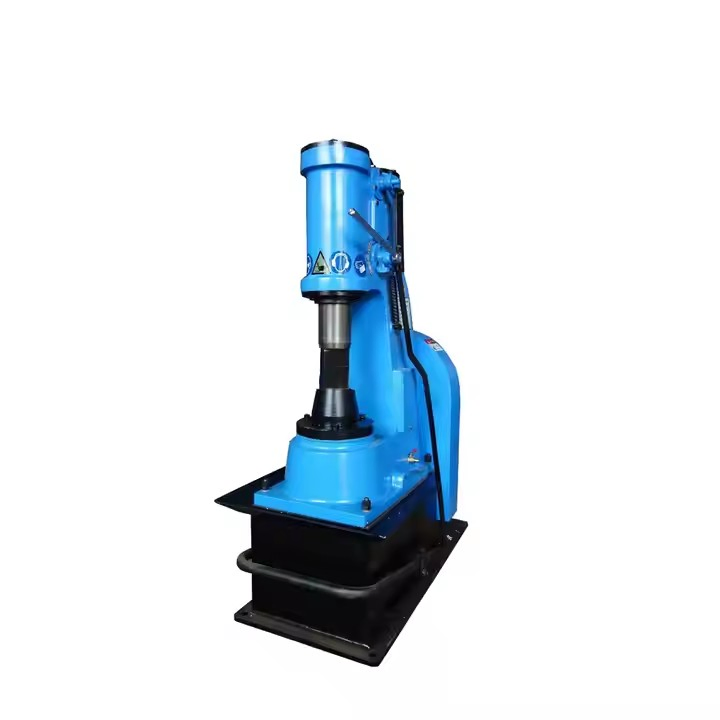

Metal Hot Sale Pneumatic Hammer Machine C41-16KG/20KG/25KG/40KG
Main Performance Characteristics
- Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control.
- The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel.
- Simple mechanism, is not easy to damage.
Application

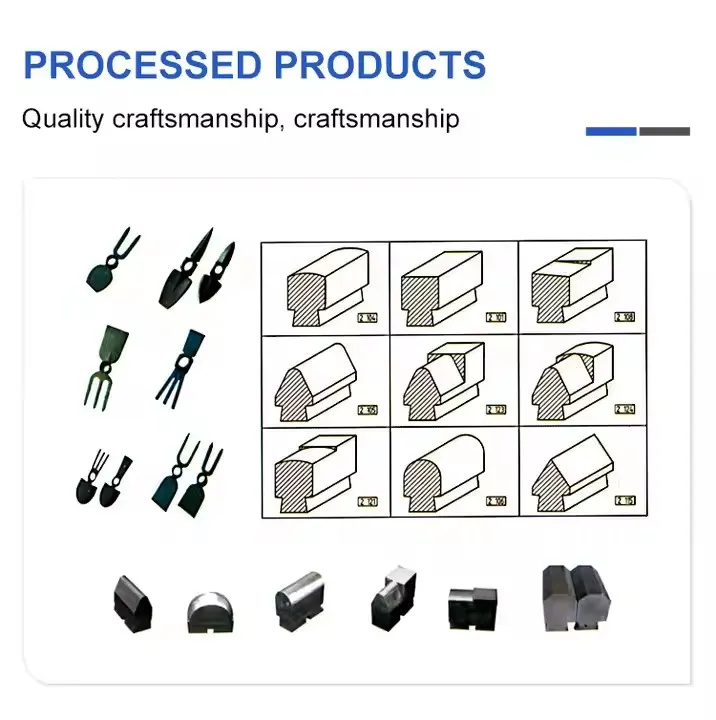

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Technical Specifications
| Specifications |
Units |
C41-16kg |
C41-20kg |
C41-25kg |
C41-40kg |
| Weight of falling parts | kg | 16 | 20 | 25 | 40 |
| Max.hit energy | Kj | 0.18 | 0.22 | 0.27 | 0.53 |
| Height of working area | mm | 180 | 200 | 240 | 245 |
| Hit number | min-1 | 258 | 255 | 250 | 245 |
| Anvil block size | mm | 70x40 | 90x50 | 100x50 | 120x50 |
| Max. square steel forged | mm | 20x20 | 30x30 | 40x40 | 52x52 |
| Max. round steel forged | mm | 22 | 35 | 45 | 68 |
| Rate power | Kw | 1.5 | 2.2 | 2.2/3.0 | 4 |
| Total weight | kg | 240 | 380 | 560 | 880 |

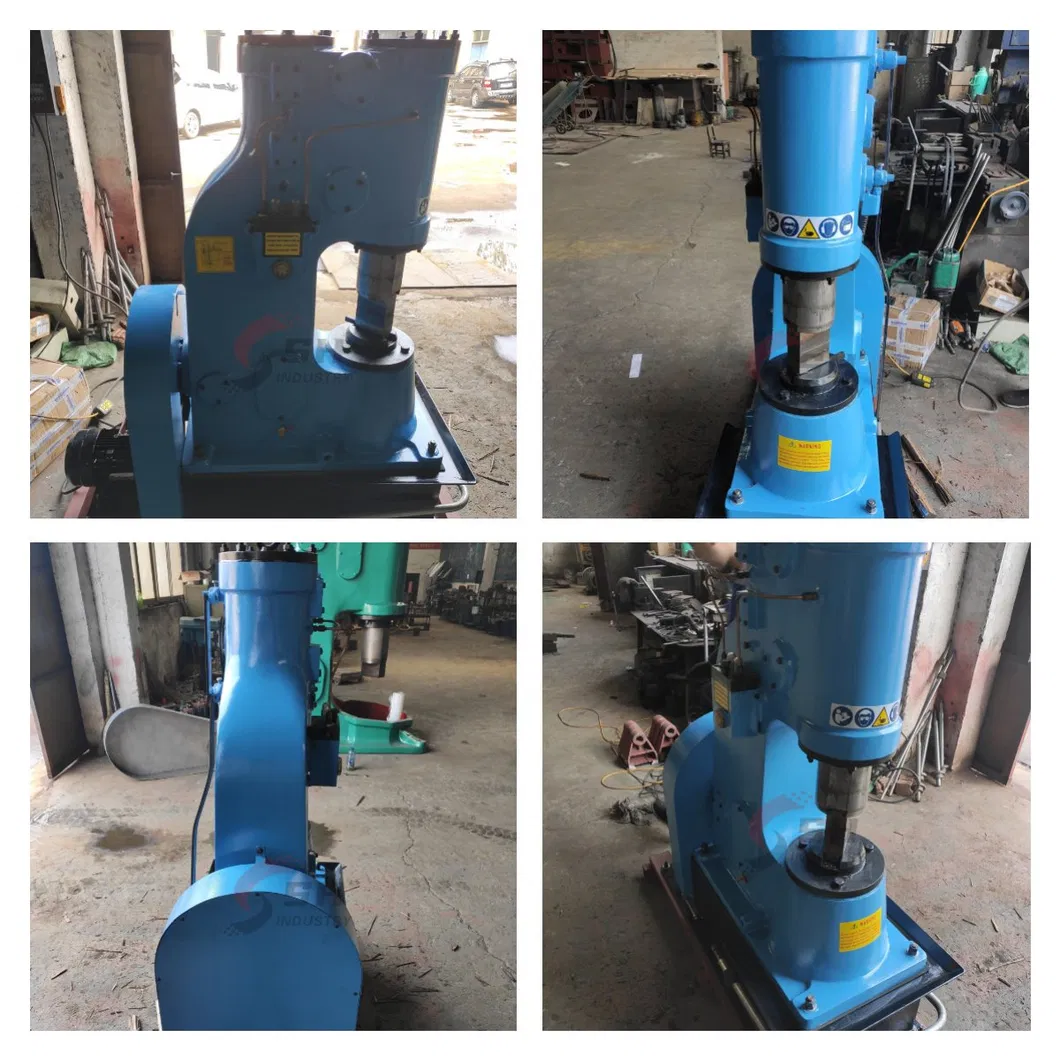

Manufacturing & Quality
Certifications & Shipping
Frequently Asked Questions
What is the warranty policy?
Warranty is one year. During the warranty time, if the parts are damaged because of non-human factors, we will send new replaced parts for free.
How do you offer after-sale service?
We offer technical support online. Customers can describe the problems and send videos or pictures, and our technicians will help to solve them.

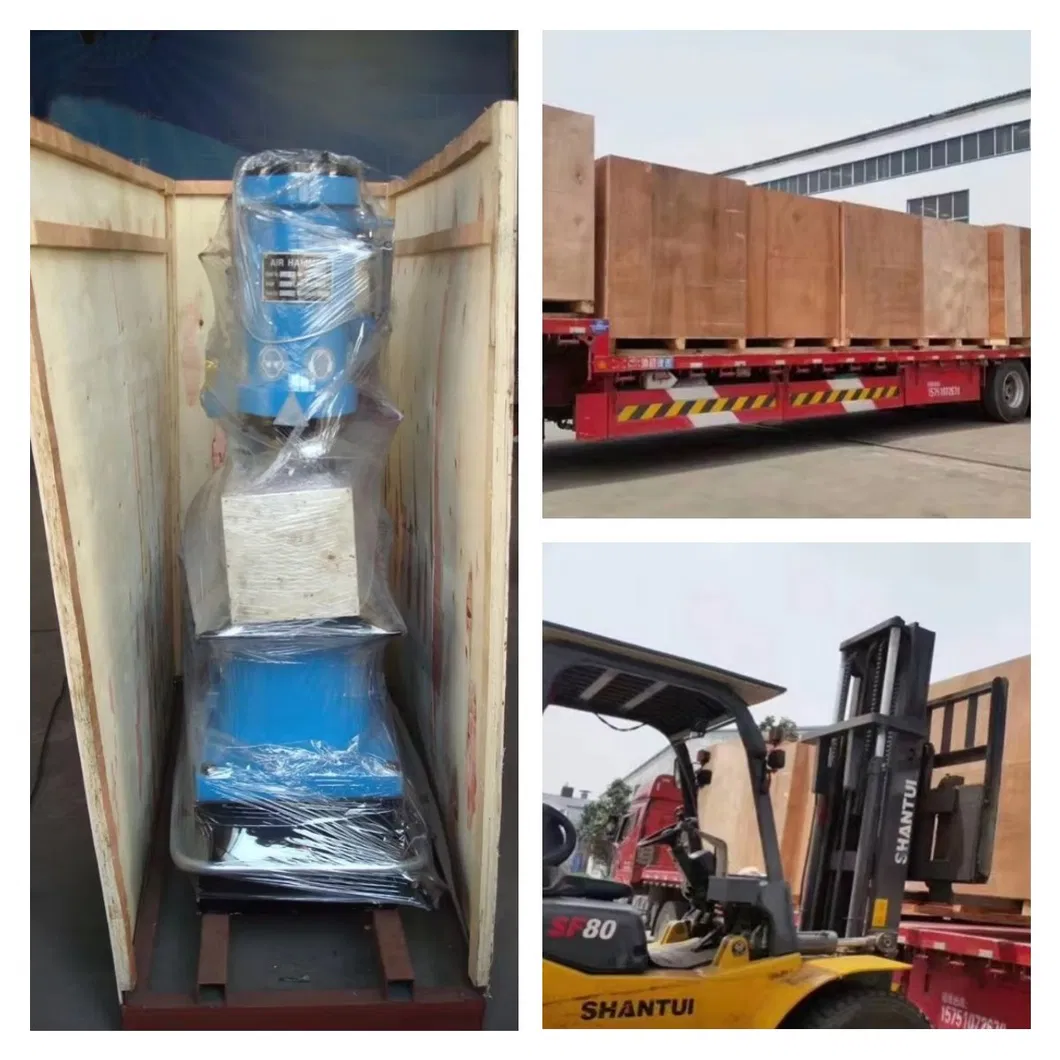

What is your standard packaging?
Our standard packaging is an export-grade plywood case with a pallet to ensure safe transportation.
What are the Payment Terms?
We accept T/T, with a 30% initial payment when ordering and 70% balance payment before shipment.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity is 1 set.
