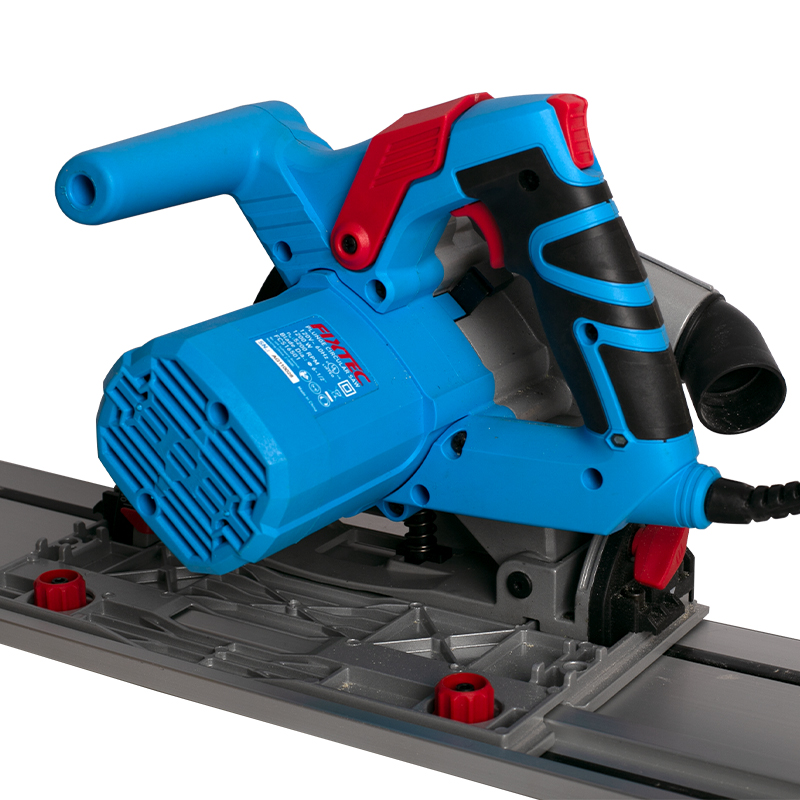

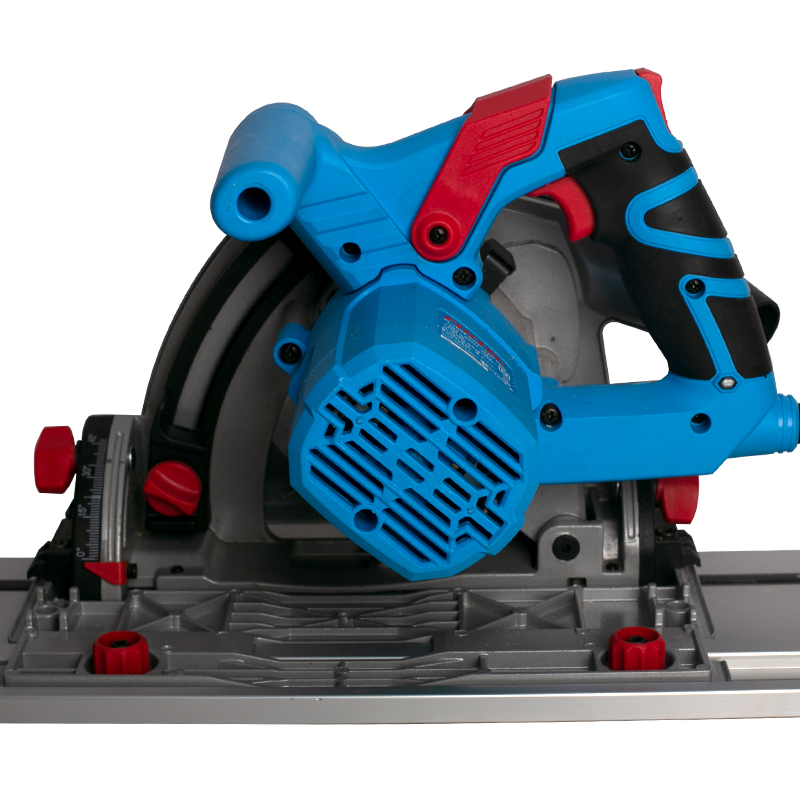

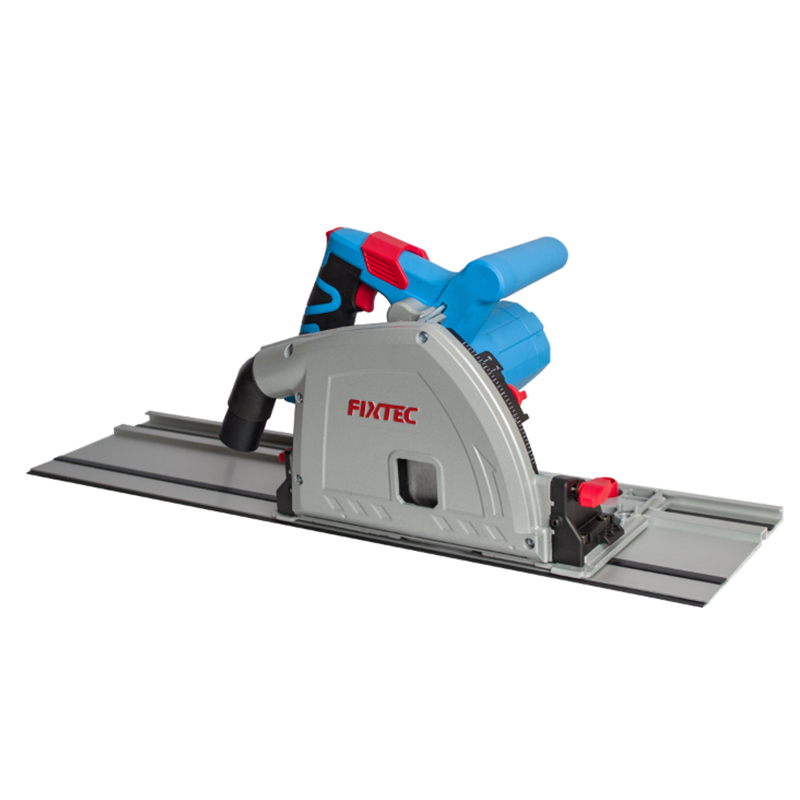

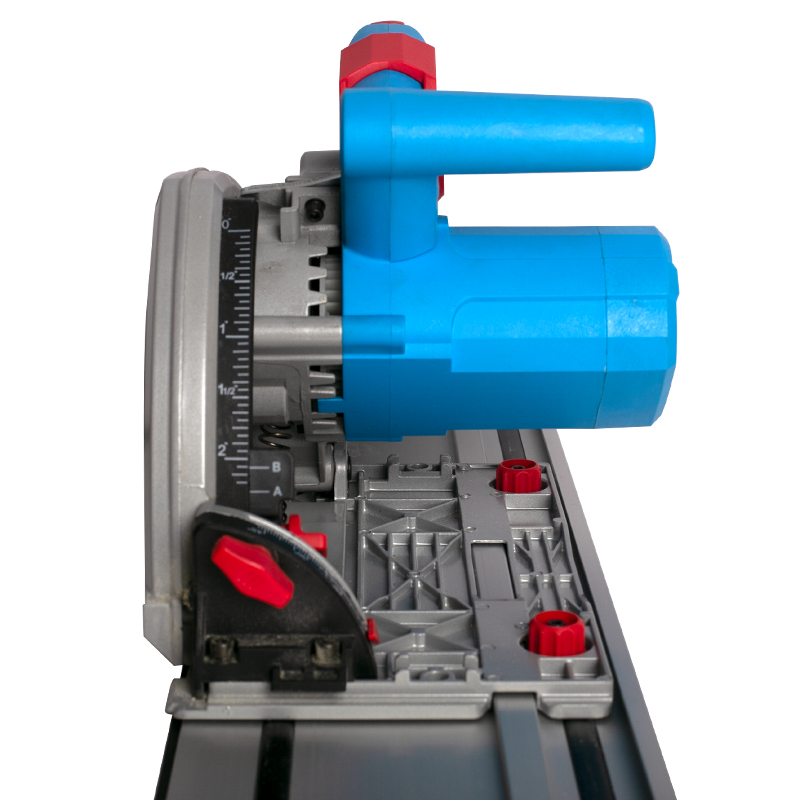

FIXTEC Power Tools 165mm Electric Plunge Cut Circular Track Saw with Guide Rail

Send Inquiry

Product Description

Product Category

Product Description

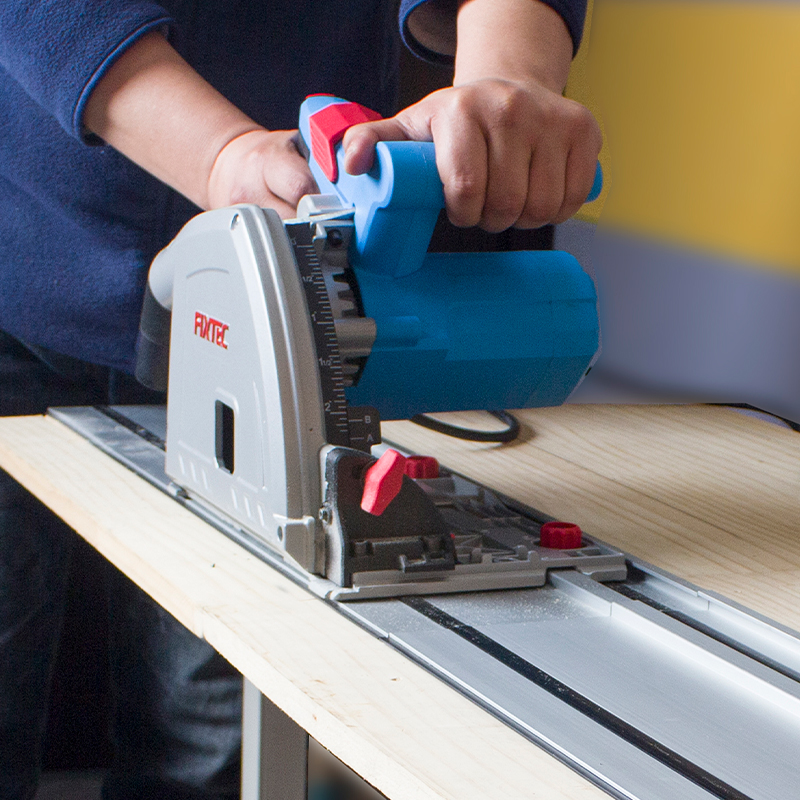

Woodcutting Projects This track saw circular saw is great for plywood and solid wood, with the orbital circular saw for perfectly straight cuts, it is a great cutting power tool for the workshop.
Nice Cutting This track saw is equipped with the carbide blade for sharpness and straight cuts. 24-tooth carbide-tipped fully shrouded blade. With a bevel angle control from 0°- 90°, you can achieve the precise bevel cutting.
Solid Guide Rails This saw guide rail is made of aluminum for high performance and sturdy use. Easy to clean. With two 70cm guide rails and a large base size, you can use this 1200W track circular saw to finish long and large timber materials, increasing your work efficiency.

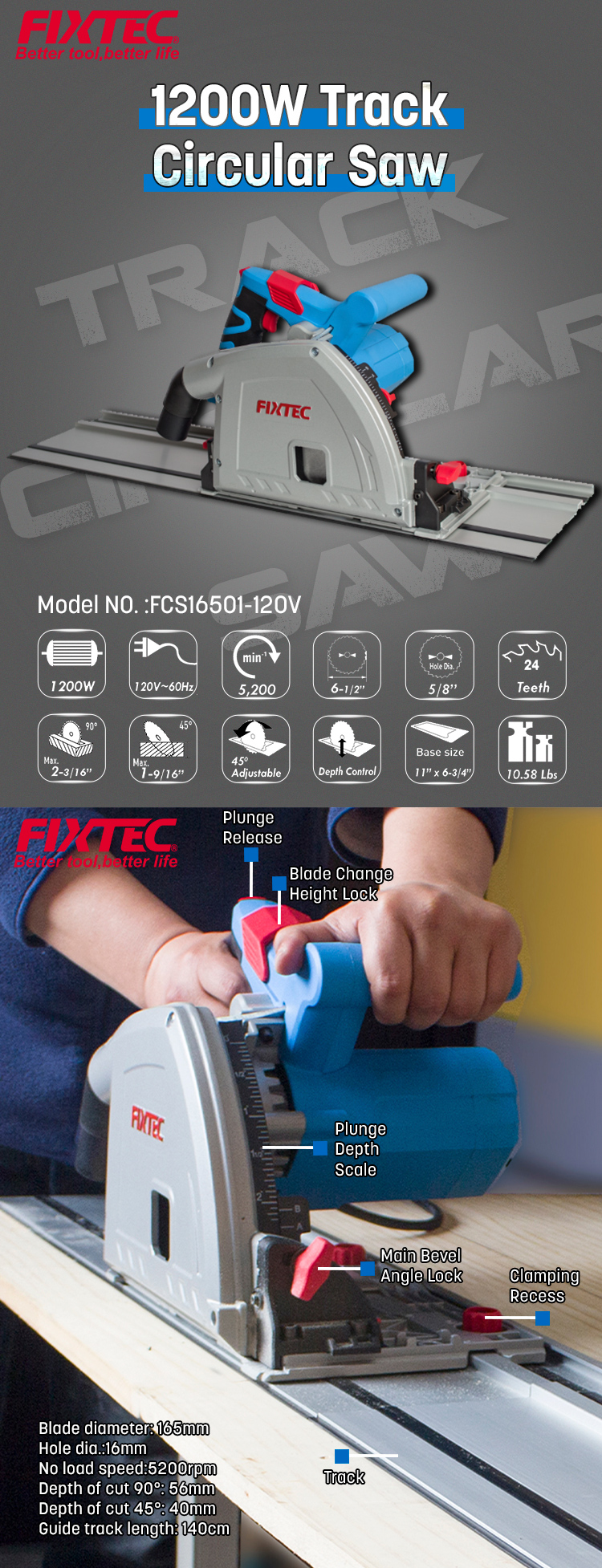

Technical Specifications

Product name	Circular Saw Guide Track Saw
Model No.	FCS16501-120V
Voltage	120V~60Hz
Rated Input Power	1200W/10A
No Load Speed	5200r/min
Hole Dia	16mm
Blade diameter	165mm (6 1/2'')
Cutting capacity	Depth of cut 90°: 56mm; Depth of cut 45°: 40mm
Guide track length	140cm
Accessories	Guide Rail track 70cm X2pcs, Clamps X 2pcs, Blade key X 1pc
Qty/ctn	2pcs
Carton size	5763228cm
NW./GW.	16.7kg/18kg

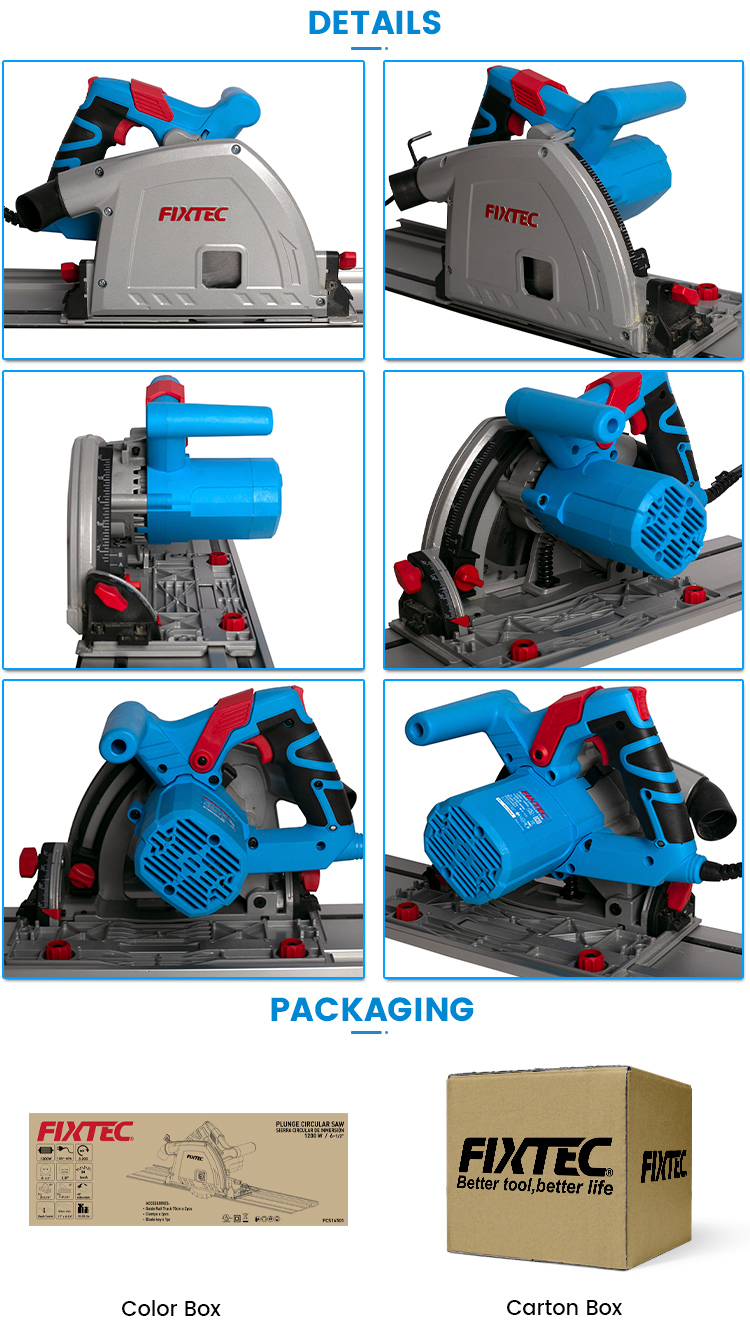

Product Details

Frequently Asked Questions

What is the maximum cutting capacity of this track saw?

This track saw delivers a depth of cut up to 56mm at a 90-degree angle, and up to 40mm at a 45-degree bevel angle.

Are the guide rails included in the package?

Yes, the package comes with two 70cm guide rails (totaling 140cm), along with 2 clamps and 1 blade key for quick installation.

What is the blade size required for replacement?

The circular saw uses a 165mm (6 1/2 inches) diameter carbide-tipped blade with a 16mm hole/bore diameter.

Can I perform bevel cuts with this model?

Yes, the track saw features an adjustable bevel control scale allowing you to achieve precise bevel cuts from 0 to 90 degrees.

What is the power input and speed specification?

It features a rated input power of 1200W (10A) operating at 120V~60Hz, with a no-load speed reaching up to 5200r/min.
