Product Description

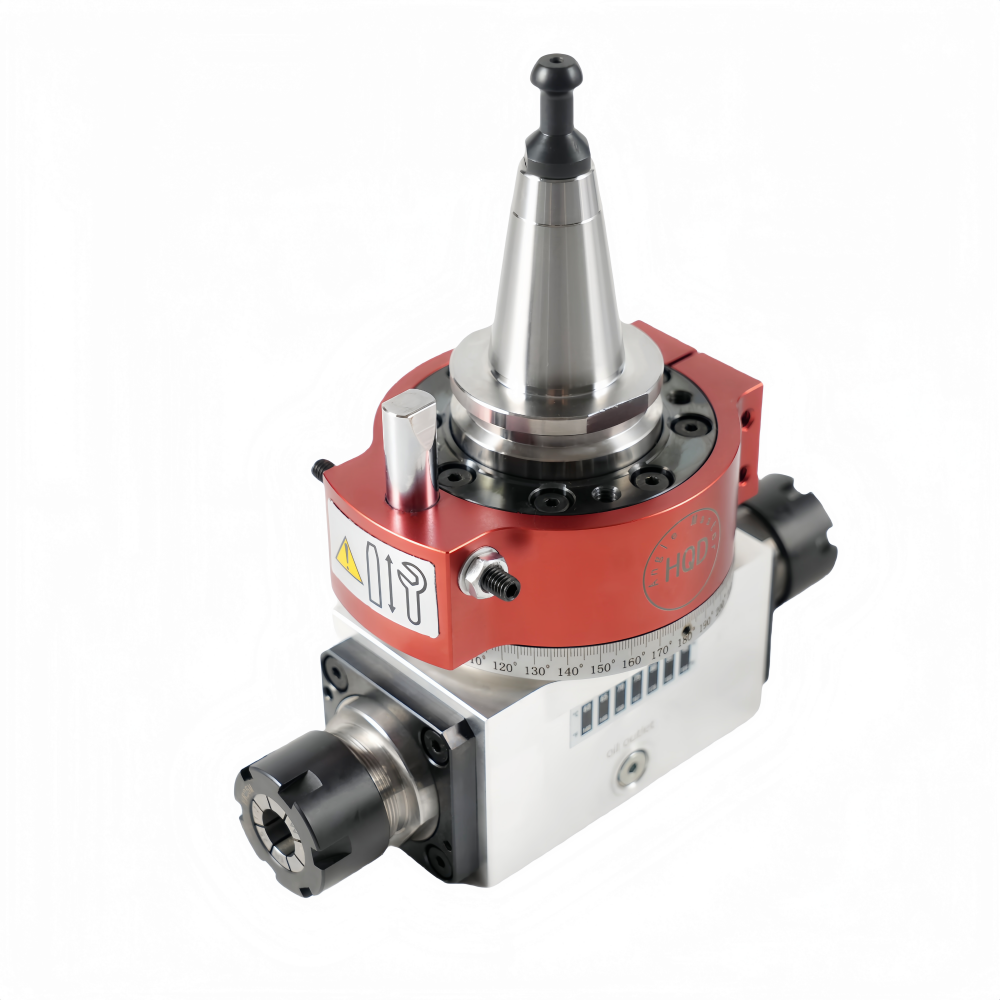

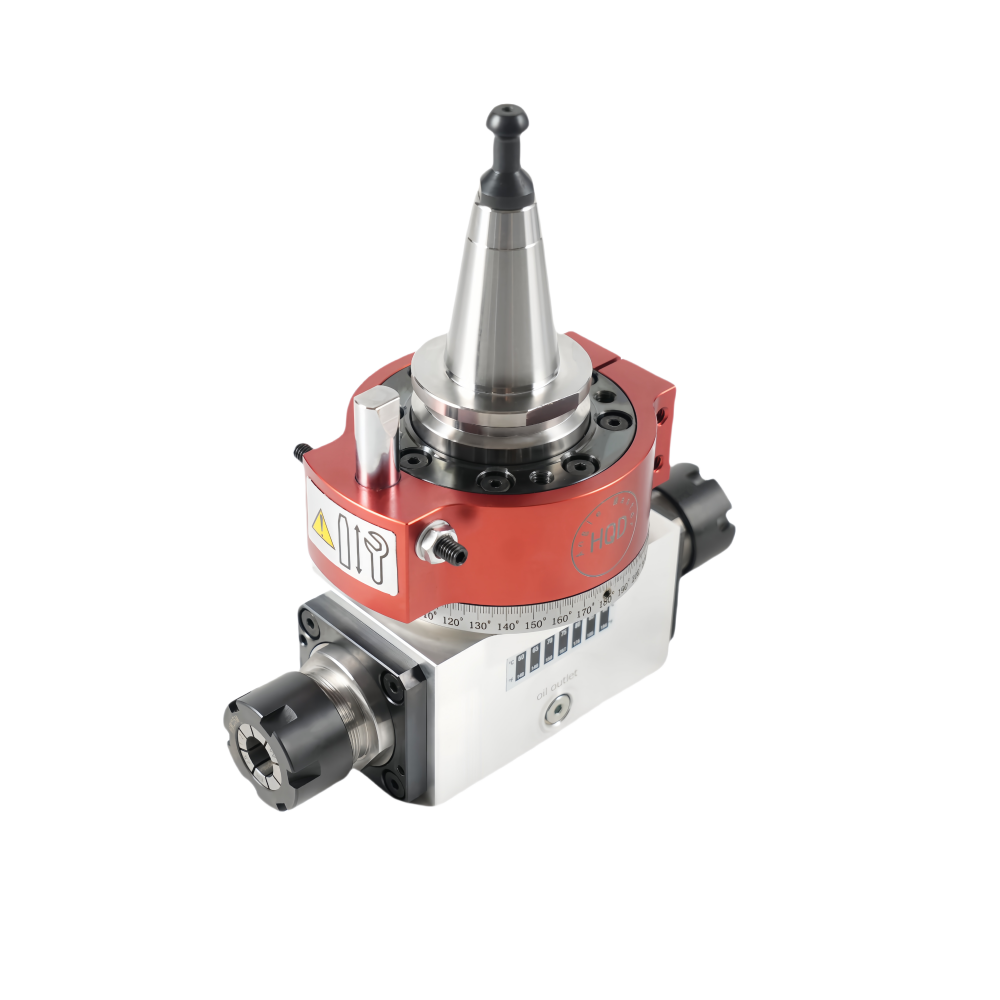

ISO30-ER25 two sides Angle Head Aggregates

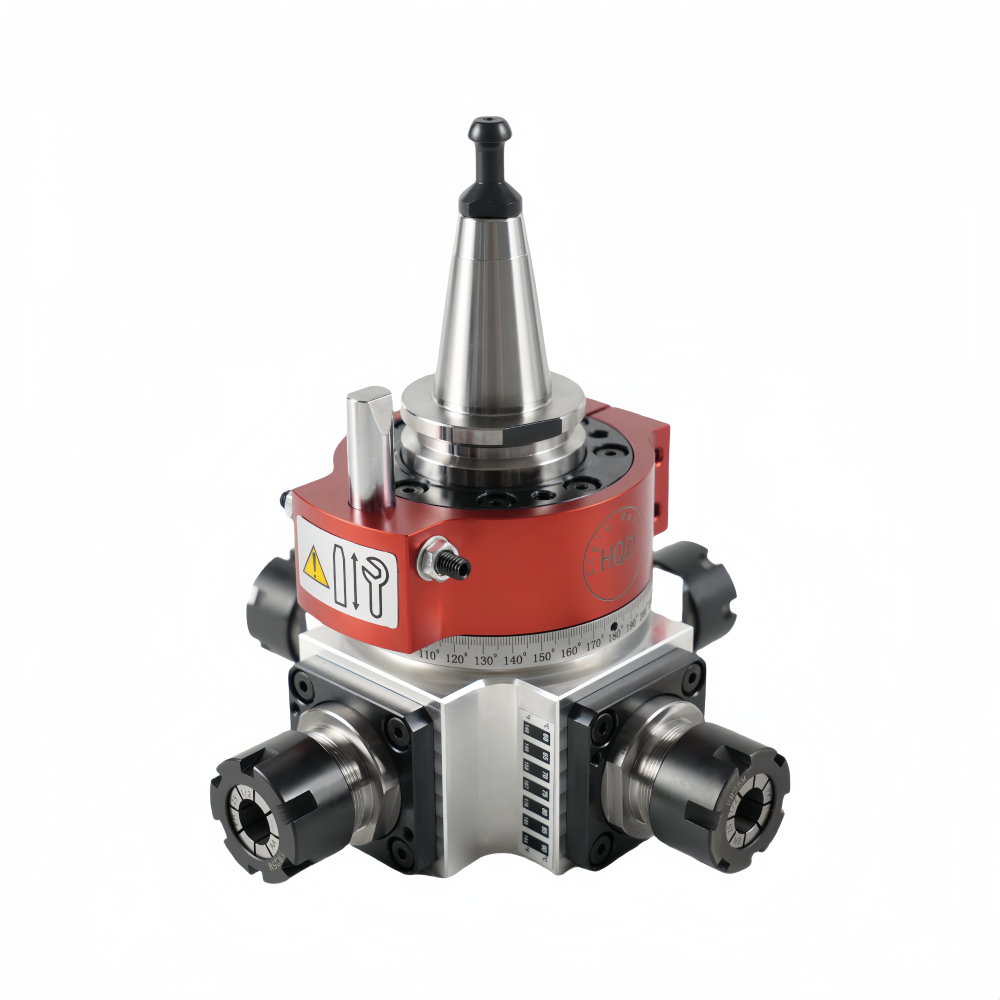

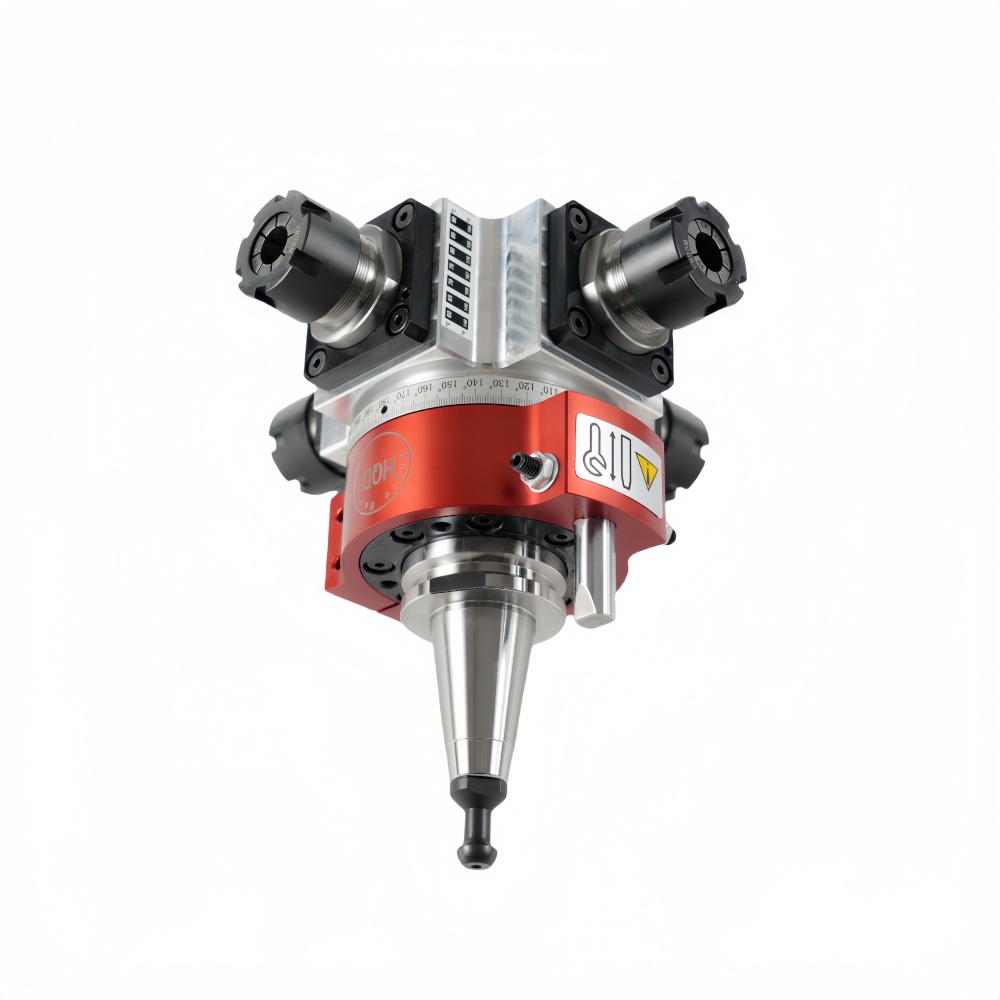

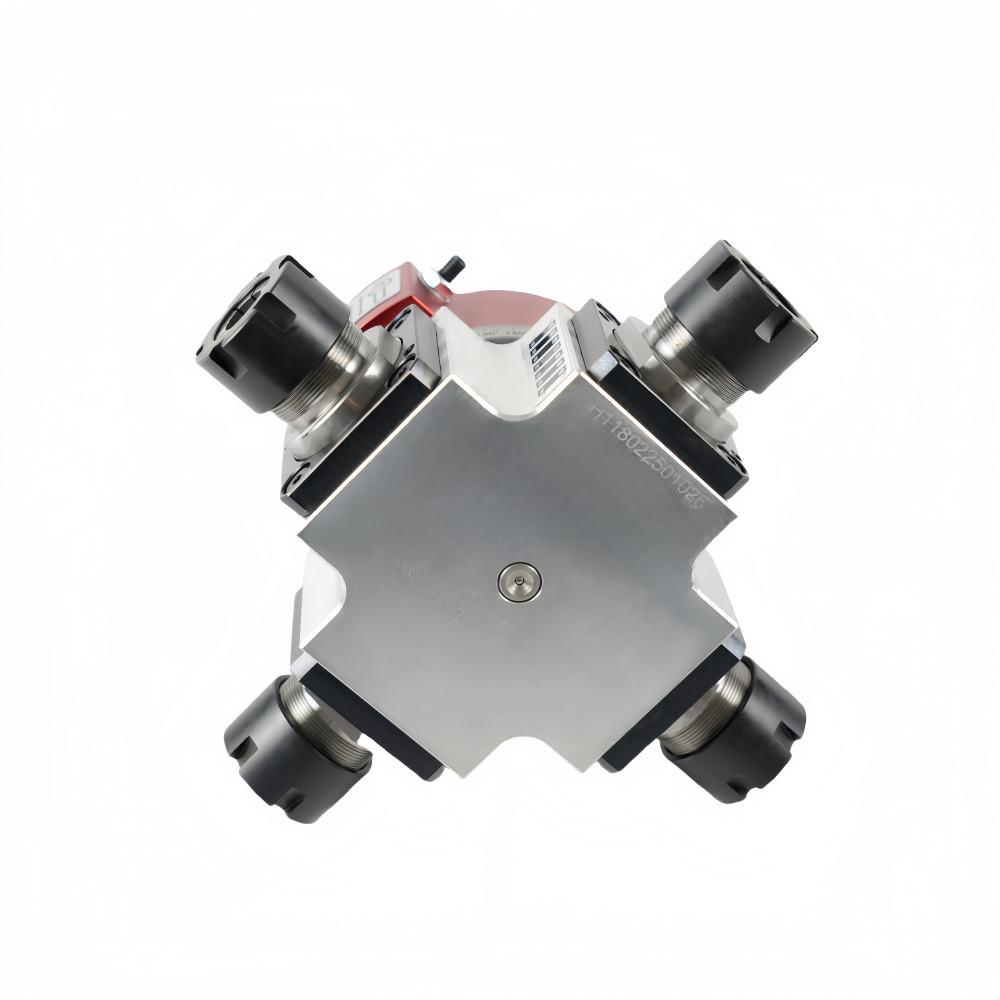

ISO30-ER25 four sides Angle Head Aggregates
| Max Input Speed |
8400rpm |
Input Terminal |
ISO30 |
| Max Output Speed |
12000rpm |
Output Terminal |
ER25 |
| Reduction Ratio |
1: 1.43 |
Lubrication |
Grease |

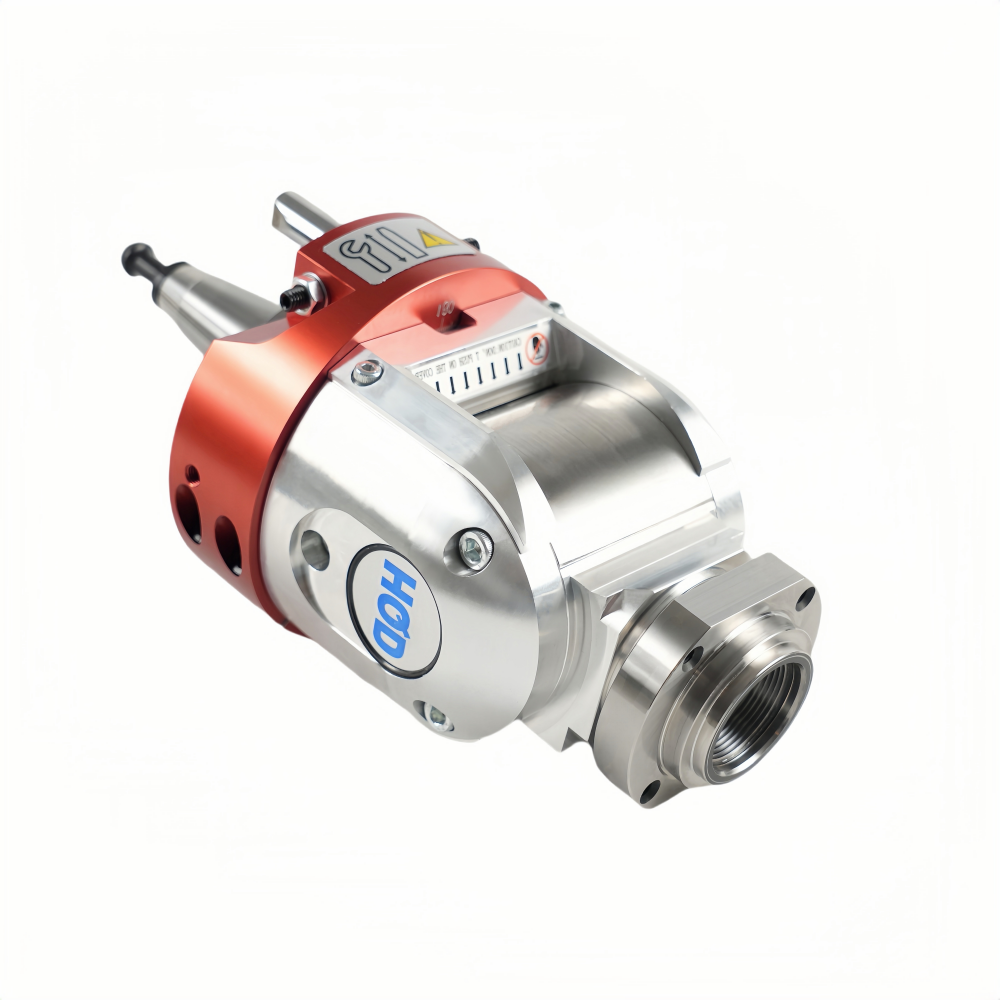

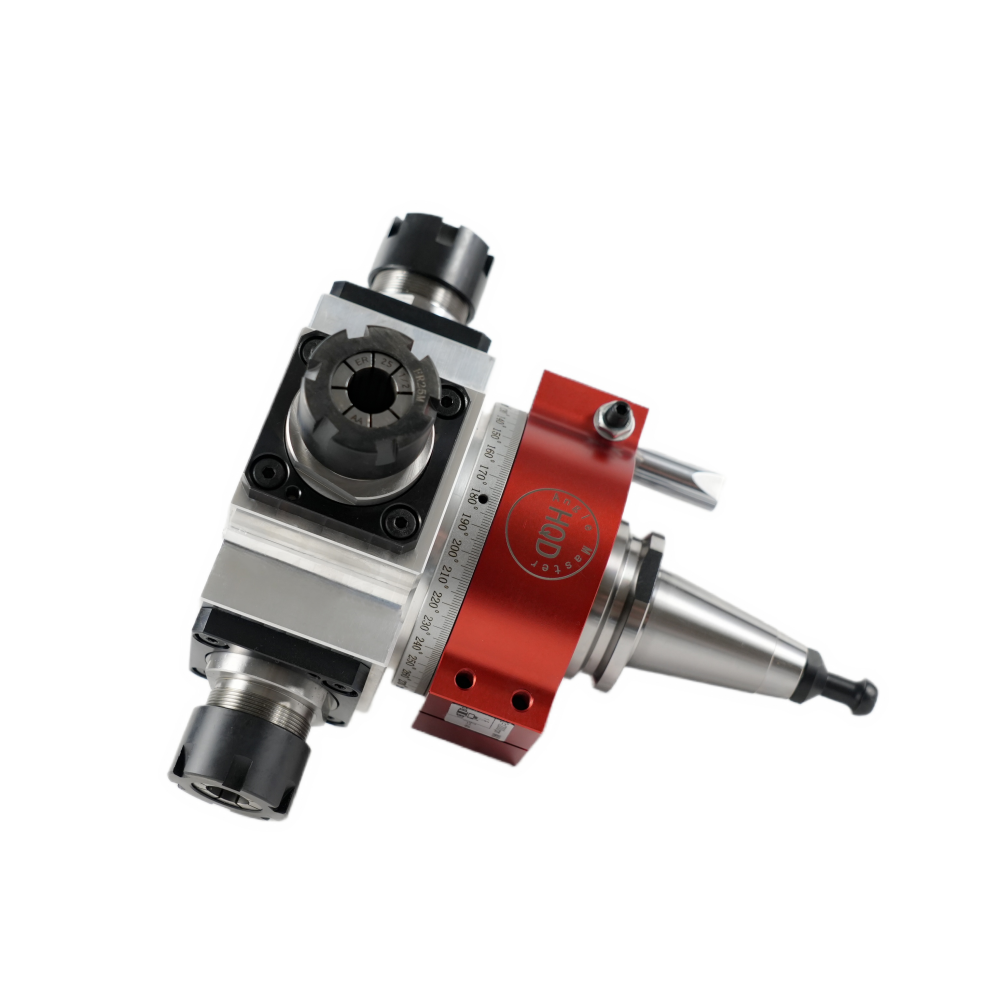

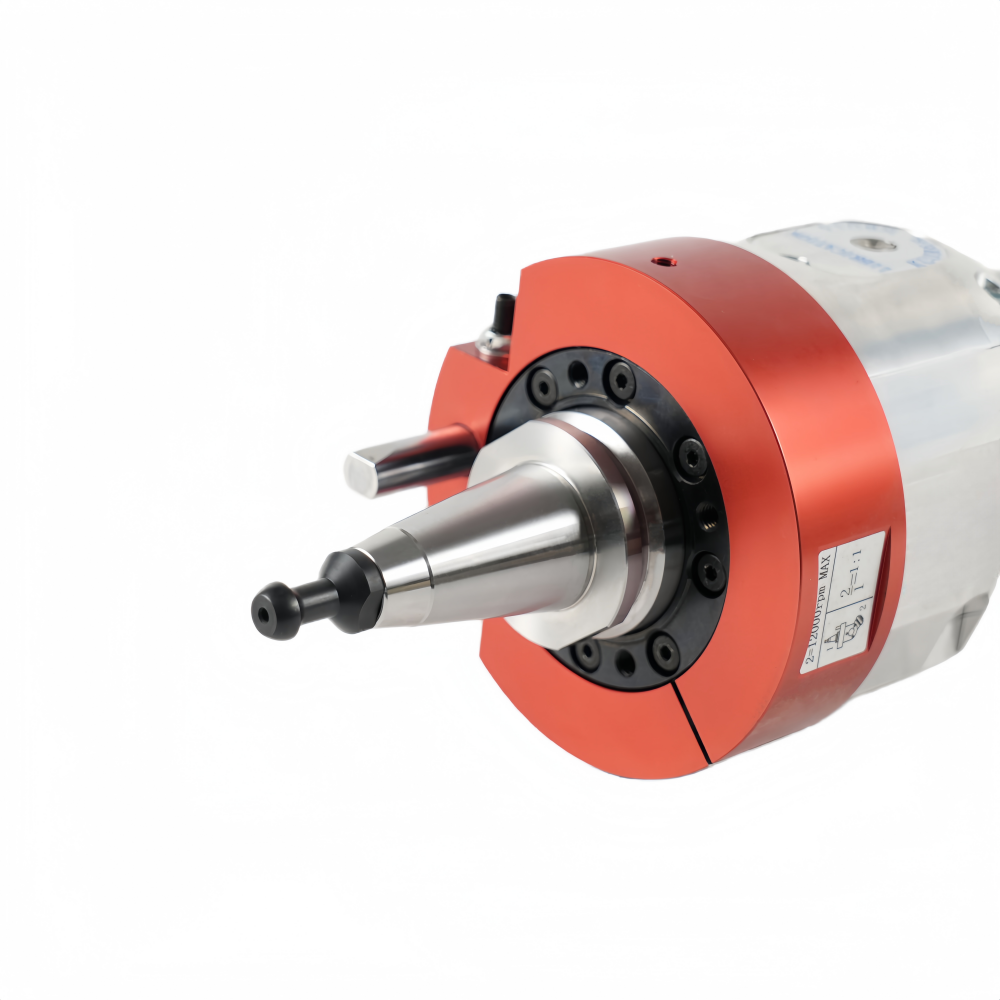

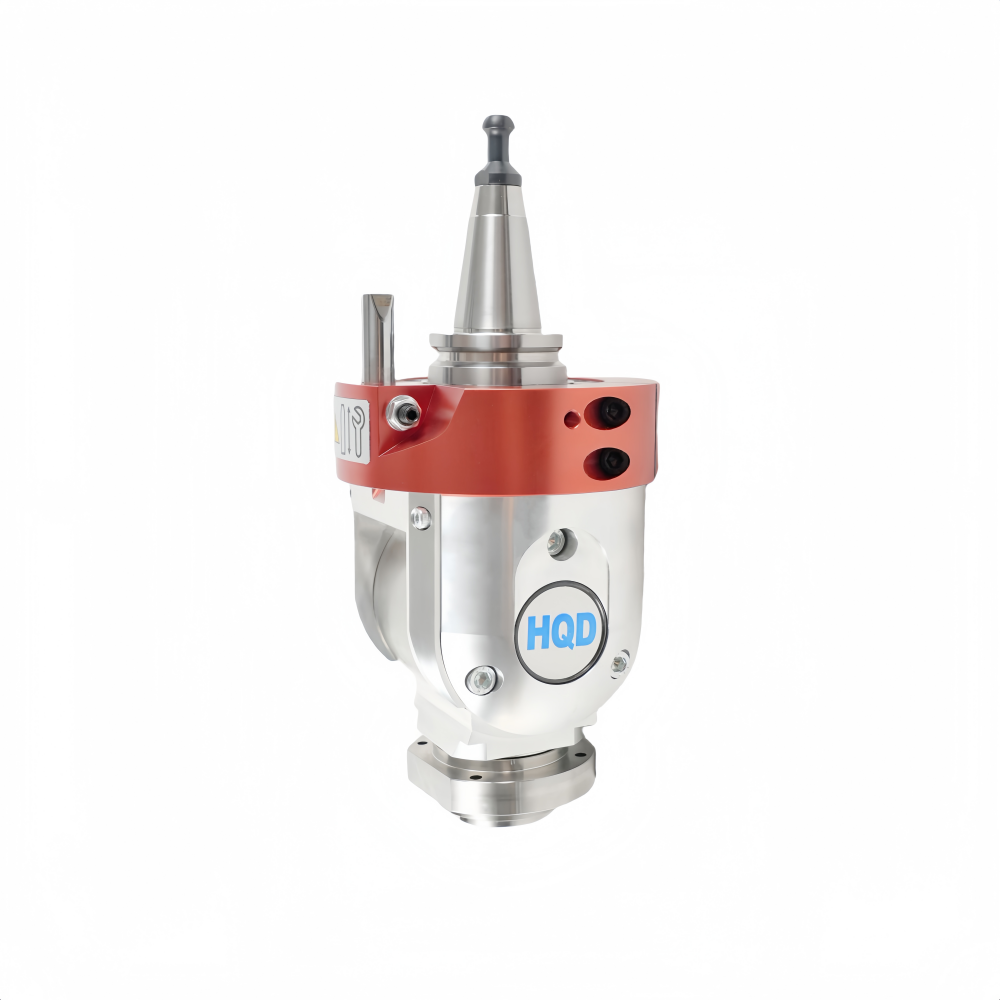

Adjustable ISO30 Angle Head Aggregates

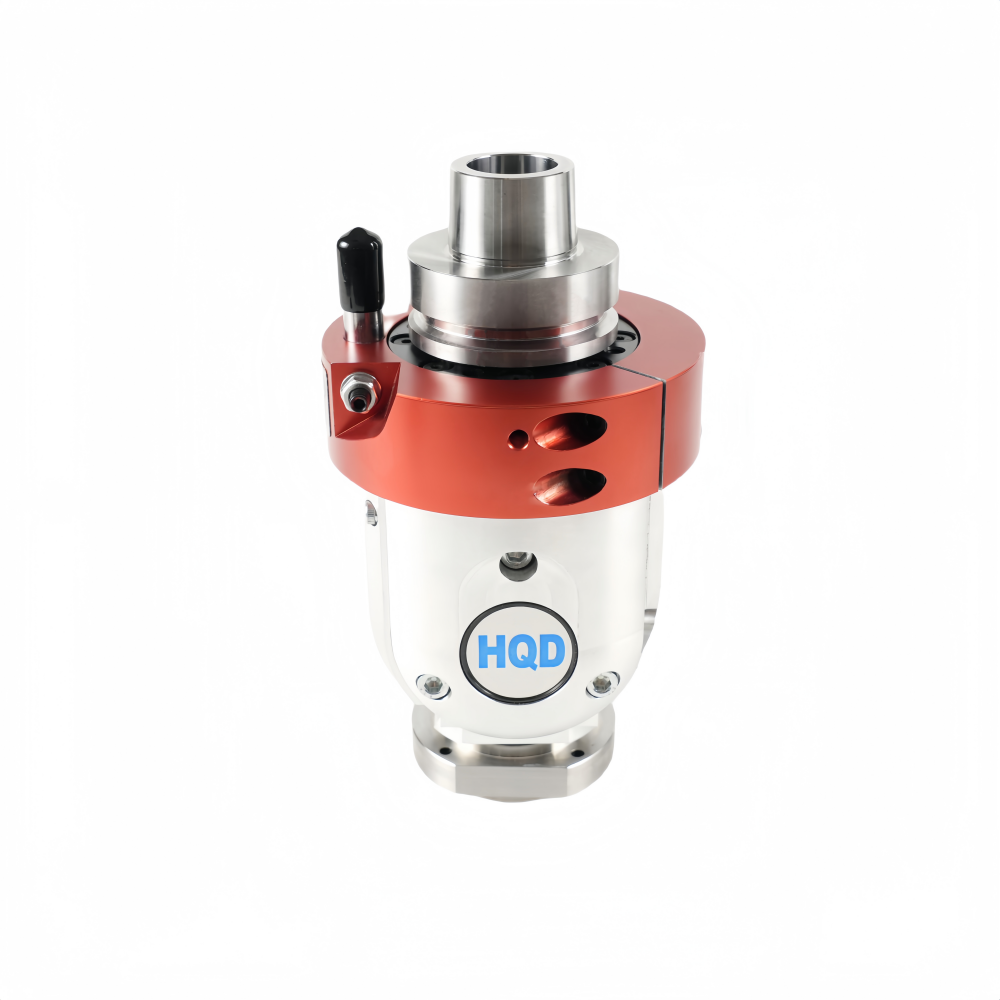

Adjustable HSK63F Angle Head Aggregates
| Spindle Rotation Speed |
7000rpm - 12000rpm max |
Tool Diameter |
1-16mm |
| Tool Rotation Speed |
7000rpm - 12000rpm max |
Max Bit Diameter |
16mm |
| Speed Ratio |
1:1 |
Blade Diameter |
180mm max |
| Spindle Coupling |
ISO30 / HSK63F |
Lubrication |
Grease |

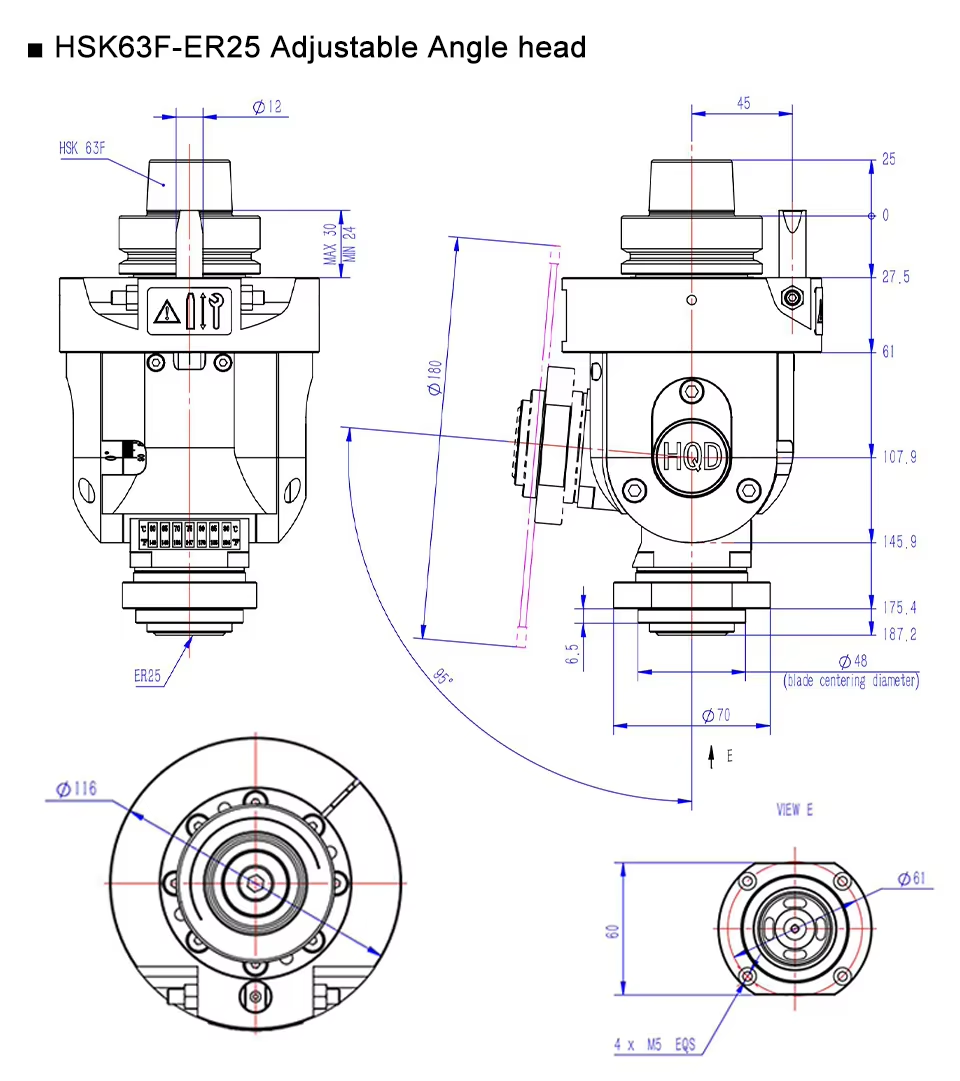

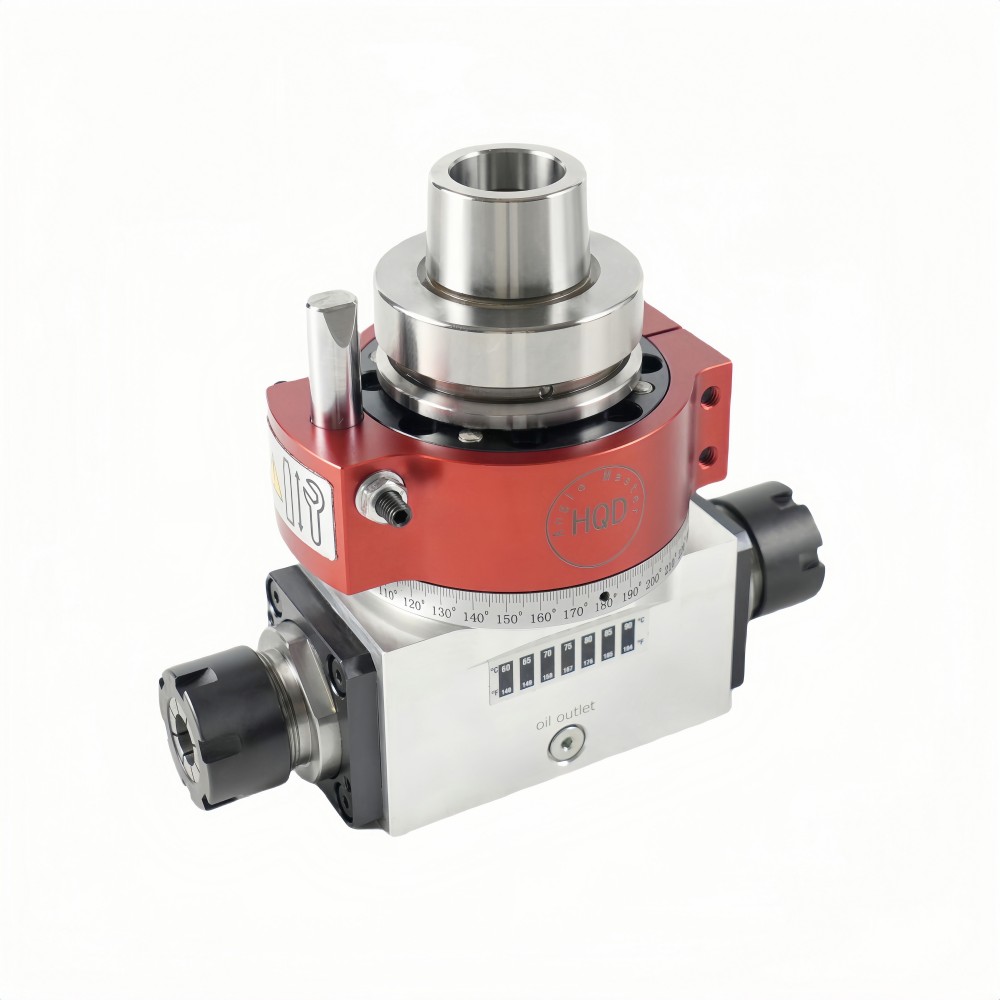

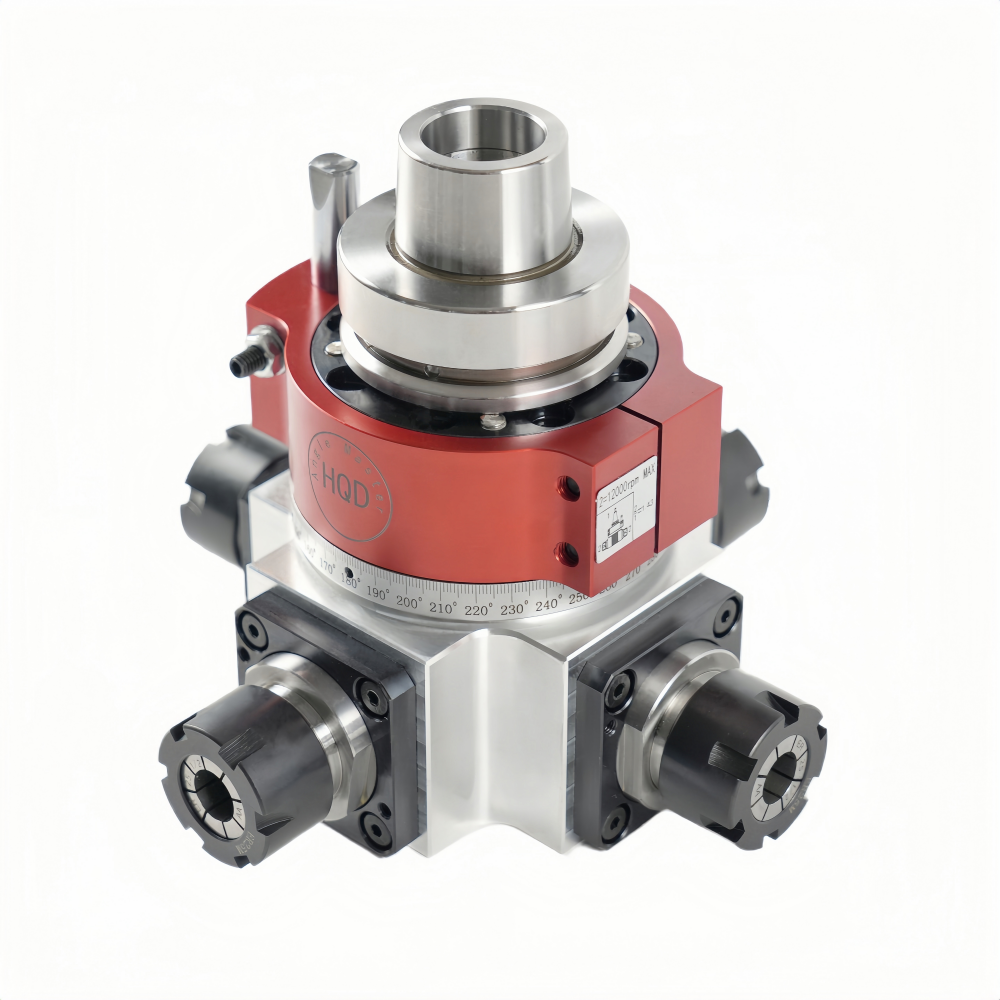

HSK63F-ER25 two sides Angle Head Aggregates
HSK63F-ER25 two sides Angle Head Aggregates
| Max Input Speed |
8400rpm |
Input Terminal |
HSK63F |
| Max Output Speed |
12000rpm |
Output Terminal |
ER25 |
| Reduction Ratio |
1: 1.43 |
Lubrication |
Grease |

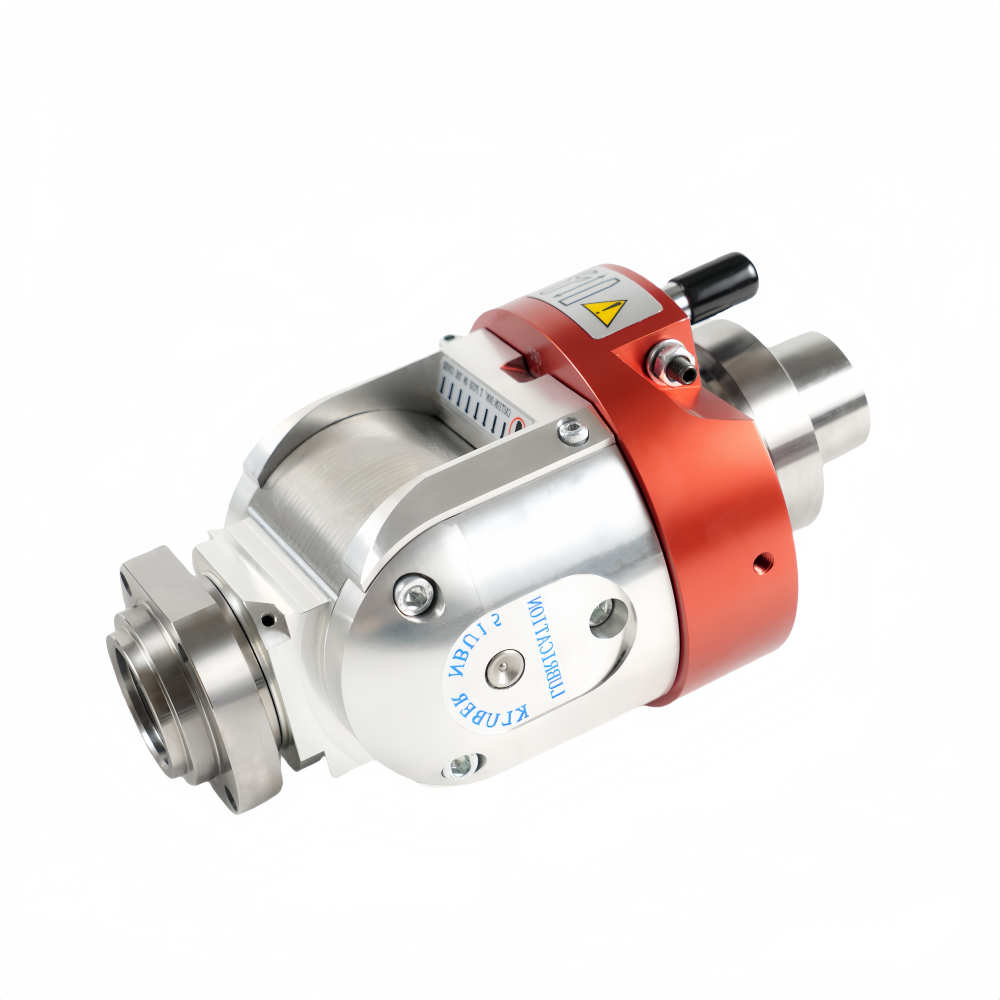

HSK63F Aggregates

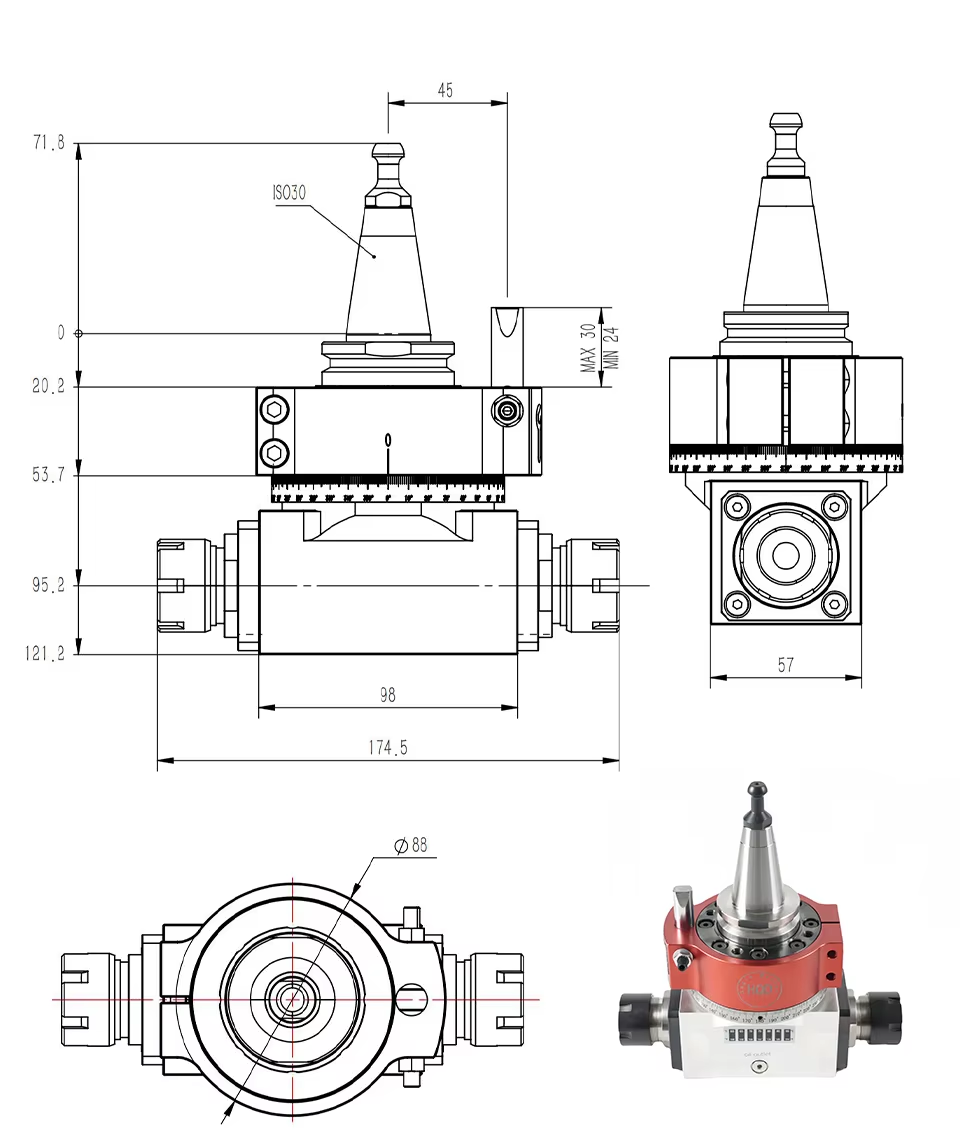

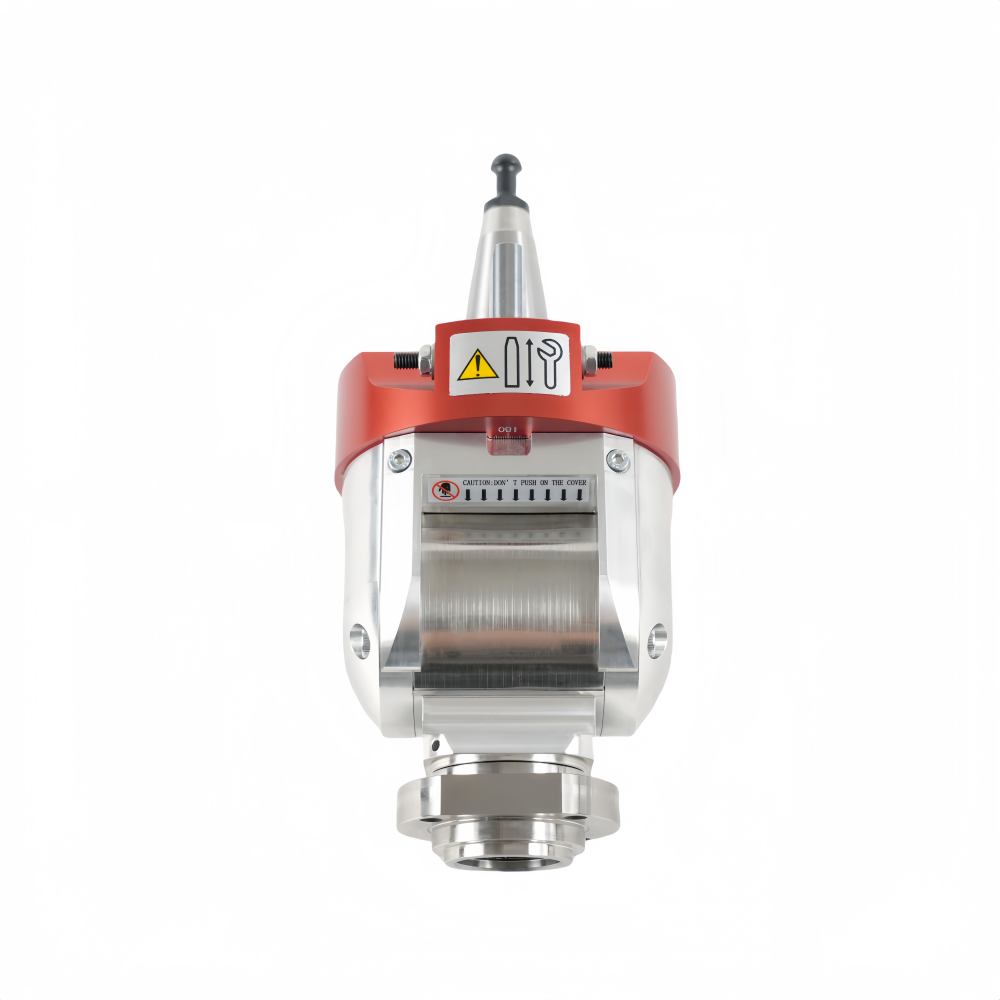

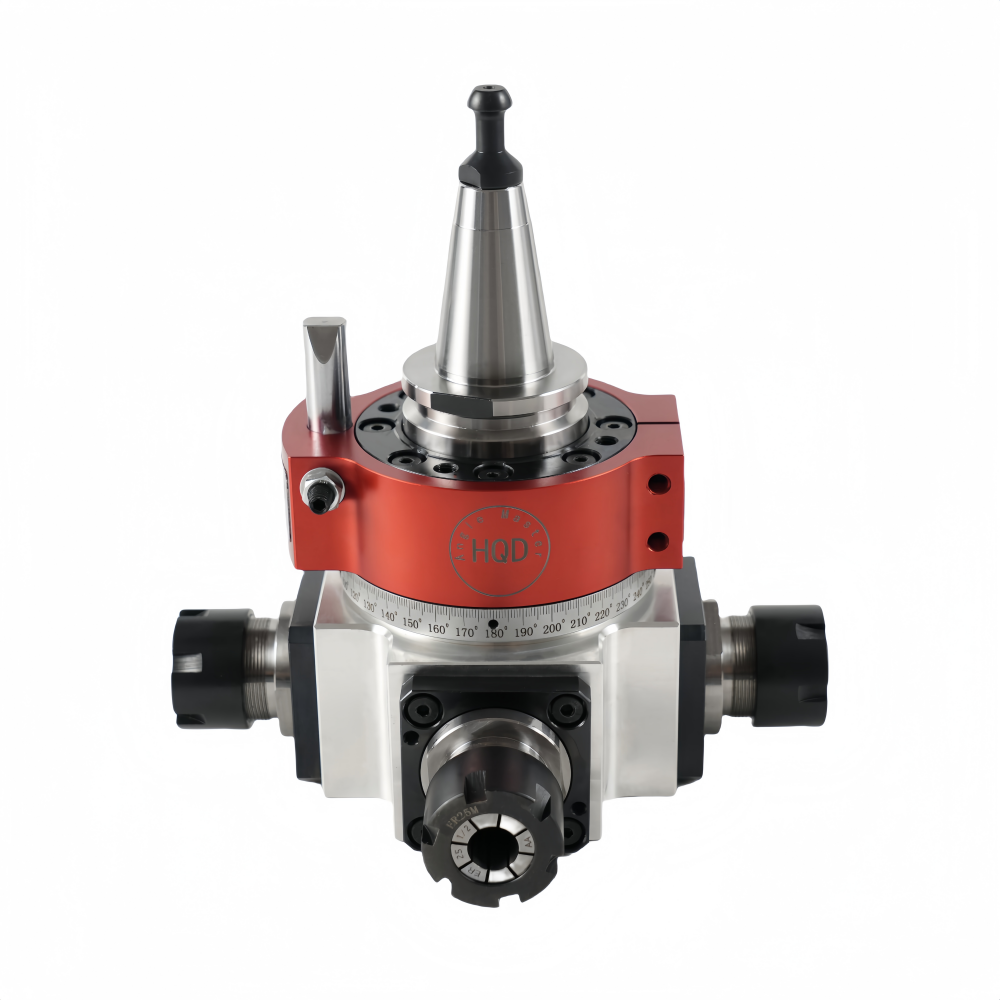

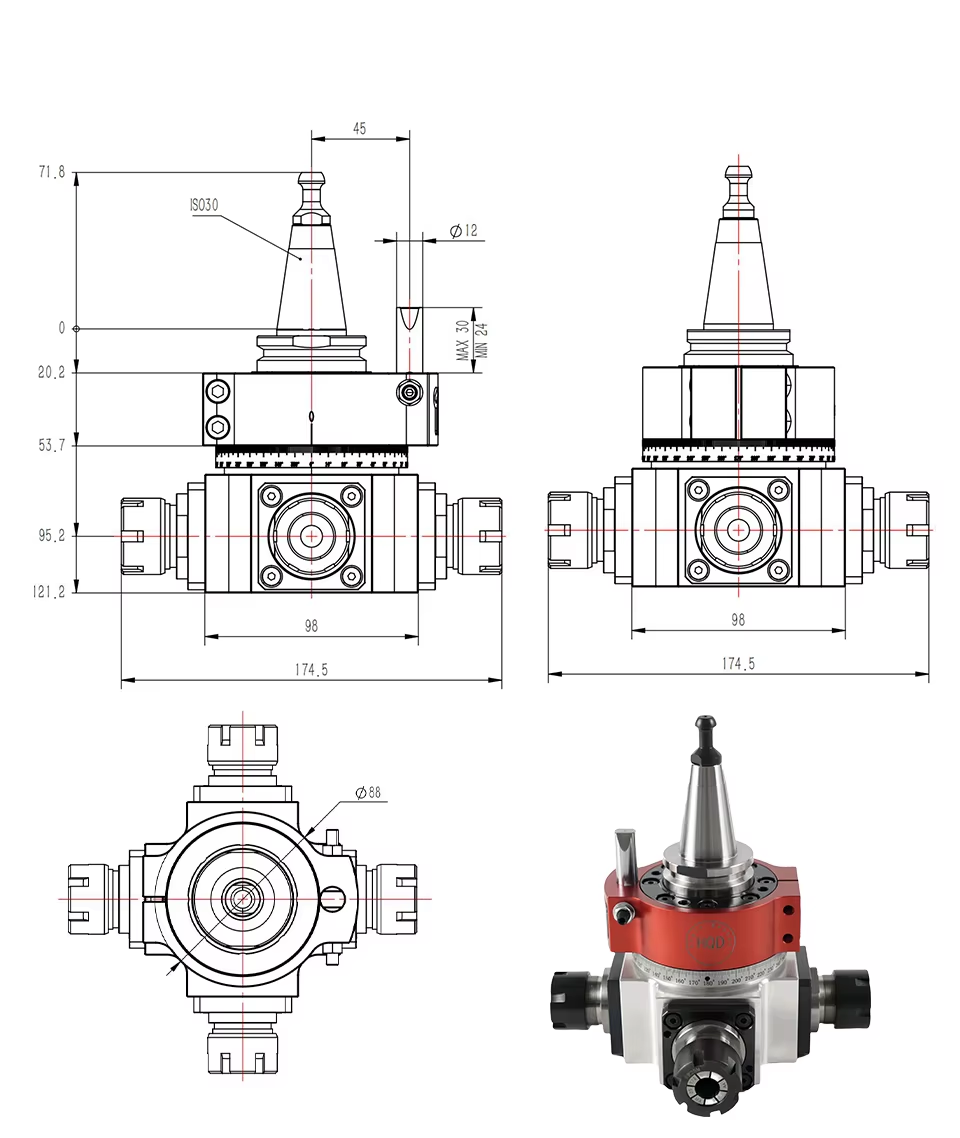

ISO30 Aggregates

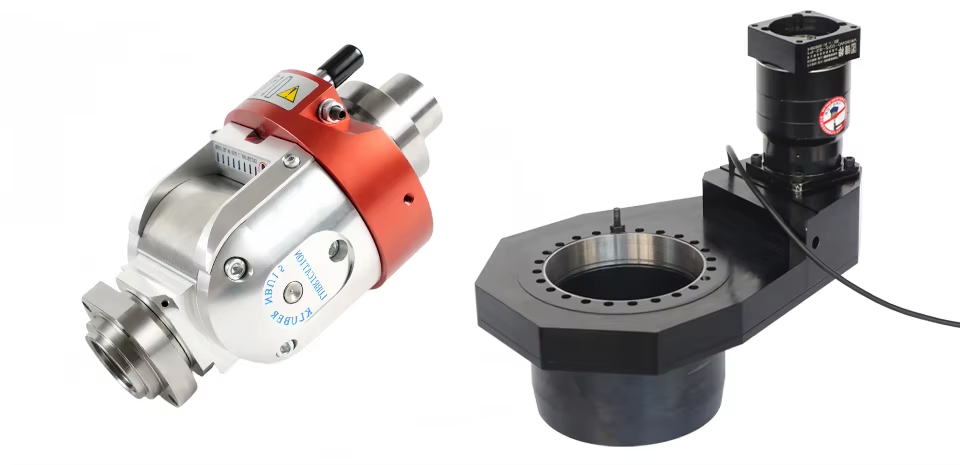

Core features of Aggregates
- The input terminal is ISO30 or HSK63F, and the output terminal is ER25
- The adjustable Angle range of the milling cutter head is 0° to 95°
- When using the milling cutter, the maximum speed can reach 12000 RPM; When the saw blade is used, the maximum speed can reach 7000 RPM

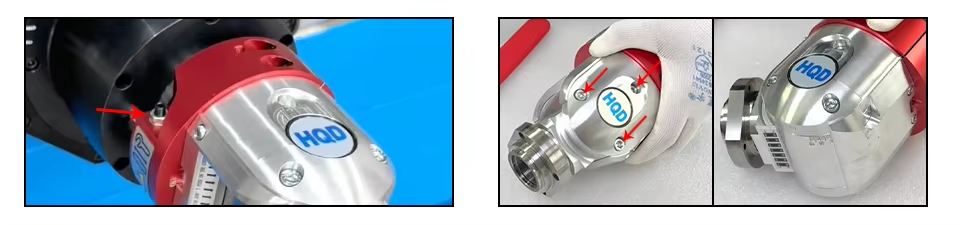

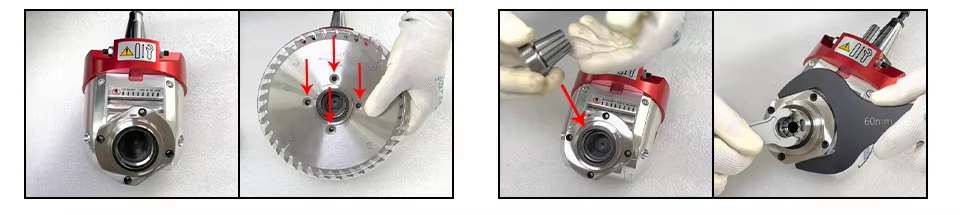

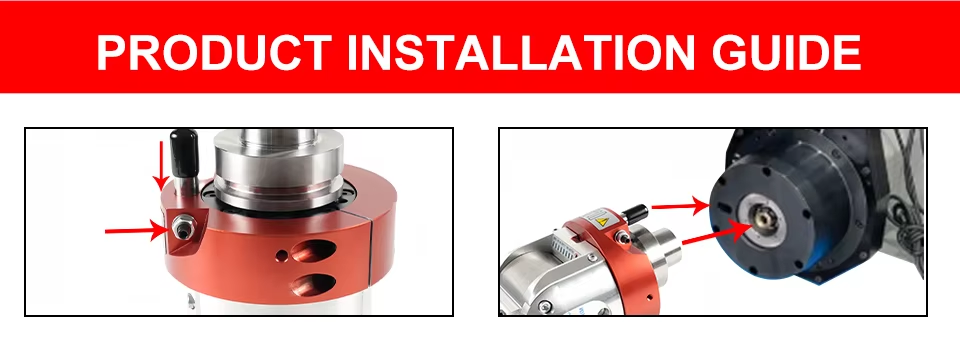

Installation Guide
01
Loosen the screw, then press the locating pin to the bottom, and then tighten the screw
02
Align the locating pin with the installation hole on the flange and insert it into the main shaft motor head
03
Loosen the screw. After the locating pin rebounds, re-tighten the screw
04
Loosen the three screws and you can manually adjust the Angle of the milling head. Then tighten the three screws
05
When installing the saw blade, align the screw holes on the saw blade with those on the Angle head, and then fix the four screws in place
06
When installing the cutting tool, hold the milling cutter with an ER25 chuck, rotate and fix it on the Angle head with a special nut, and then use two special wrenches to tighten the nut
07
If it is not installed together with the C-axis, a flange seat will be randomly included. The flange seat needs to be installed on the spindle motor first, and then the Angle head can be installed
Packing & Delivery
Company Profile
We are a professional high-tech manufacturer of high-speed electrical spindles, with advanced production equipment, great production capability of electrical spindles, as well as excellent facilities and strong R&D teams. Our currently manufactured series of high-speed electrical spindles have speed of 10,000-120,000R.P.M with various frequency conversions. We have advantages of high precision, high rigidity, high efficiency, low noise and large power output. As the advanced tools for grinding, carving and CNC drilling & milling, they are widely used in many fields, such as high-speed internal and external grinding, precise carving, CNC drilling and milling machines. Our products are well sold at home and abroad. With mass production and large market share, our products are rewarded with high approval and appraisal of the customers due to our reliable, stable and durable quality. We welcome customers to place orders and compare our products with the similar ones in the market in terms of quality and performance. We promise quality warranty of half a year (excluding abnormal damages, water ingress into motor, bearing replacement and others). We undertake lifetime maintenance with cost of materials only, free of labor cost. Our Mission is "Quality First, Reputation Based, and Customer Oriented". We are looking forward to establishing relationships with you in the near future.
FAQ
Q1 What types of Angle Head Aggregates are available?
We offer both two-sided and four-sided Angle Head Aggregates, with options available for ISO30 and HSK63F input terminals.
Q2 What is the maximum output speed of these aggregates?
When using a milling cutter, the maximum speed can reach 12,000 RPM. When configured with a saw blade, the maximum speed is up to 7,000 RPM.
Q3 Are the angles adjustable on all models?
We provide specialized adjustable models (both ISO30 and HSK63F variants) that allow manual adjustment of the milling head's angle range from 0° to 95°.
Q4 What kind of lubrication is used?
These products are grease-lubricated, ensuring smooth high-speed rotation and a prolonged service life under industrial operating conditions.
Q5 What warranty and maintenance services do you offer?
We promise a quality warranty of half a year (excluding abnormal damages, water ingress into the motor, and bearing replacement). We also undertake lifetime maintenance where clients only cover the cost of materials, free of labor cost.
Q6 How do you ensure the quality of the products?
We carry out strict pre-production sample testing and a final inspection of every single unit before shipment to guarantee high precision, stability, and durability.
