MT61GP Preventive Maintenance 3 Phases Energy Meter Wifi Smart Power Meter Wifi Smart Circuit Breaker for Remote Unattended Site

1 / 5

MT61GP Preventive Maintenance 3 Phases Energy Meter Wifi Smart Power Meter Wifi Smart Circuit Breaker for Remote Unattended Site

Send Inquiry

Product Description

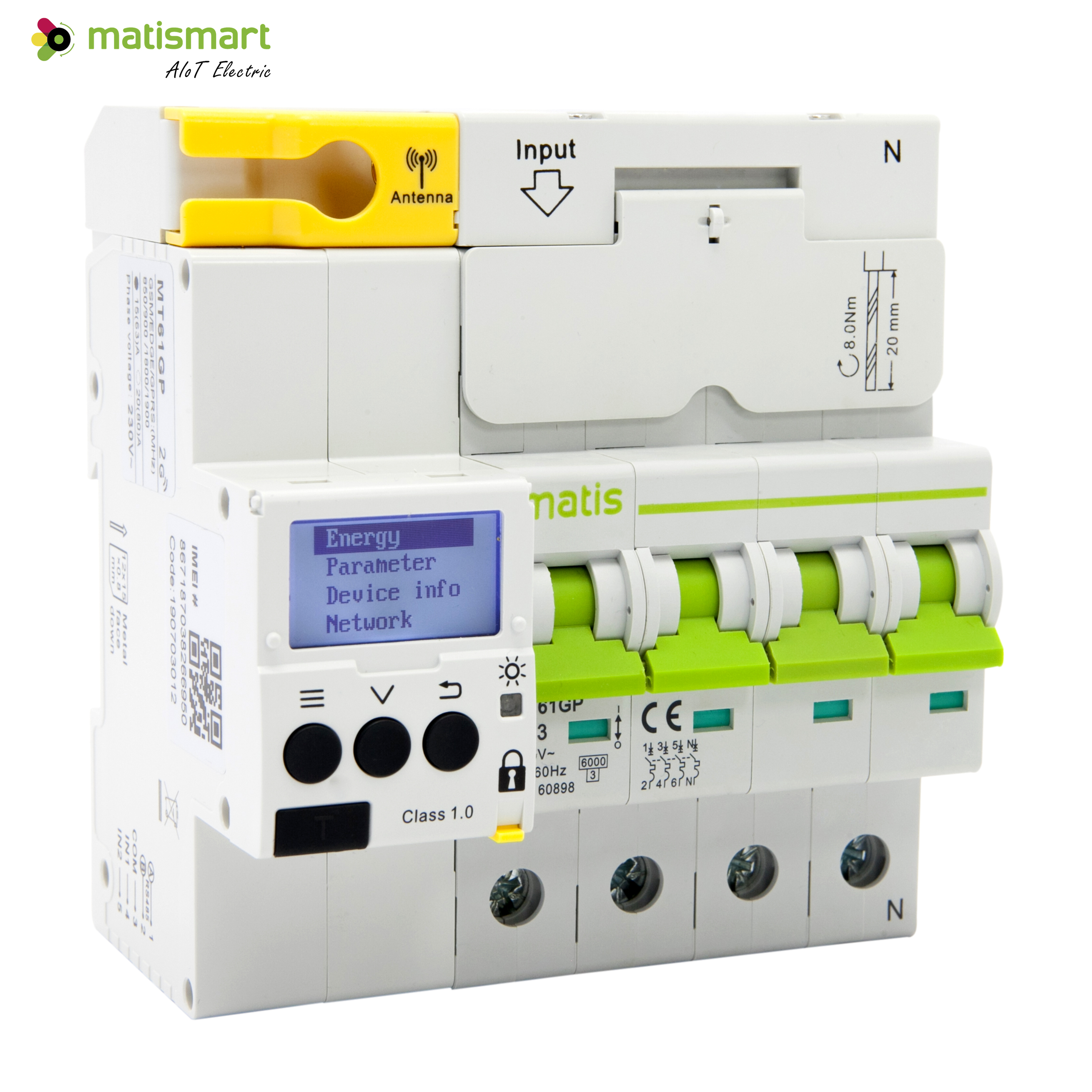

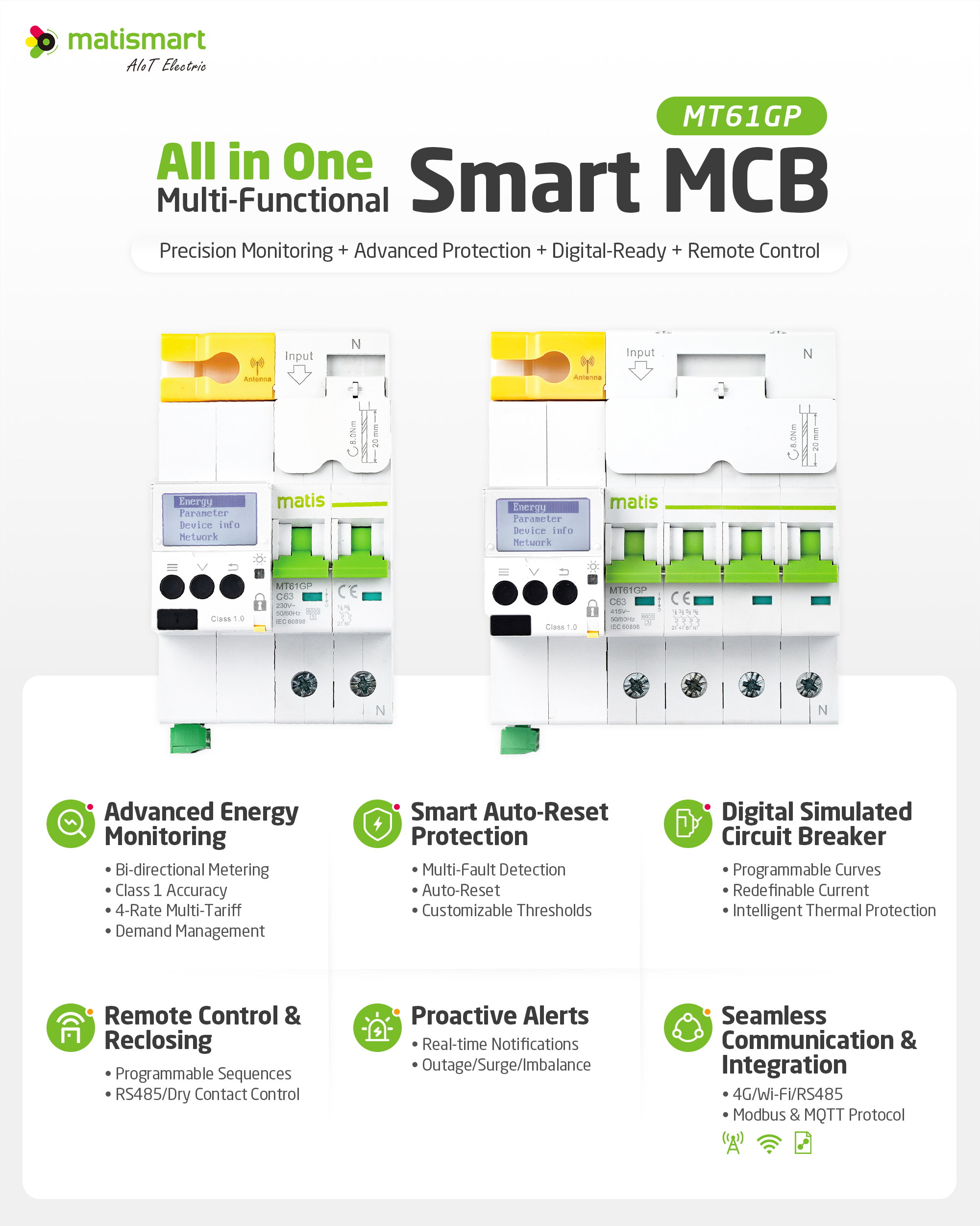

MT61GP Smart Metering Breaker

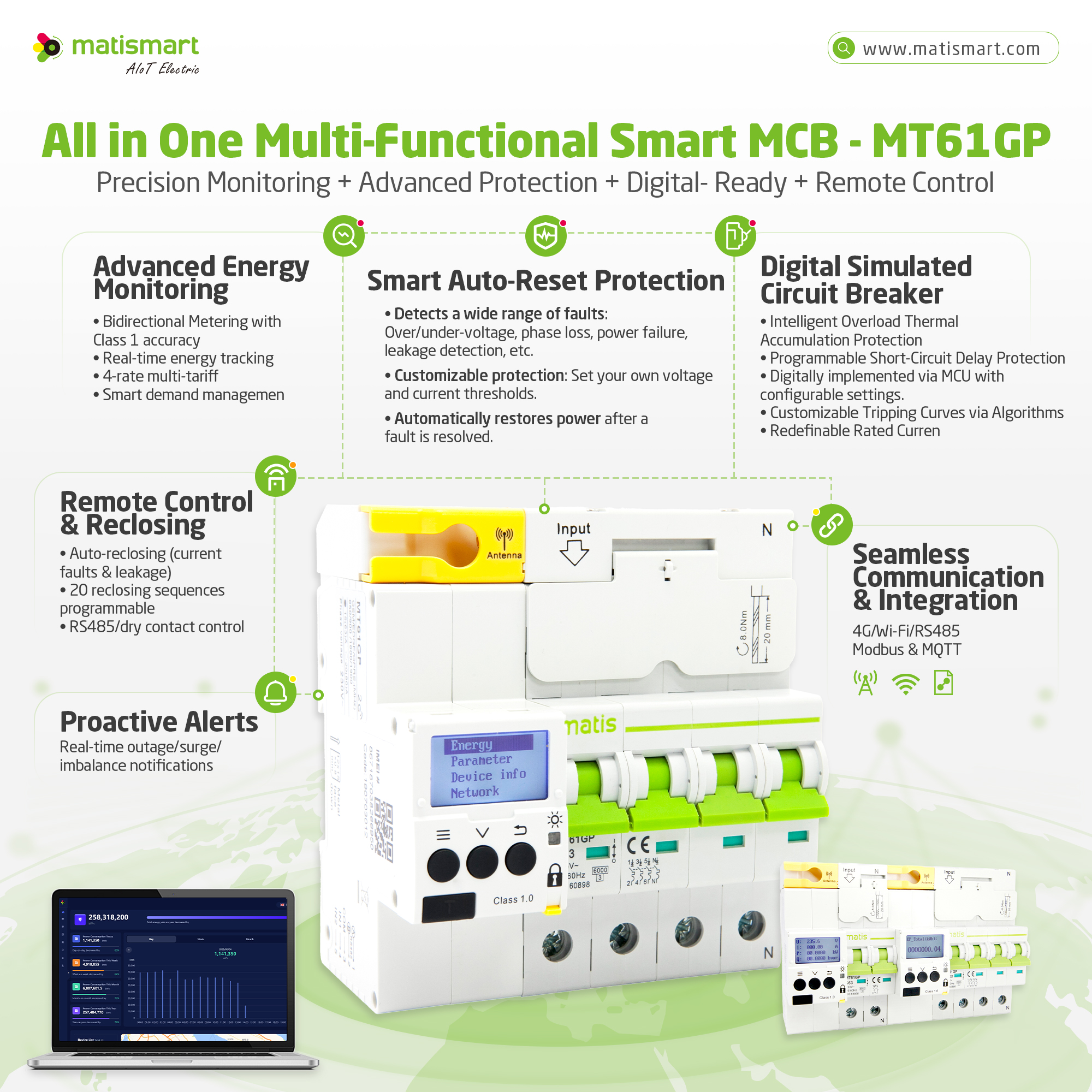

The Matismart MT61GP is the ultimate 4-in-1 compact solution for critical power applications. It integrates Precision Metering, Smart Auto-Reset Protection, Digital Control, and Remote Management into a single device.

It is the ideal choice for any unmanned or critical application where maximum uptime, safety, and energy fairness are essential, including Telecom Sites, Solar Power Systems, Commercial Buildings, and Remote Unattended Infrastructure.

Product Parameters

Local communication (standard)
Bus	RS-485
Communication protocol	Modbus RTU

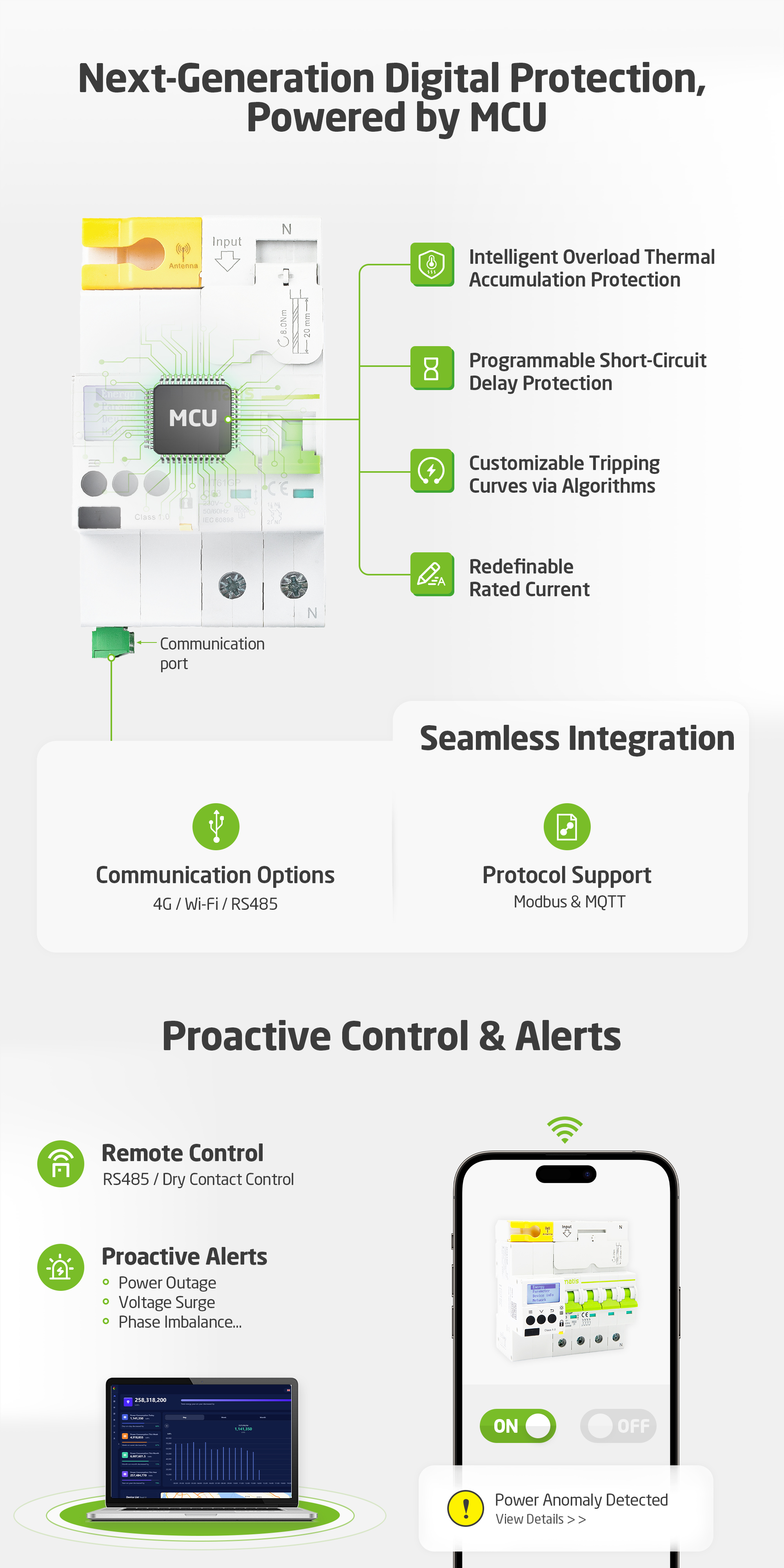

IoT communication (optional)
Ethernet	MQTT
WiFi	MQTT
4G (Cat.1)	MQTT
Structure
Poles	2P	4P
Weight	650g	1030g
Power supply
Model	2P, 4P
Rated voltage	230 / 400 V ~ 110 / 220V~
Frequency	50 - 60 Hz
Power consumption	< 8W

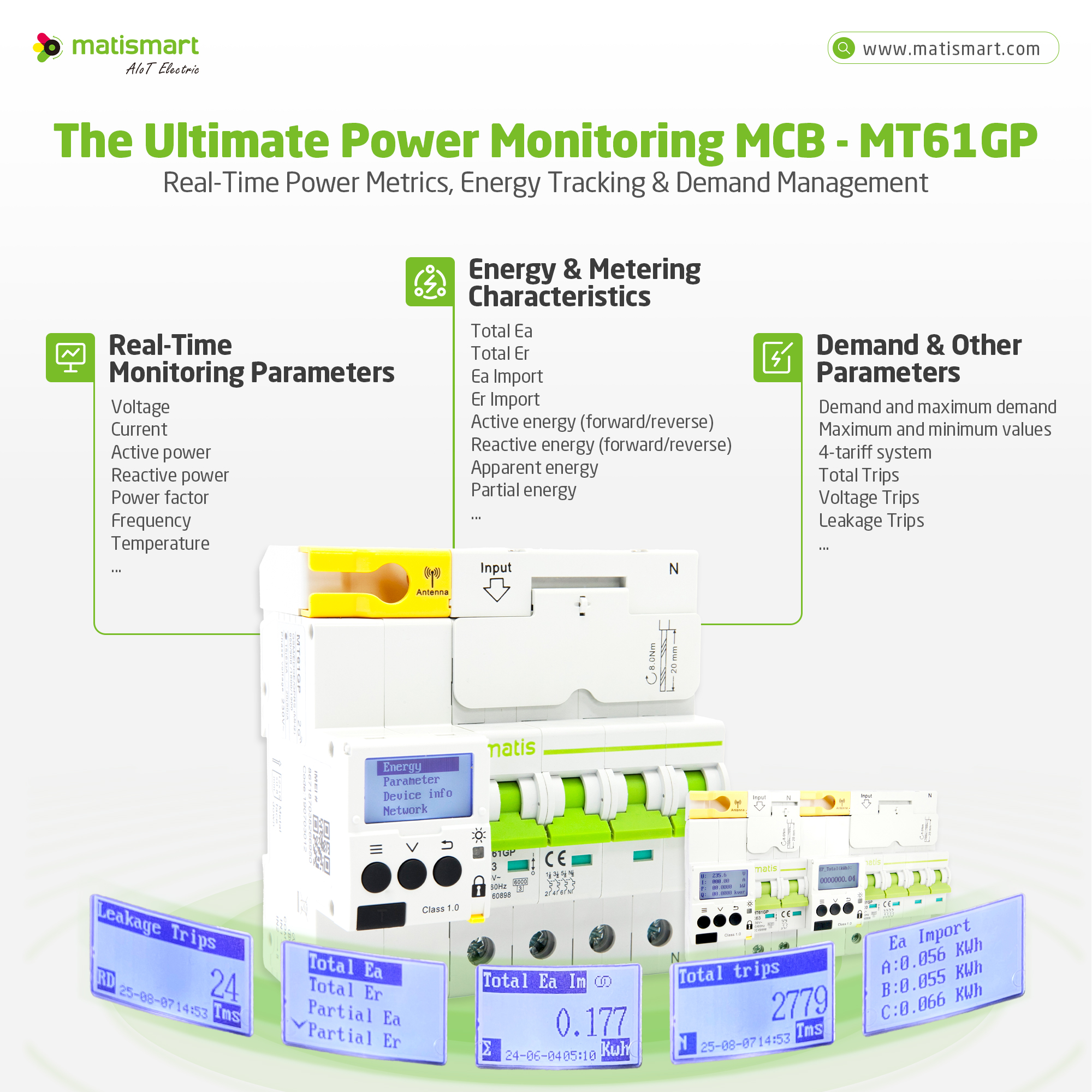

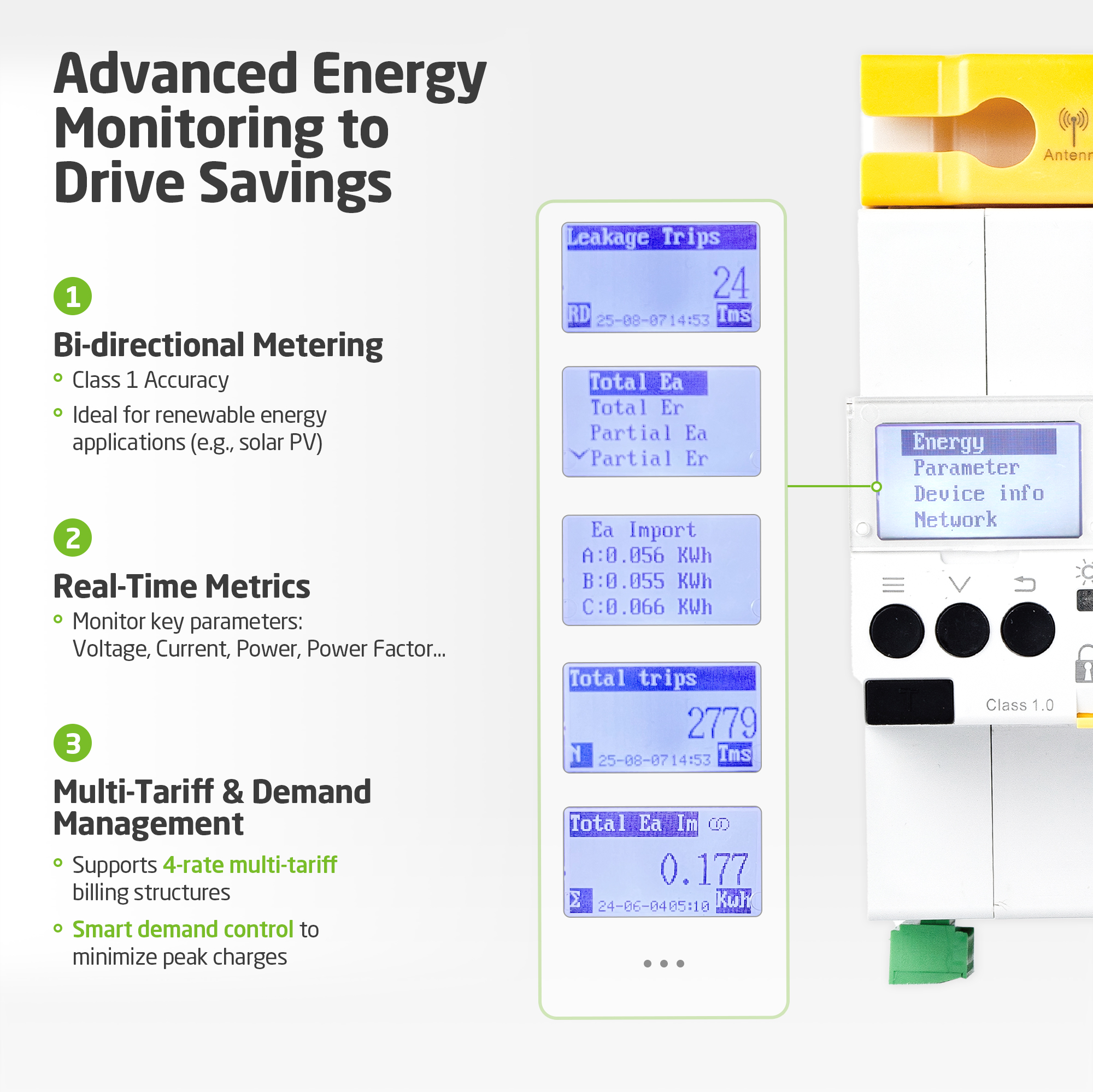

Measurement parameters can be set
Electric energy	forward and reverse active and reactive energy, apparent energy
Power pulse	400 imp/kwh
Billing and settlement method	natural month/setting day
Time-of-use billing	4 time zones, 4 time periods
Freeze	4 time zones, 4 time periods
Circuit breaker parameters
Rated Current (In)	6 - 10 - 16 - 20 - 25 - 32 - 40 - 50 - 63 - 80 A ~
Rated Voltage (Un)	230 / 400 V ~
Magnetic tripping curve	C / D
Rated Insulation Voltage	500V
Inter-polar dielectric strength test voltage	2500AC/1mins
Rated impulse withstand voltage	6KV
Rated short-circuit capacity Icn	6 kA
Running short circuit capability Ics	6 kA

About Us

Product packaging

FAQ

Q Are you trading company or manufacturer?

We are factory and manufacturer for AIoT electrical solutions.

Q What kind of communication module you have?

We have WiFi, 4G communication module, both two types with RS485.

Q Can we have the total consumption of the installation and also the control of the circuit breakers?

Yes, you can see consumption by APP or Platform, and remote control it.

Q What is the function of this product?

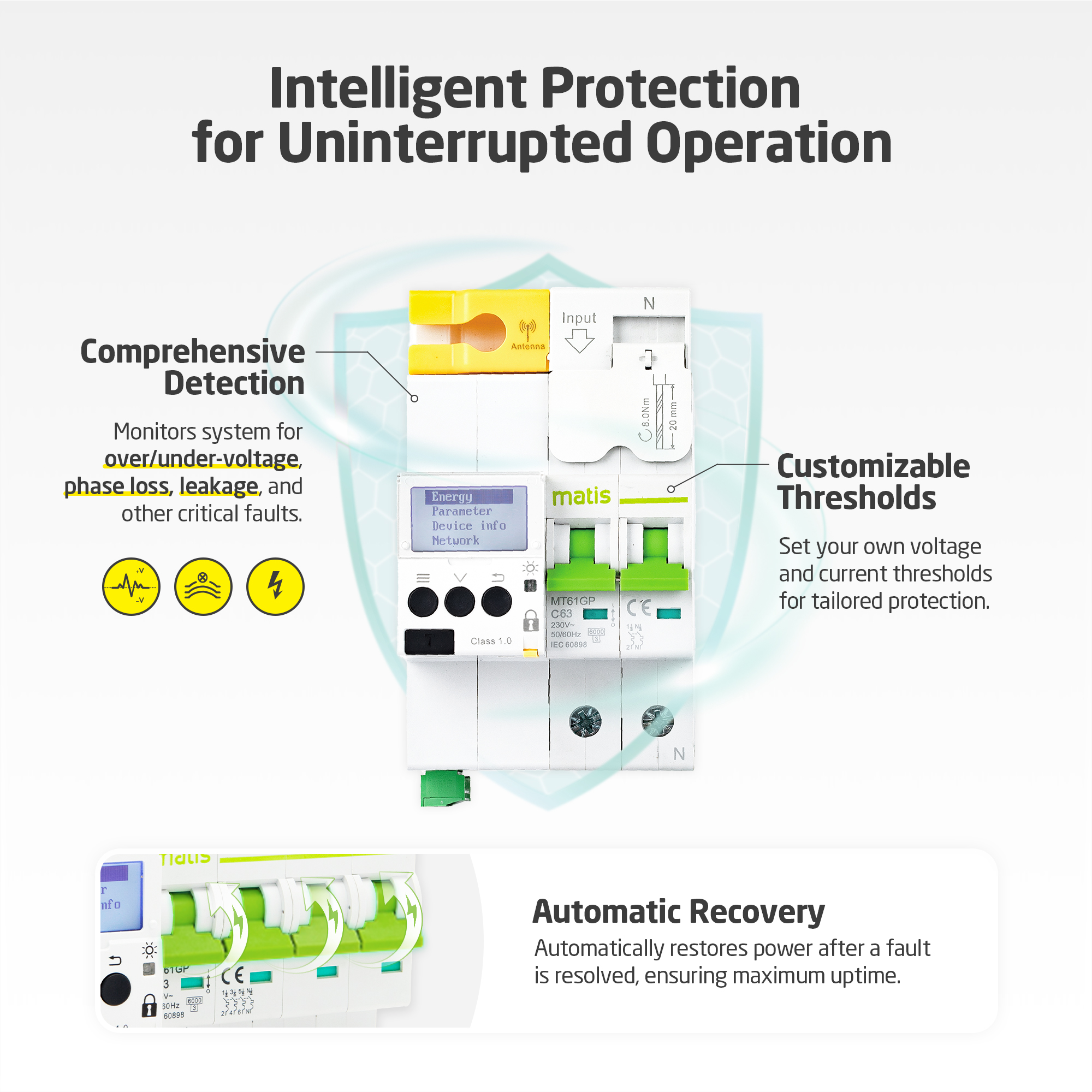

Include: meter, full electrical protection (short circuit, overload, over/under voltage, fault analysis), remote control, power/current limit monitoring, real-time power data, warning/alarm, software APP, and software platform.

Q Can you provide API interface?

Yes.
