Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

Customization: Available
Type: Flexible Shaft Tool
Power Source: Electricity

Product Description

Overview - Basic Info

Model NO.PFL9/13/18
ObjectMetal Deburring, Grinding, Polishing
ApplicationMetalworking
Disc TypeFlexible Shaft
MaterialMetal
Working StyleHigh-speed universal
Disc DiameterVarious
Variable SpeedWith Variable Speed
Power SupplyCompressed Air
Air Inlet1/4"
Air Pressure90psi
Free Speed20000rpm
Power Rate400W
Shaft TypeFlexible Shaft
Shaft Dia.9mm
Shaft LengthCustomized Max 4m
Work StyleRotary Type
PortablePortable
CustomizedCustomized
Transport PackageCarton Box
Specificationcompact, heavy-duty, lightweight
TrademarkNeutral or OEM
OriginChina
HS Code84671100
Production Capacity50000/Year

Product Description

Our flexible shaft products are products that provide customers with solutions, and are selected according to the products that need to be polished. Our sales team will assist you with your selection.

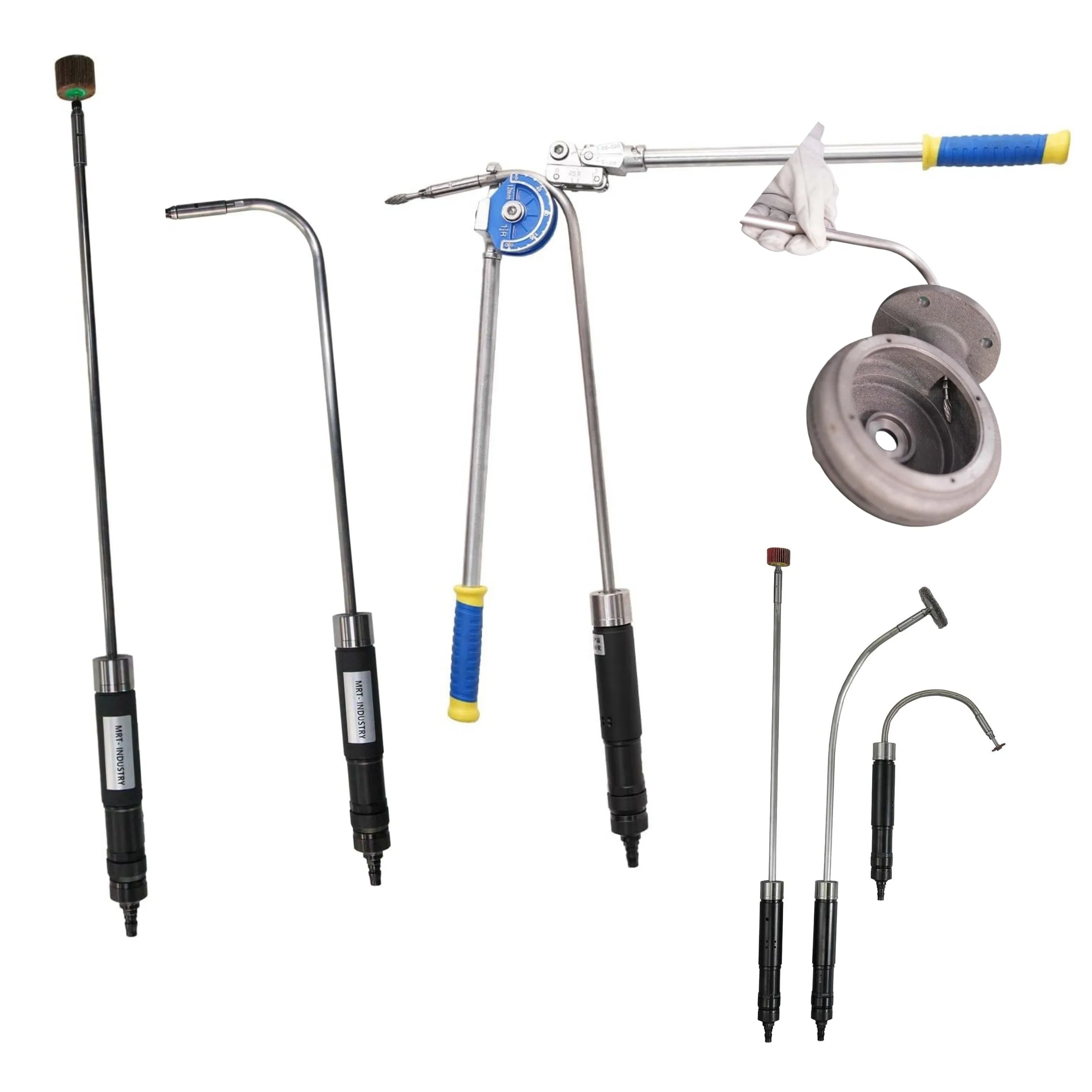

Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

About this extension shaft

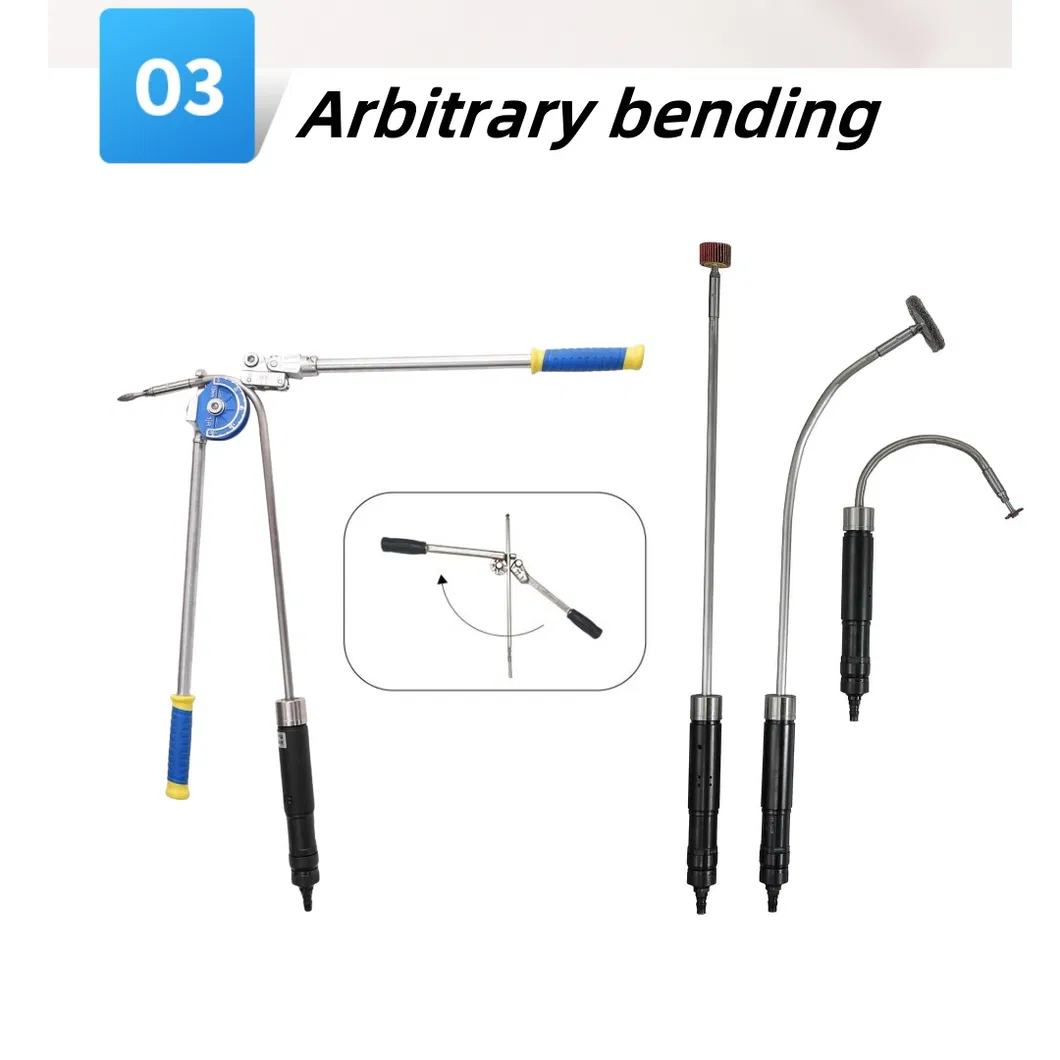

  • PFL extension can be bent once. Minimum bending radius R 250 mm. Maximum angle 45°.
  • Suitable for ACF12-20 air straight grinder and ETD9-R Electric grinder.

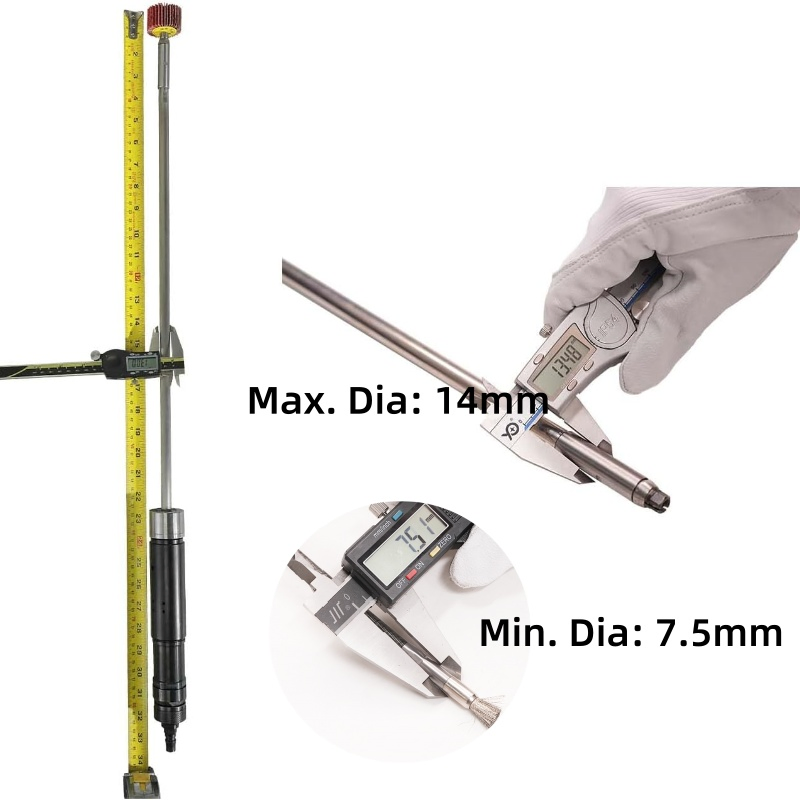

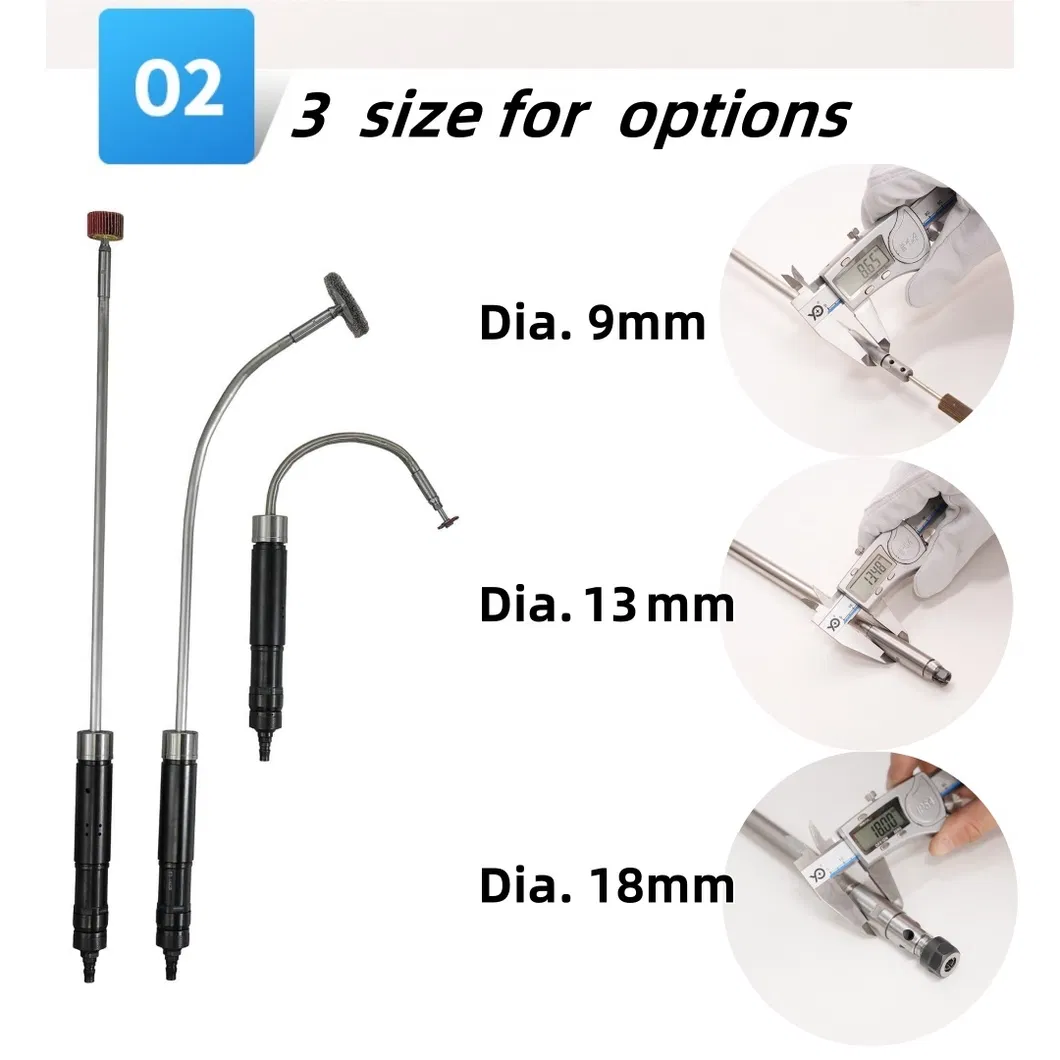

  • 3 sizes for options: Dia. 9mm, 13mm, 18mm, which can suit various applications.

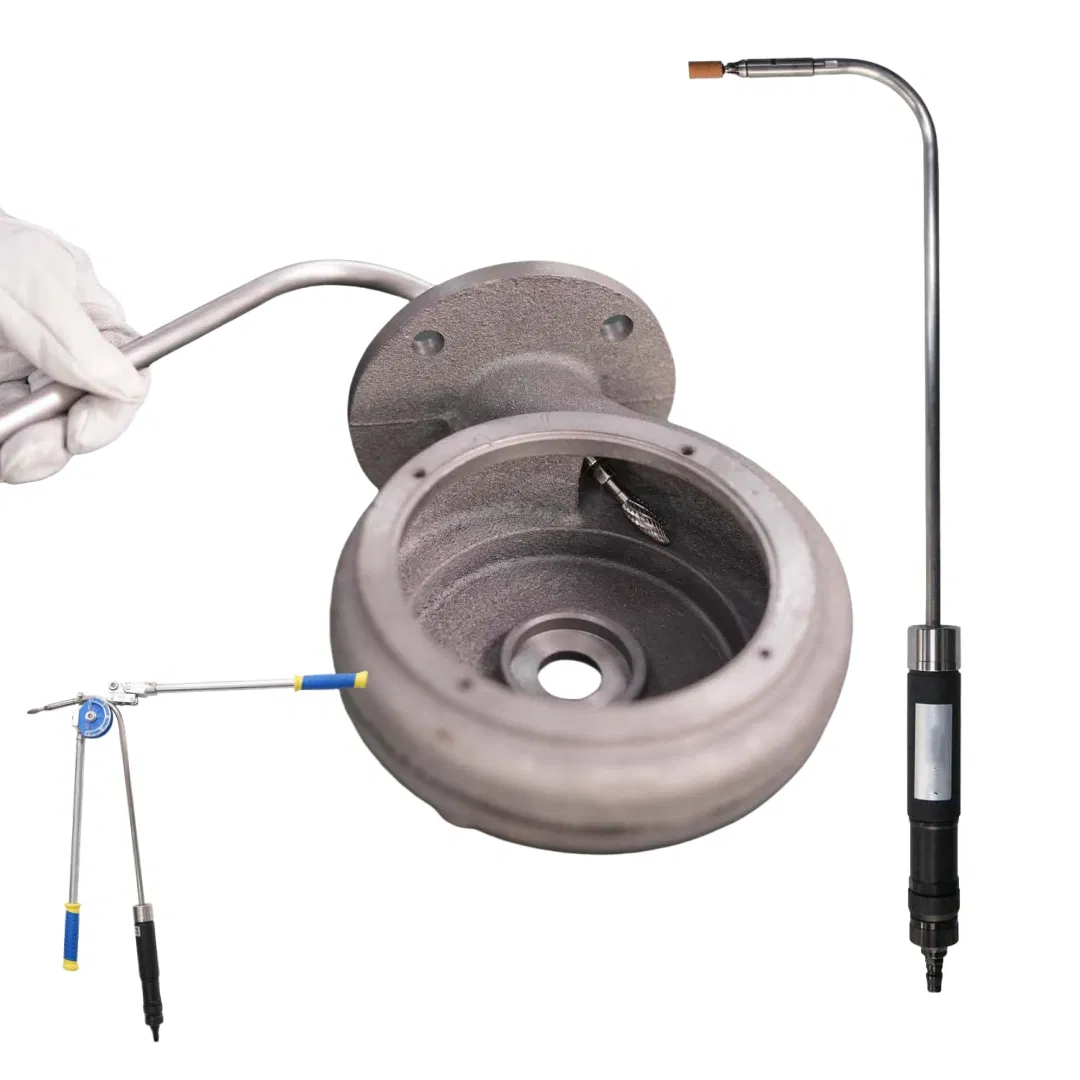

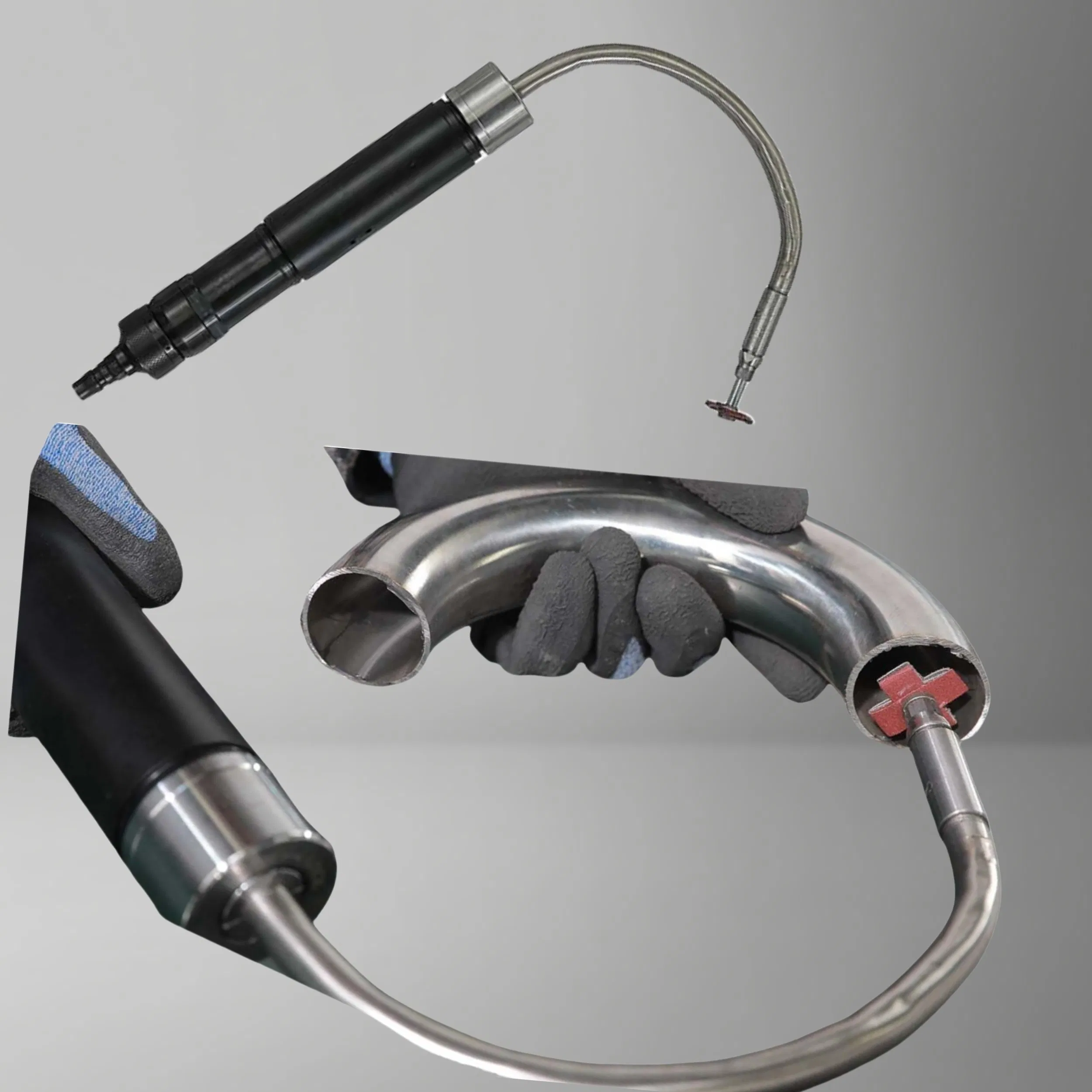

  • Application: Grinding, milling of inaccessible places, for example, corners of containers, molds, deep welds, inner sides of narrow tubes.

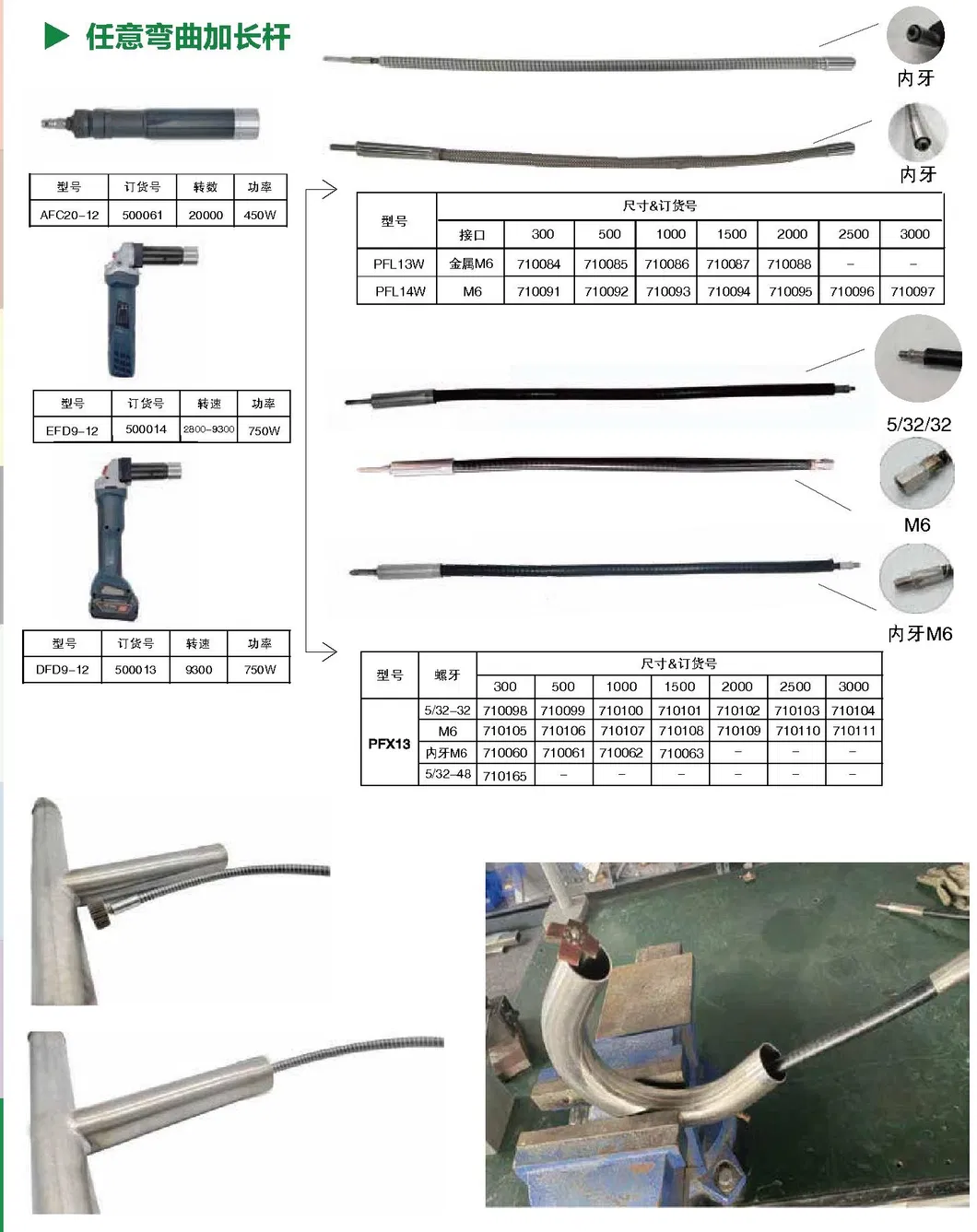

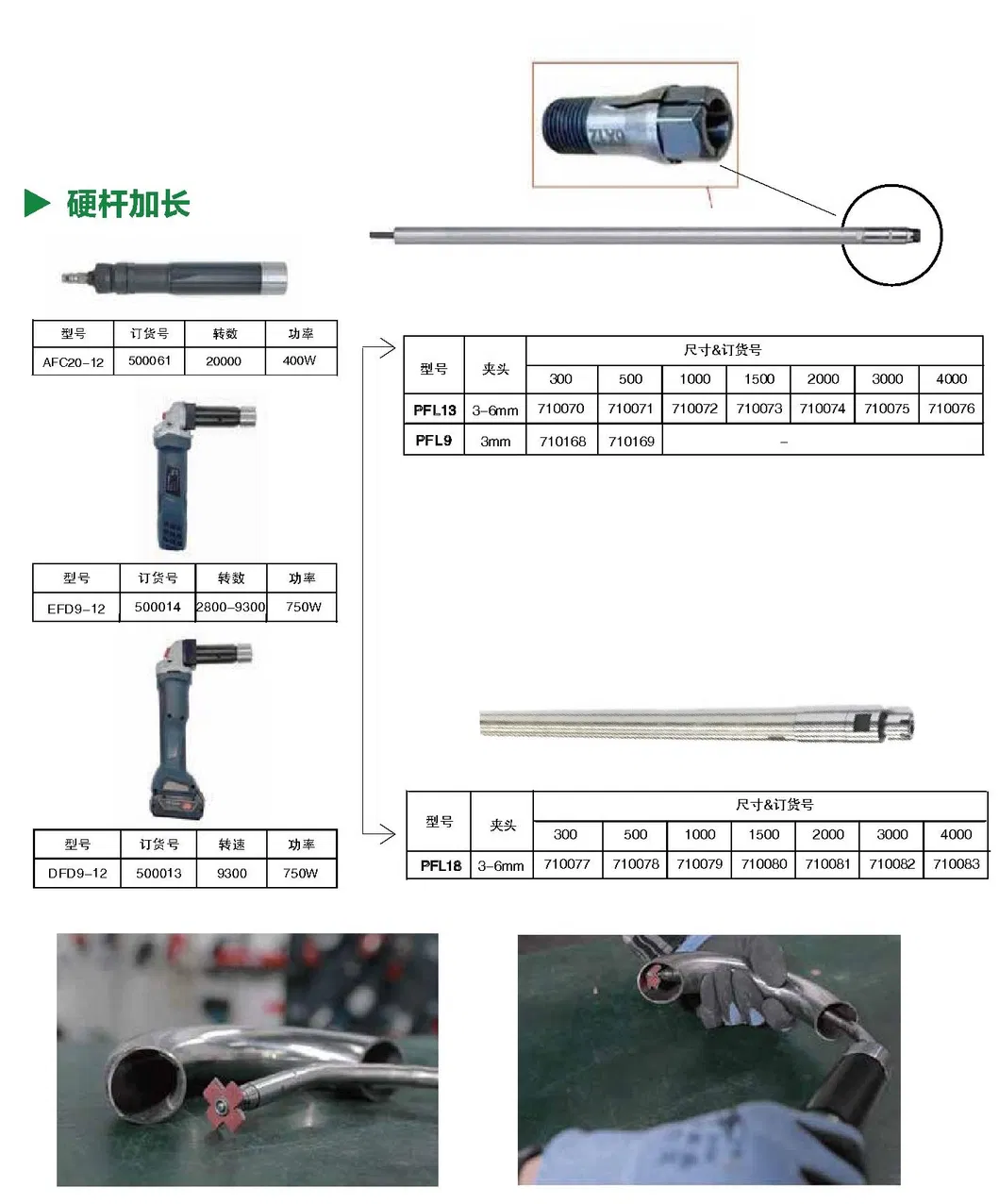

Specification Sheet

* Length can be customized for bulk orders.

Model NO. PFL9 PFL13 PFL18
Dia. 9mm 13mm 18mm
Collet Size 3mm 3mm and 6mm 3mm and 6mm
Available Lengths 300mm / 500mm / 1000mm / 1500mm / 2000mm / 3000mm / 4000mm
Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding
Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

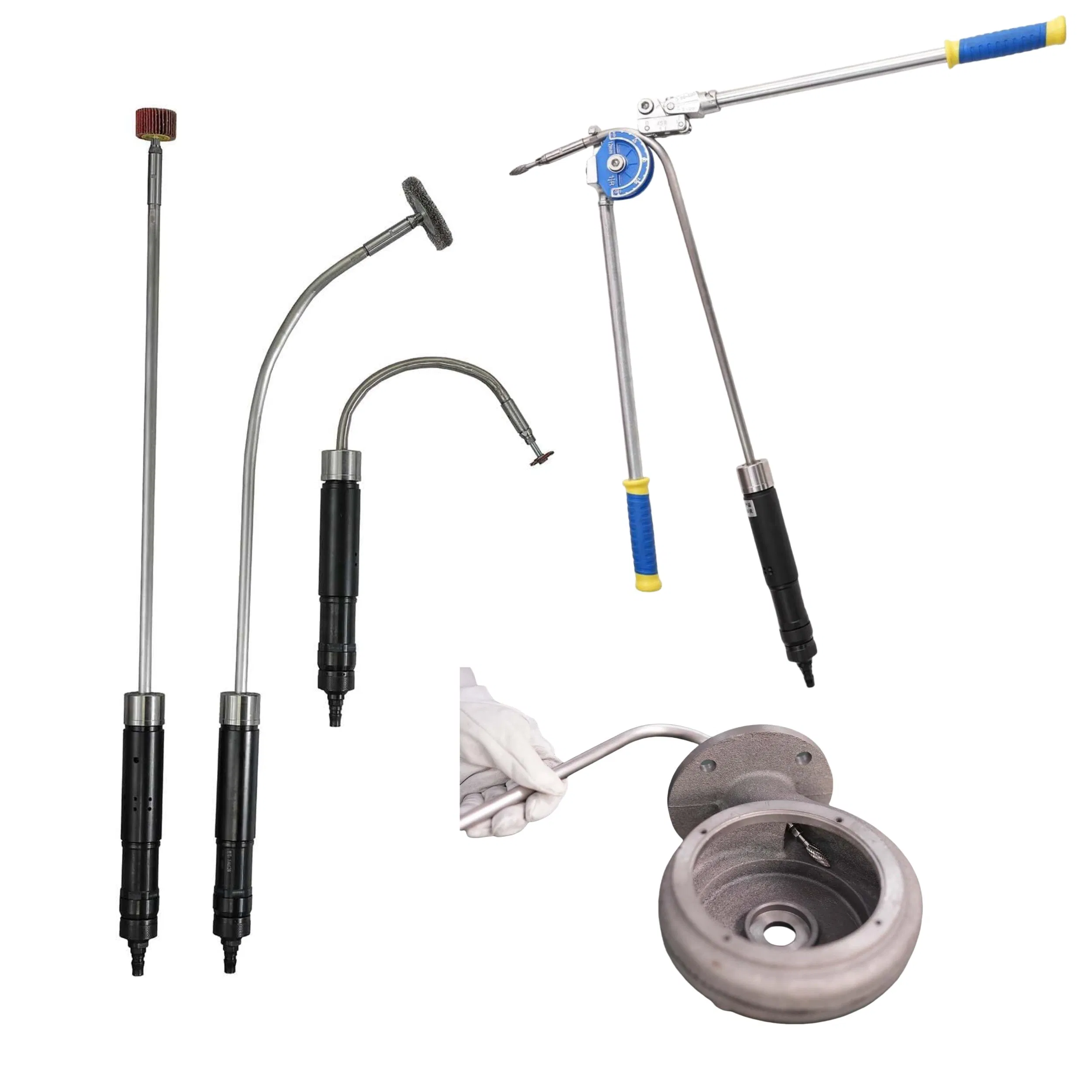

Application Versatility

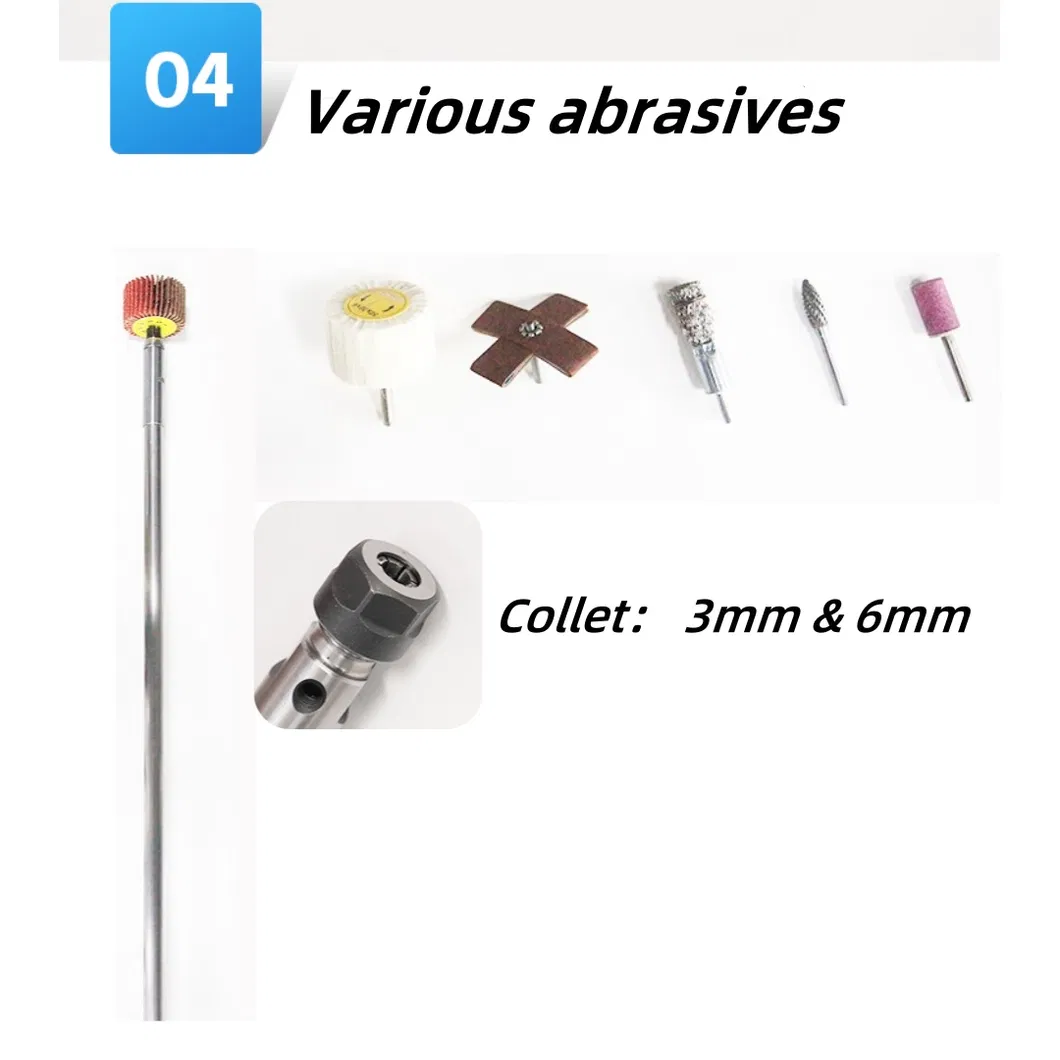

  • Collet size: 3mm and 6mm options available.
  • General use: Suitable for multiple abrasives, including flap wheels, cross sandpaper, stainless steel filament, carbide burrs, and mounted heads.

Related Products Application

Application Overview

Match multiple abrasives. With this one tool, you can finish grinding work from rough grinding to fine grinding, and then to wire drawing.
Key Operations:
Deburring Rough grinding Fine grinding
Industry Use Cases:
Pump grinding Casting grinding Forging grinding Stamping grinding Stainless steel polishing Tube grinding Tank grinding Aviation grinding Hydro generator grinding Turbo machinery maintenance Integrated die casting grinding
Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

Packaging & Shipping

Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

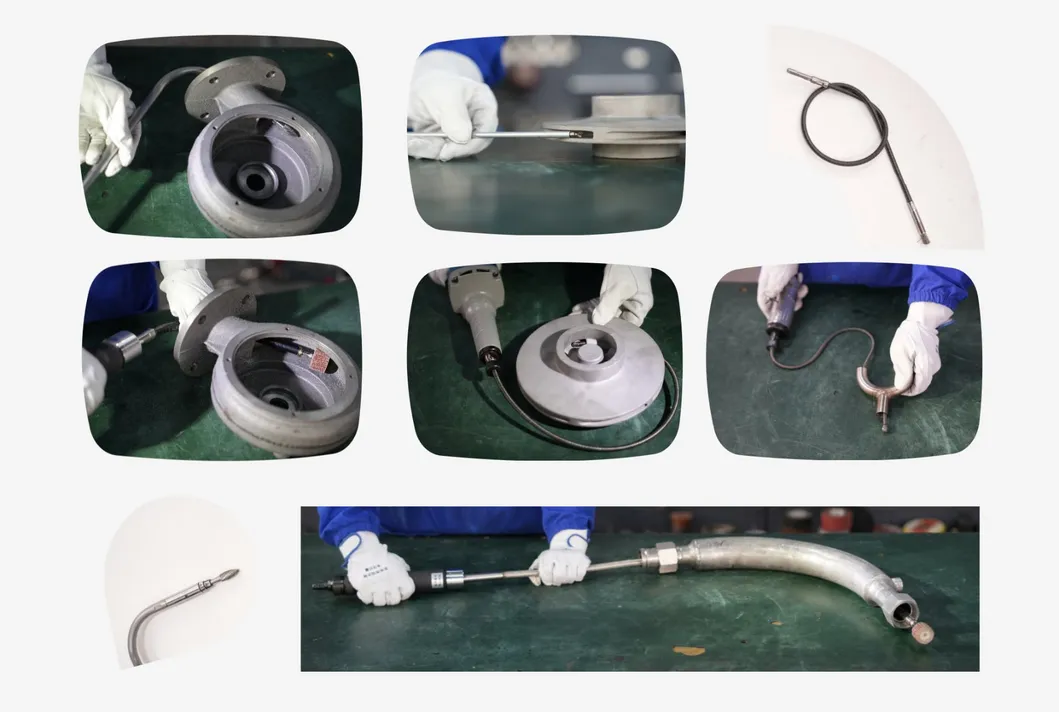

Our Product Application Widely

Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

Our Advantages

Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding

FAQ

Air Power Grinder Long Spindle Grinding Tool Cross Shaped Abrasive Pipe Grinding
Q1: What power tools are compatible with the PFL flexible shafts?
The PFL extension shaft is compatible with the ACF12-20 air straight grinder, the ETD9-R electric grinder, and other standard high-speed rotary tools with compatible collet specs.
Q2: Can the extension shaft bend freely during operations?
The PFL extension can be bent once for reaching deep or narrow spots. The minimum bending radius is R 250 mm, and the maximum bending angle is 45° to ensure stable torque and safe operation.
Q3: What collet sizes are available for the tools?
The PFL9 model features a 3mm collet size. The PFL13 and PFL18 models are highly versatile, supporting both 3mm and 6mm collets.
Q4: Can I customize the length of the flexible shaft?
Yes. The standard lengths available range from 300mm up to 4000mm. Additional custom lengths can be requested for bulk production runs.
Q5: What types of abrasives can I use with these shafts?
They can be matched with a wide array of abrasives, including flap wheels, cross sandpapers, stainless steel filaments, carbide burrs, and various mounted grinding heads.
Q6: What are the main applications of this tool set?
It is extensively used in metalworking, casting, forging, stamping, pump grinding, tube/tank grinding, and aviation machinery maintenance for polishing, deburring, and detailed surface finish jobs.
