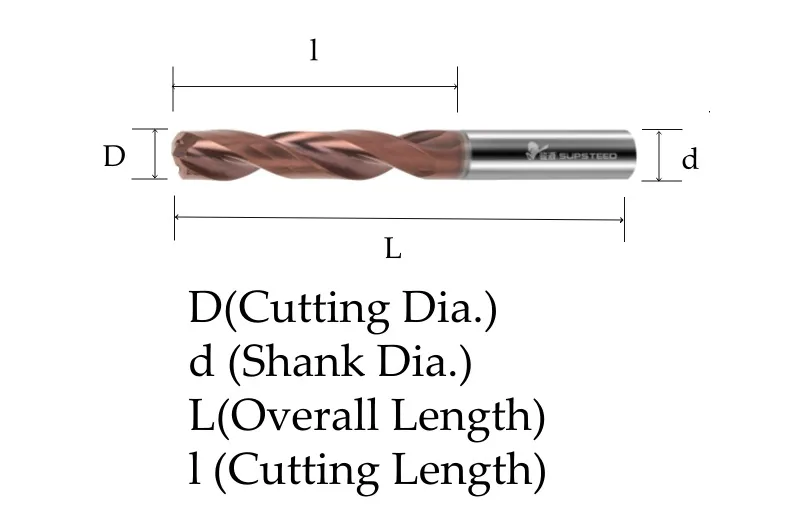

Sizes Specifications

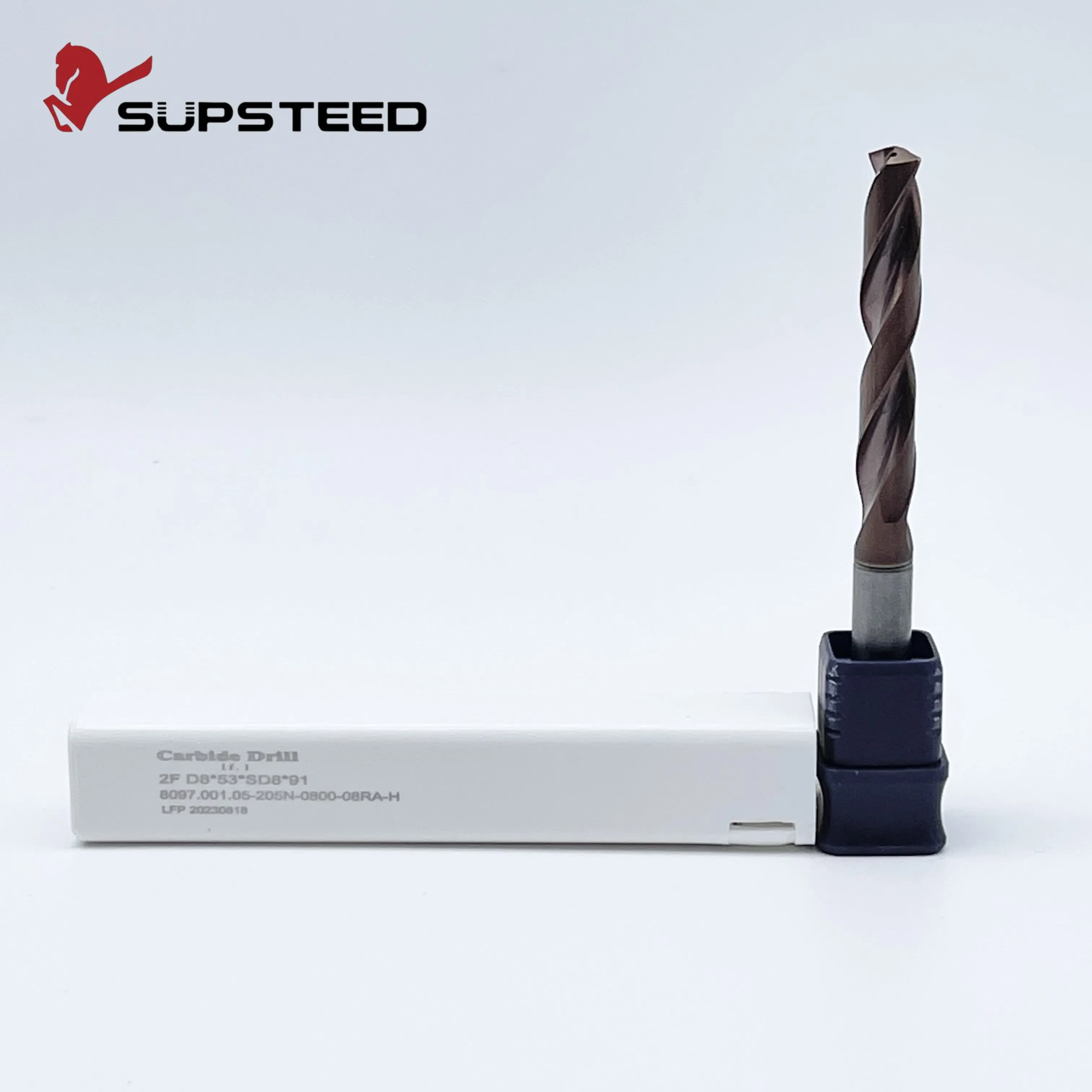

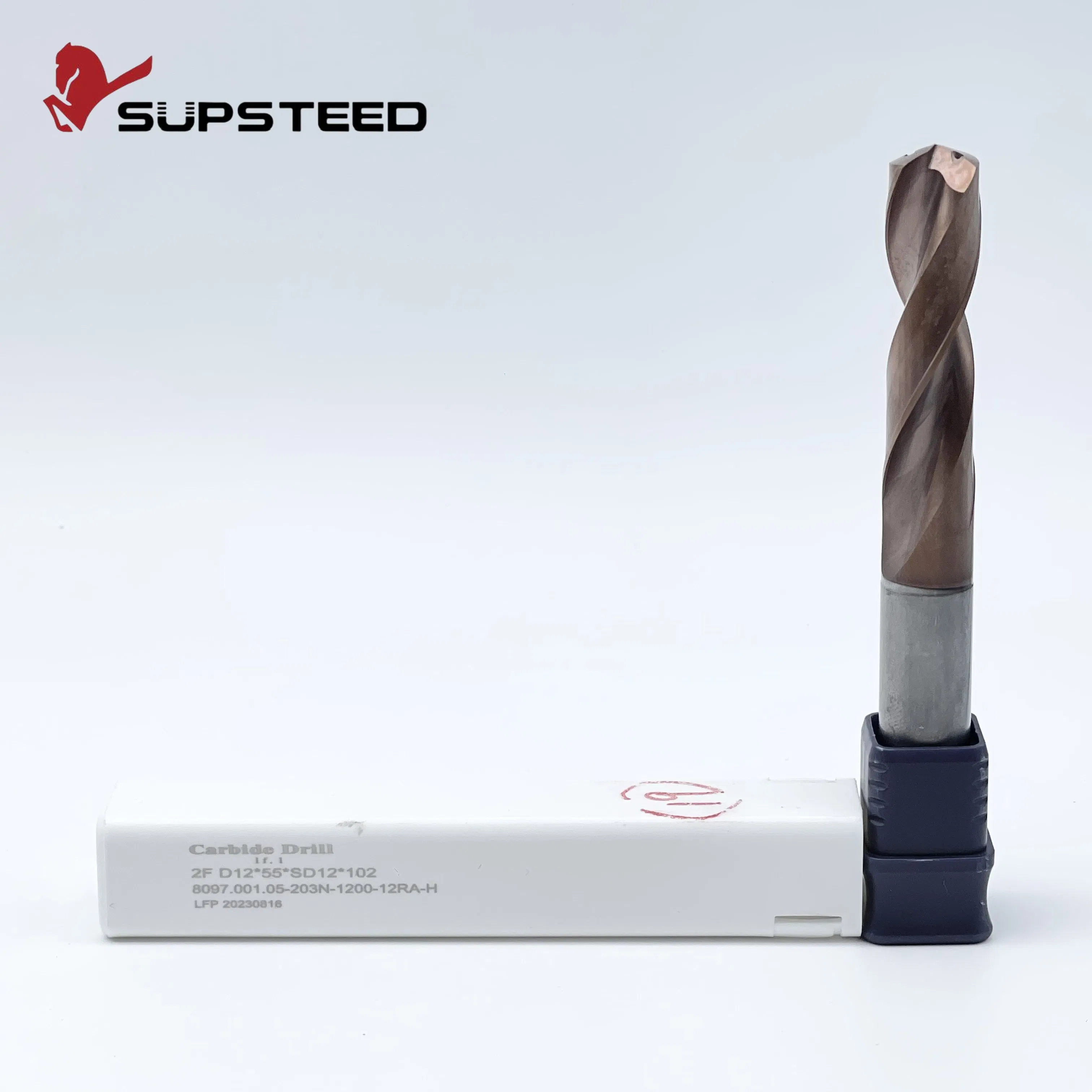

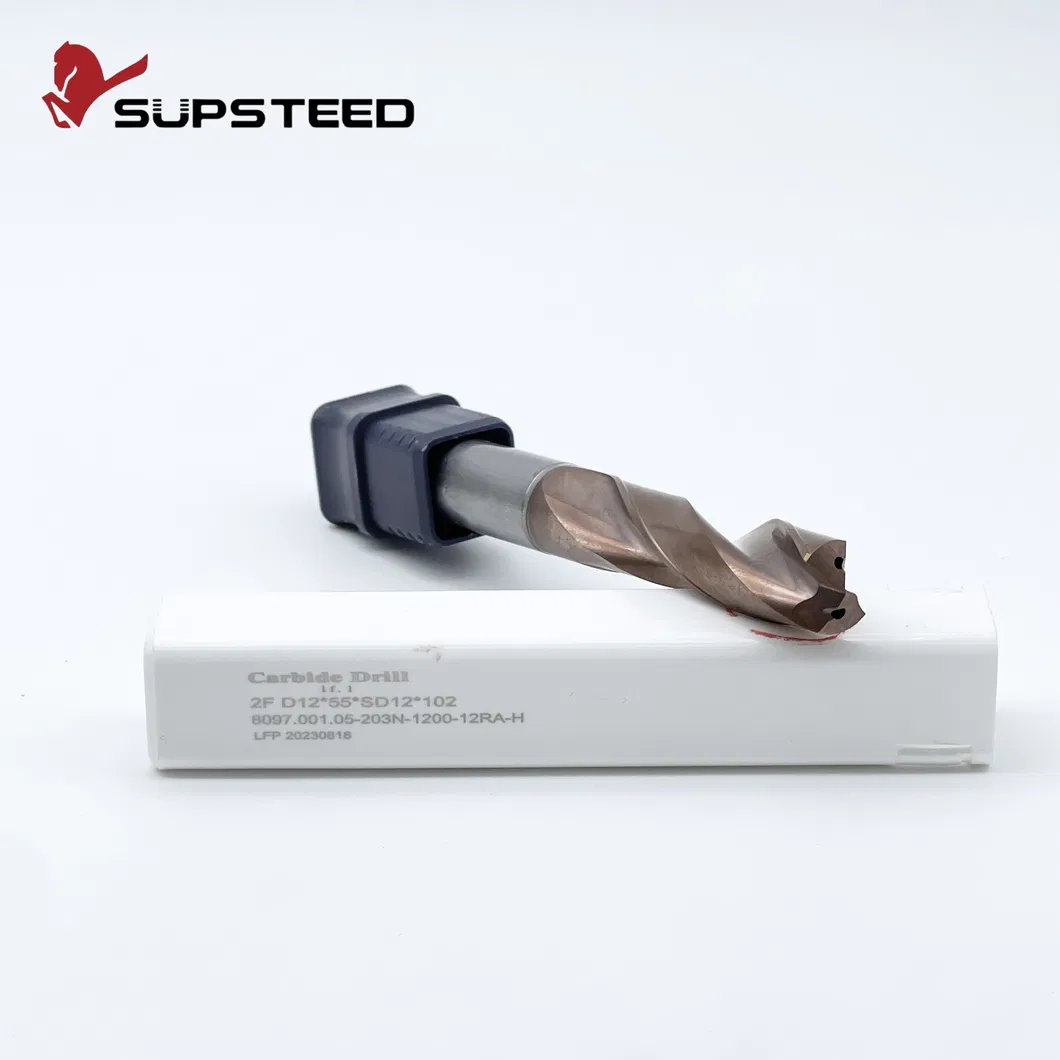

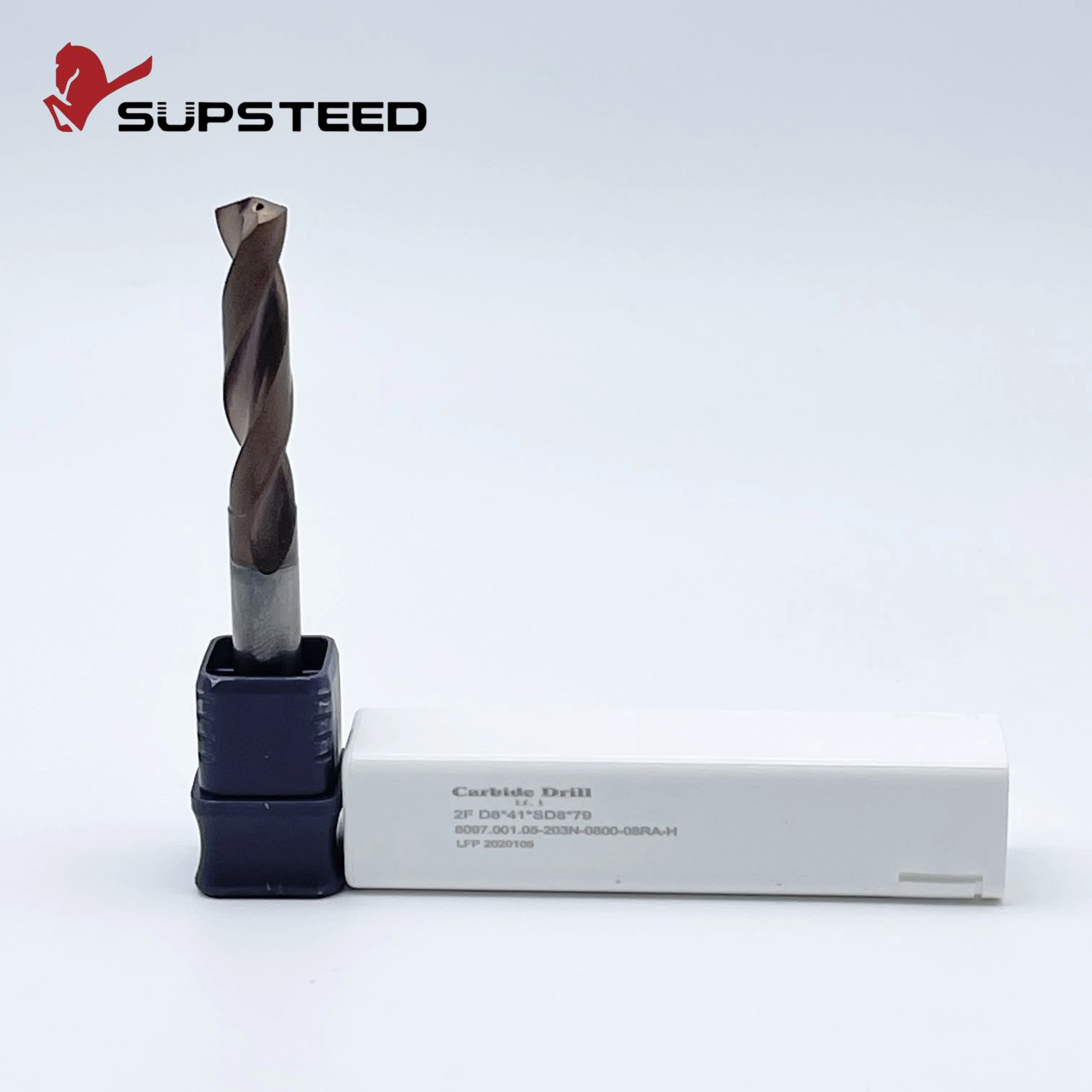

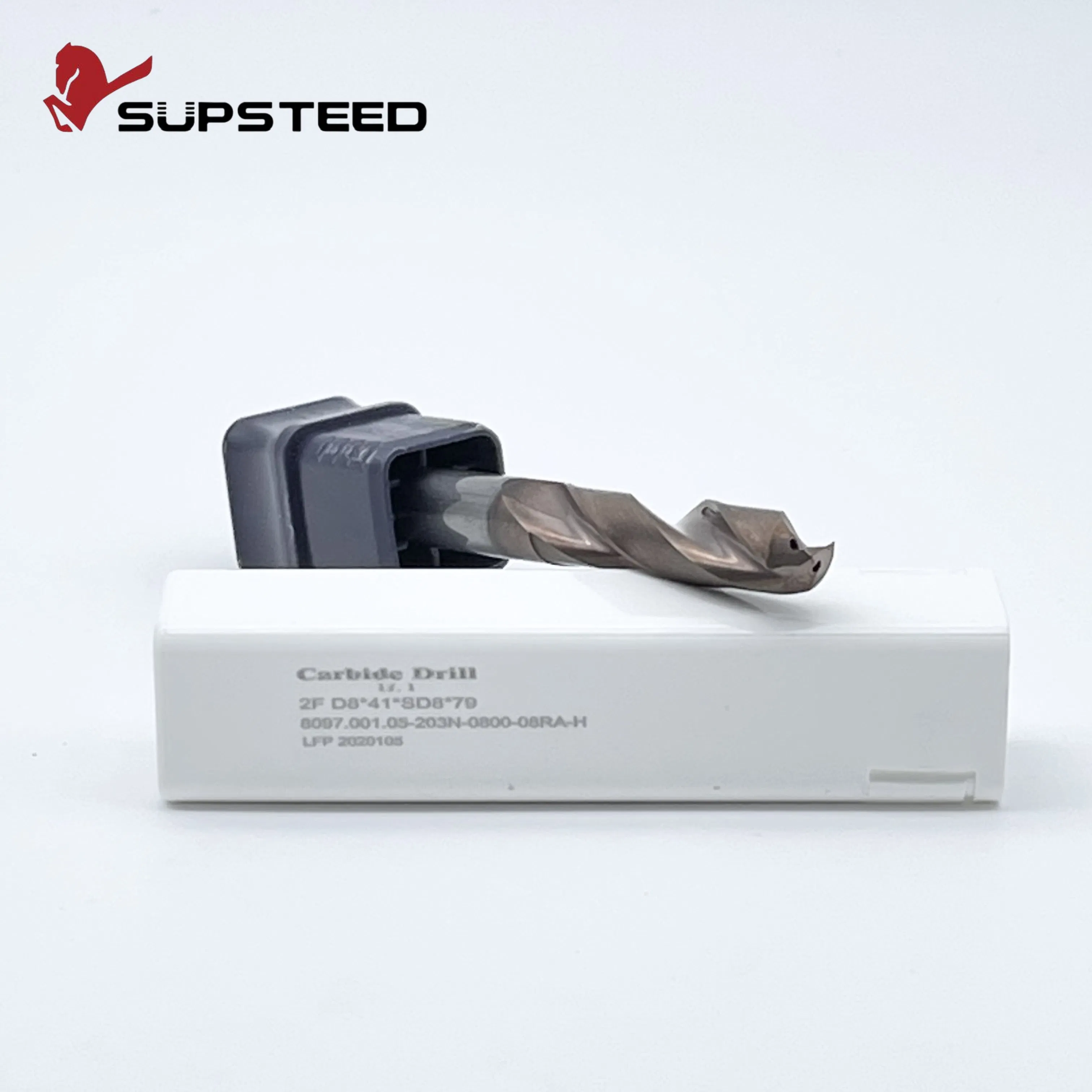

Carbide drills are high-performance cutting tools designed for precision drilling in a wide range of materials, including metals, composites, plastics, and wood. Made from tungsten carbide, these drills offer exceptional hardness, wear resistance, and heat tolerance, making them ideal for demanding industrial applications.

Whether you're working in aerospace, automotive, mold-making, or general machining, carbide drills provide faster cutting speeds, longer tool life, and better hole quality compared to traditional high-speed steel (HSS) drills.

Key Features & Benefits

1. Superior Hardness & Wear Resistance

• Made from tungsten carbide (WC), one of the hardest materials available.
• Resists abrasion and maintains sharp cutting edges longer than HSS drills.
• Ideal for machining hardened steels, stainless steel, cast iron, and titanium.

2. High-Speed Performance

• Can operate at 2-3x higher speeds than HSS drills.
• Reduces cycle times and increases productivity in CNC machining and mass production.

3. Excellent Heat Resistance

• Withstands high temperatures without losing hardness.
• Reduces the risk of tool failure due to overheating.

4. Precision-Ground Geometry

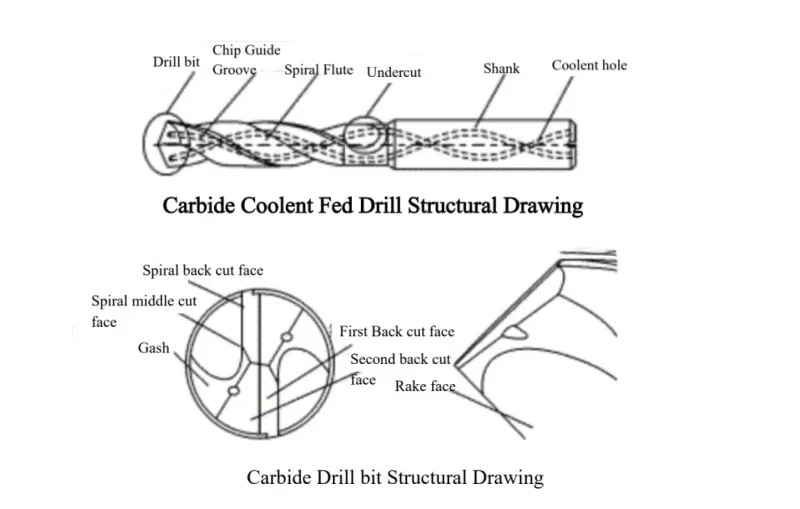

• Engineered with optimized flute designs for efficient chip evacuation.
• Split-point or self-centering tips minimize walking and improve hole accuracy.
• Available in standard, parabolic, and deep-hole flute designs for different applications.

5. Versatile Applications

• Suitable for drilling Metals (steel, aluminum, stainless steel, titanium, Inconel)
• Suitable for drilling Composites & Plastics (carbon fiber, fiberglass, Delrin)
• Suitable for drilling Wood & Hardwoods (with specialized geometries)

6. Multiple Coating Options for Enhanced Performance

• TiN (Titanium Nitride) - General-purpose coating for increased wear resistance.
• TiAlN (Titanium Aluminum Nitride) - Best for high-temperature applications.
• TiCN (Titanium Carbo-Nitride) - Higher hardness than TiN, ideal for abrasive materials.
• Diamond Coating - For non-ferrous metals and composites.

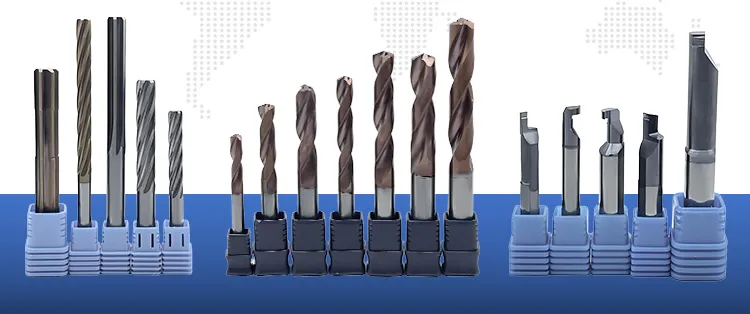

Types of Carbide Drills

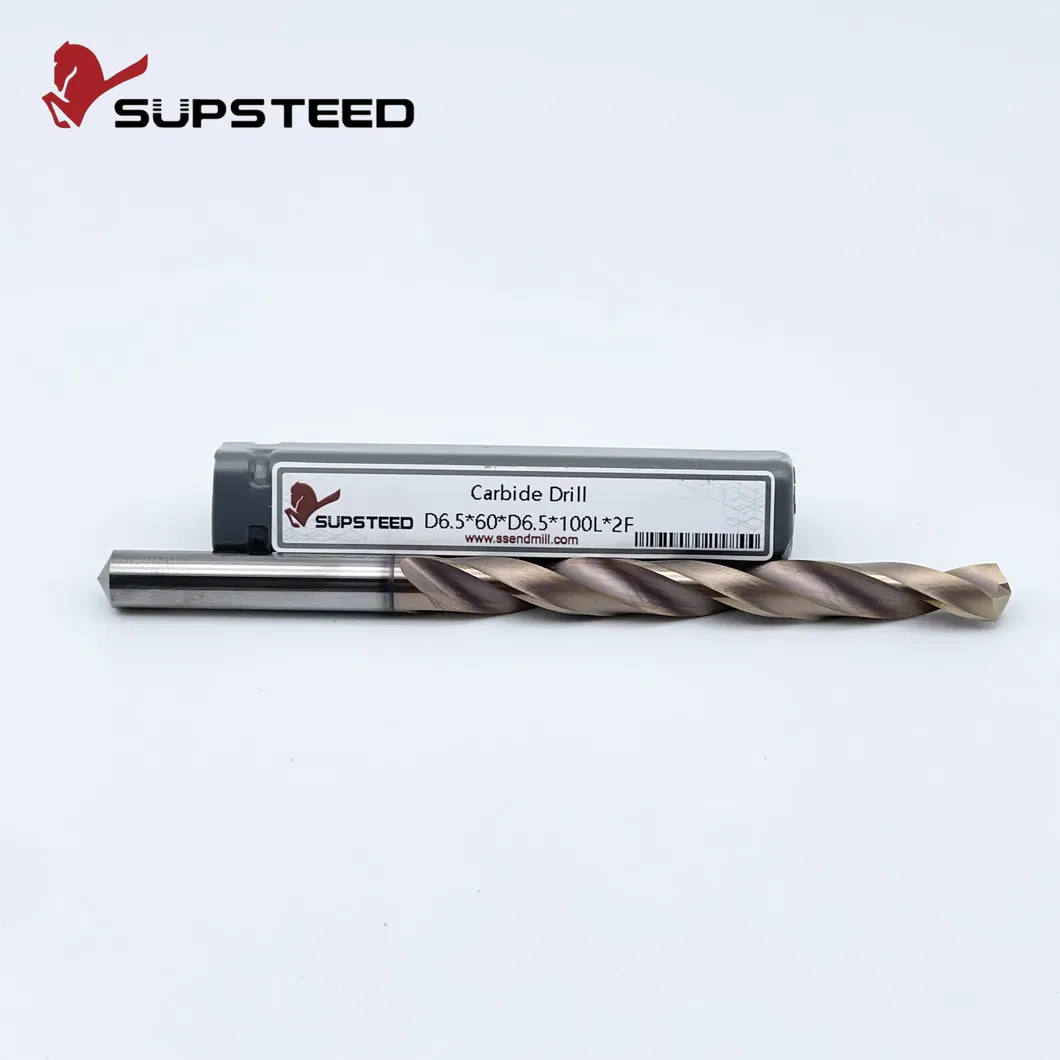

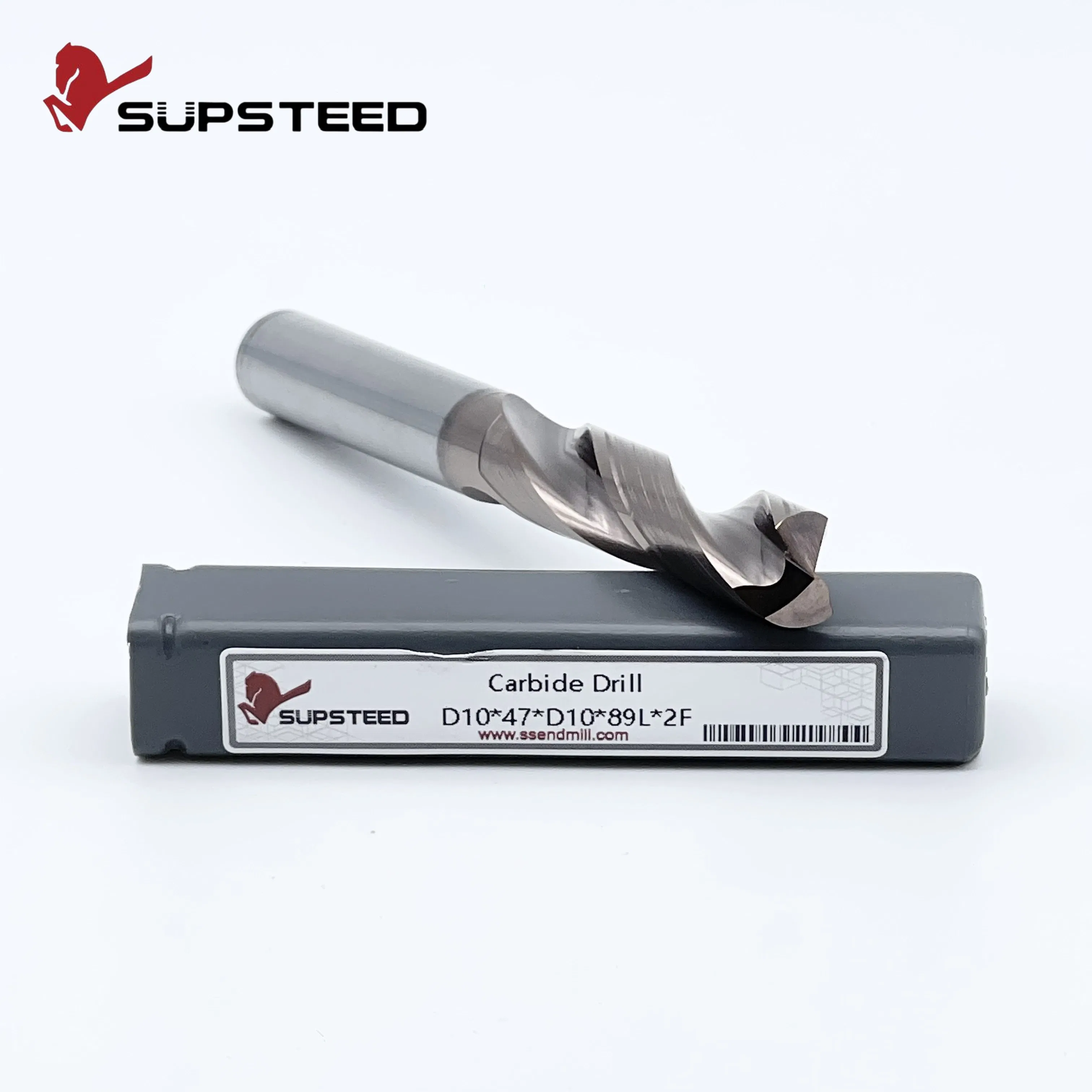

• Solid Carbide Drills: Made entirely of tungsten carbide for maximum rigidity. Best for high-precision drilling in small to medium diameters (0.5mm - 20mm). Used in CNC machining centers, lathes, and milling machines.
• Carbide-Tipped Drills: Feature a carbide cutting edge welded to a steel body. Cost-effective solution for larger diameters. Common in heavy-duty drilling applications.
• Indexable Carbide Insert Drills: Use replaceable carbide inserts for easy maintenance. Ideal for large-diameter holes (12mm and above). Reduce tooling costs by replacing only the inserts instead of the entire drill.
• Micro Carbide Drills (Under 1mm): Ultra-fine drills for precision holes in electronics, medical devices, and jewelry. Require high spindle speeds and rigid setups.

Recommended Applications by Industry

• Aerospace: Drilling titanium, Inconel, and carbon fiber composites. Requires high feed rates and precision hole tolerances.
• Automotive: Engine blocks, cylinder heads, and transmission components. High-volume production with minimal tool changes.
• Mold & Die Making: Hardened steel and pre-hardened mold materials. Deep-hole drilling with parabolic flutes for chip control.
• General Machining & Metalworking: Stainless steel, aluminum, and exotic alloys. Used in CNC machining centers, lathes, and drill presses.

How to Select the Right Carbide Drill?

• Material Being Drilled: Soft metals (aluminum, copper): Use sharp, polished flutes with high helix angles. Hard metals (stainless steel, titanium): Choose drills with reinforced tips and heat-resistant coatings. Composites & plastics: Select drills with polished edges to prevent delamination.
• Drill Diameter & Depth: Small holes (0.5-3mm): Solid carbide drills with coolant-through options. Medium holes (3-12mm): Standard or parabolic flute designs. Large holes (12mm+): Indexable insert drills for cost efficiency.
• Coating Selection: TiN: General-purpose for most materials. TiAlN: High-speed machining of tough alloys. Diamond Coating: Best for non-ferrous metals and graphite.

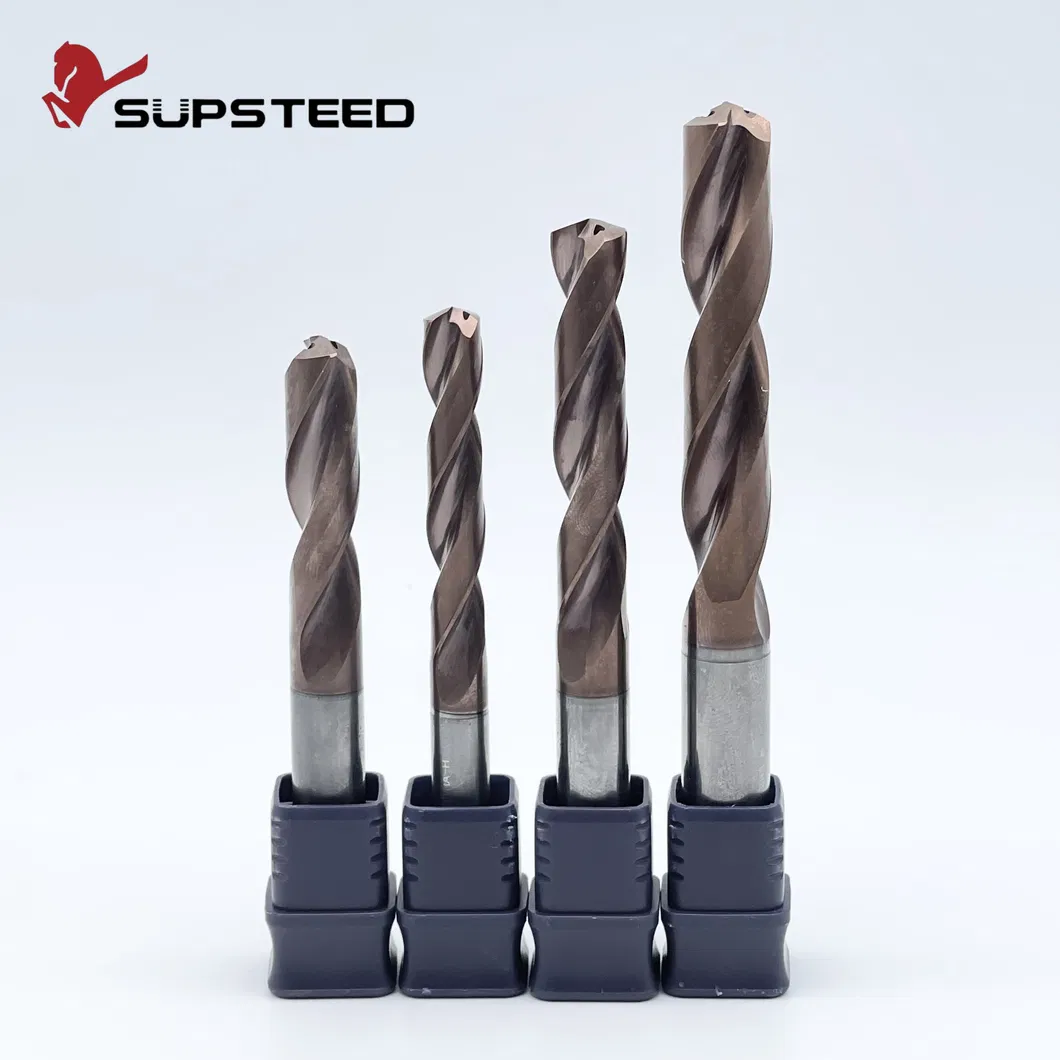

• Coolant Requirements: Through-coolant drills: Improve chip evacuation in deep-hole drilling. External coolant: Suitable for standard drilling operations.

Maintenance & Best Practices

• Use Proper Speeds & Feeds: Follow manufacturer recommendations to avoid premature wear.
• Ensure Rigid Setup: Minimize vibration to prevent tool breakage.
• Use Coolant When Needed: Extends tool life and improves surface finish.
• Inspect Regularly: Check for chipping, wear, or edge degradation.
• Store Properly: Keep drills in a dry, organized environment to avoid damage.
