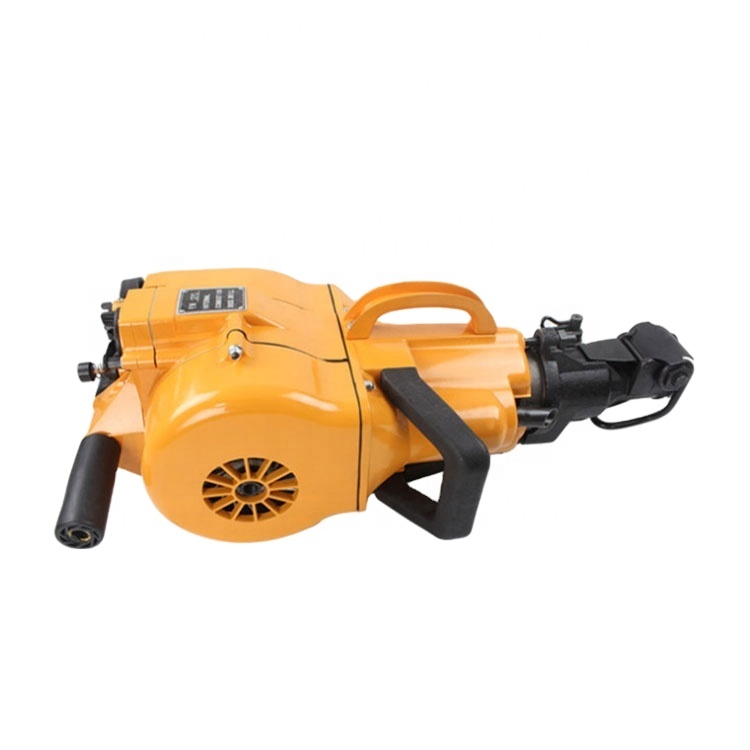

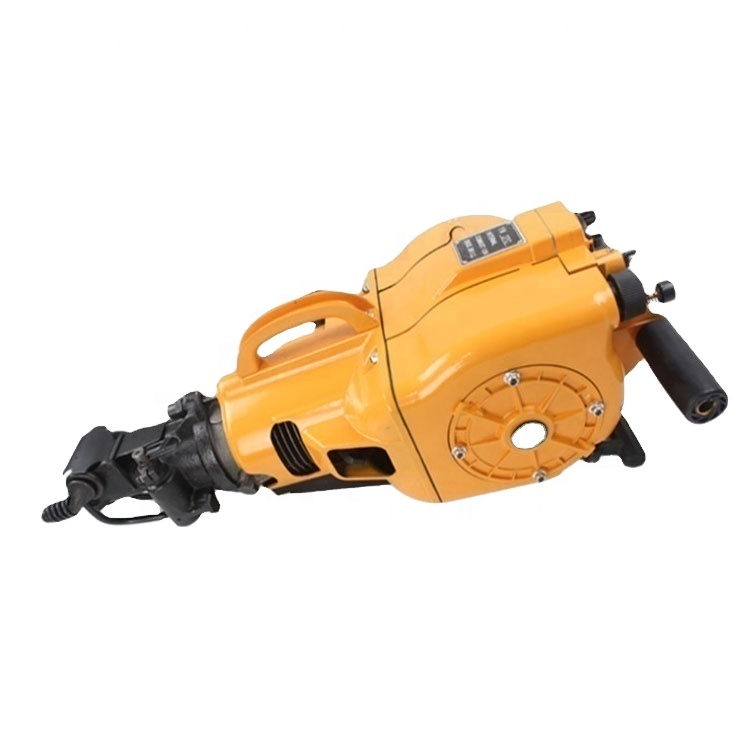

Handhold gas power pneumatic jack hammer yn27c jackhammer electric for rock stone breaker

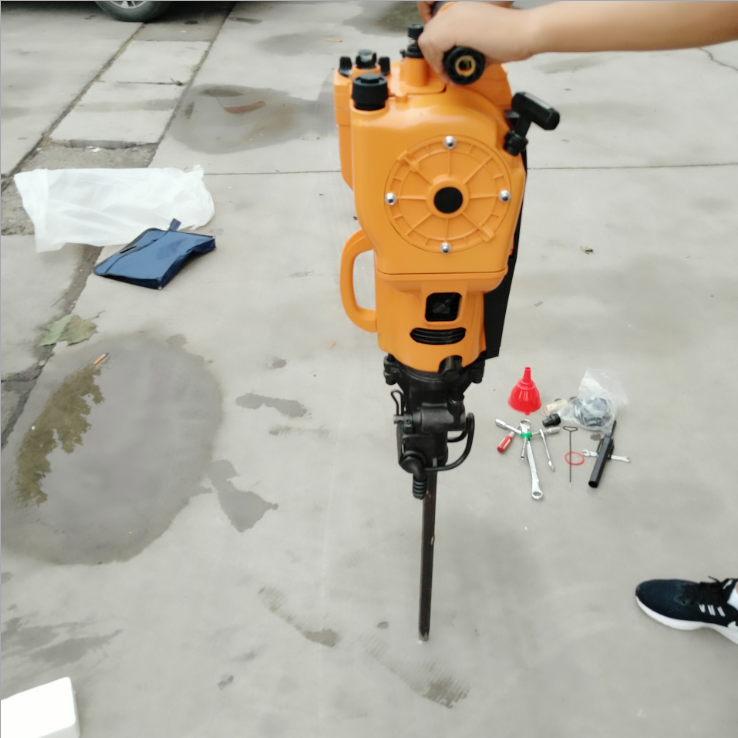

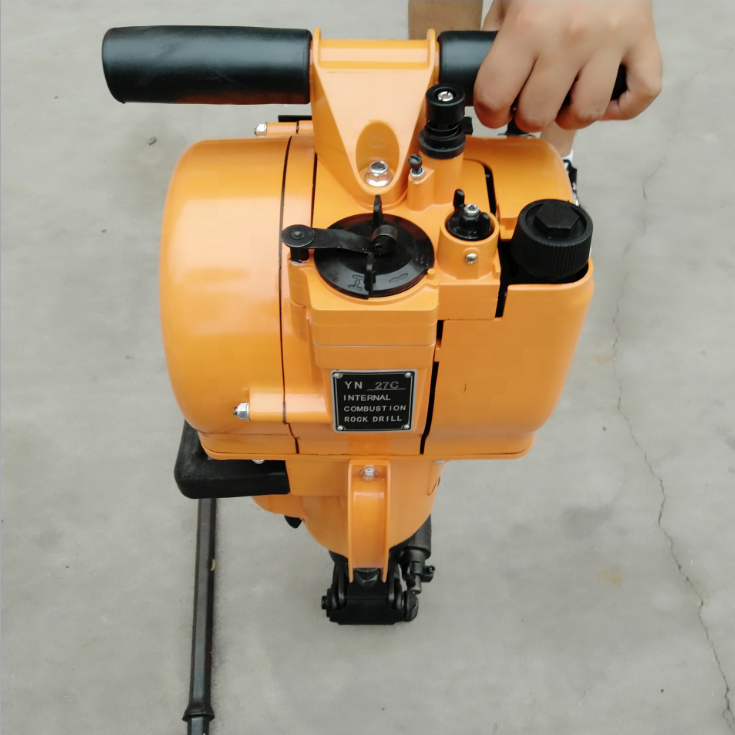

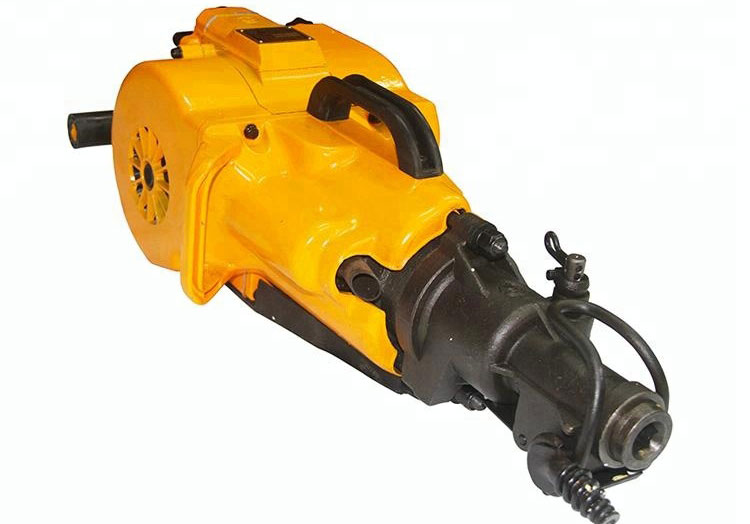

THE SHOW OF YN27C
Features
1
YN27C Gasoline rock drill is a small type of rock drill composed the power machine, working machine and air compressor in one.
2
YN27C Gasoline rock drill is powered by small gasoline engine and used for drilling on the hard rock with medium hardness.
3
YN27C Gasoline rock drill has independent impact function.
4
YN27C Gasoline rock drill can be used for cleaving rock, bruising concrete foundation, tamping railroad bed, small area tamping by combining with auxiliary means.
5
Therefore it changes the traditional working method of rock drill, which was only used to drill blast holes. So it expands the functions of rock drill.
The Specification
| Model |
YN27C |
| Weight |
27kg |
| Dimension |
810*380*280mm |
| Engine |
single cylinder, air cooled two strokes |
| Cylinder dia*stroke piston |
58*70mm |
| Rotating speed |
more than 2450r/min |
| Displacement of engine |
185cm^3 |
| Carburetor |
hand needle valve, no floating |
| Drilling speed |
more than 2450r/min |
| Max drilling depth |
6M |
| Fuel consumption |
1.2L/min |
| Tank capacity |
more than 1:14L |
| End of drill rod dimensions |
hexagonal 22*108mm |
| Rotating speed of drill rod |
more than 200r/min |
| Clearance of spark plug |
0.5-0.7mm |
Please click here for more models

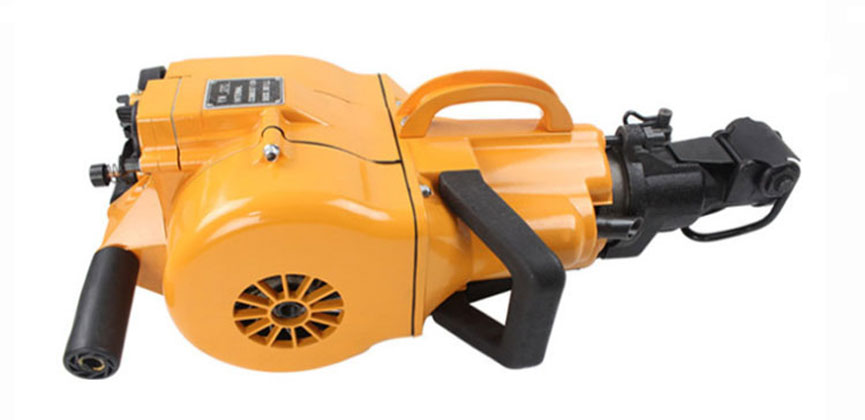

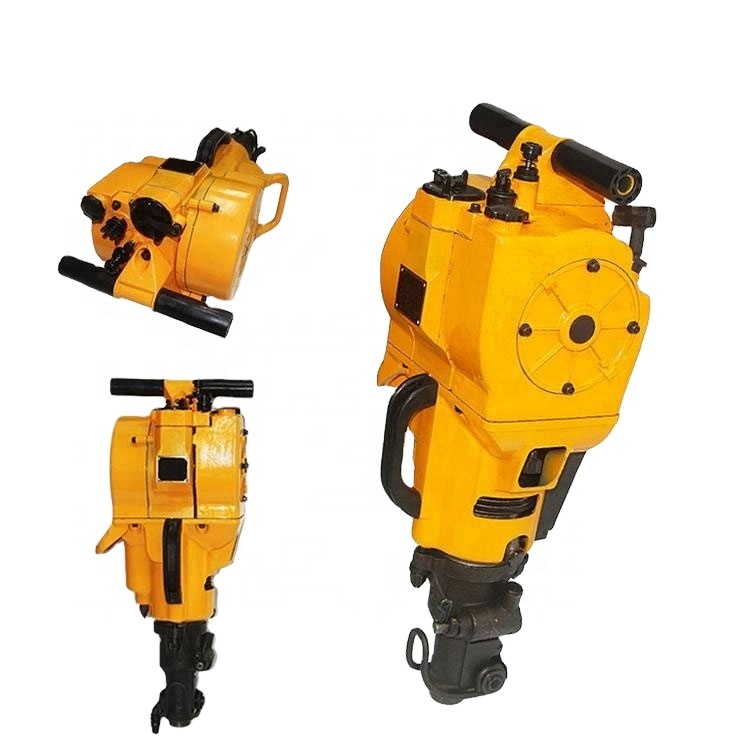

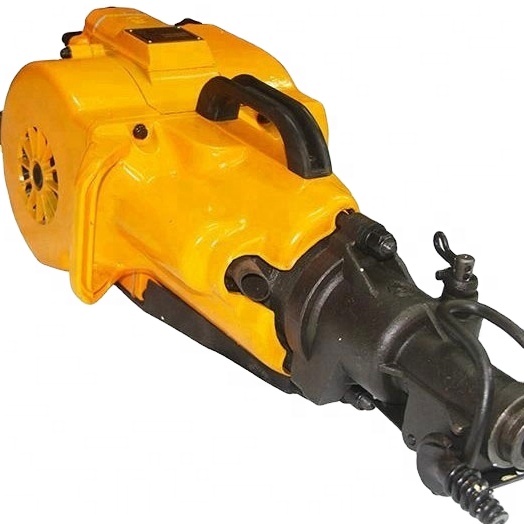

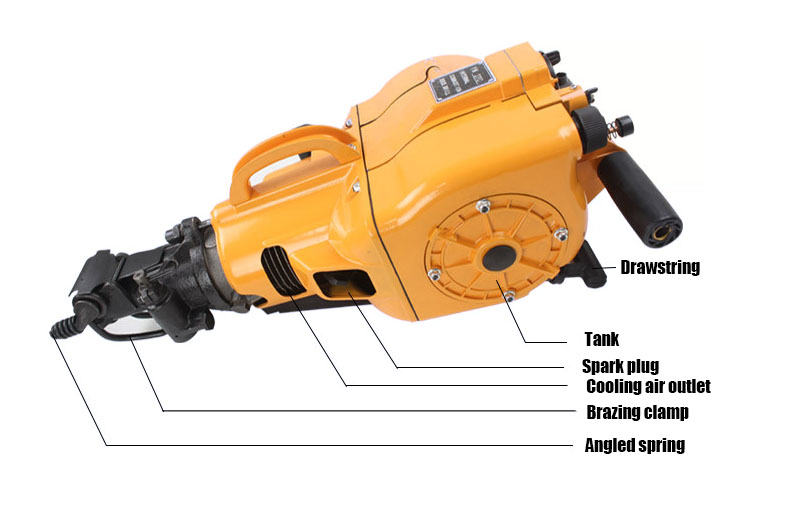

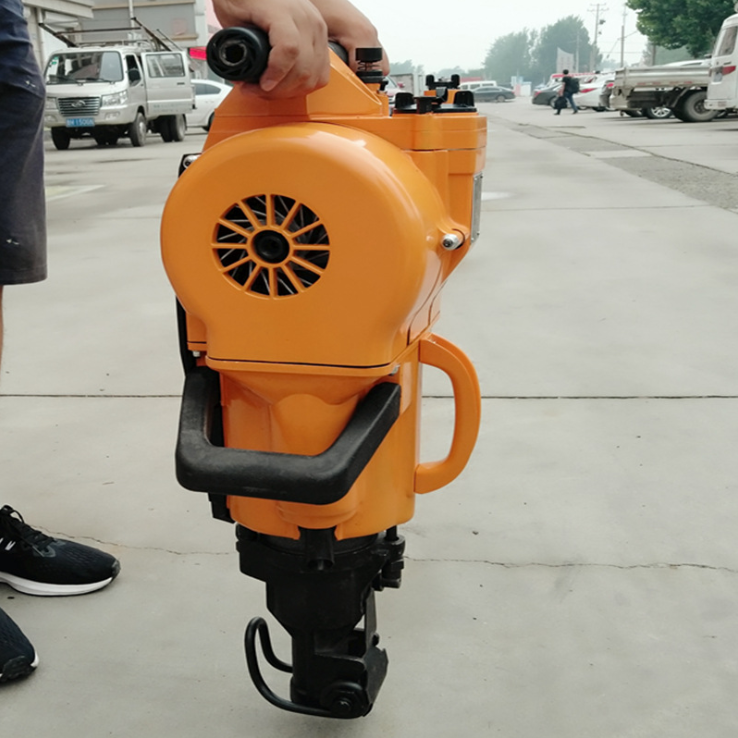

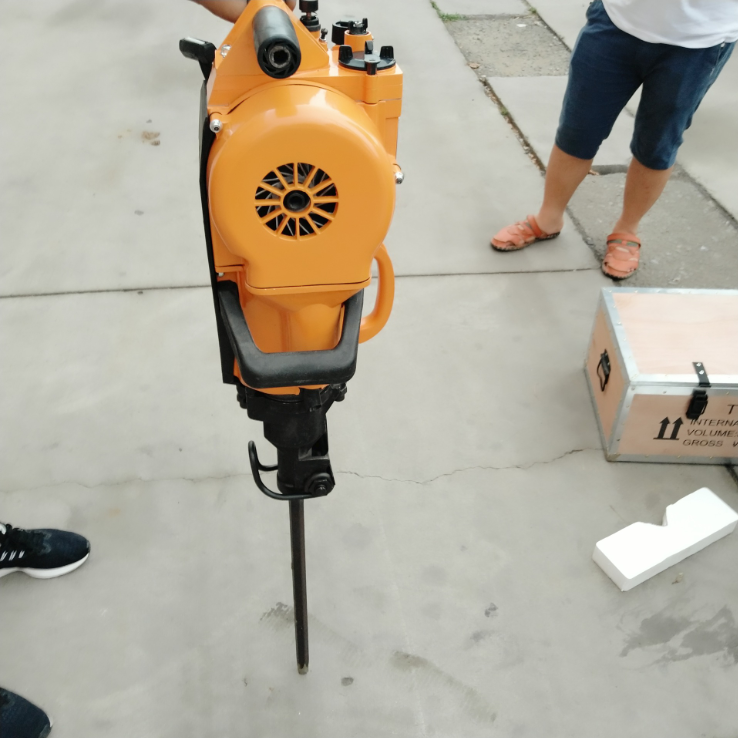

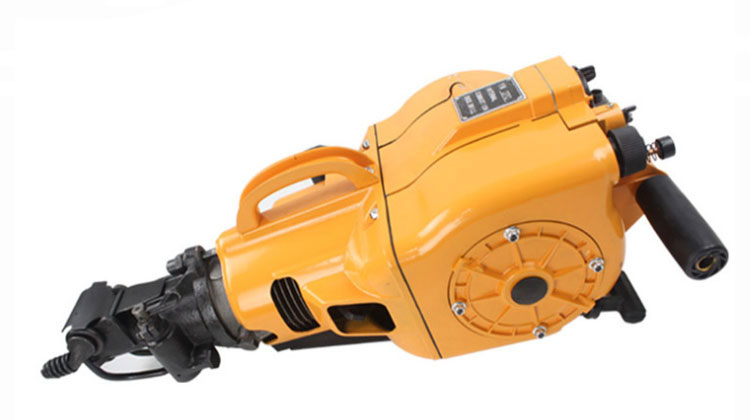

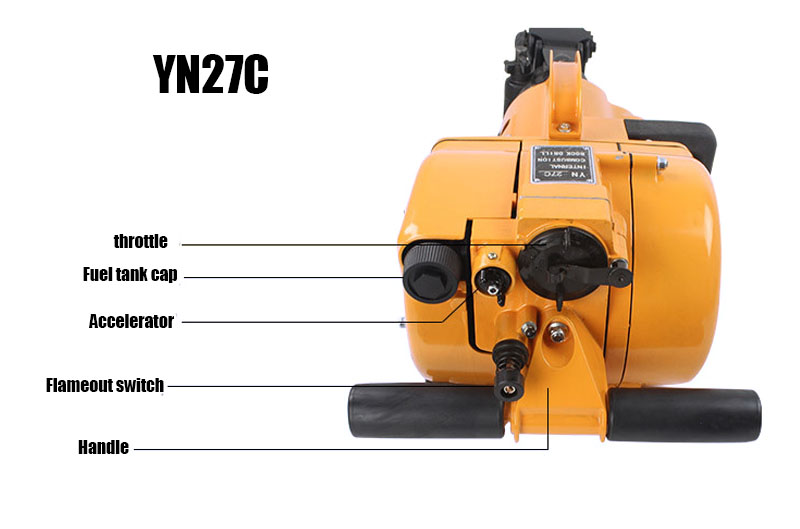

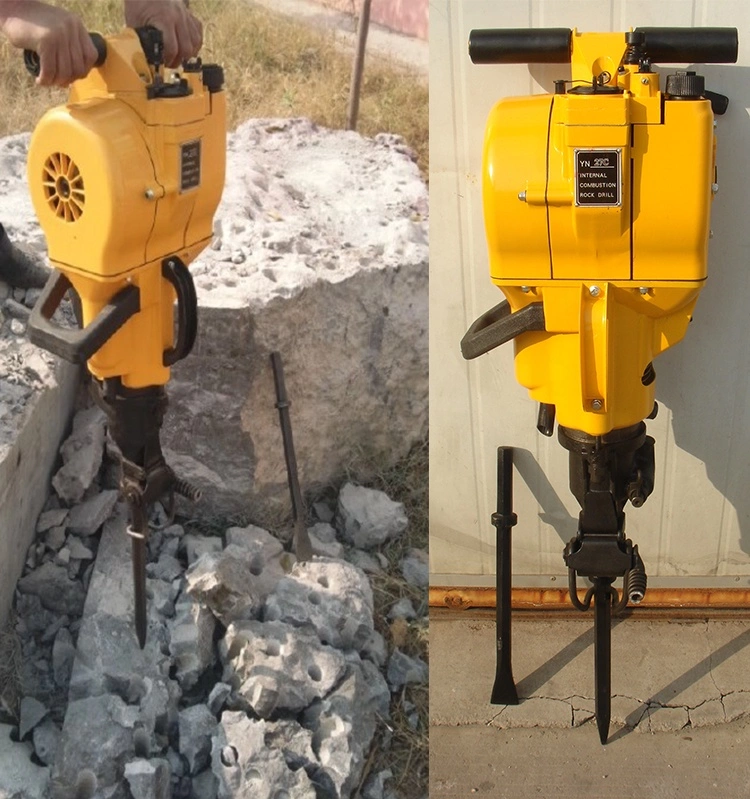

MORE DETAILS OF THE ROCK DRILL

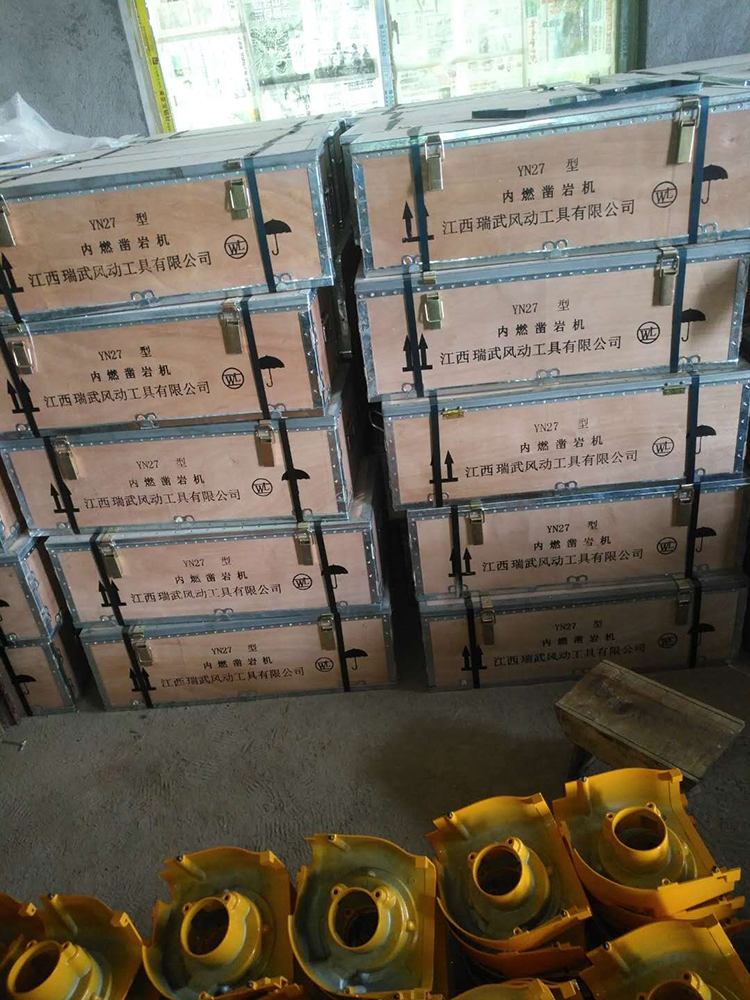

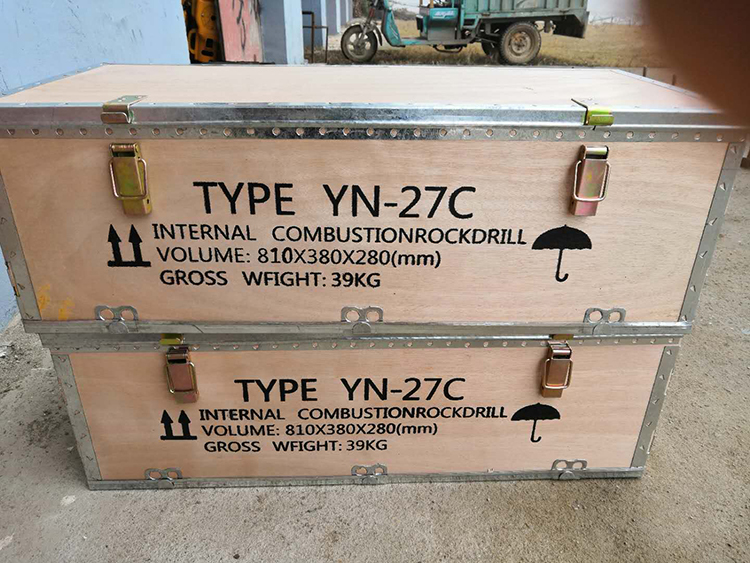

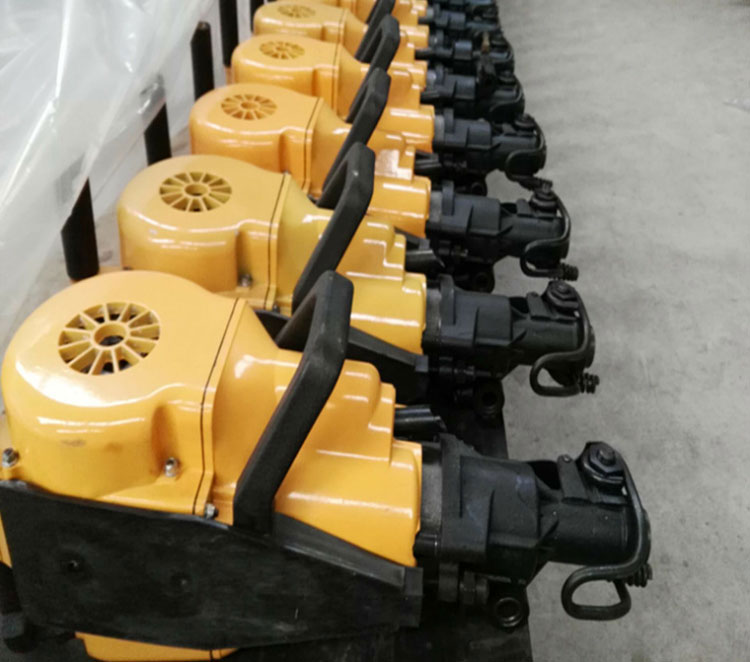

THE WAREHOUSE
Quality Assurance
Professional team provides professional service
FAQ
Are you a factory or trading company?
We are a factory, and we have our own trading company.
What are the warranty terms for the machine?
We provide a one-year warranty for the machine and technical support according to your needs.
Will you provide some spare parts for the machines?
Yes, of course we do.
What about the voltage of the products? Can they be customized?
Yes, the voltage can be customized according to your requirements.
Which payment terms can you accept?
We accept 30% T/T in advance and 70% T/T against the B/L copy.
Can you accept OEM orders?
Yes, with a professional design team, OEM orders are highly welcome.
