Gp04 GPS-04-16-045 Solid Carbide Guide Pads Metalworking Tools Indexable Carbide Gun Drill Deep Hole Drilling

Basic Info.

Model NO.

GPS-04-16-045

Standard

Coating

Material

Cemented Carbide

Name

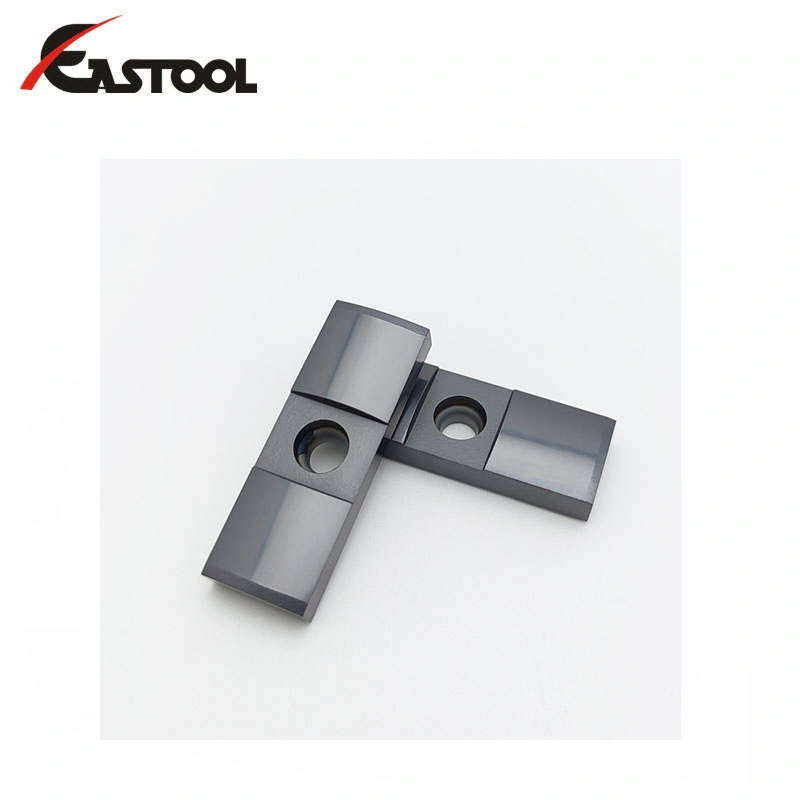

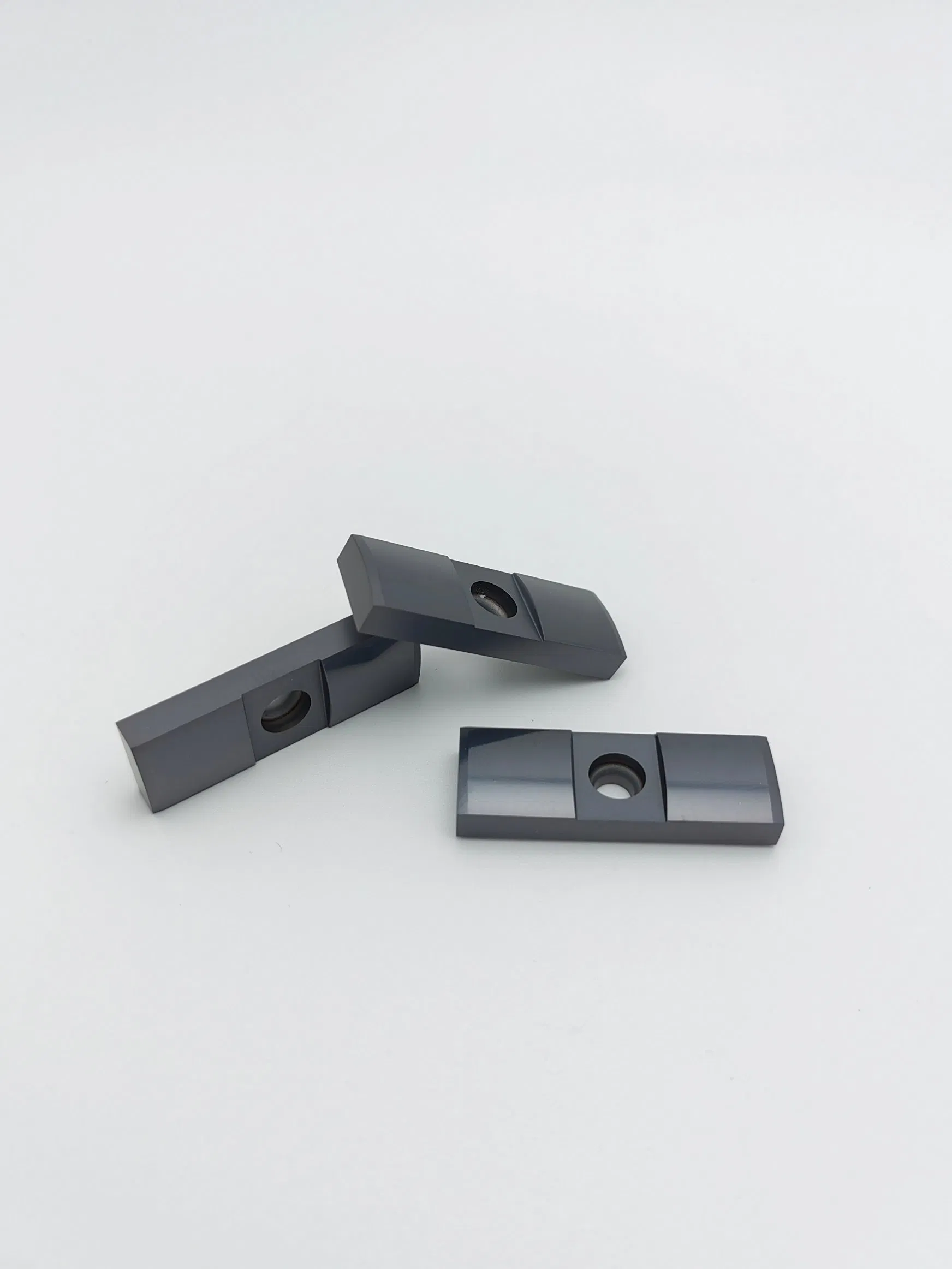

Deep Drilling Head Solid Carbide Guide Pads

Type

Guide Pads

Serial

GPS-04-16-045

Coated

PVD

Usage of Guide Pads

Gundrill

Guide Pads Overall Length

0.63 Inch

Shank Width (B)

0.157 Inch

Body Material

Steel

Transport Package

Plastic Case and Carton

Specification

Small

HS Code

8208101100

Production Capacity

50000PCS/Month

Product Description

Deep Drilling Head Solid Carbide Inserts Guide Pads GPS-04-16-045, GPS-04-16-050, GPS-04-16-055. Equipped with advanced wear-resistance features suited for precision industrial tasks.

Gp04 GPS-04-16-045 Solid Carbide Guide Pads Metalworking Tools Indexable Carbide Gun Drill Deep Hole Drilling

Grades Description

CVD Coated Cemented Carbide
Grade	Description	Equivalent to ISO
YC1015	MT-CVD coated, the substrate with excellent wear resistance in combination with MT-TiCN, fine grained AL2O3TiN multi-layer coating, which is suitable for finishing of steel.	P05-P15
YC1025	MT-CVD coated, Cutting edge with good toughness in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for semi-finishing of steel.	P10~P25
YC1035	MT-CVD coated, the substrate with excellent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.	P20-P35
YC1125	Special strength toughness of the insert substrates, perfect combinations with MT-TiCN, ultra fine AL2O3, coatings, common grade for steel, suitable for steel, cast iron, stainless steel in semi-finishing, finishing.	P10~P25
YC1315	The combination of high wear-resistant substrate with MT-TiCN, fine grained Al2O3 and TiN coatings, is an ideal grade of finishing processing of steel, stainless steel in the case of high speed cutting.	P10~P25
YC1325	With optimized toughness and hardness of the substrate and MT-TiN, fine grain Al2O3 and TiN coating and with a special post-treatment process, the formation of excellent performance of the double-color coating, suitable for steel, stainless steel and cast iron in semi-finishing and finishing.	P10~P25
YC1335	Substrate with high strength and strong resistance to plastic deformation combined with MT-TiCN, fine grained Al2O3 and TiN coating having great toughness, is suitable for light load roughing of steel, stainless steel and cast iron.	P10~P25
YC2105	MT-CVD coated, the super fine grain size substrate with excellent hardness in combination with Al2O3(extra thick) coating, the smooth surface, which is suitable for turning and milling of grey cast iron at high speed.	K05-K15
YC2115	MT-CVD coated, the substrate with excellent hardness and stripping resistance in combination with Al2O3(thick) coating, the smooth surface of the tools, which is suitable for turning and milling of cast iron at middle and high speed.	K10-K30
YC2215	High wear-resistant substrate, new generation coating process with perfect combination of MTTI (CN), Super Al2O3, TiCN coating, initial grades of ductile cast iron, forged cast iron, high cutting speed allowance.	K10~K30

PVD Coated Cemented Carbide
Grade	Description	Equivalent to ISO
YP3025	2-4um TiALN PVD coated, combinating with ultra fine particles' substrates with high toughness, suitable for all materials, stainless steel, steel, cast alloy in finishing, semi-finishing.	P10-P25 K15-K30
YP3125	2-4um ALCr+ALCrSiN PVD coated, combinating with ultra fine particles' substrates with high toughness, suitable for all materials, stainless steel, steel, cast alloy in finishing, semi-finishing.	P10-P25 K15-K30 M10-M25
YP3225	2-4um AlCr + AlCrSiN PVD coating, combined with ultra-fine particle matrix, has high wear resistance, suitable for finishing and semi-finishing of heat-treated steel, stainless steel and quenched steel.	P10-P25 K15-K30 M10-M25
YP3330	The latest AlCr + AlCrSin PVD coatings, combined with ultra-fine particle substrates, has high wear resistance and excellent performance in finishing and semi-finishing of stainless and hardened steel.	P10-P25 K15-K30 M10-M25
YR3025	2-4um TiALN + TiN PVD coated, combinating with fine particles' substrates with high toughness, suitable for all materials, high-temperature alloy Ti alloy in semi-finishing, roughing.	P20-P30 K20-K35
YR3025	Unique material matrix, with 2-4um TiAlN PVD coating, with high toughness and heat resistance, suitable for high temperature alloy, heat resistant alloy and other difficult to process materials finishing, semi-finishing.	S10-S25
YR3325	The latest AlCr + AlCrSin PVD coatings, combined with unique rare metal substrates, offer high wear resistance and excellent performance in finishing and semi-finishing of superalloys and heat resistant alloys.	S10-S25

Our Advantages

Made from 100% virgin raw material;
Produced with advanced equipments and process;
All products go through in-process and final inspection;
Free online technical service available;
Stable and continuous production ability.

Production Process

Packaging & Shipping

Our Services

Frequently Asked Questions

What are the main materials used for these guide pads?

The guide pads are manufactured using a high-quality Cemented Carbide material integrated with a strong steel body for maximum reliability.

What are the dimensions and model specifications of the standard unit?

The basic model is GPS-04-16-045, which features an overall length of 0.63 inch and a shank width (B) of 0.157 inch.

Which raw materials are used in production?

The guide pads are made from 100% virgin raw materials to guarantee consistent physical performance and durability.

What types of coatings are applied to the Cemented Carbide inserts?

The guide pads employ advanced PVD coating processes (such as TiALN, ALCr, or ALCrSiN) or CVD multi-layer coatings (including MT-TiCN, Al2O3, and TiN) to improve wear and toughness properties.

What are your quality inspection procedures?

All products are manufactured using state-of-the-art machinery and undergo strict inspections both in-process and during final stages before packaging.

How are the products packaged for shipping?

Products are packed inside secure plastic cases and then enclosed in robust outer cartons to prevent damage during transit.
