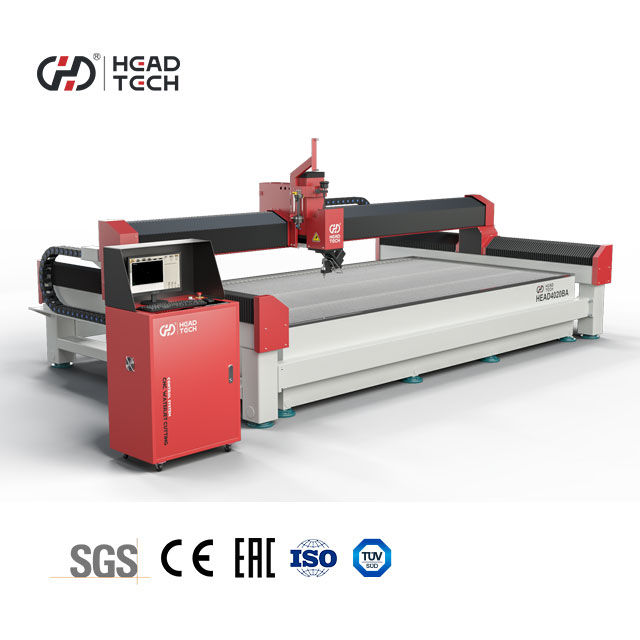

HEAD Water Jet 3d Cutting 5axis Concrete Tile Cutter Ceramic Tile Cutting Machine

Product Description

Product Description

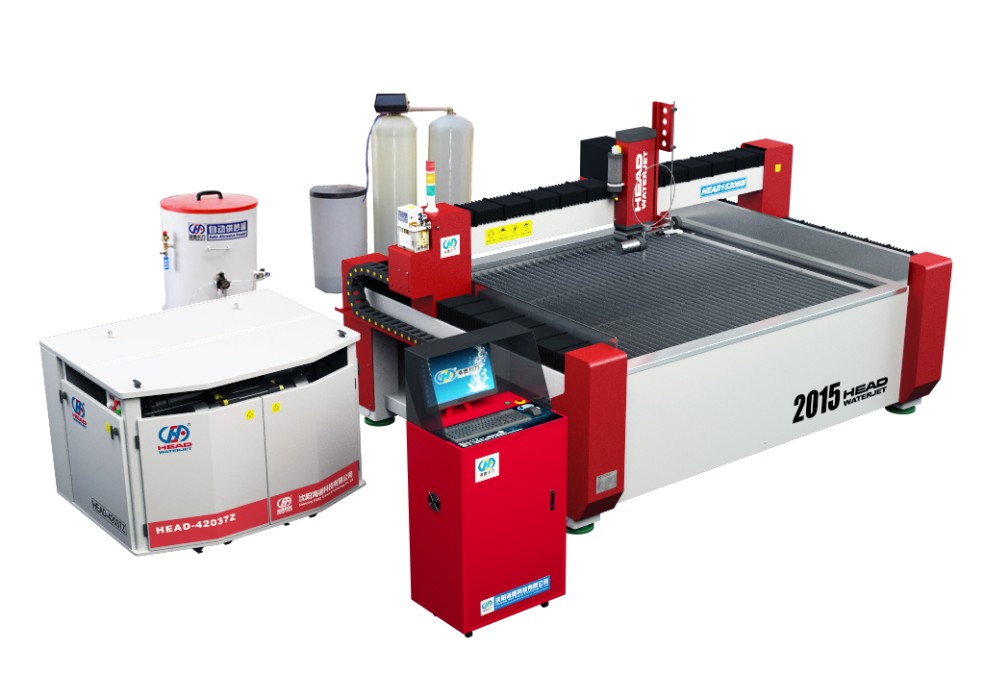

Water Jet Cutting Machine Overview

Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

Features

  • 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
  • Main heart of Supercharger, "Intensifier" is "Made in USA".
  • User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
  • All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan), which gives you trouble free operation & long life of parts.
  • Use special water cutting machine software, a day to achieve a comprehensive grasp.
  • Non-standardized model design customization: Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db.

Specifications

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure 420MPA
Max. flow rate 3.7L / min
Electrical source voltage 3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Control accuracy ±0.01mm
Max. oil discharge 206L/min
Max. delivery capacity of oil pump 106L / min

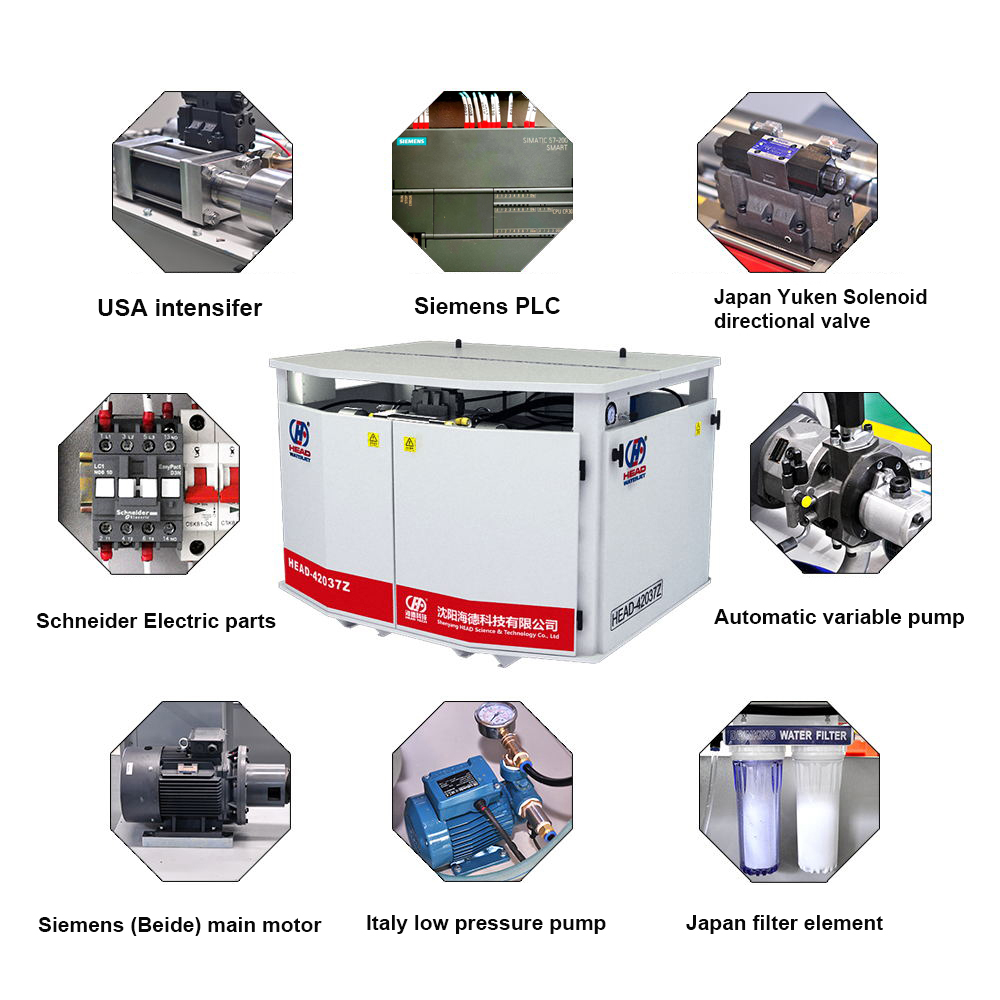

Water Jet Machinery View
Water Jet Inner Structure

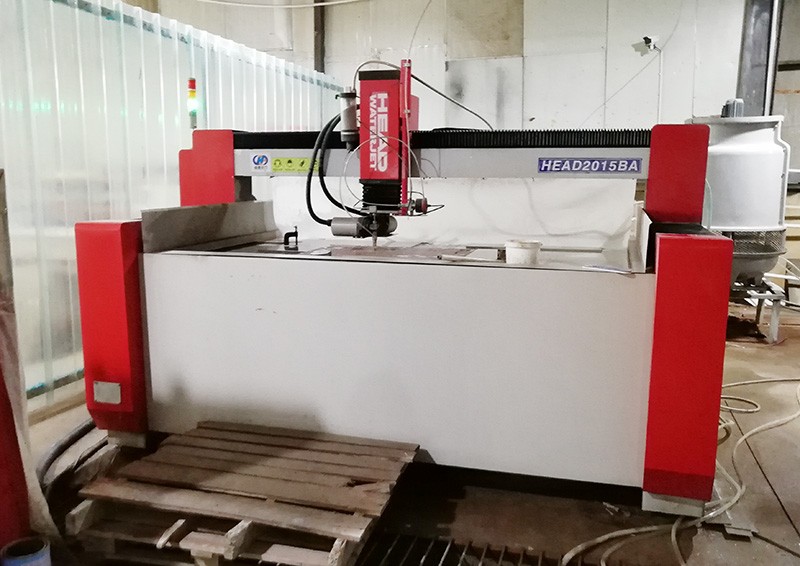

Water Jet Application 1

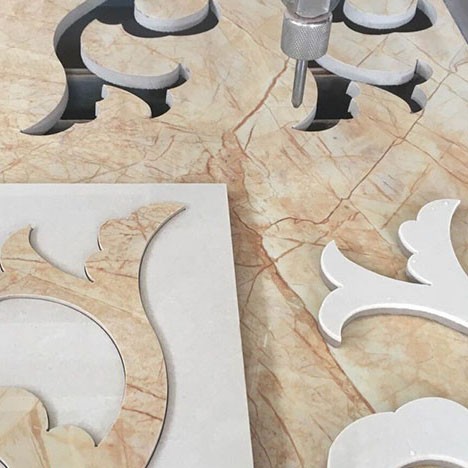

Water Jet Application 2

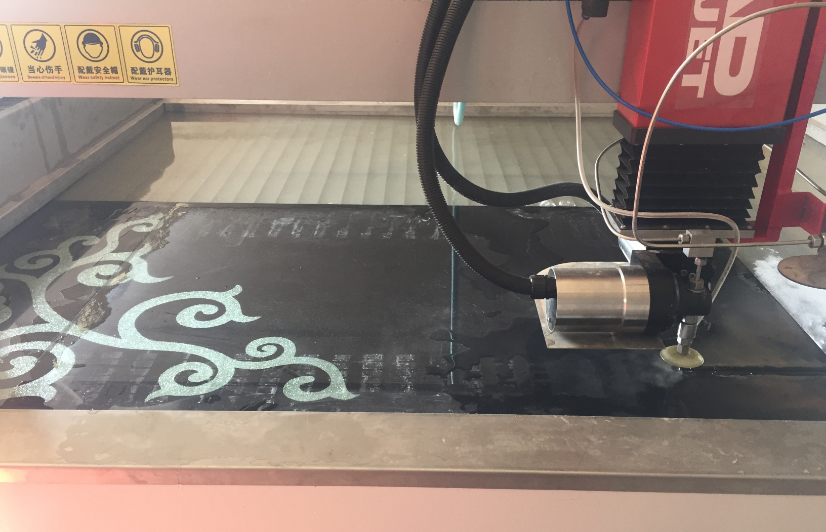

Water Jet Application 3

Machine Parts Show

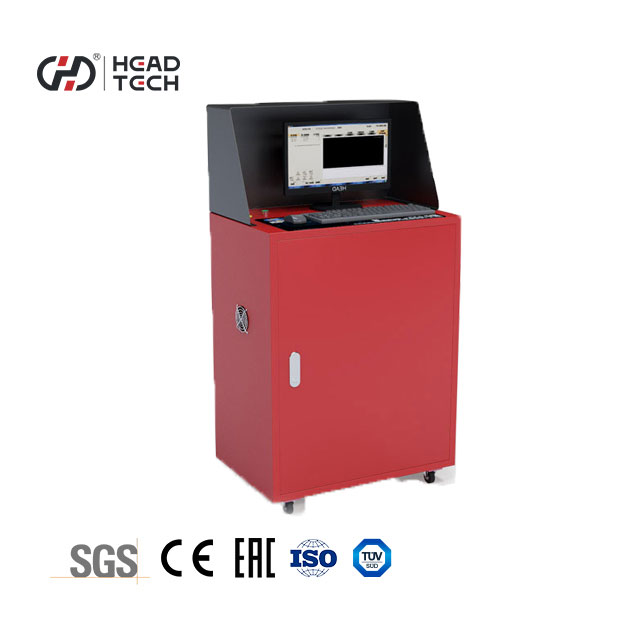

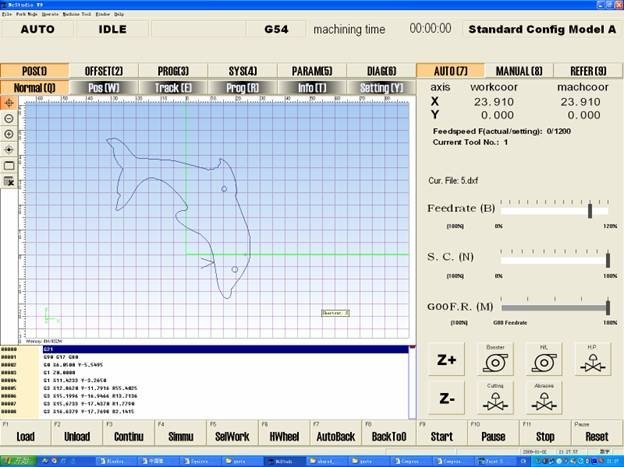

Water Jet Software Screen

Water Jet Software

  • To control all the cutting process
  • Shanghai "WEIHONG" brand
  • Easy to operate in just 8 hours to learn

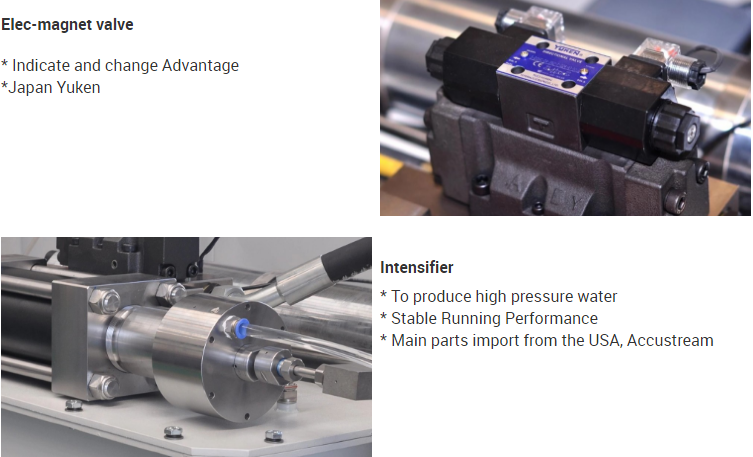

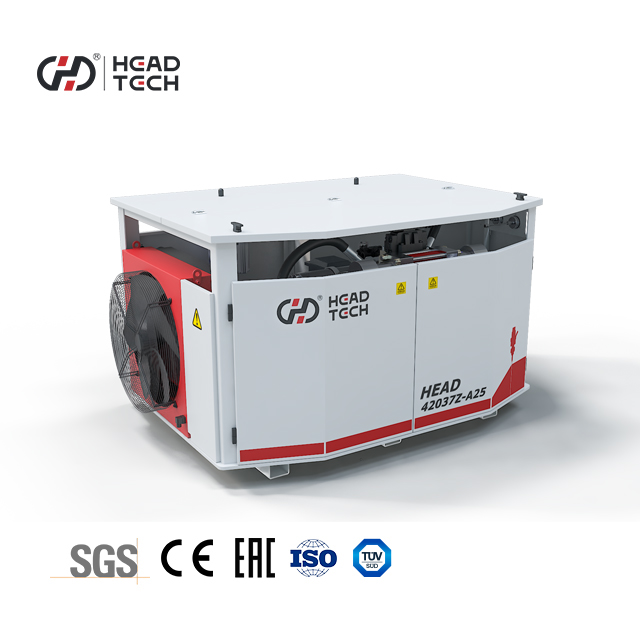

Intensifier Component

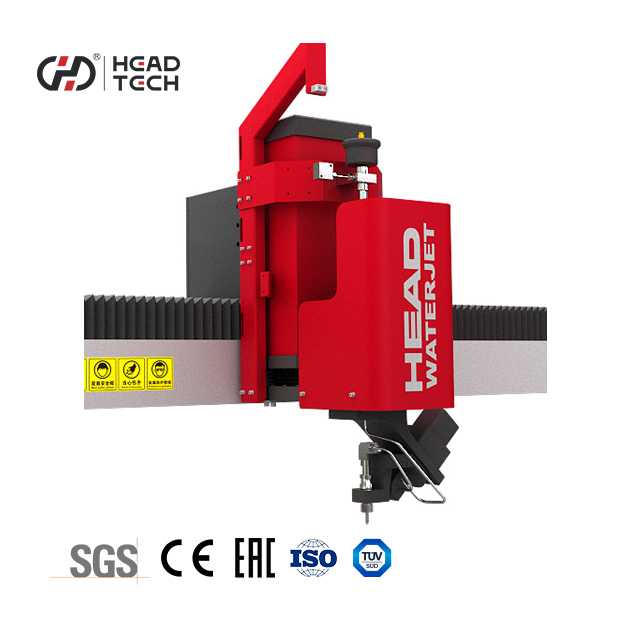

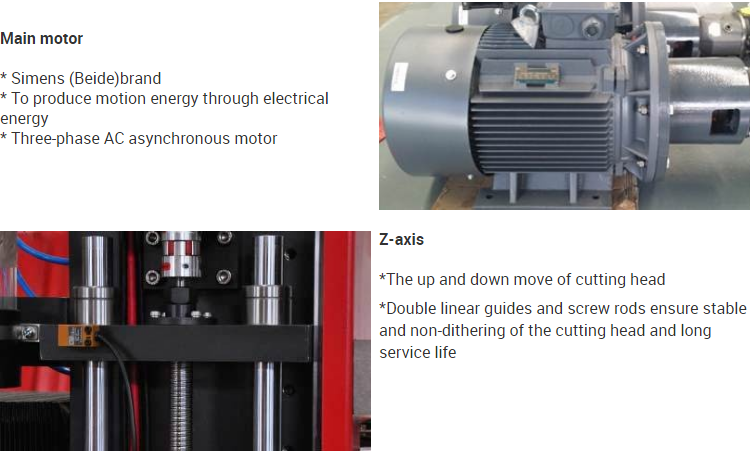

Cutting Head Component

Detailed Images

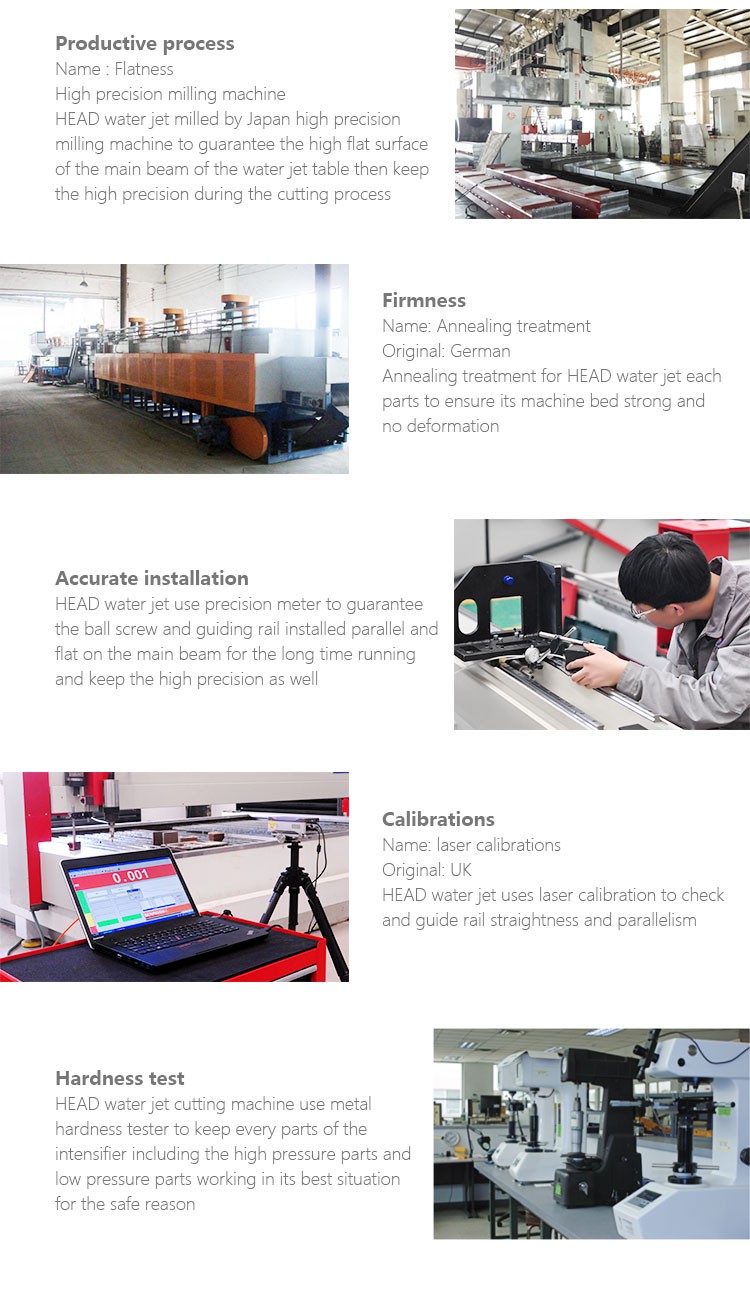

Machine Close Up

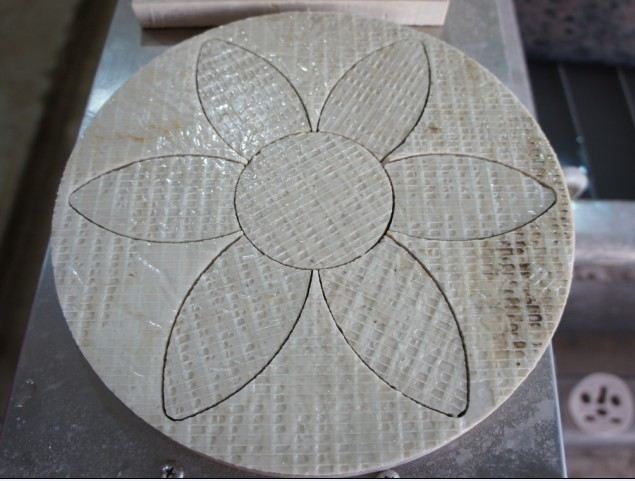

Machine Assembly 1
Machine Assembly 2

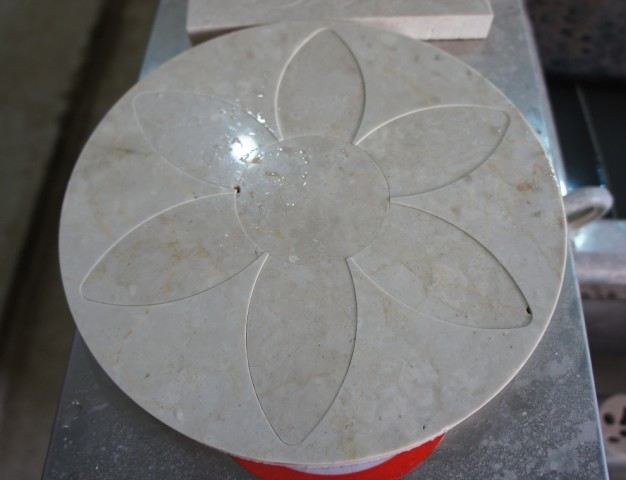

Cutting Sample

Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.

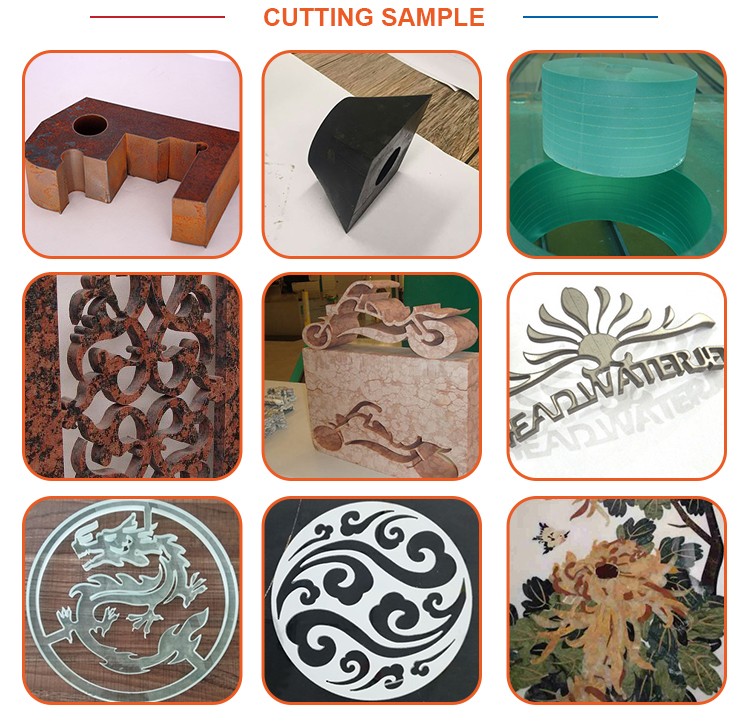

Sample Display

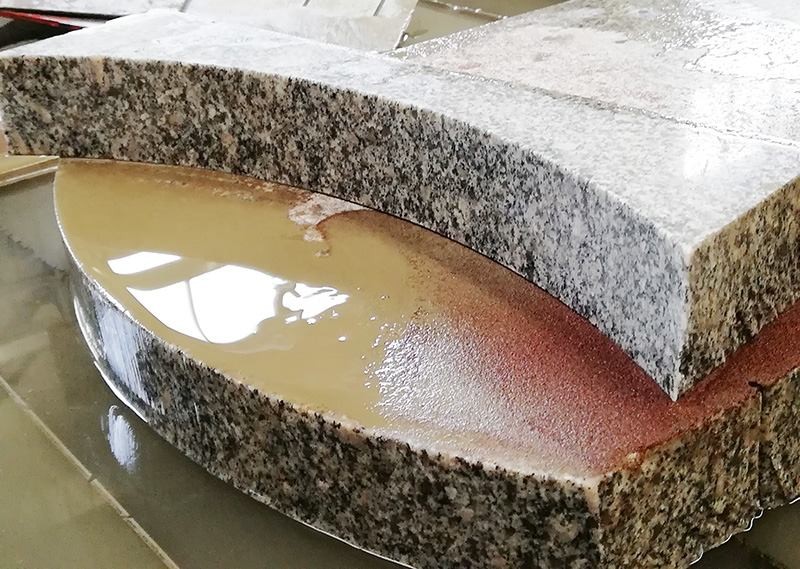

Stone sample

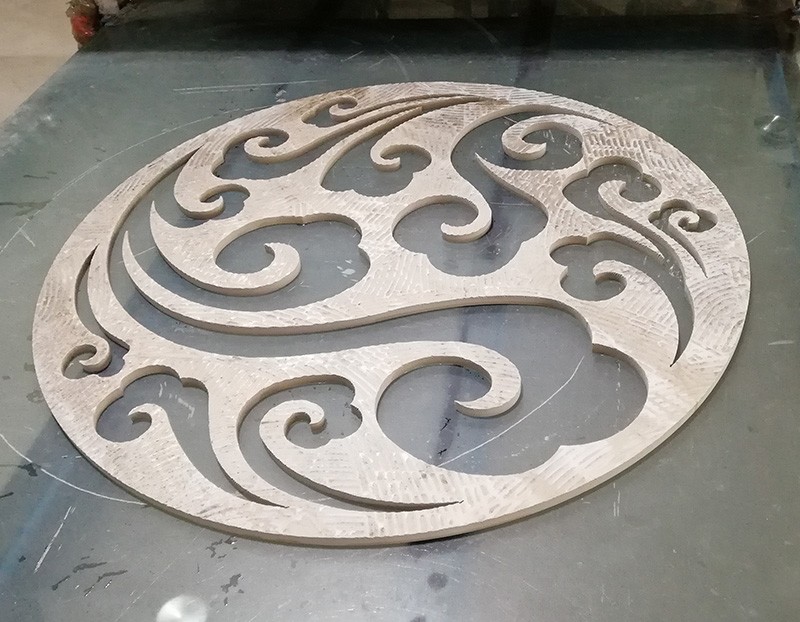

Metal sample

Our Service

  • Maintenance free of charge for 12 months.
  • We will provide the consumable parts at an agency price.
  • 24 hours online service, free technical support.
  • Machine has been adjusted before delivery, operation disk is included in the delivery.
  • We have manual instructions and Videos for software Installation, operation, machine's usage and maintenance. We provide training including working principles, Auto CAD drawing, common problems and solutions, etc.
After sales service support

Packing & Delivery

Safe Packaging Showcase

Our Package Advantage:

  • Our Wooden Case is after fumigation treatment. It does not require timber inspection, saving shipping time.
  • All the spare parts of the machine are wrapped in soft materials, mainly Pearl Wool, avoiding damages during transport. We also cover it with tight plastic wrap to ensure it is waterproof and rustproof.
  • The outmost layer is a Wooden Case with Fixed Formwork.
  • The bottom of the wooden case has a firm iron jack, making handling and transport highly convenient.

Before delivery, we test the machine for 20-30 working hours and use standard packaging for each configuration. We partner with reliable transport companies to guarantee safe and convenient shipment.

Frequently Asked Questions (FAQ)

Q1: Does this machine pass CE Certificate?
Yes, this machine has passed the European CE certificate and fully meets international safety standards.
Q2: What is the cutting thickness capacity of this water jet machine?
The cutting thicknesses vary by material: Marble (0-120mm), granite (0-110mm), tiles (0-40mm), glass and mosaic (0-80mm), steel, stainless steel, and copper (0-60mm), aluminum (0-80mm), plastic, acrylic, and foam (0-200mm). The double-pressure system cuts up to 160mm steel sheet and 200mm stones.
Q3: How fast is the cutting speed?
The cutting speed depends on your specific materials and requirements. The parameters can be adjusted via the specialized control software to match your demands.
Q4: What are the terms of the service and maintenance package?
We provide free maintenance for up to 12 months. Consumable parts are offered at agency price, and we provide 24-hour online technical support. Operations and software installation manuals along with video guides are also included.
Q5: What advantages does your wooden packaging provide?
Our wooden cases undergo rigorous fumigation treatment, removing the need for timber inspection and saving shipping time. Internally, soft Pearl Wool and plastic wraps protect spare parts from physical impact, water, and rust. Heavy-duty iron jacks are fitted to the base for safe handling.
Q6: What is the control accuracy of the water jet cutting machine?
The machine is built utilizing highly accurate servo motors, delivering high-reliability performance with a precise control tolerance of ±0.01mm.
