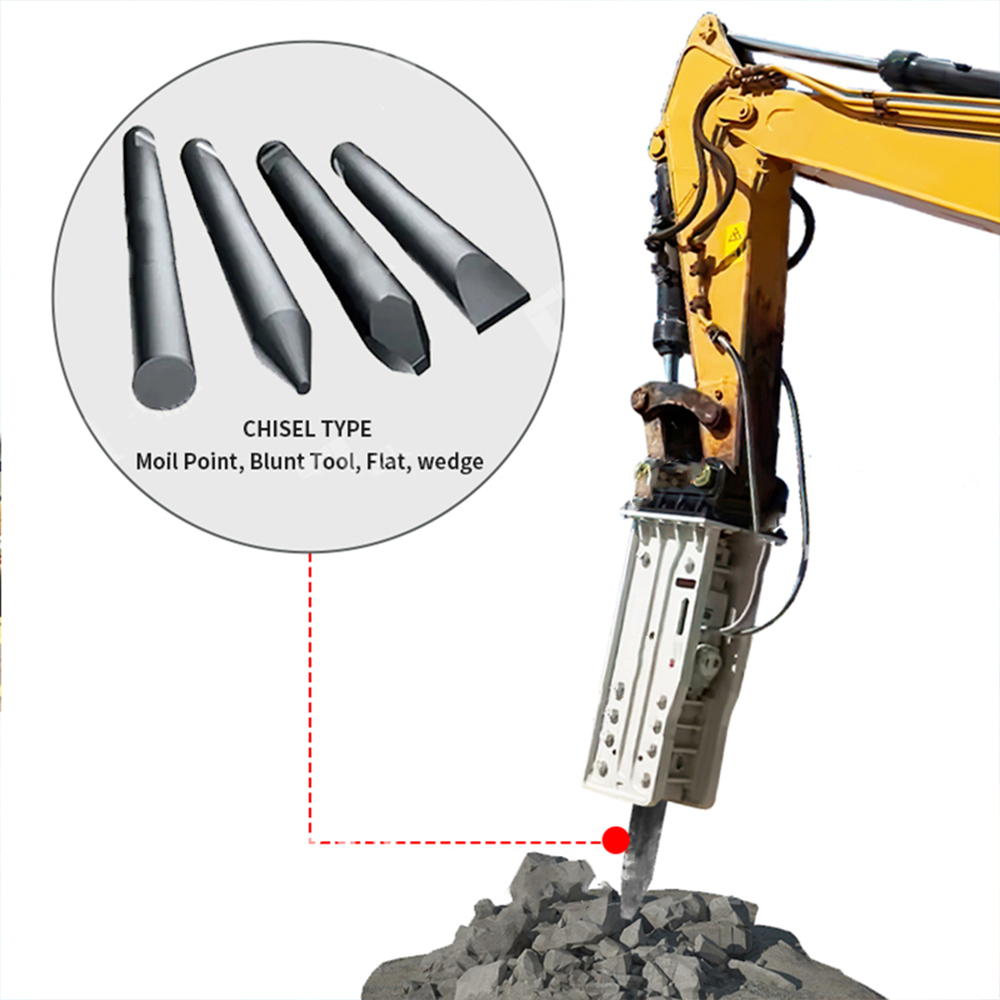

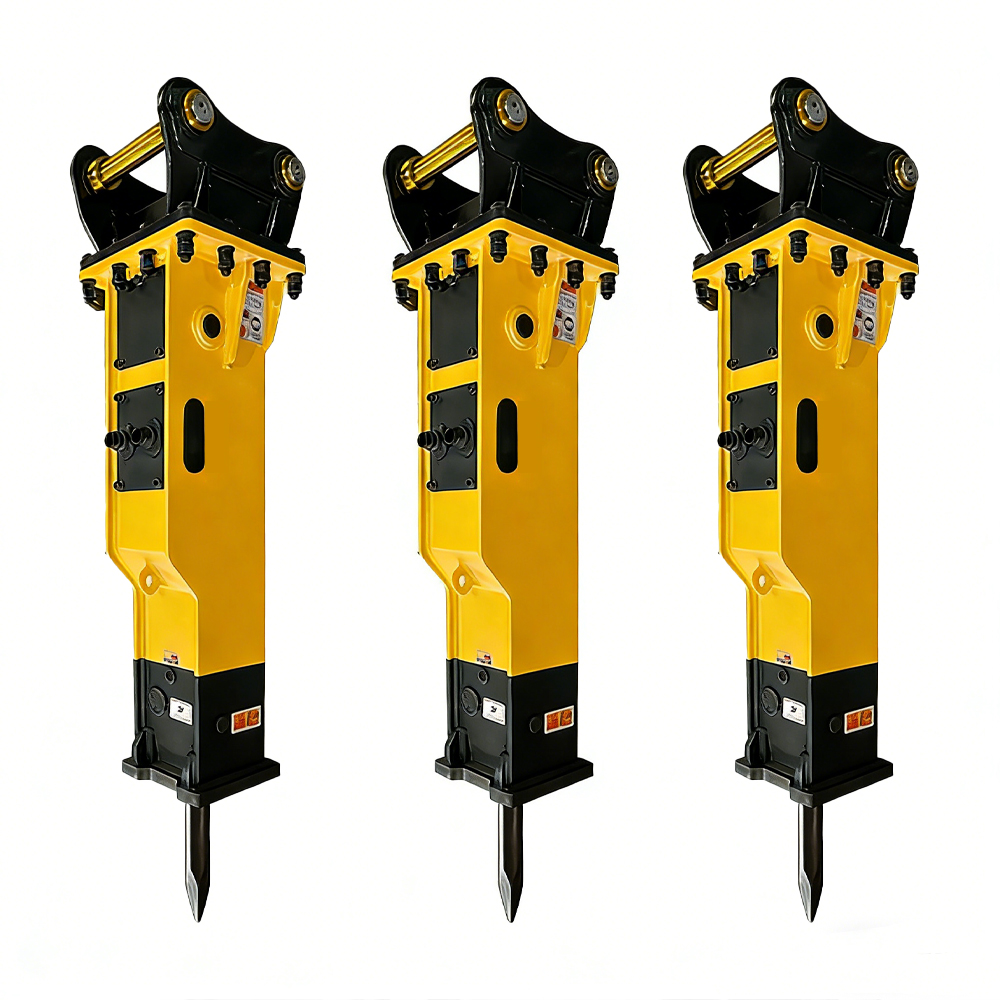

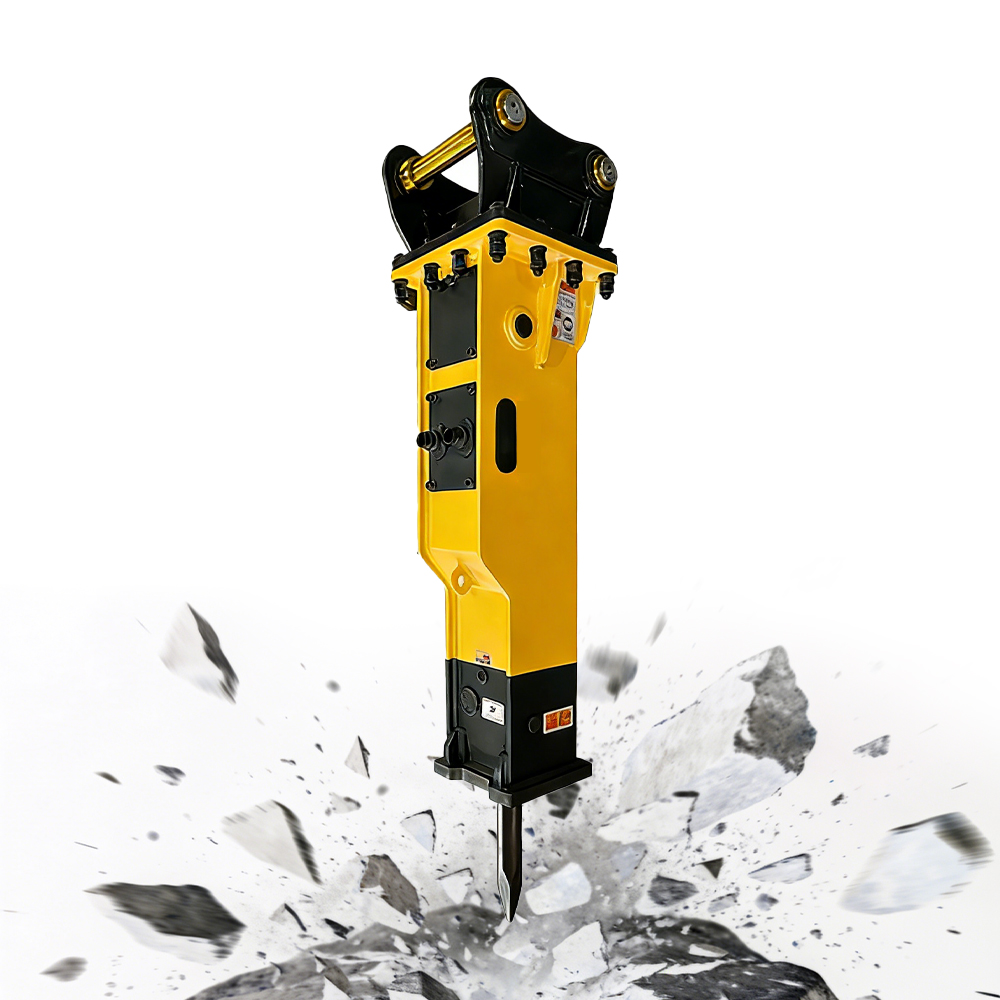

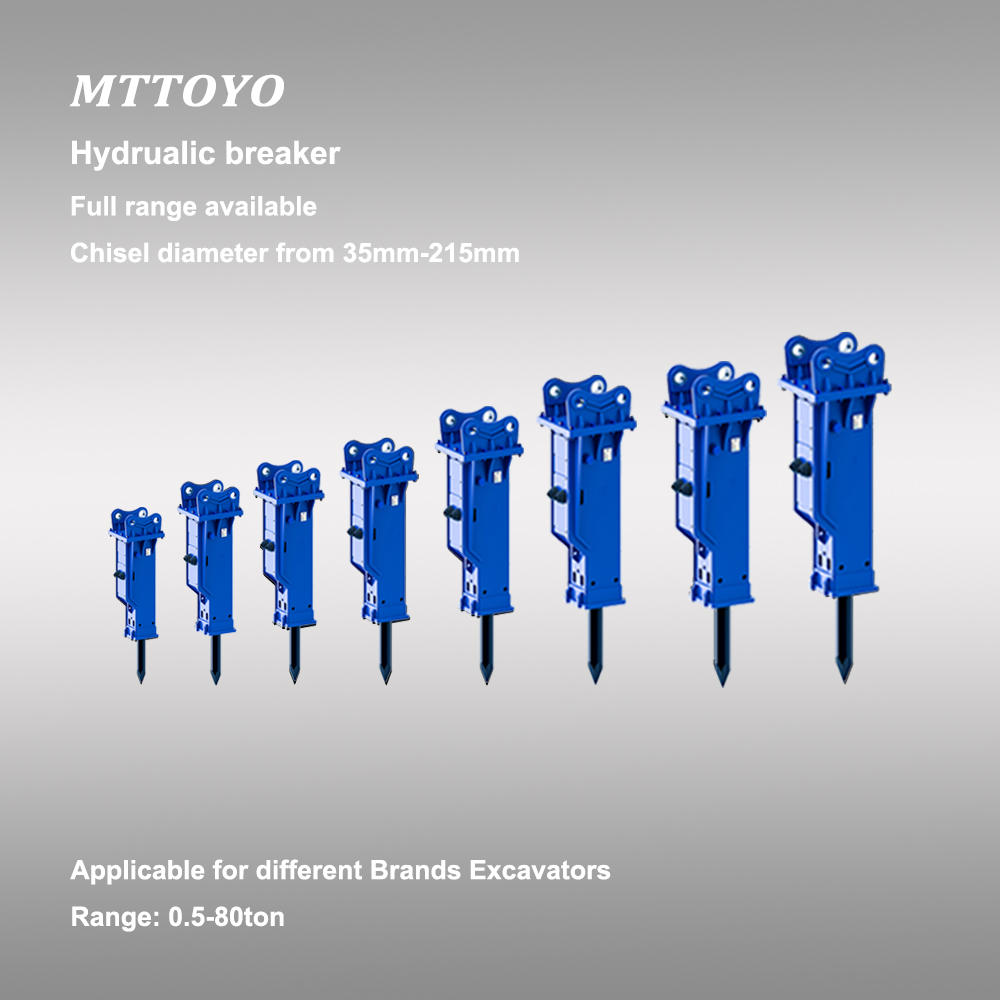

Mini Digger Hydraulic Rock Breaker Small Jack Hammer 1 Ton Excavator SB10 Hydraulic Demolition Hammer for Trenching

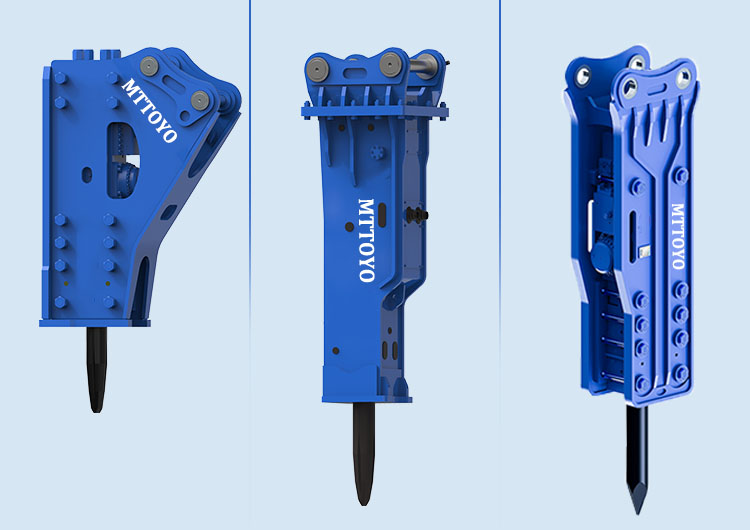

Main types of hydraulic breaker

Side type

Widely used in mining operations, asphalt pavement demolition, general concrete crushing or rock crushing, etc.

It has a simple structure and is easy to control and maintain.
More competitive prices.
Short in length, light and powerful, and widely applicable.

Box/Silent type

Low noise, energy-saving and environmentally friendly, widely used in municipal construction, demolition, tunnel operations, etc.

Reduce noise and protect the environment.
The fully enclosed bracket protects the main body from damage.
Enhanced performance, productivity and durability.

Top type

Mainly applied in working conditions with narrow space, such as building demolition, tunnels, underwater, etc.

Easy to control and maintain.
The shell size is long and the working range is wide.

Tell us the model and purpose of your excavator, and we will recommend the most suitable breaker for you!

Technical Specifications

Light Weight Range Hydraulic Breaker

Model No.	Chisel diameter (mm)	Excavator weight (ton)	Body weight (kg)	Working flow rate (L/min)	Working pressure (Bar)	Impact rate (bpm)
MTTOYO-40	40	0.5-1.5	80-96	15-30	90-120	800-1400
MTTOYO-45	45	0.8-2.5	108-146	20-40	90-120	700-1200
MTTOYO-53	53	1.5-4.5	140-171	25-50	90-120	600-1100
MTTOYO-68	68	4.5-6	272-345	40-70	110-140	500-900
MTTOYO-75	75	6-8	358-461	50-90	120-150	400-800
MTTOYO-85	85	7-11	518-616	40-100	130-160	400-800
MTTOYO-100	100	9-14	818-964	80-110	150-170	350-700
MTTOYO-120	120	11-16	1186-1322	90-120	160-180	350-700
MTTOYO-125	125	14-18	1362-2631	100-170	150-170	350-500
MTTOYO-135	135	18-25	1675-1858	100-150	160-180	250-500

Medium Weight Range Hydraulic Breaker

Model No.	Chisel diameter (mm)	Excavator weight (ton)	Body weight (kg)	Working flow rate (L/min)	Working pressure (Bar)	Impact rate (bpm)
MTTOYO-140	140	20-28	1892-2154	120-180	160-180	220-500
MTTOYO-150	150	26-33	2205-2496	150-210	180-200	200-400
MTTOYO-155	155	30-35	2596-2764	180-240	200-220	200-300
MTTOYO-165	165	33-38	3133-3433	200-260	200-220	155-300
MTTOYO-170	170	35-45	3324-3628	210-270	230-250	140-280

Large Weight Range Hydraulic Breaker

Model No.	Chisel diameter (mm)	Excavator weight (ton)	Body weight (kg)	Working flow rate (L/min)	Working pressure (Bar)	Impact rate (bpm)
MTTOYO-175	175	40-50	4056-4298	220-270	230-250	130-250
MTTOYO-180	180	40-50	4360-4638	230-280	230-250	130-250
MTTOYO-185	185	45-55	4611-4887	240-290	250-270	120-200
MTTOYO-190	190	45-55	5220-5500	240-300	260-300	120-200
MTTOYO-195	195	50-60	5450-5620	260-320	280-320	110-160
MTTOYO-200	200	50-60	5650-5840	280-340	280-320	110-160
MTTOYO-205	205	55-65	5711-5820	300-360	280-320	110-160
MTTOYO-210	210	60-70	7450-7930	330-400	300-340	100-140
MTTOYO-215	215	65-75	8100-8420	350-420	300-340	100-140
MTTOYO-220	220	70-80	8745-9100	360-450	300-340	90-140
MTTOYO-230	230	78-85	9516-10500	380-470	300-340	90-140
MTTOYO-245	245	85-95	10610-11650	430-530	300-340	80-120
MTTOYO-260	260	90-100	12006-12470	450-550	300-340	80-120
MTTOYO-280	280	95-120	13395-14120	480-580	300-340	60-120
MTTOYO-300	300	120-200	14830-15311	510-610	300-340	60-120

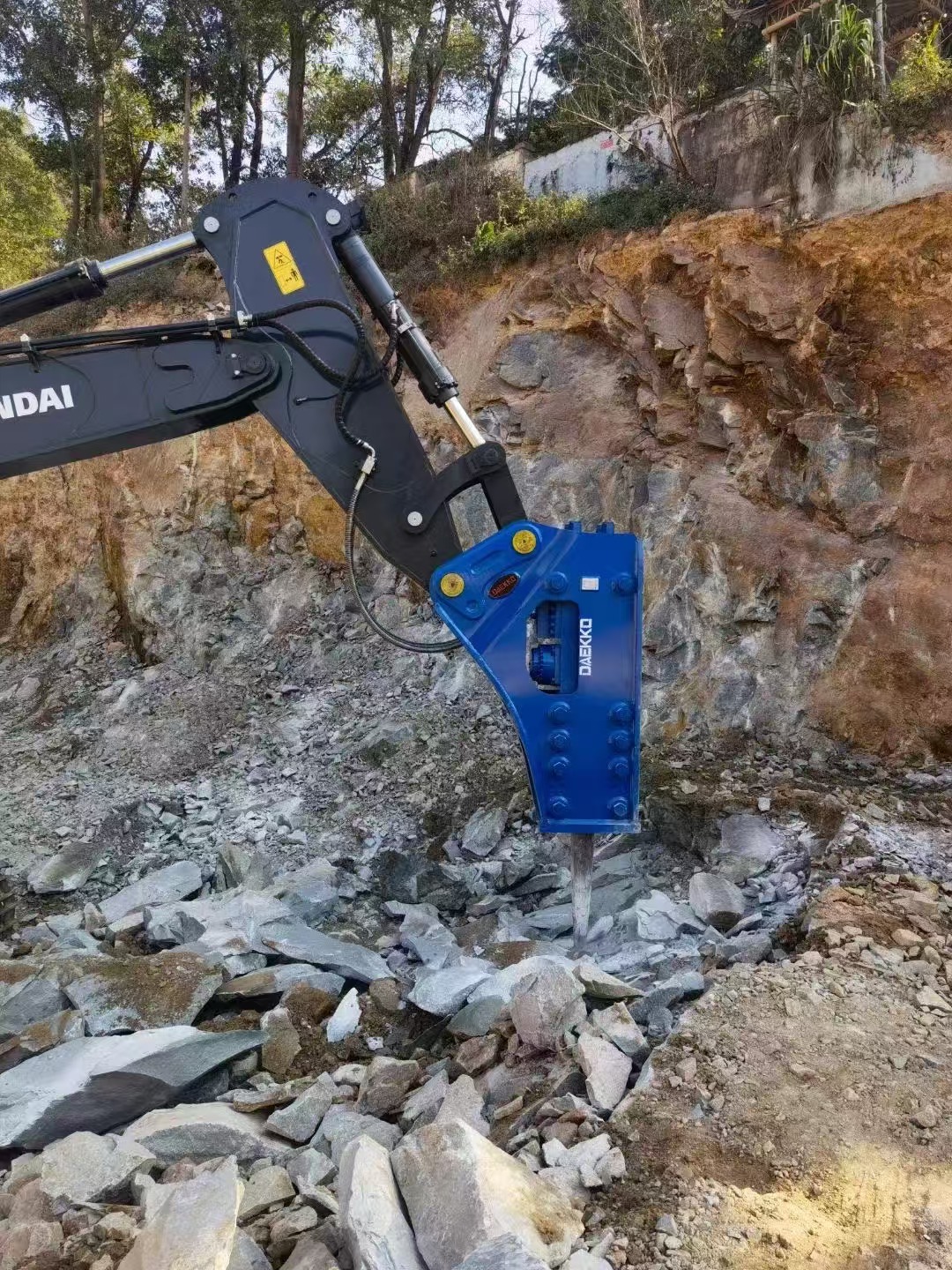

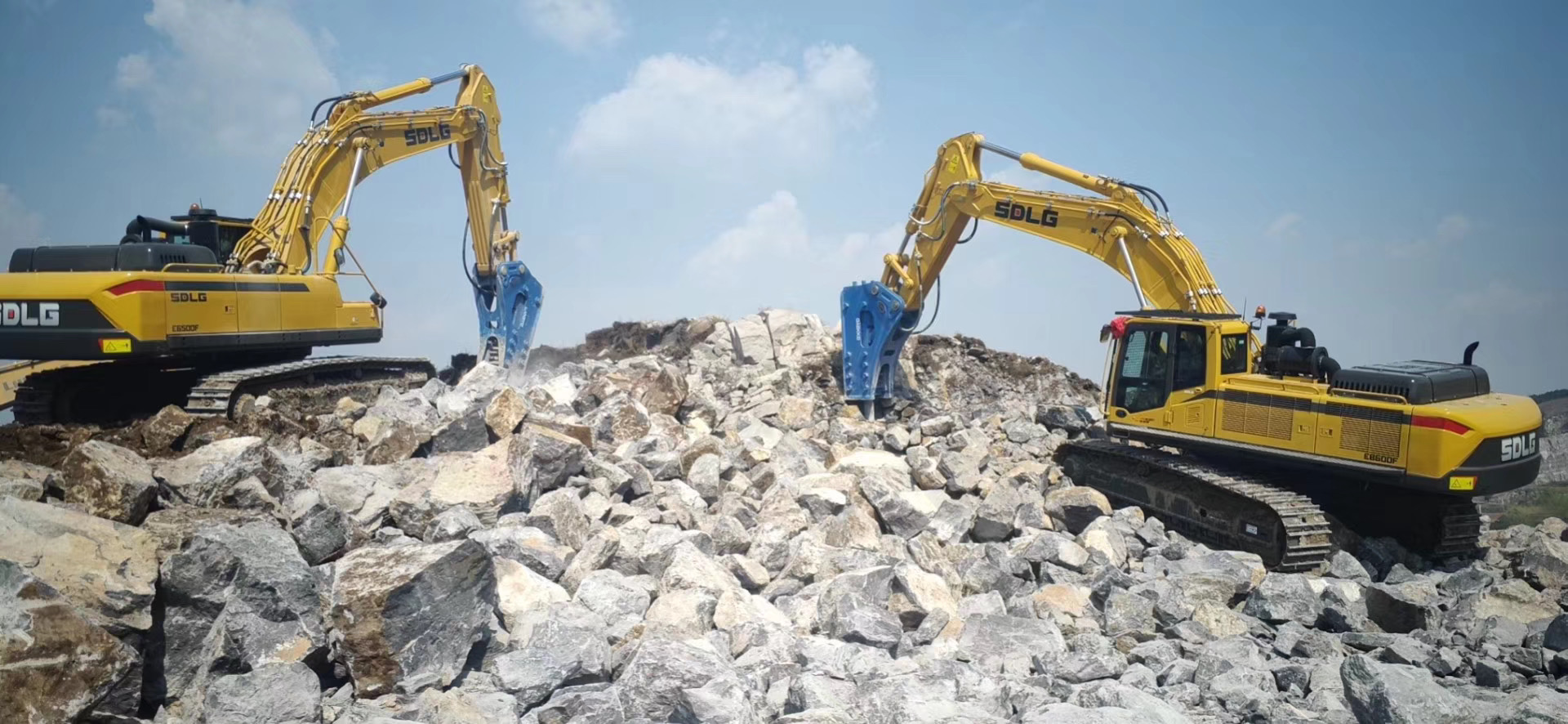

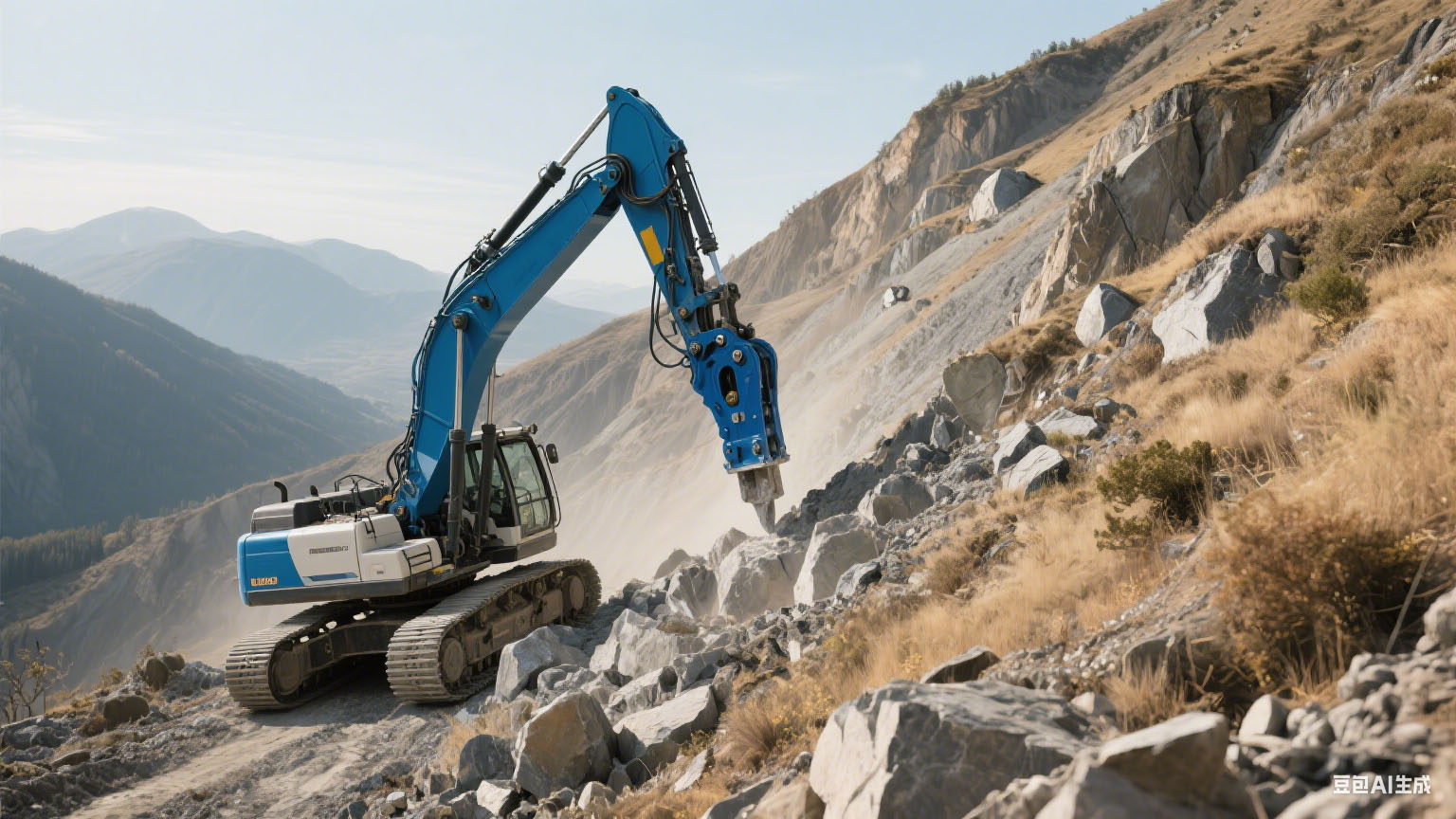

Application

Hydraulic Breaker Industry Solutions

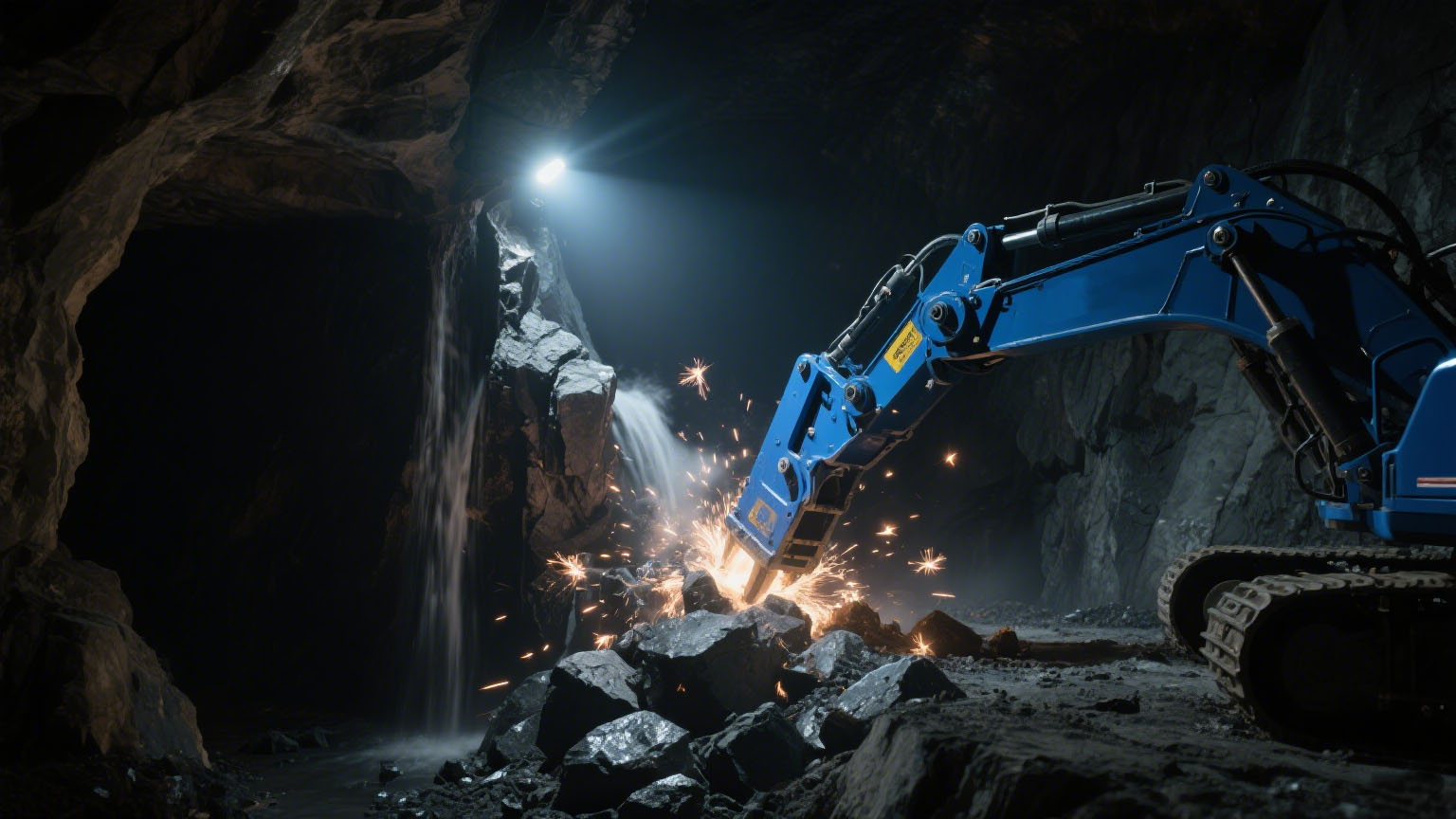

1. Mining: Mountains, mining, crushing, secondary crushing.
2. Metallurgy: Slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied.
3. Railway: Tunnel, bridge, mountain down.

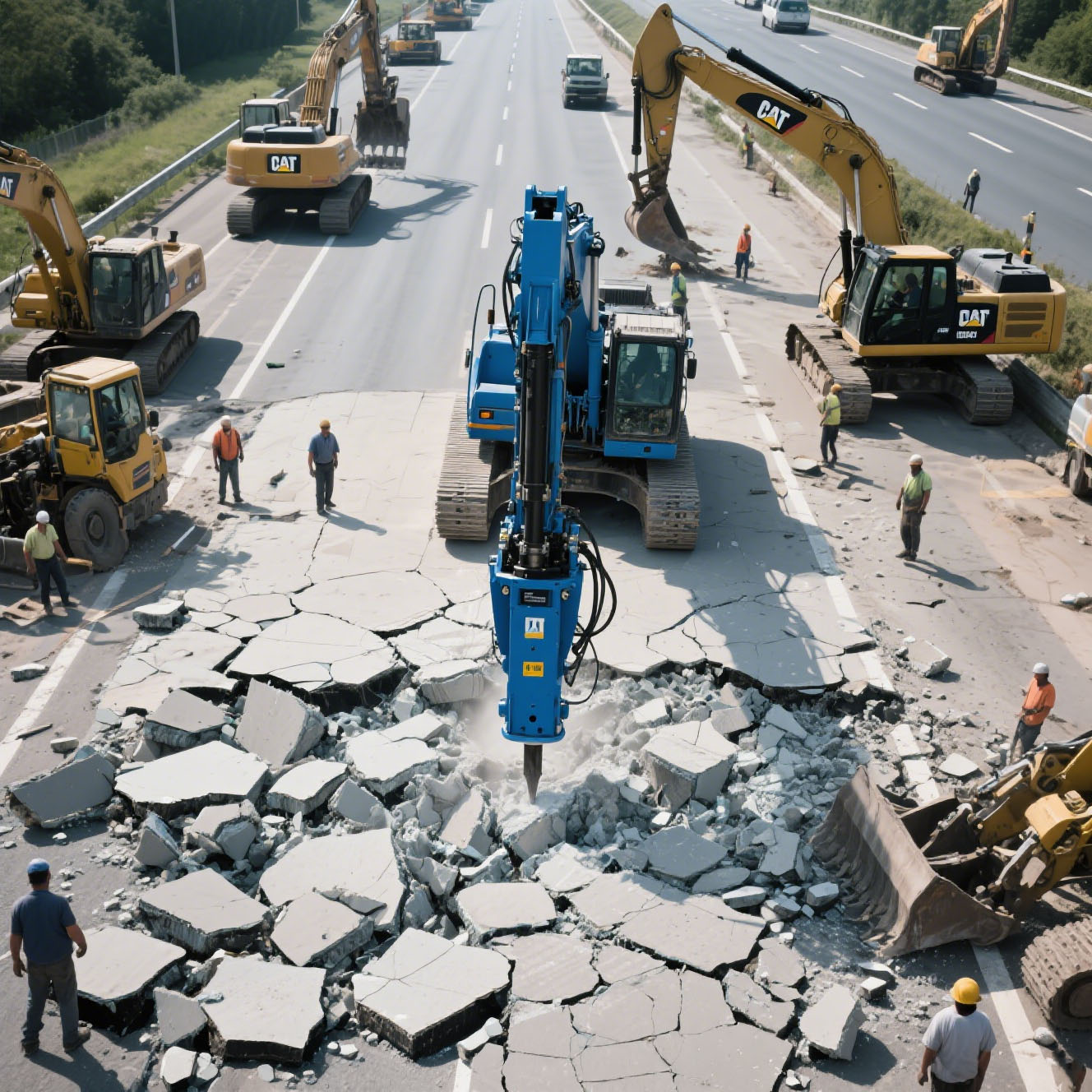

4. Highway: Highway repair, cement pavement broken, foundation excavation.
5. Municipal gardens: Concrete crushing, water, electricity, gas engineering construction, the transformation of the old city.

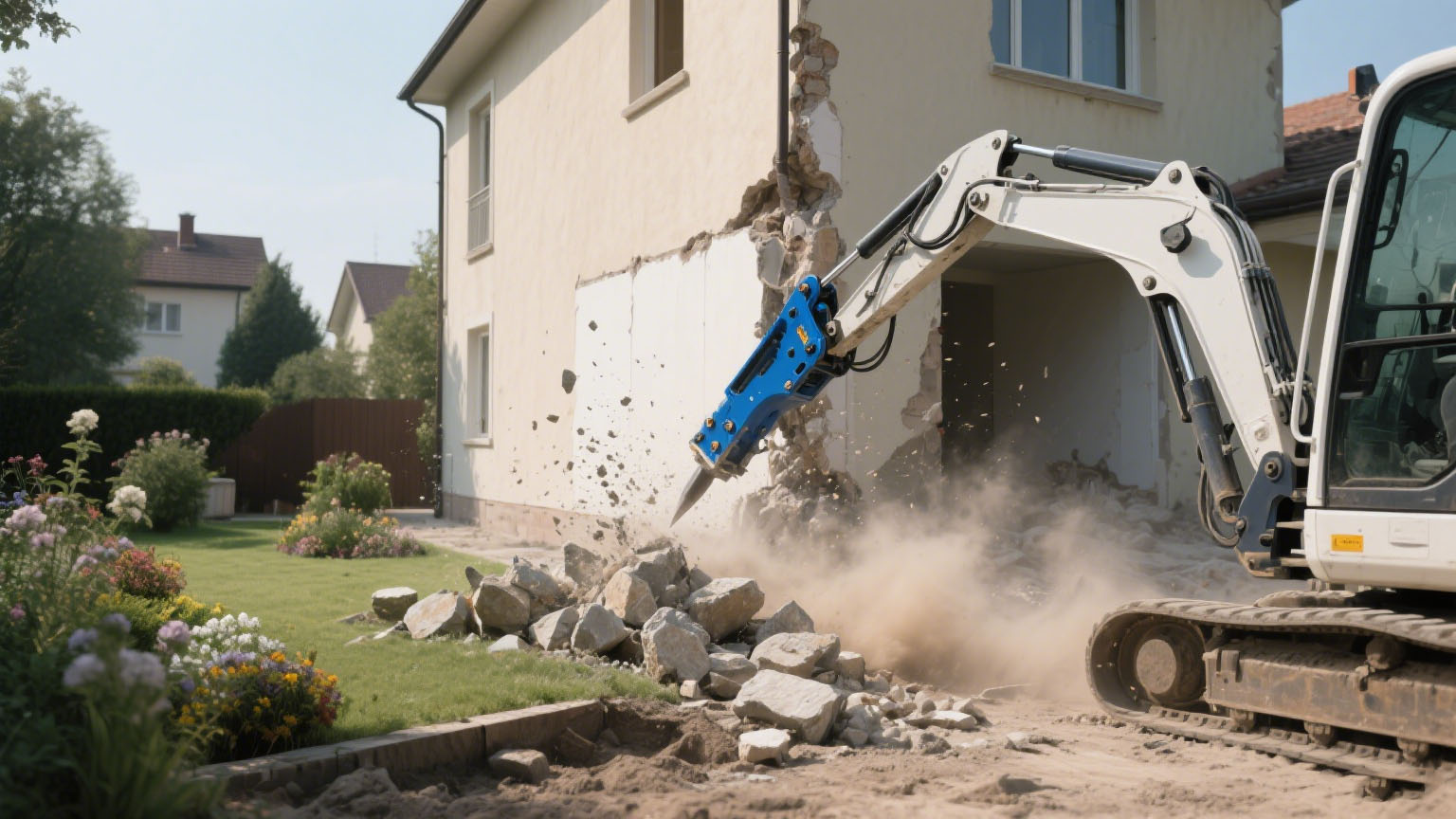

6. Building: The old building demolition, reinforced concrete broken.
7. Other: Ice breaking, breaking the Vibrating Sand.

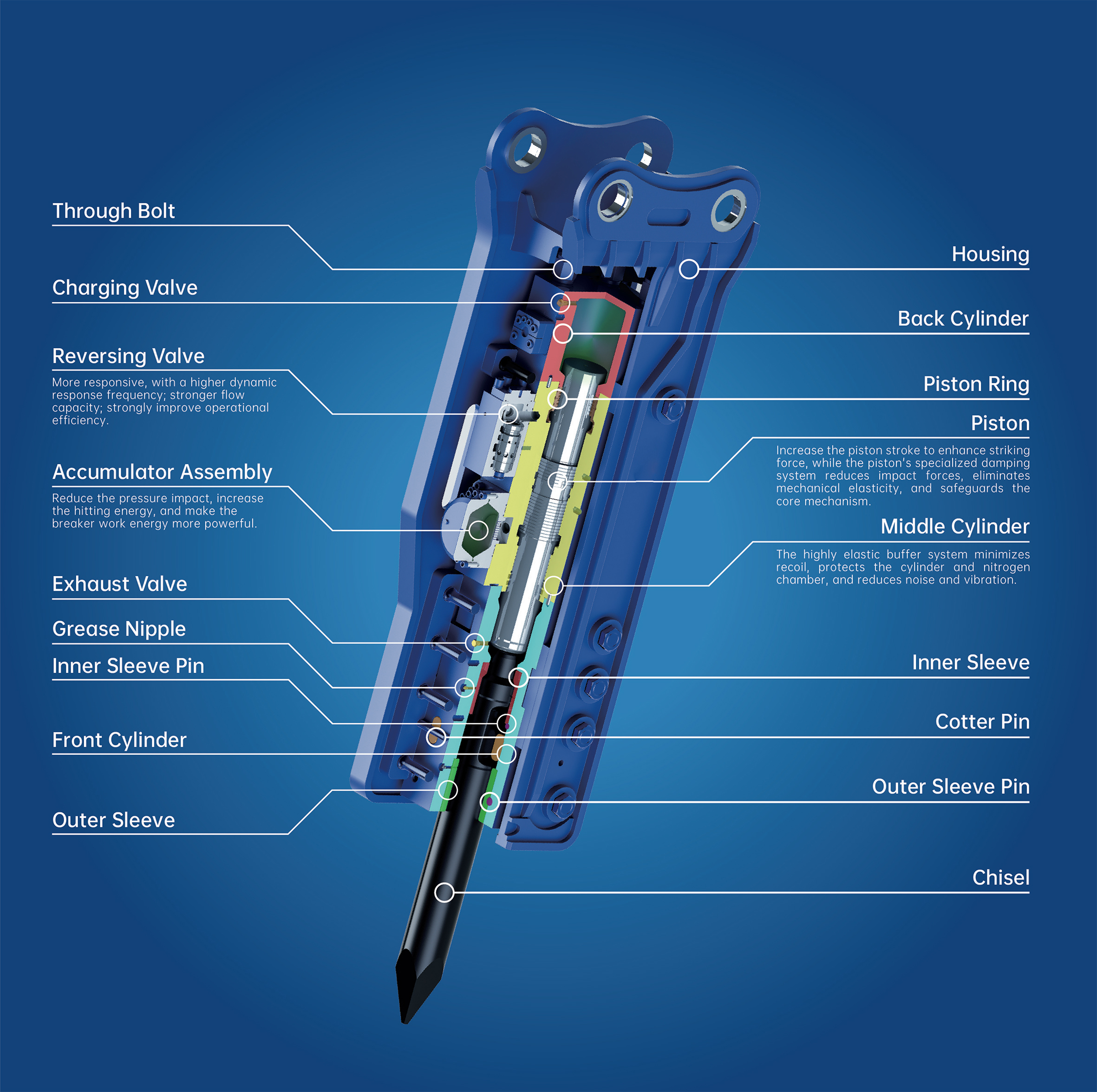

Product Structure

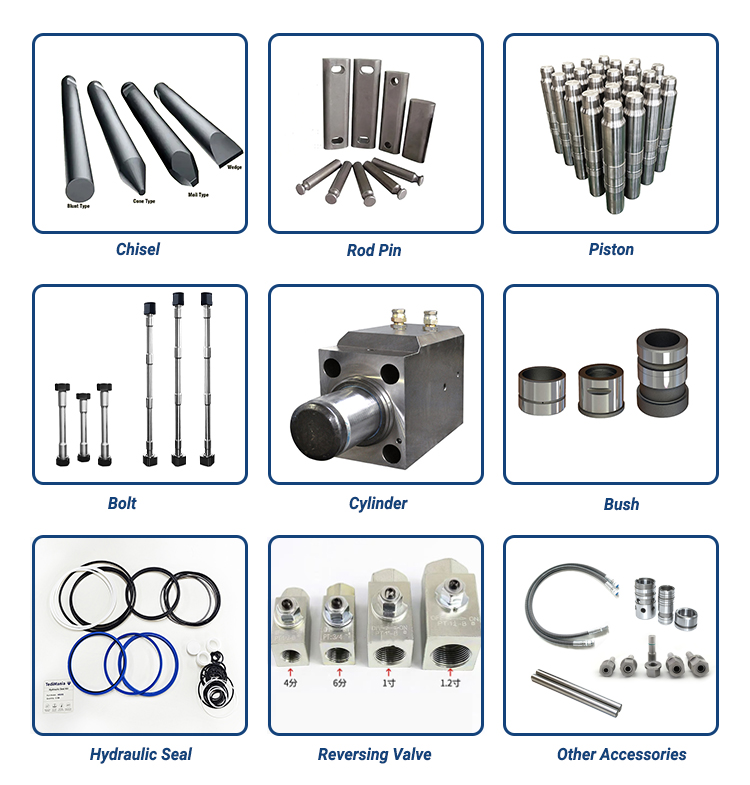

Efficient Spare Parts Supply

Established a robust supply chain system to ensure the fast and accurate supply of genuine OEM and high-quality alternative spare parts.

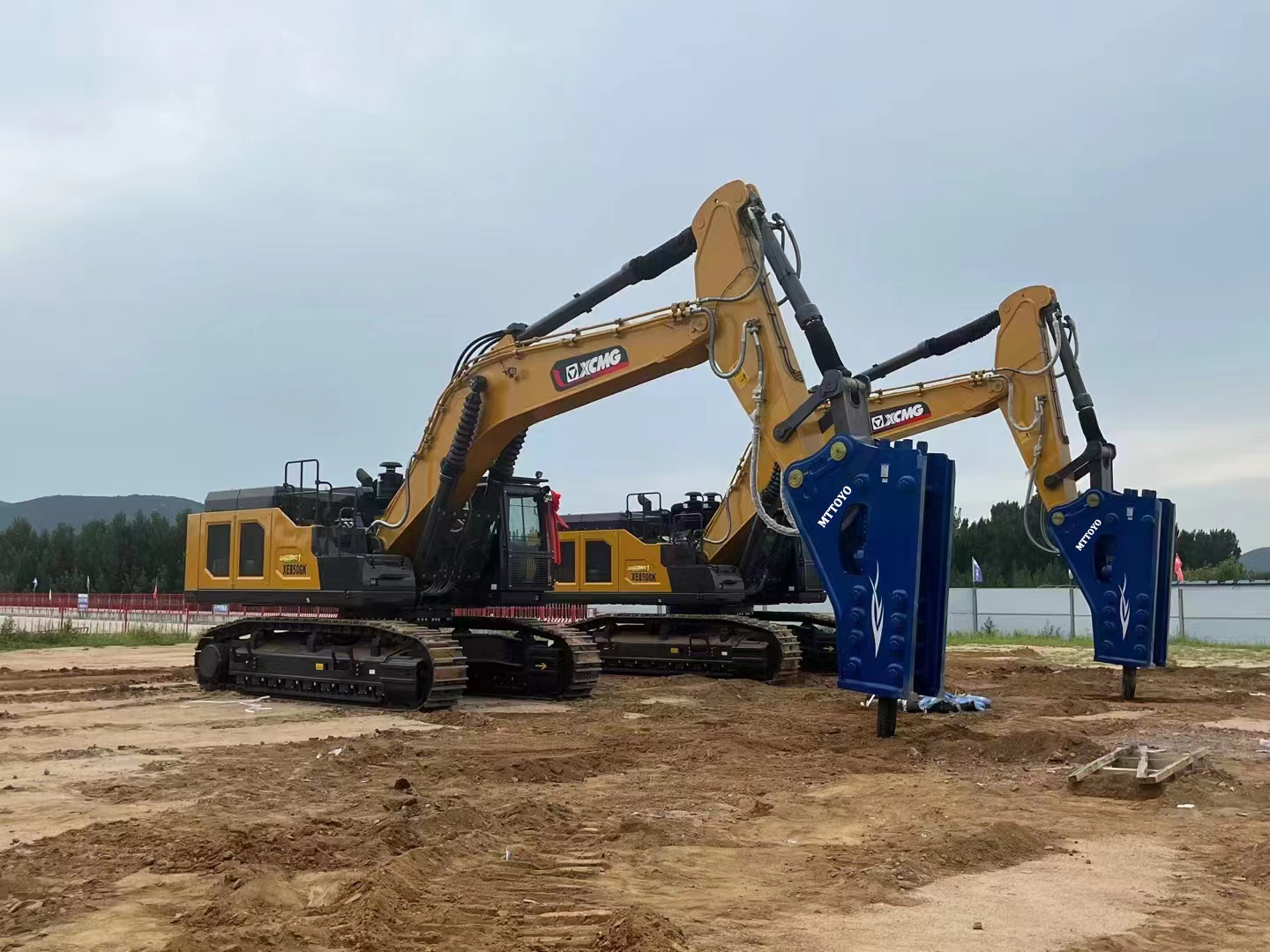

Company Profile

A Reliable Partner for Global Engineering Machinery Equipment and Solutions

Since its establishment in 2013, our enterprise has steadily grown into a comprehensive engineering machinery equipment service provider. We integrate the sales of hydraulic breakers, multi-functional attachments, excavators and their parts with professional technical services. We focus on providing efficient, reliable products and comprehensive technical support for global customers in mining, construction, road engineering, metallurgy, and other fields.

Core Offerings:

Hydraulic Breakers: Full range for all excavator brands/tonnages
Multi-functional Attachments: Shears, compactors, rippers, couplers
Excavators & Parts: Premium machines and OEM/compatible components

Our Strengths:

50+ technical experts
Full lifecycle support: Custom solutions & installation, Maintenance & repair, Operator training, Global spare parts supply

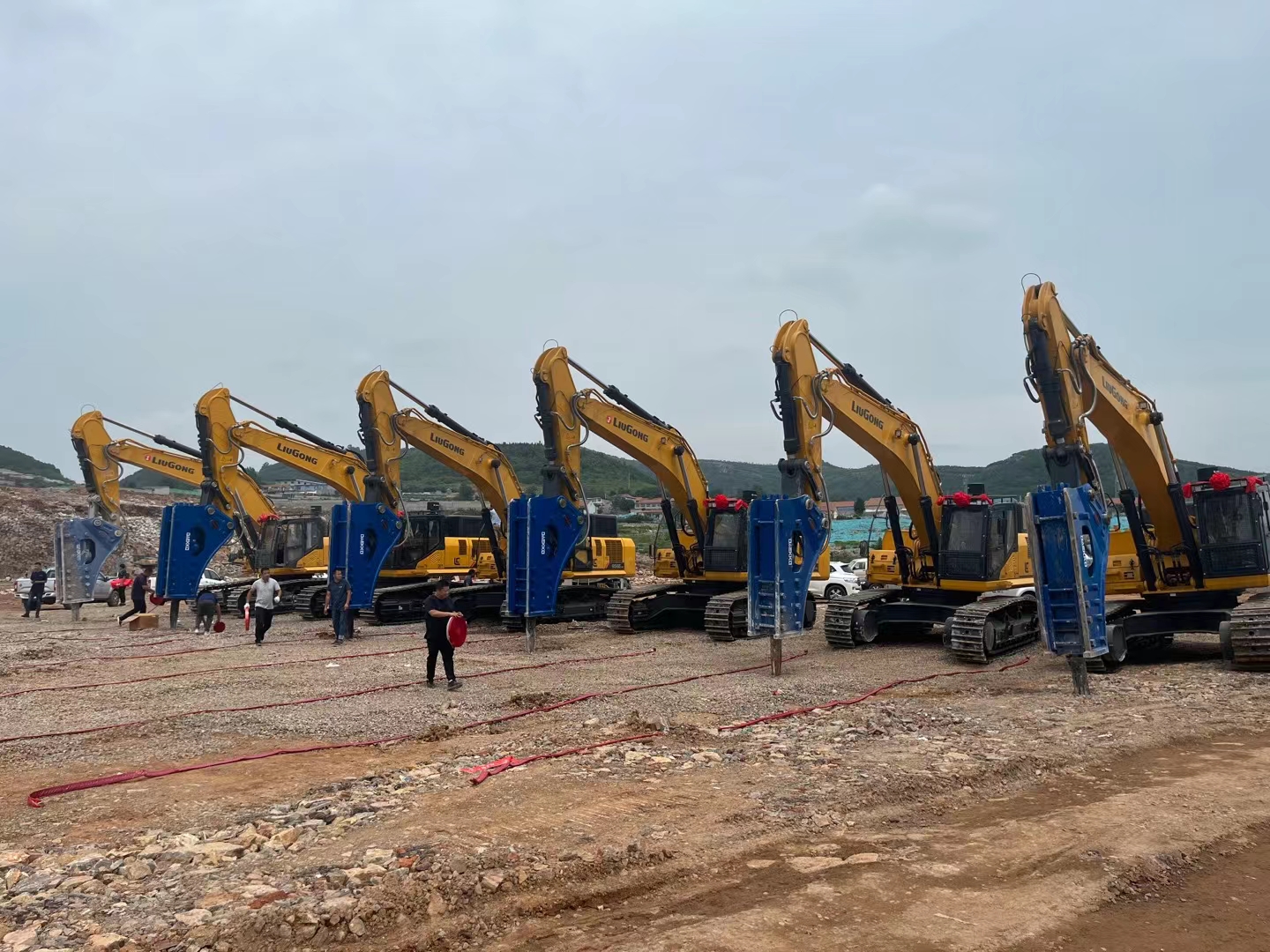

We are committed to providing full lifecycle technical services:

Professional Consultation & Solution Design: Provide optimal equipment selection (breakers, attachments, whole machines) and solution recommendations based on specific customer working conditions and needs.
Precise Installation & Commissioning: Provide standardized installation guidance and meticulous equipment commissioning services to ensure optimal performance.
Efficient Repair & Maintenance: Provide responsive on-site and in-house repairs, along with regular preventive maintenance services to guarantee stable equipment operation.
Technical Training Support: Offer professional training for customer operators, maintenance personnel, and managers on equipment operation, maintenance, and troubleshooting.
Efficient Spare Parts Supply: Established a robust supply chain system to ensure the fast and accurate supply of genuine OEM and high-quality alternative spare parts.

Certificates

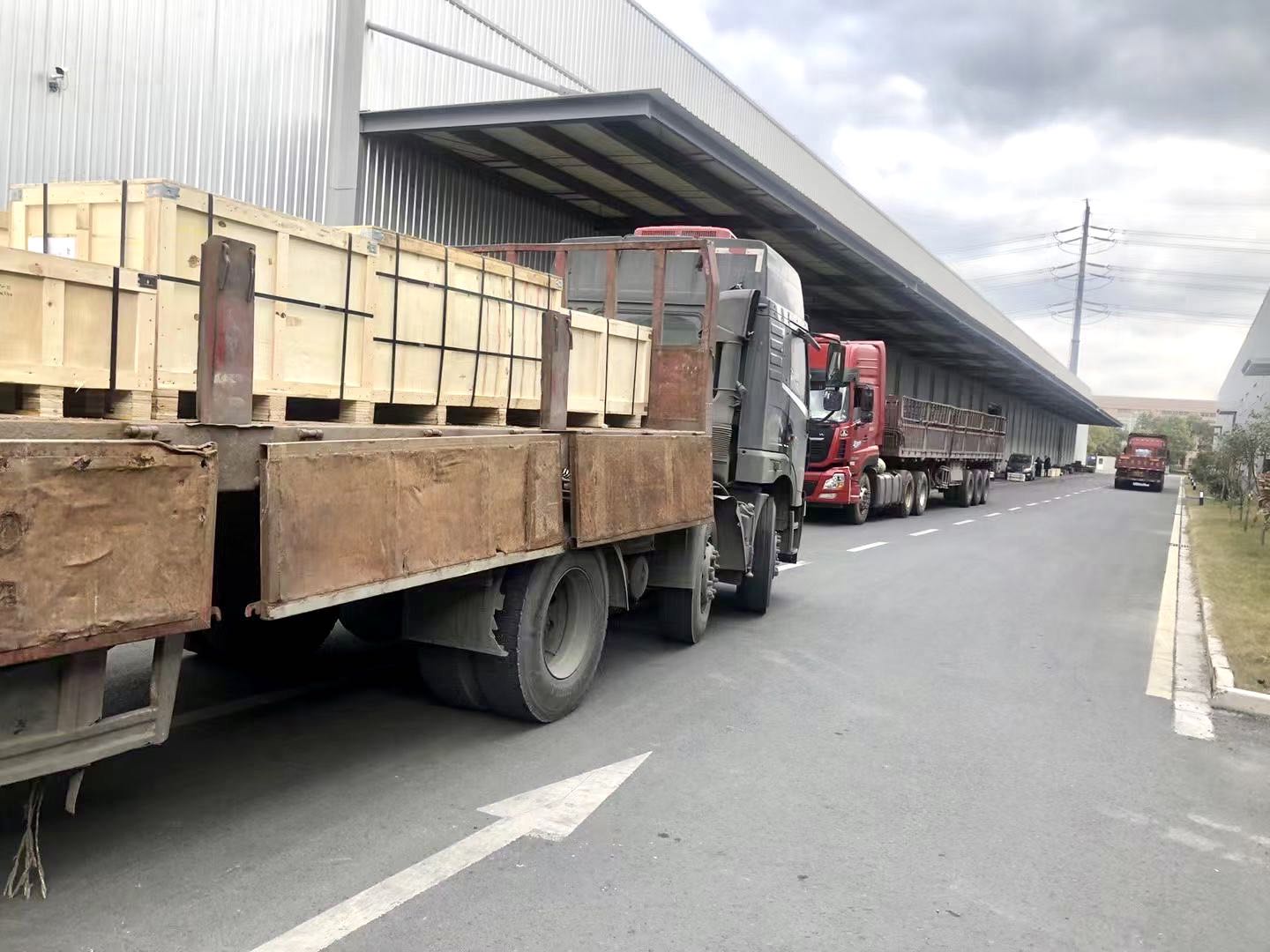

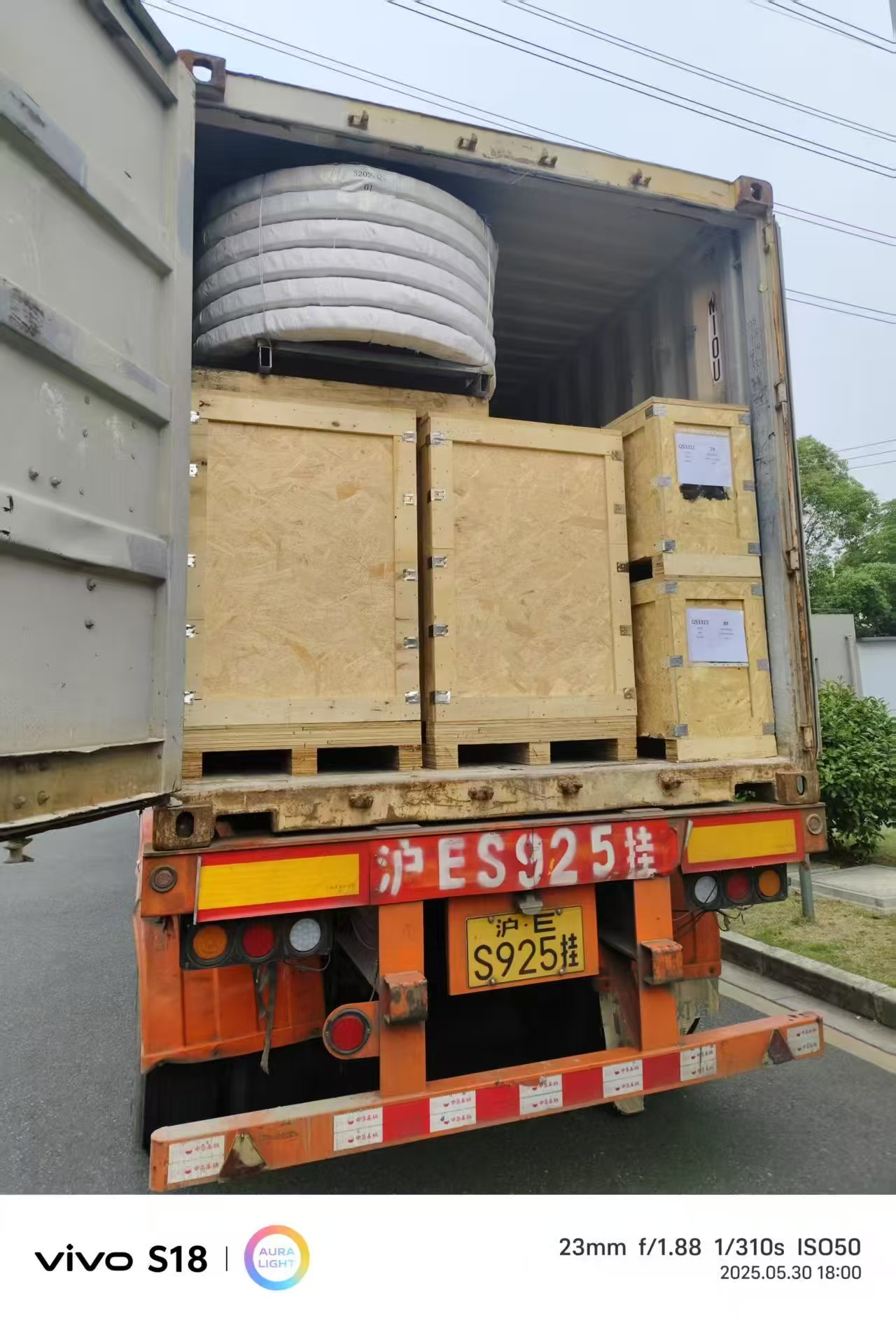

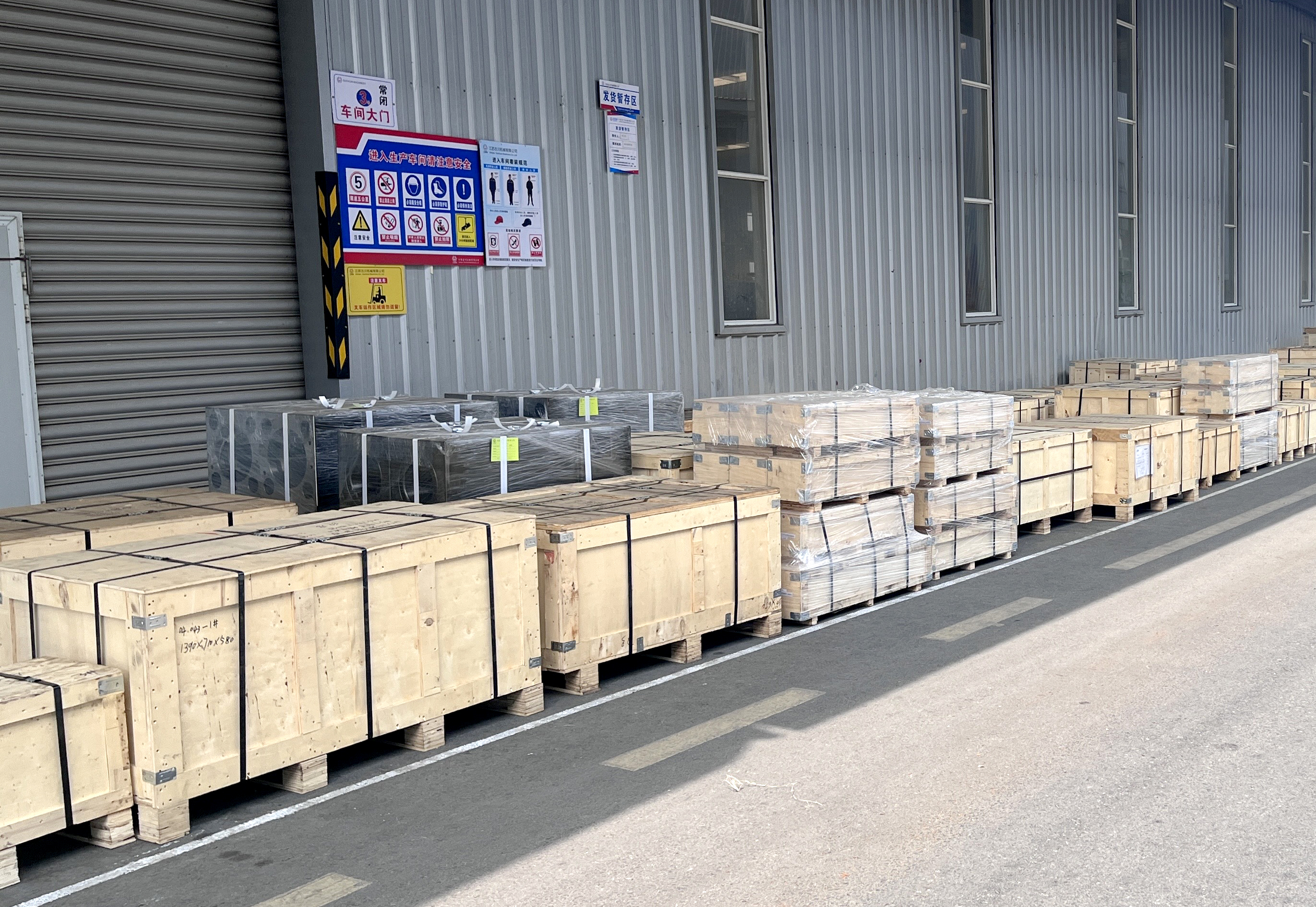

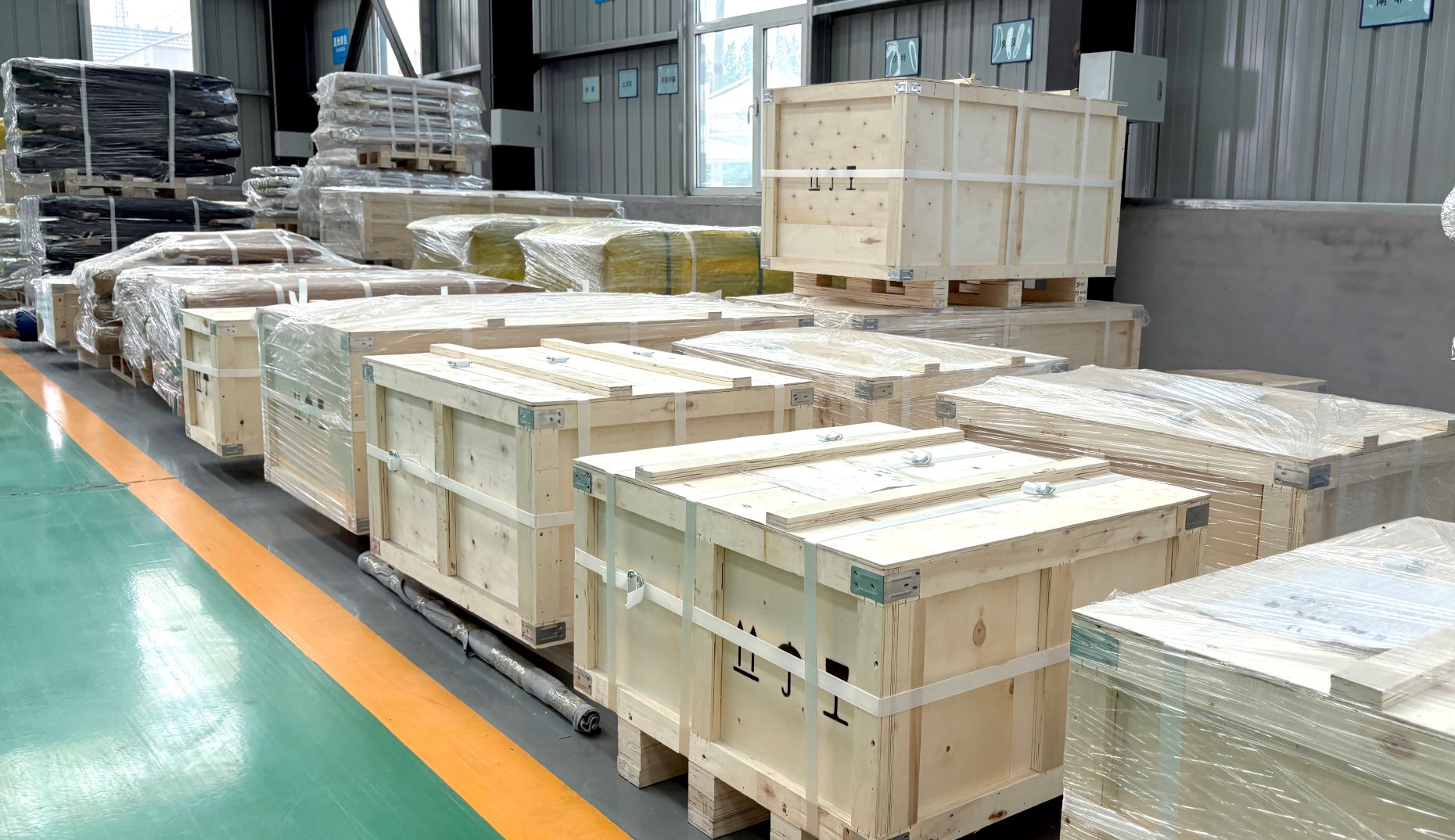

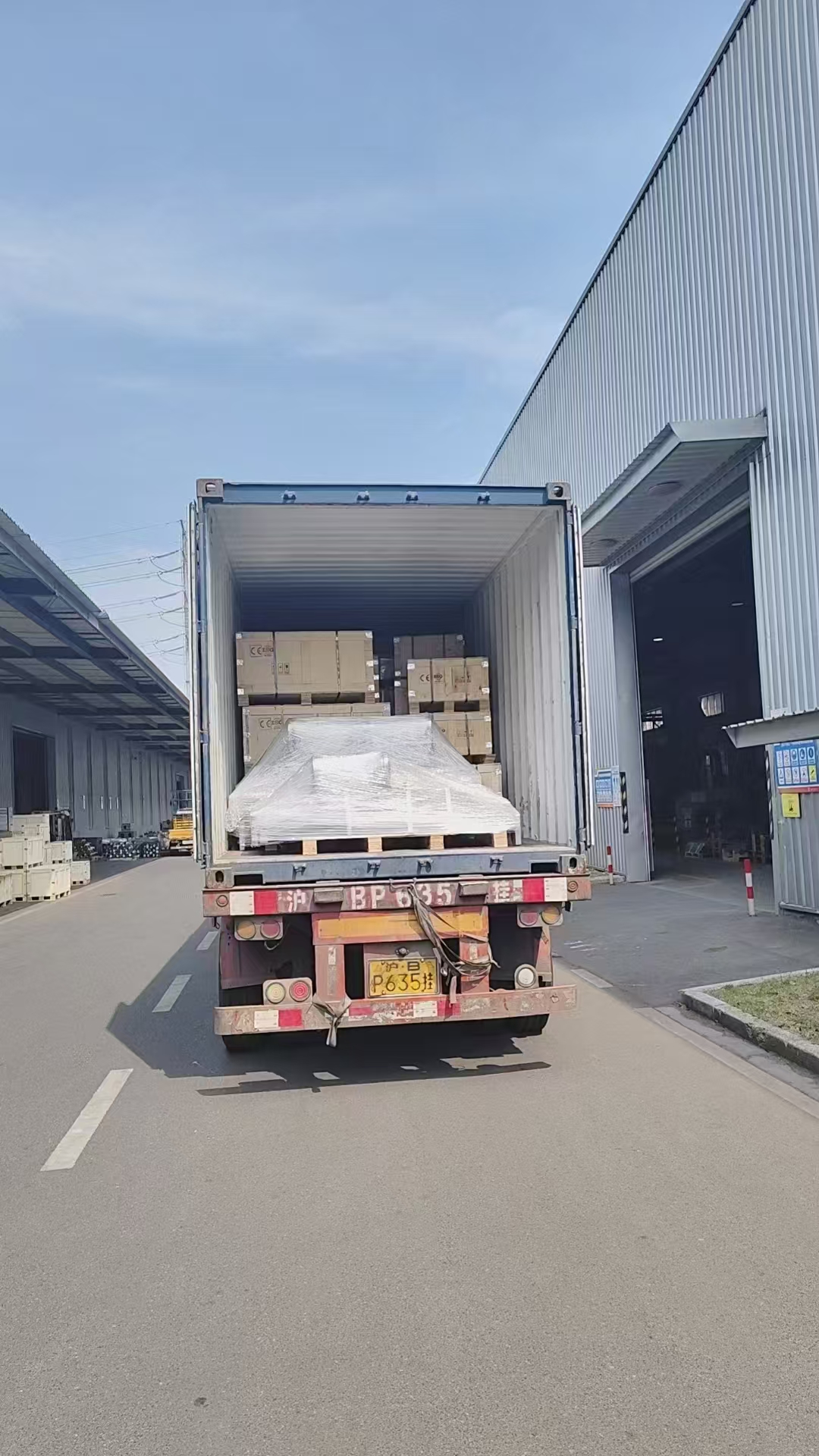

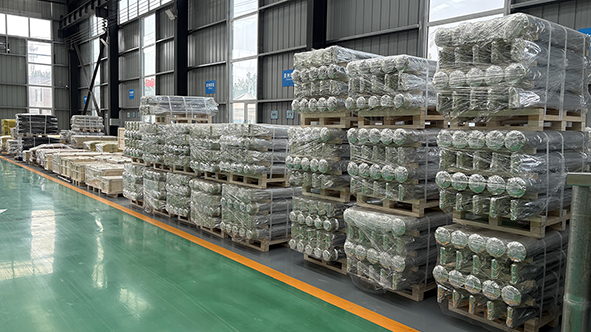

Packaging & Delivery

1. Packaging Standard: Packed on reinforced wood pallet, securing unload shipshape.

FAQ

Are you sure your product will fit my excavator?

Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.

How about your products warranty?

We offer a 12-month warranty for the hydraulic breaker.

Can you produce according to customers' design?

Sure, OEM/ODM service available. We are professional engineering machinery equipment supplier.

What's the MOQ and payment terms?

MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.

How about delivery time?

5-25 work days after the payment.

How about the package?

Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
