Product Description

Overview

Model NO. HSL550-6000

Application Metal

Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement Method Servo Motor Driven

Control Method CNC (Computer Numerical Control)

Numerical Control Fanuc 25ti

Processing Precision ±0.004mm

Performance Classification Heavy Duty

Certification CE, ISO 9001

Condition New

Max. Machining Length 6000mm

Max. Spindle Torque 460 Nm

Spindle Bore Diameter 87 mm

Tool Post Type Bmt55

Repeat Positioning Accuracy ±0.003 mm

Suitable Materials Steel, Alloy, Cast Iron

Cooling System Oil Chiller

Chip Conveyor Right Discharge

Specification 8428×2000×2850mm, 18T

HS Code 8458910000

Production Capacity 500 Sets/Year

Packaging & Delivery

Transport Package Wooden Case, Sea-Worthy Packaging

Package Size 860.00cm * 210.00cm * 300.00cm

Package Gross Weight 18500.000kg

Product Description

Item	Specification	Unit
Max. Turning Diameter	630	mm
Max. Machining Length	6000	mm
Main Spindle Power	18	kW
Main Spindle Bore	87	mm
Control System	Fanuc 25Ti	-
Tool Post Specification	BMT55	-
Tool Capacity	12	T
X-axis Travel	350	mm
Z-axis Travel	6000	mm
Positioning Accuracy (X/Z)	±0.004 / ±0.020	mm
Machine Weight	18	T
Overall Dimensions	8428×2000×2850	mm

Item	Description

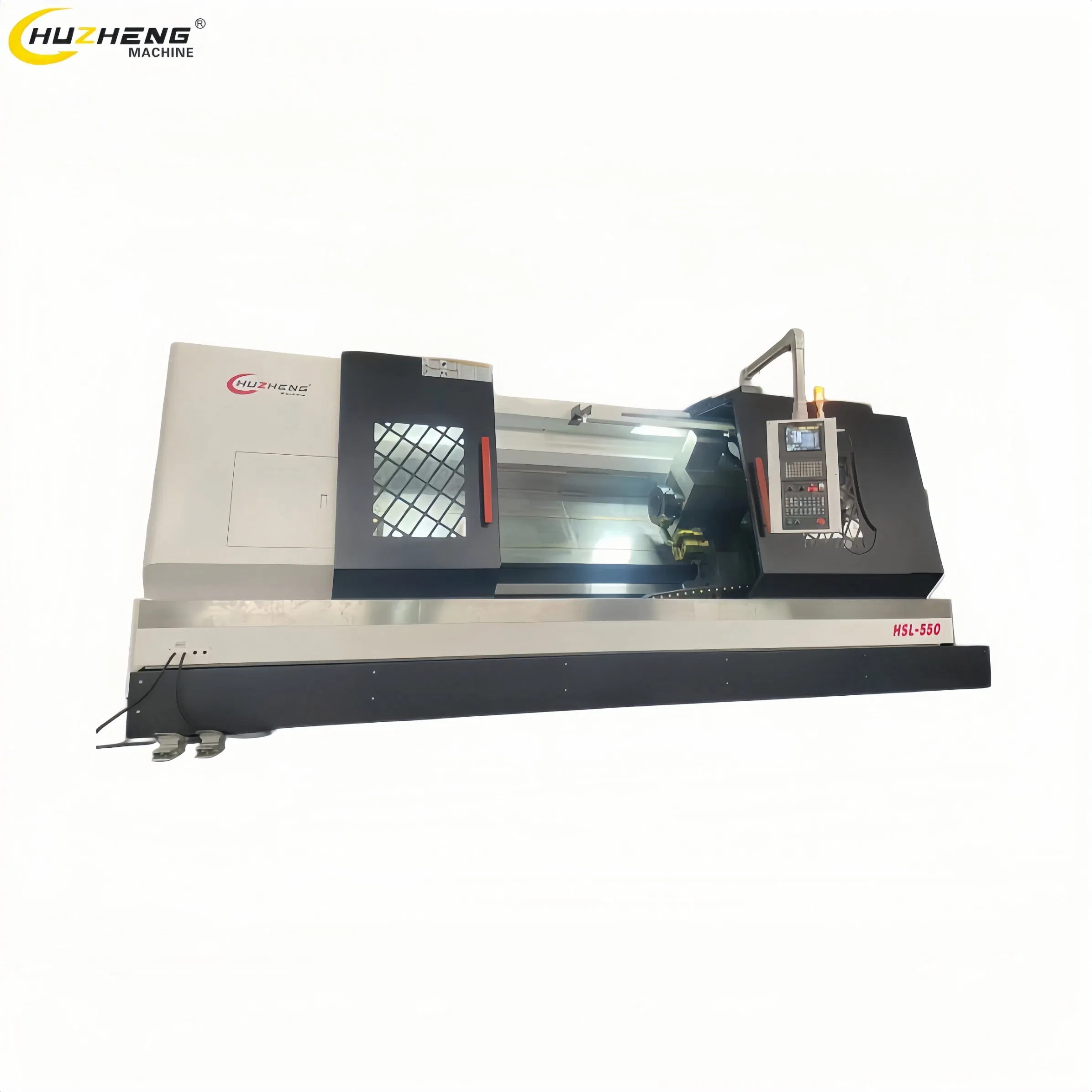

Product Overview	The HSL550 is a heavy-duty long-bed CNC lathe, purpose-built for 6000mm long shaft machining.

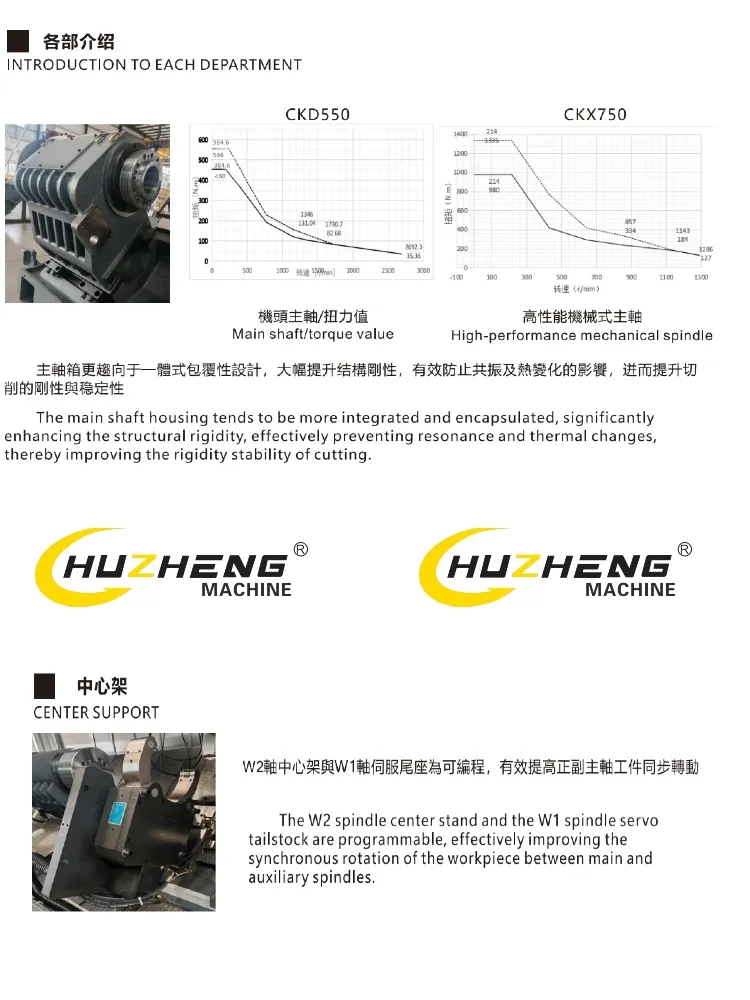

Core Advantage	18kW main spindle (460Nm torque) and rigid cast iron bed ensure stable, powerful heavy cutting.
Control System	Fanuc 25Ti CNC system delivers precise control and reliable operation for complex tasks.

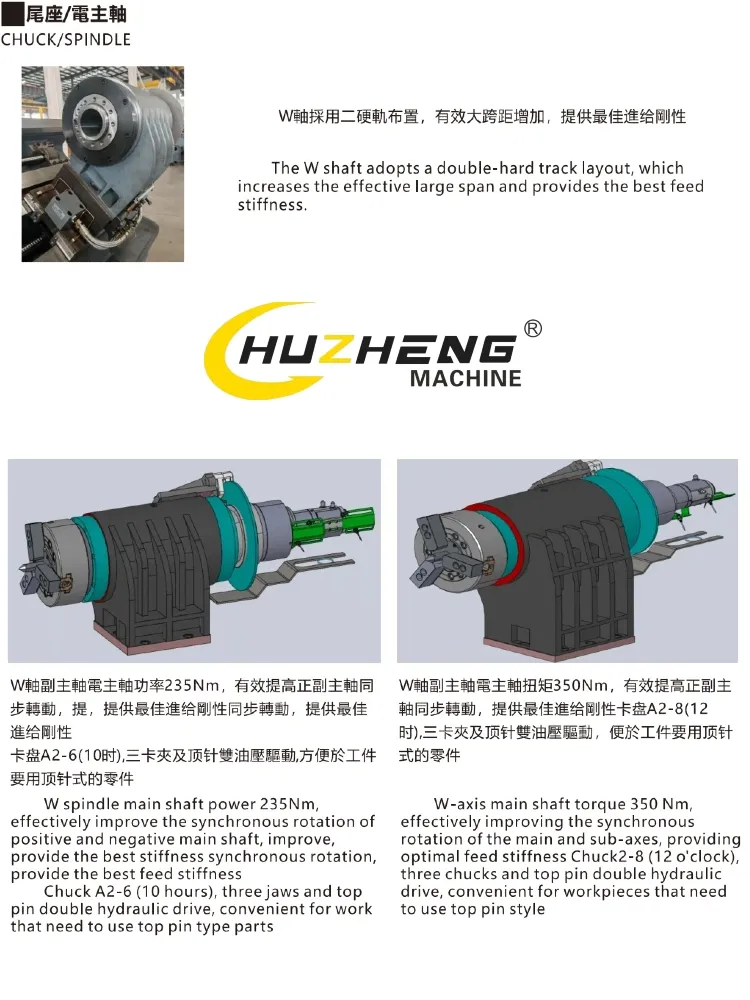

Spindle Features	87mm main spindle bore and sub-spindle enable multi-process machining in one setup.

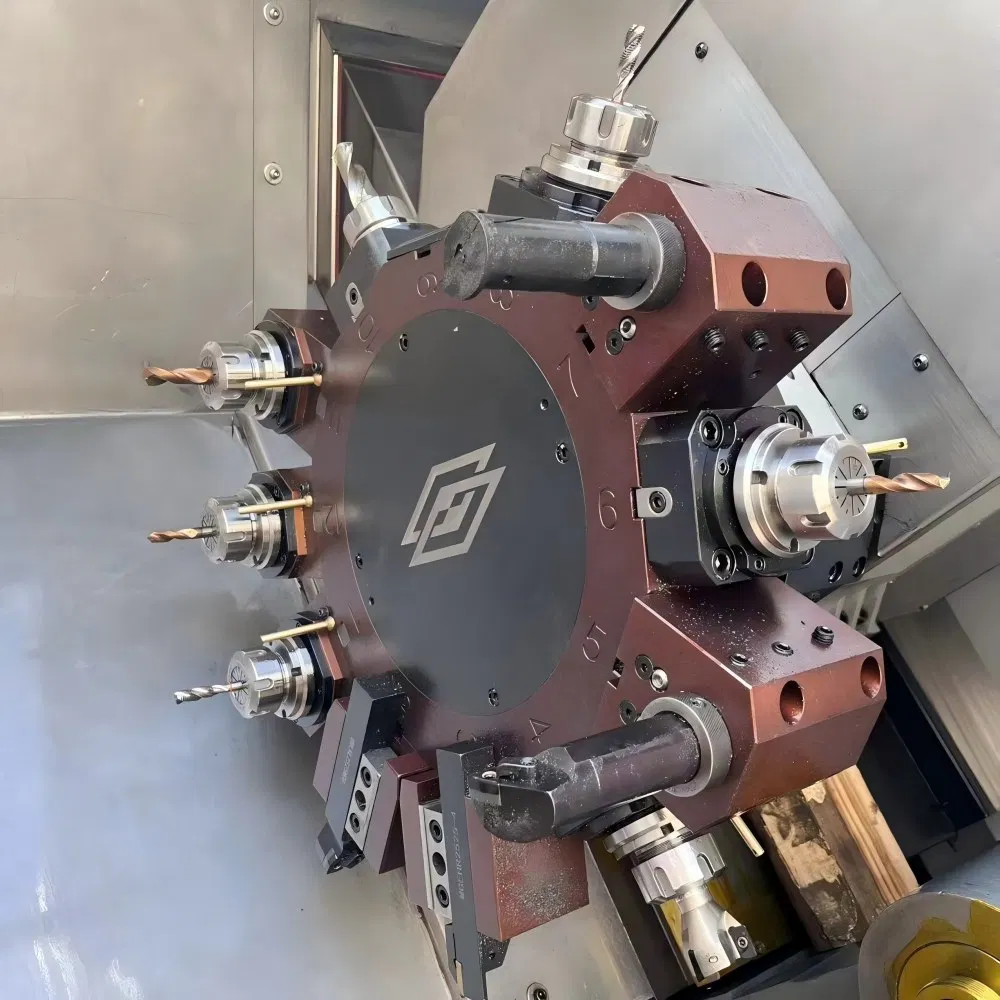

Tooling System	BMT55 power turret with 12 stations supports efficient milling and turning operations.
Precision Performance	±0.004mm X-axis positioning accuracy guarantees superior part quality for critical applications.
Application Range	Ideal for processing steel, alloy, and cast iron long shafts in energy, machinery, and transportation.
Standard Configurations	Oil chiller, right-discharge chip conveyor, and USB interface ensure continuous, efficient production.
After-sales Support	1-year warranty with global online technical support and on-site service available.

Key Machine Features

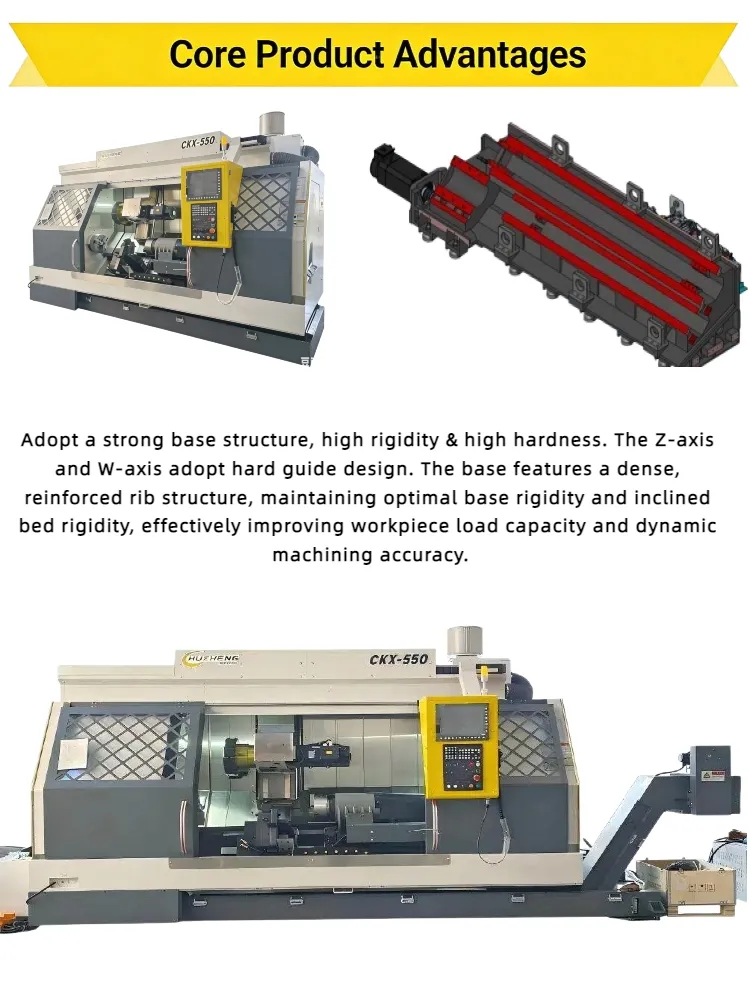

Heavy-Duty Performance

Rigid cast iron bed optimized for high rigidity, reducing vibration during heavy-duty cutting operations.

Fanuc 25Ti CNC System

Equipped with industry-leading CNC controls ensuring extreme accuracy, rich functions, and high reliability.

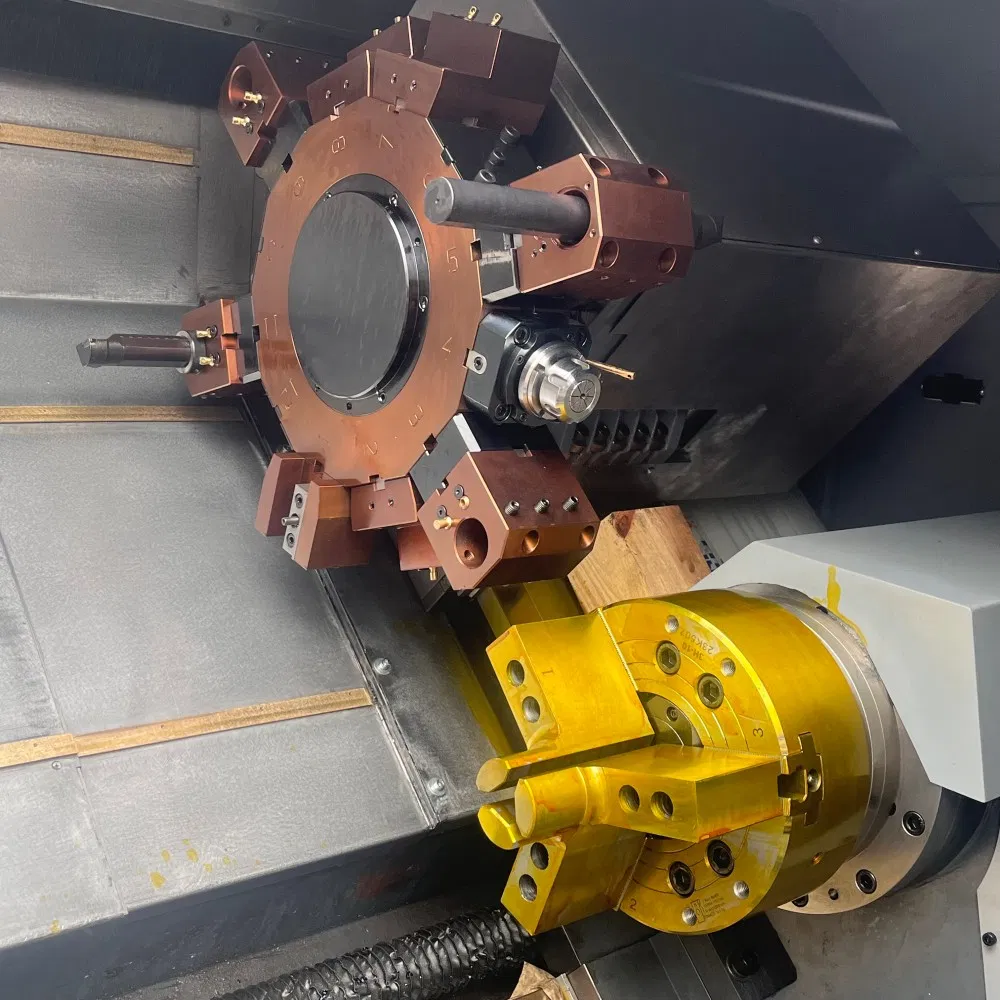

Advanced Spindle & Turret

87mm bore spindle and a 12-station BMT55 power turret support comprehensive combined milling-turning processes.

Precision Engineered

Delivers high precision machining with a positioning accuracy of ±0.004mm and repeat accuracy of ±0.003mm.

Product Gallery

Frequently Asked Questions (FAQ)

What is the maximum machining length and turning diameter of the HSL550?

The HSL550 heavy-duty CNC lathe features a maximum machining length of 6000mm and a maximum turning diameter of 630mm, which makes it ideal for processing long metal shafts.

Which control system does this CNC lathe utilize?

The machine is equipped with the Fanuc 25Ti CNC system, delivering reliable, highly precise control and enabling user-friendly operation for complex metal-cutting and milling tasks.

What are the core technical specifications of the spindle?

The HSL550 is configured with a powerful 18kW main spindle providing 460 Nm of torque and a spindle bore diameter of 87mm. This ensures efficient and stable heavy-duty cutting performance.

What standard configurations are included with the HSL550?

Standard features include an oil chiller for temperature regulation, a right-discharge chip conveyor for easy waste removal, and a USB interface for seamless program transfers.

What is the positioning and repeat accuracy of the lathe?

The lathe achieves high processing precision, offering an X-axis positioning accuracy of ±0.004mm (Z-axis ±0.020mm) and a repeat positioning accuracy of ±0.003mm.

What materials and industries is this lathe suitable for?

It is designed to work with steel, alloy, and cast iron. It is widely used in energy, heavy machinery, transportation, and other industries requiring long shaft metal machining.
