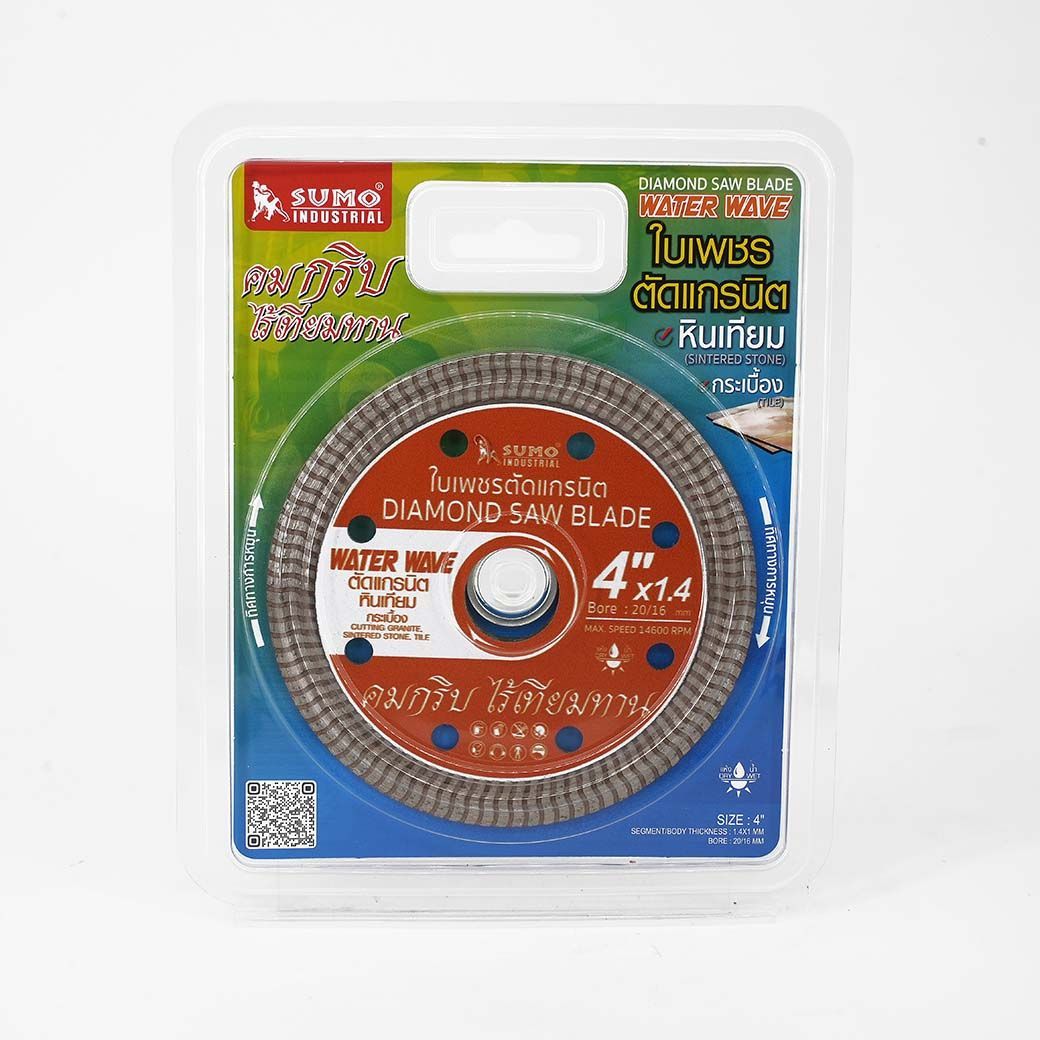

SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
1 / 5
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools
SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools

SUMO 4 Inch 105 Mm Diamond Saw Blade Cutter High Hardness Chop Saw Wheel For Granite Concrete Sintered Stone Tile Abrasive Tools

Send Inquiry

Product Description

Products Description
Used for The diamond teeth are designed to be 1.4 mm thick to be sharp, durable and to cut the workpiece well. There are grooves to unravel the workpiece and to dissipate heat from the blade well.
Suitable for Suitable for cutting granite, ceramic, artificial stone and tiles.

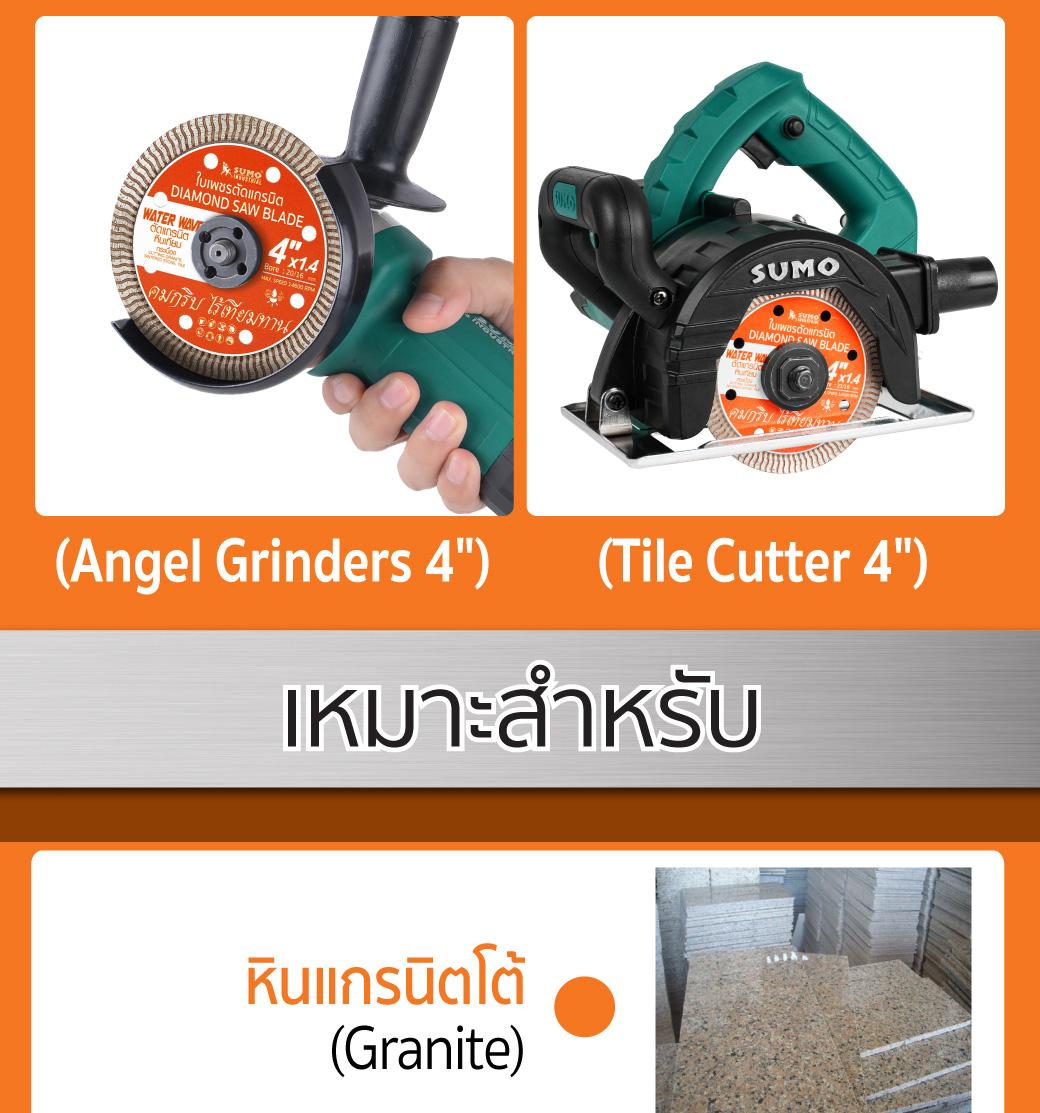

Machine Use with 4-inch grinders and 4-inch tile cutters
Key points Produced using the Hot Press process, the diamond blade is stronger, sharper, and lasts longer. The work is detailed. Produced using a heat pressing process, making the diamond blade stronger and more durable.
Features For grooving, wall, concrete slabs, granite, or marble.

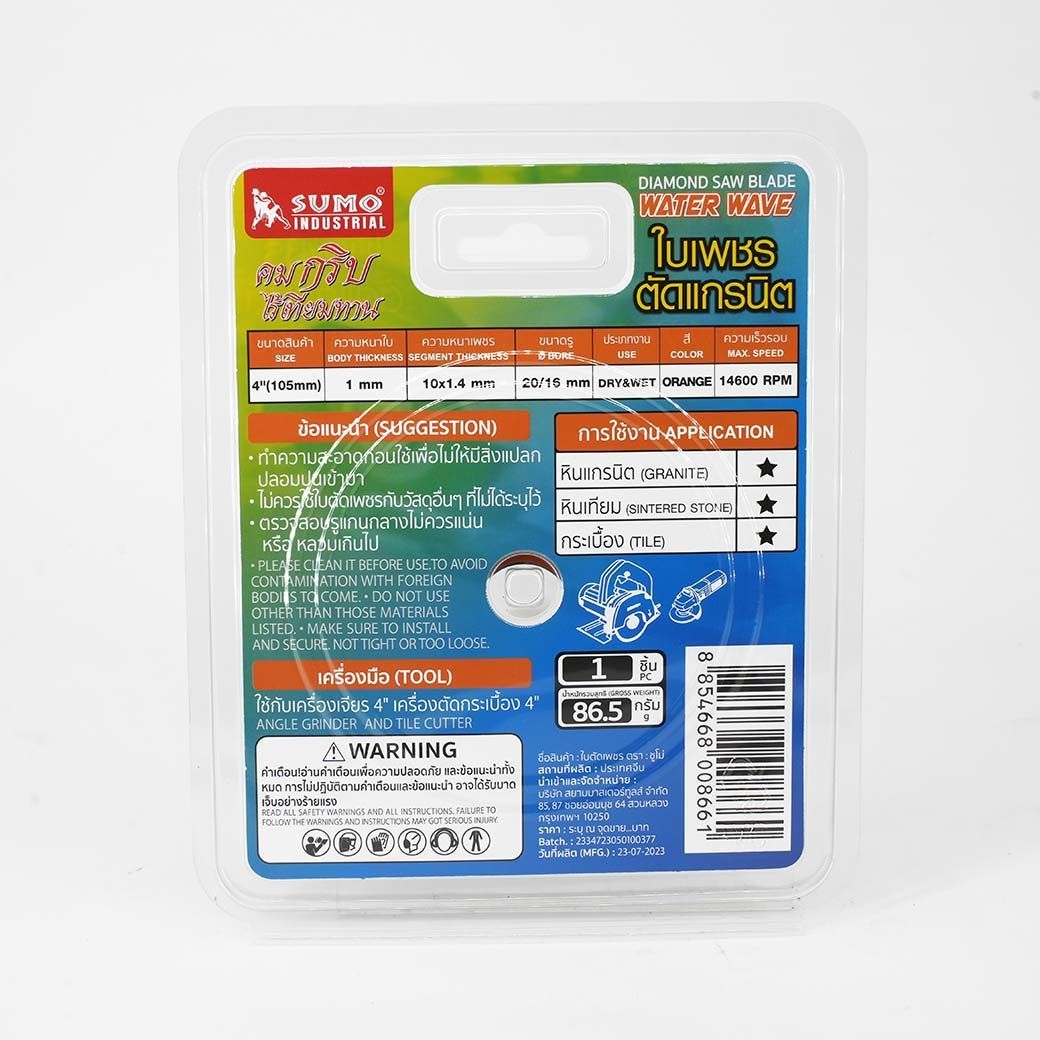

RECOMENDATION Do not use the diamond blade other than those materials listed. Please clean it before use. To avoid contamination with foreign bodies to come. Make sure to install and secure. Not tighter too loose.

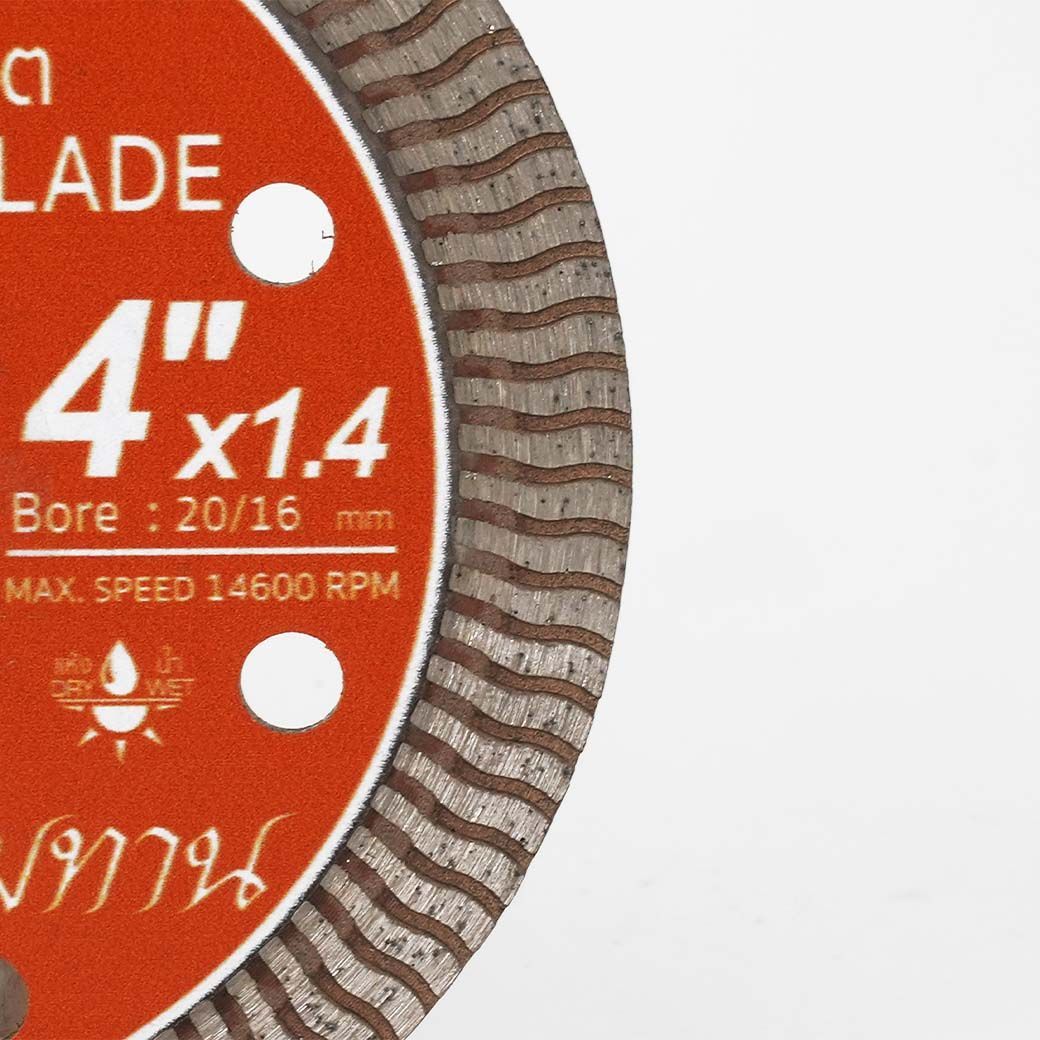

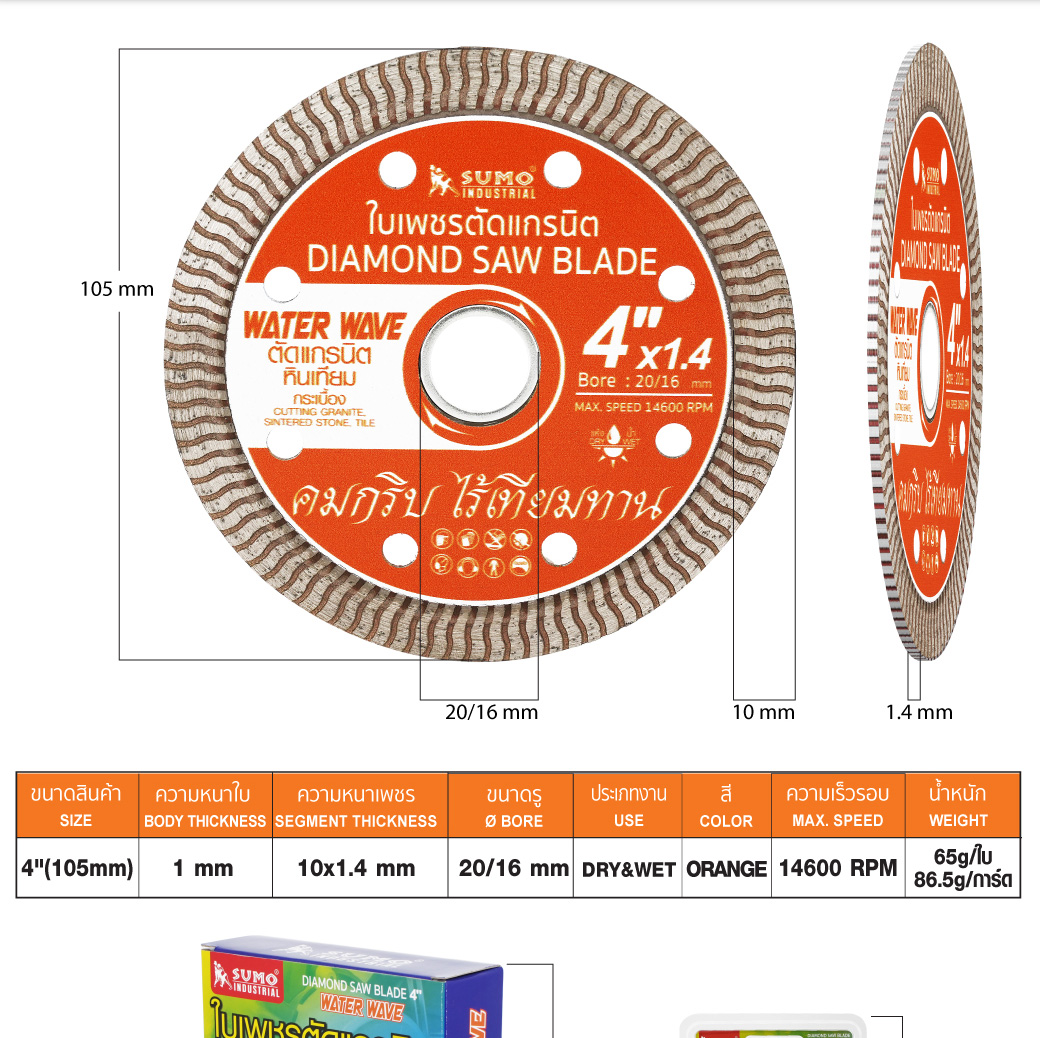

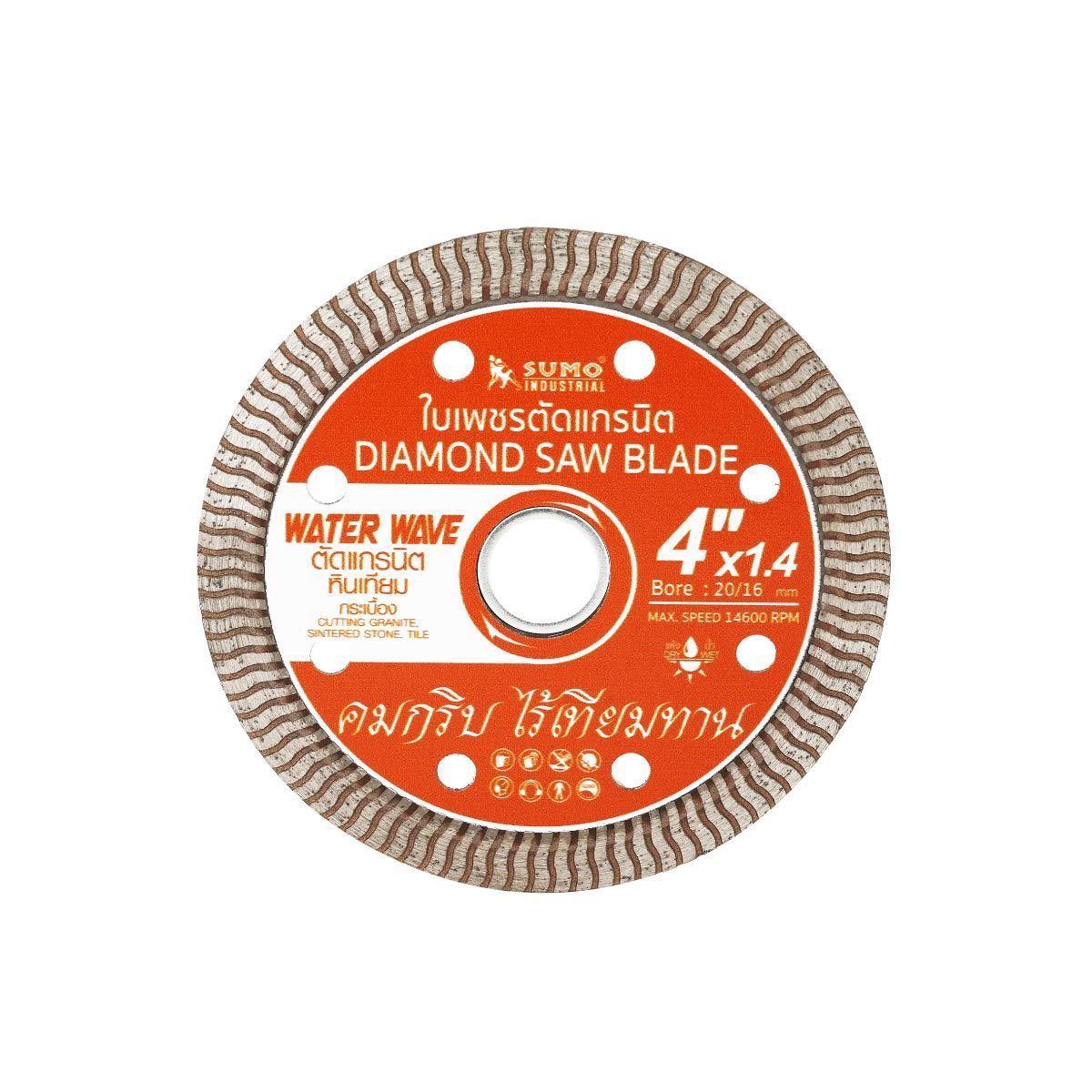

Size 4" (Ø105x1.4x20/16mm)
Diamond size (Segment Dimension) 10x1.4mm
Hole size 20/16 mm.

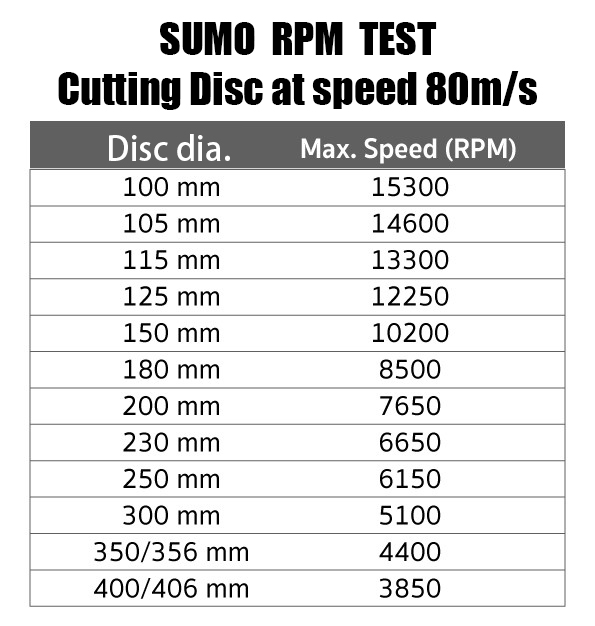

Rotation speed (Max.Speed) 15300 RPM
The main causes of breakage of cutting blades Caused by cutting the workpiece at an angle or slant, causing the cutting blade to snag or get stuck on the workpiece. Should only be cut at 90 degrees. Application of side pressure for T41 type cutting blades
Popular keywords Diamond Cutting Blade 4”x1.8x30x14 | Diamond Cutting Blade | 4 Inch Diamond Cutting Blade | Diamond Cutting Blade Price | Cheap Diamond Cutting Blade | Diamond Grooving Cutting Blade | Concrete Cutting Blade | Marble Cutting Blade | Granite Cutting Blade
Product Gallery
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Details
Product Specification Graphic
Product Operation Graphic
Product Feature Details
Additional Product Information
Operational Instructions
Attentions & Guidelines

Things Not To Do

  • Do not use a dropped or damaged grinding/cutting blade.
  • Do not use the wrong type of grinding/cutting disc for the application, such as not using the cutting disc for grinding work.
  • Do not use the grinding/cutting blade to grind or cut materials that are not specified.
  • Do not use cutting blades whose correct type of use cannot be specified.
  • Do not use grinding/cutting discs with improper characteristics, such as twisted grinding/cutting discs or if the grinding/cutting disc wobbles during use. Stop using it immediately.
  • Do not use a grinding/cutting disc with a speed lower than the machine's speed.
  • Do not force the grinding/cutting blade into the machine or modify the size of the mounting shaft.
  • Do not use excessive force to tighten the locking force on the grinding/cutting blade. The locking force should be tightened just enough to hold the grinding/cutting blade securely.
  • Do not use a saucer with a rough surface or imperfect shape.
  • Do not apply excessive force while grinding or cutting.
  • Do not apply side pressure for T41 type blades.
  • Do not use the machine carelessly, place or hang the machine when not in use.
  • Do not use more than one grinding/cutting disc.
  • Do not turn on the switch to start the grinder while the grinding/cutting blade is in contact with the workpiece.
  • Do not use grinding or cutting near flammable objects and gas.

Things To Do

  • Grinding/cutting blades should be stored or used with care.
  • The grinding/cutting blade should be inspected for cracks or damage before installation.
  • Grinding/cutting blades should be stored in a dry place. They should not be stored in high temperature or humid places.
  • The grinder speed should be checked against the maximum speed specified on the cutting/grinding disc label.
  • You should check the hole size of the grinding/cutting disc. It must fit snugly into the grinder, not too loose or too tight.
  • Check the guard, it must cover at least half of the grinding/cutting disc.
  • After installing the grinding/cutting blade into the machine, the tester should be turned on to rotate the blade for about 1 minute before starting to use it.
  • The recommendations and warnings of the grinder should be strictly followed.
  • Safety glasses (certified to ANSI Z81.1), hearing protection, and a dust mask should be worn (wear protective clothing, which may include gloves, apron, long-sleeved shirt, long pants, and a face mask).
  • The workpiece to be ground or cut should be held firmly and securely.
  • The grinder should be turned off every time before changing the blade.
Frequently Asked Questions (FAQ)
What materials is this diamond cutting blade suitable for?
This diamond blade is suitable for cutting granite, ceramic, artificial stone, tiles, concrete slabs, and marble.
What type of machines can be used with this blade?
It is designed for use with 4-inch grinders and 4-inch tile cutters.
What is the maximum rotation speed allowed for the blade?
The maximum safe rotation speed for this blade is 15300 RPM.
What are the key design features and manufacturing process of this blade?
The blade is produced using the Hot Press process, which makes the diamond blade stronger, sharper, and longer-lasting. The diamond teeth are 1.4 mm thick and feature special grooves designed to unravel the workpiece and effectively dissipate heat.
What is the main cause of breakage and how can I prevent it?
Breakage is mainly caused by cutting the workpiece at an angle or slant, which makes the blade snag or get stuck. To prevent this, always cut strictly at a 90-degree angle and do not apply side pressure on the blade.
What safety checks should be performed before operation?
Inspect the blade for cracks/damage, store it in dry conditions, verify that the grinder speed matches the disc's maximum speed, check that the hole size (20/16 mm) fits snugly, ensure the guard covers at least half of the disc, and run the machine for 1 minute before starting the cut. Always wear certified safety glasses, hearing protection, a dust mask, and protective clothing.
