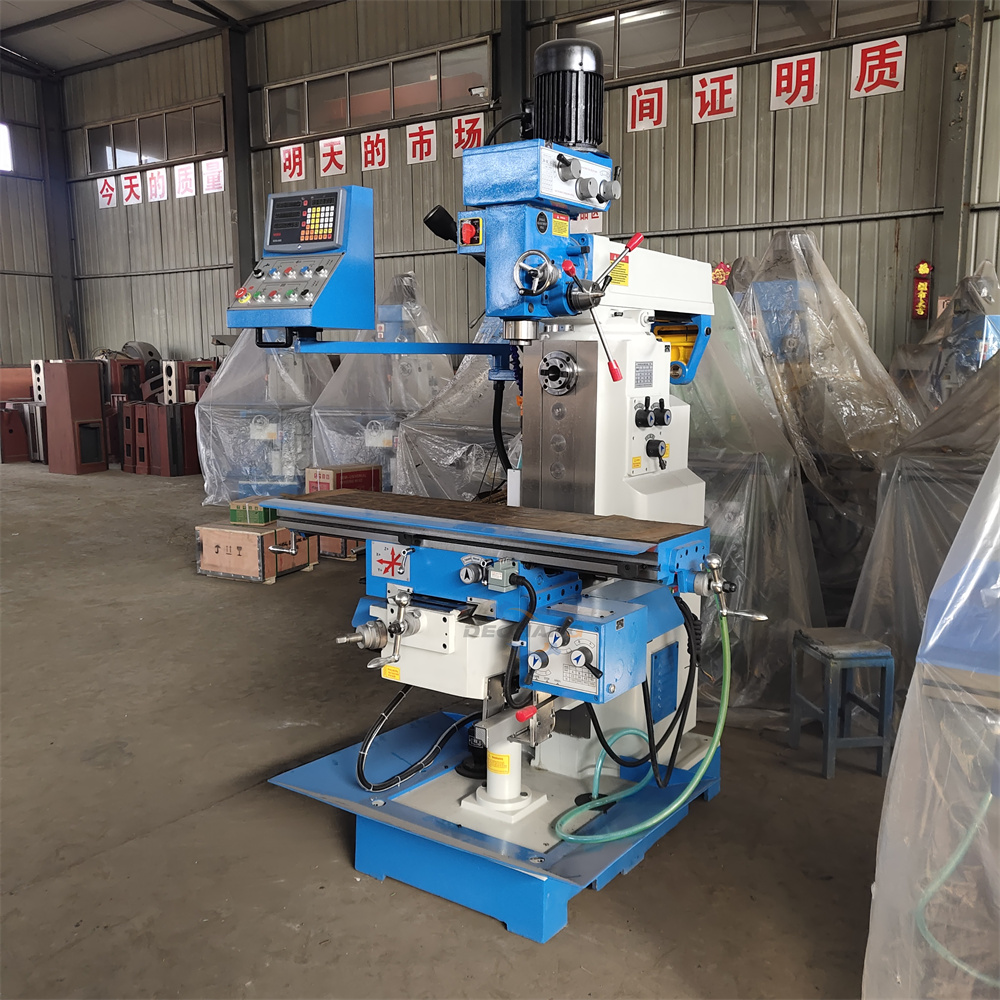

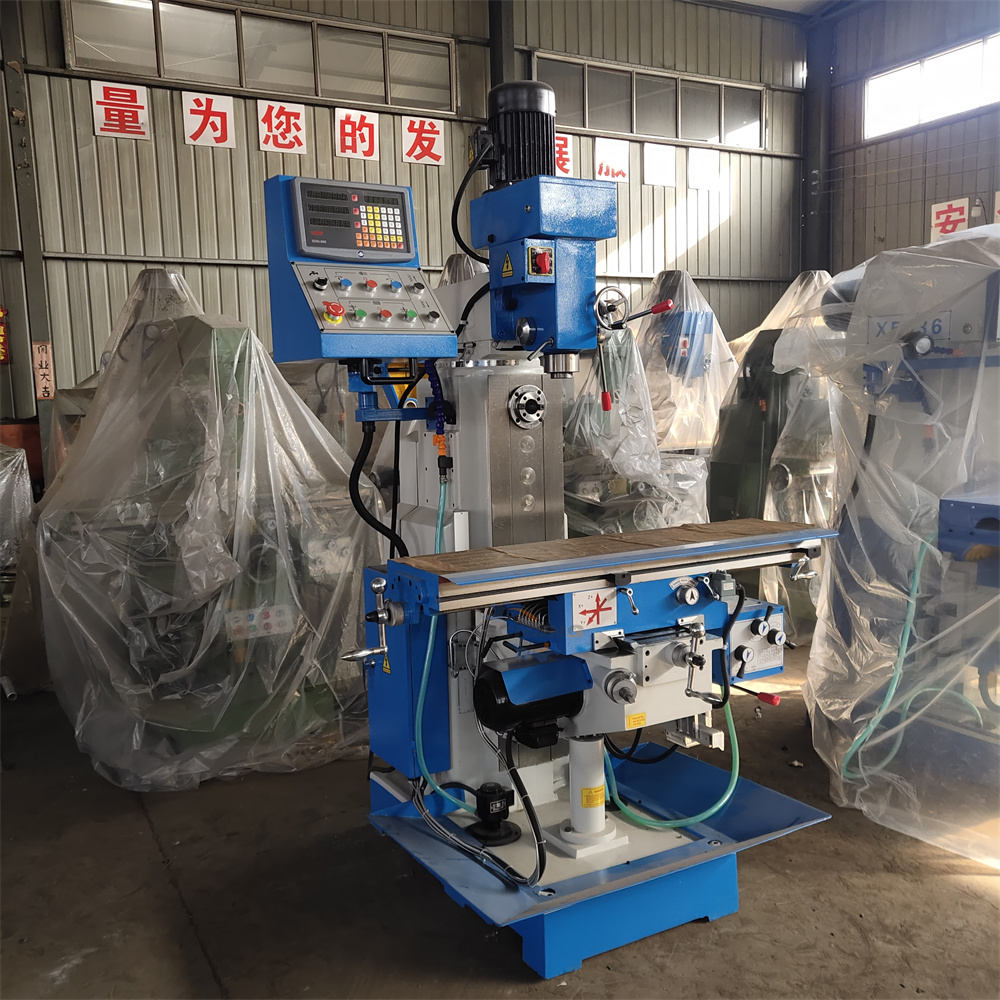

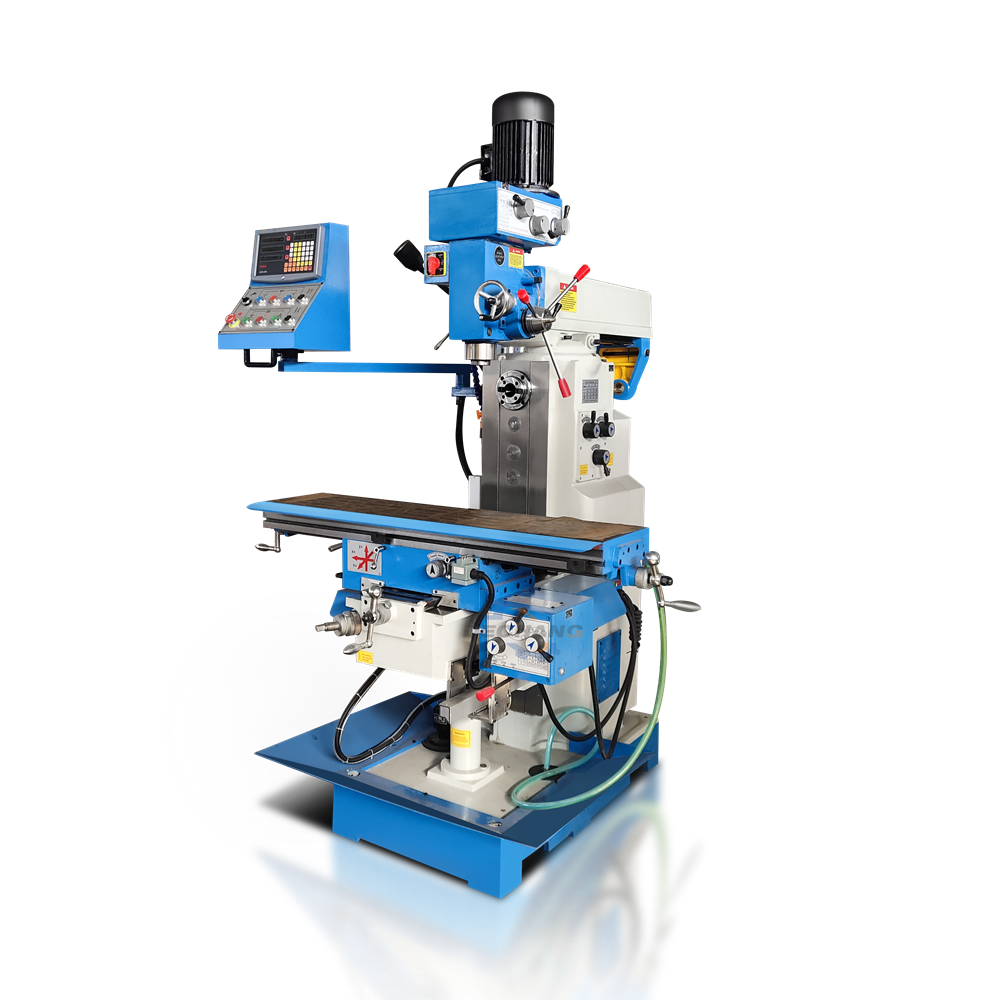

Drilling And Milling Machine ZX6350A Light Duty Automatic Vertical Competitive Price

1 / 5

Drilling And Milling Machine ZX6350A Light Duty Automatic Vertical Competitive Price

Send Inquiry

Product Description

Products Description

Tech specifications

Specifications	Units	ZX6350A
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	80-460
Spindle taper	-	MT4
Horizontal spindle taper	-	ISO40
Spindle speed range	rpm	40-1400
Horizontal spindle speed range	rpm	40-1300
Spindle travel	mm	120
Table size	mm	1200280(Optional: 1500280)
Table travel	mm	680280(Optional: 1000280)
Table feed speed	mm/min	X/Y:22-555 Z:300 electric
Main motor power	kw	1.5/2.2(V),3(H)
Machine weight	kg	1500
Overall dimension(LWH)	mm	145014002350

Product Details

Optional Configuration

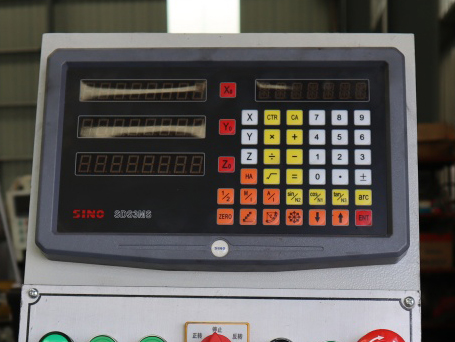

3 AXIS DRO

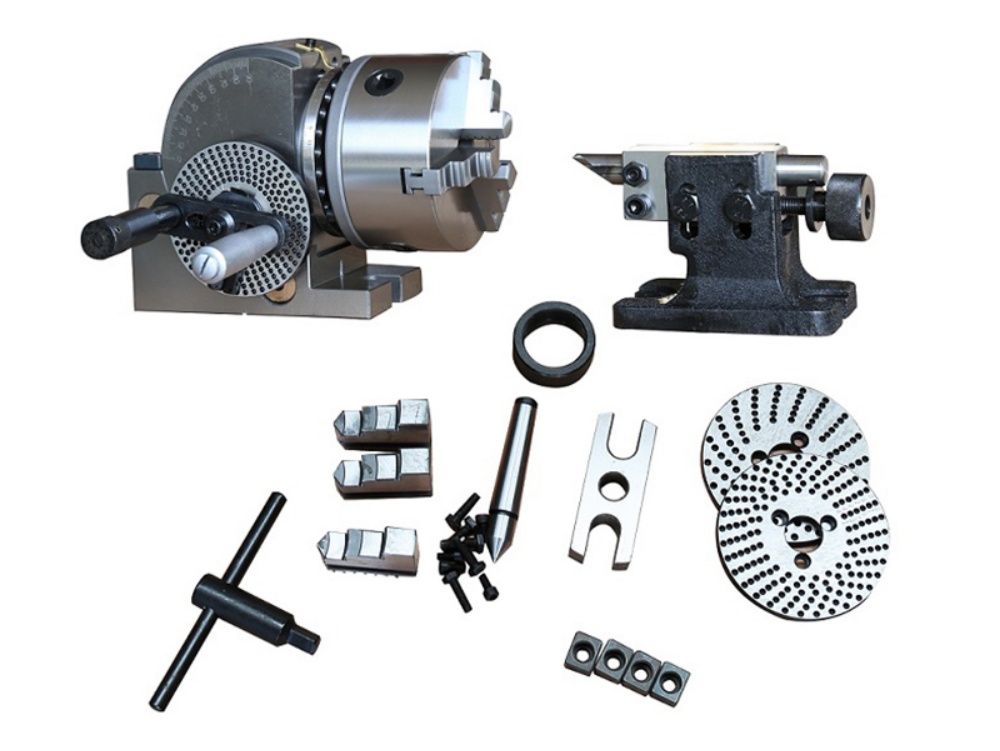

SEMI-UNIVERSAL DIVIDING HEAD

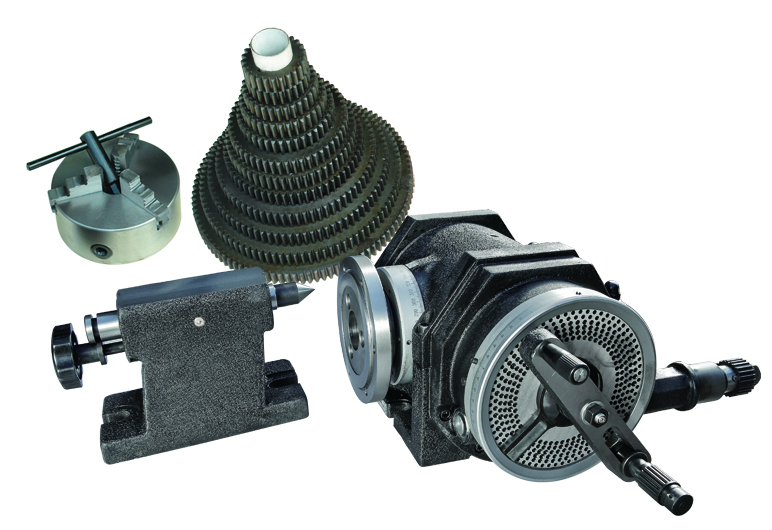

UNIVERSAL DIVIDING HEAD

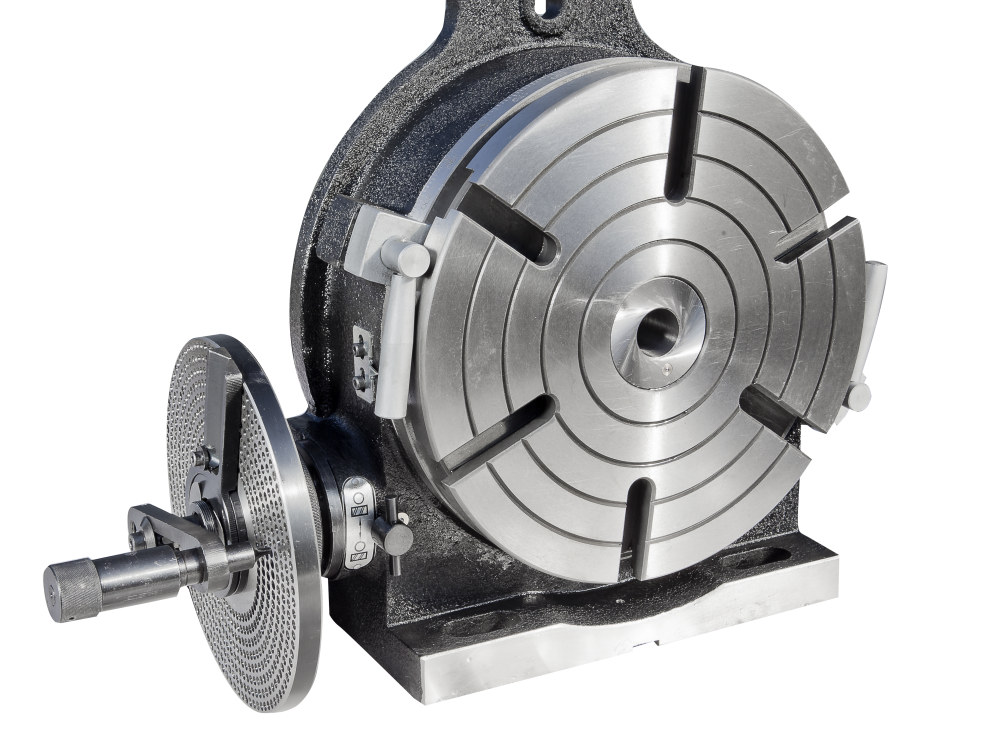

ROTARY TABLE

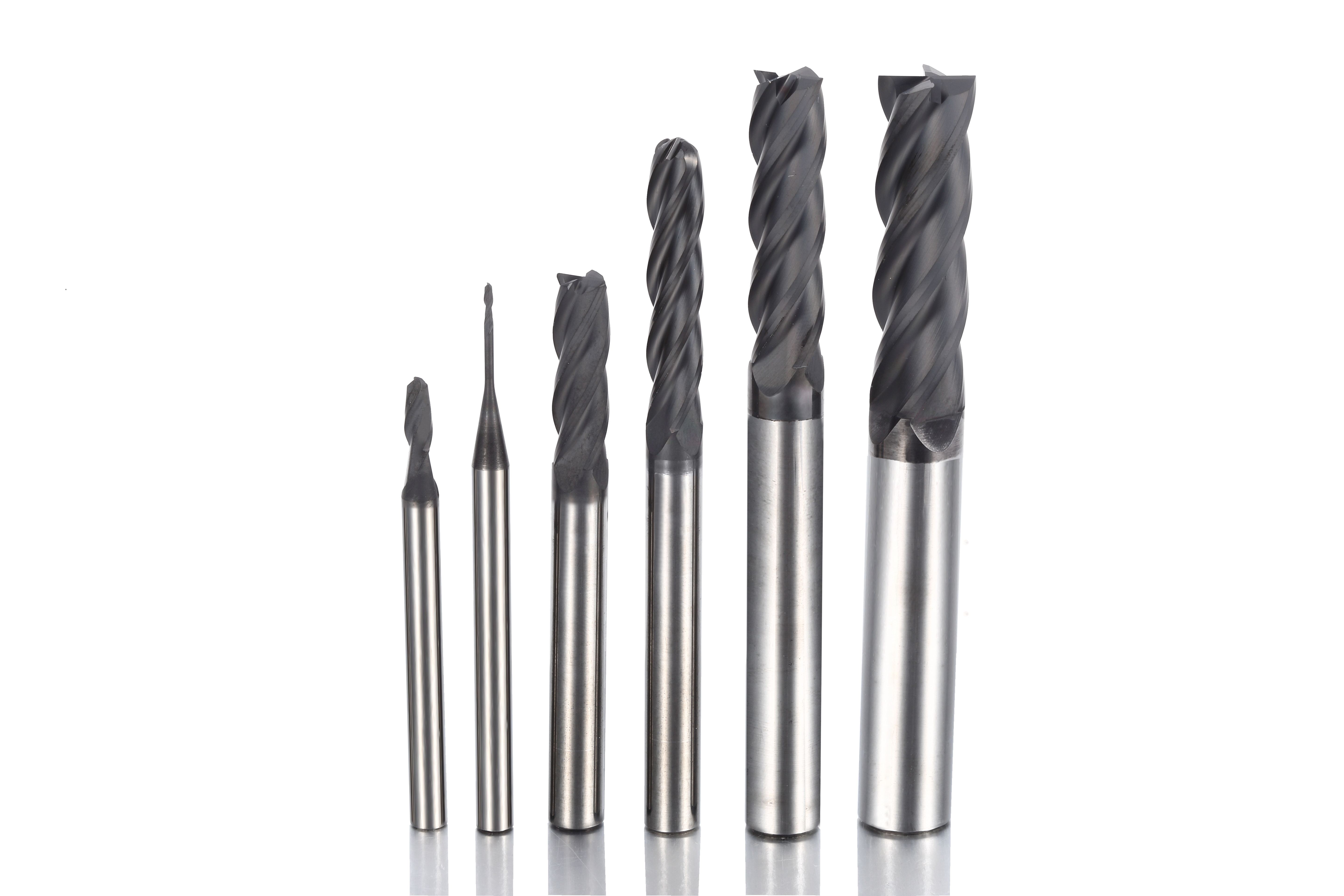

MILLING CUTTER

FAQ

1: What about your warranty?

The warranty period is generally 13 months after B/L date. During the warranty period, if parts are damaged due to quality problems (excluding human factors and improper operation), we provide free replacement parts.

2: How do you offer after-sale service?

We offer technical support online. Customers can describe problems and send videos or pictures, and our technicians will assist in solving them.

3: What is your standard package?

Our standard export package is a plywood case with a pallet to ensure the machine is protected and avoid damage during shipping.

4: What are the Payment Terms?

T/T: 30% initial payment upon order, and 70% balance payment before shipment.

5: What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set.

6: Can I request customized solutions?

Yes, whether you are an end-user, dealer, or machining factory, you can provide your technical requirements and specifications, and we will offer the most suitable machine solution.

Product Detail

Drilling And Milling Machine ZX6350A Light Duty Automatic Vertical Competitive Price

Product Description

3 AXIS DRO

SEMI-UNIVERSAL DIVIDING HEAD

UNIVERSAL DIVIDING HEAD

ROTARY TABLE

MILLING CUTTER
