Product Description

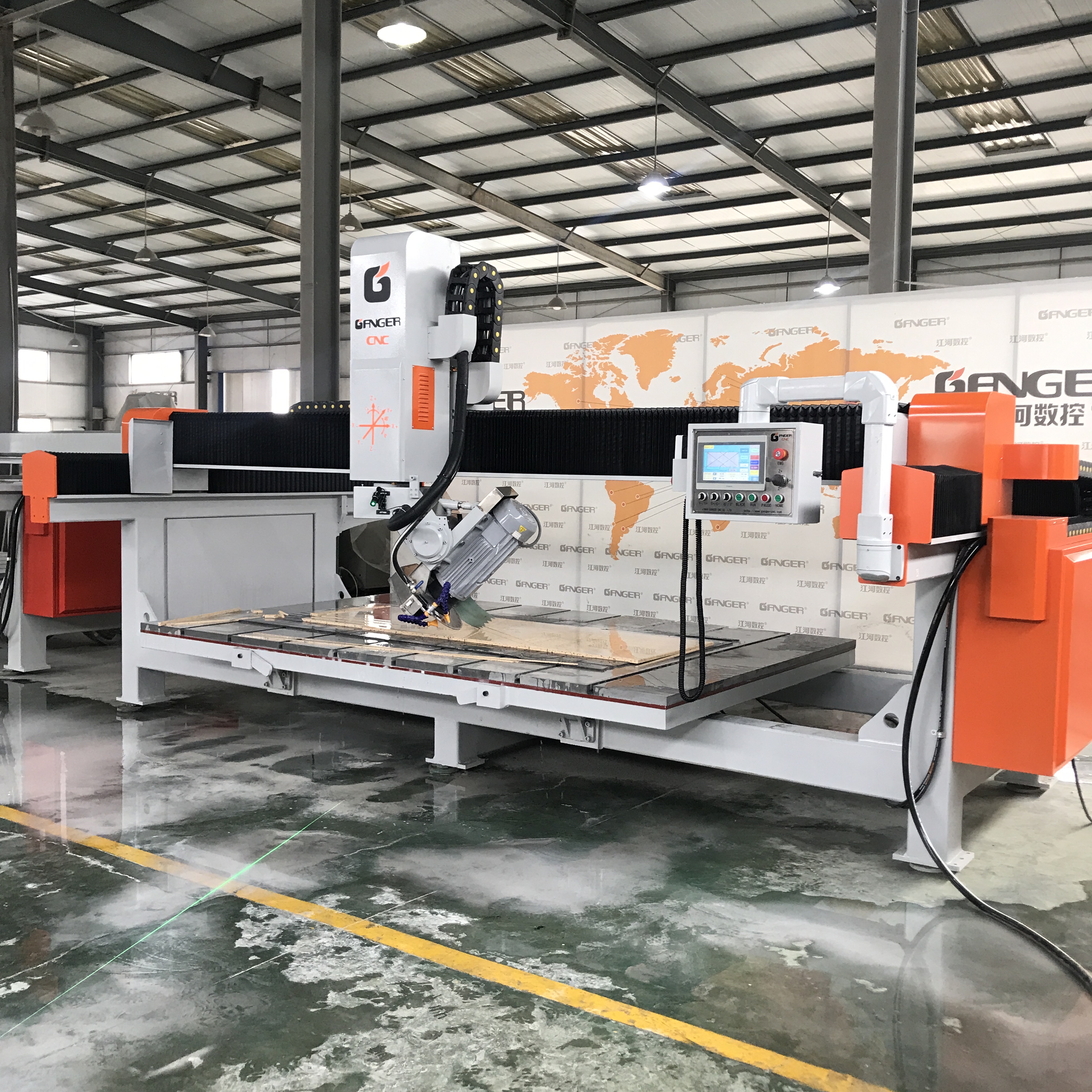

Bridge saw cutting machine GQ-3220B
GQ-3220B bevel cut 45 degree for marble granite quartz with certificate CE and ISO9001
Product Overview
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Features at a Glance

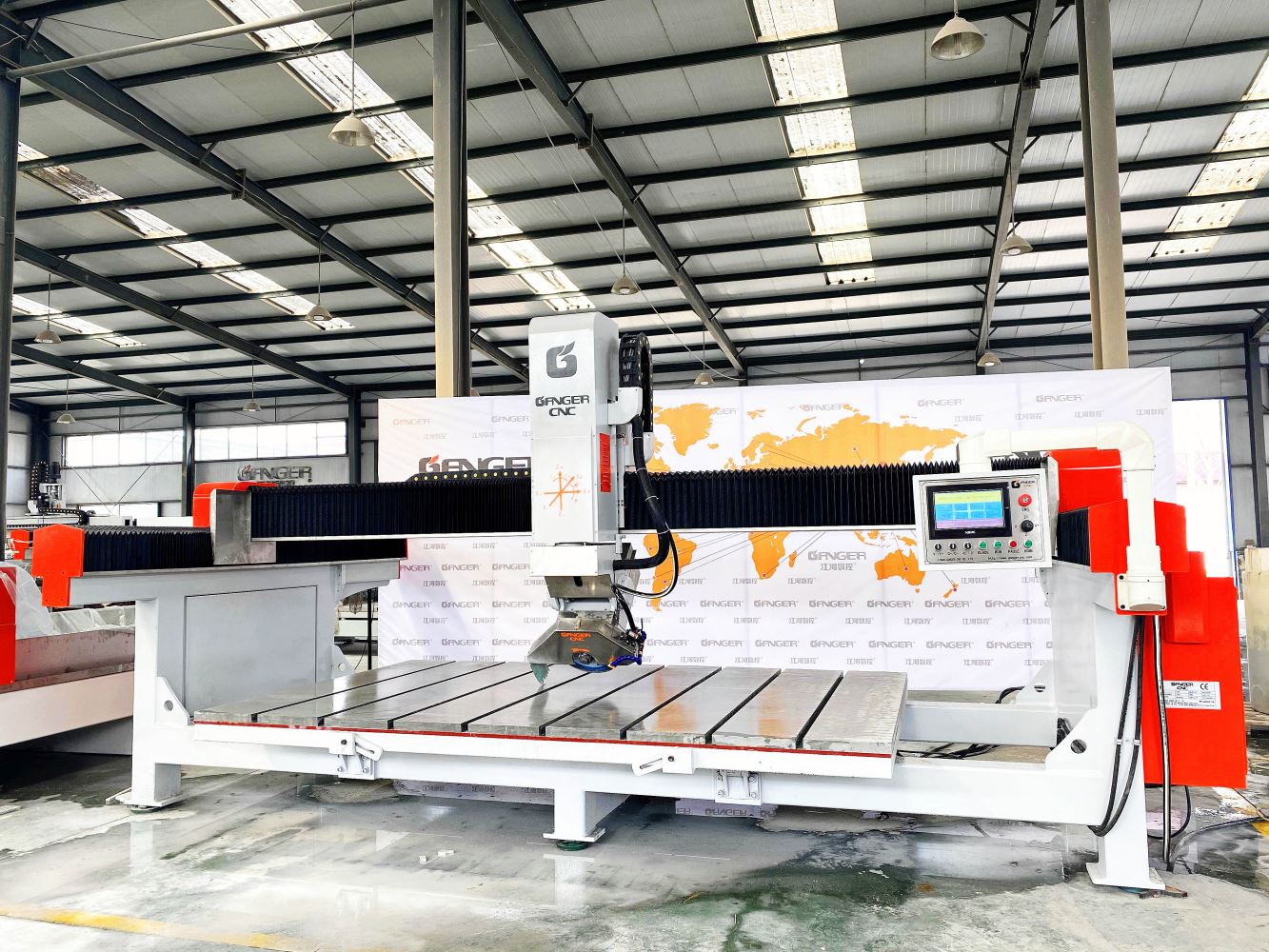

Features Overview

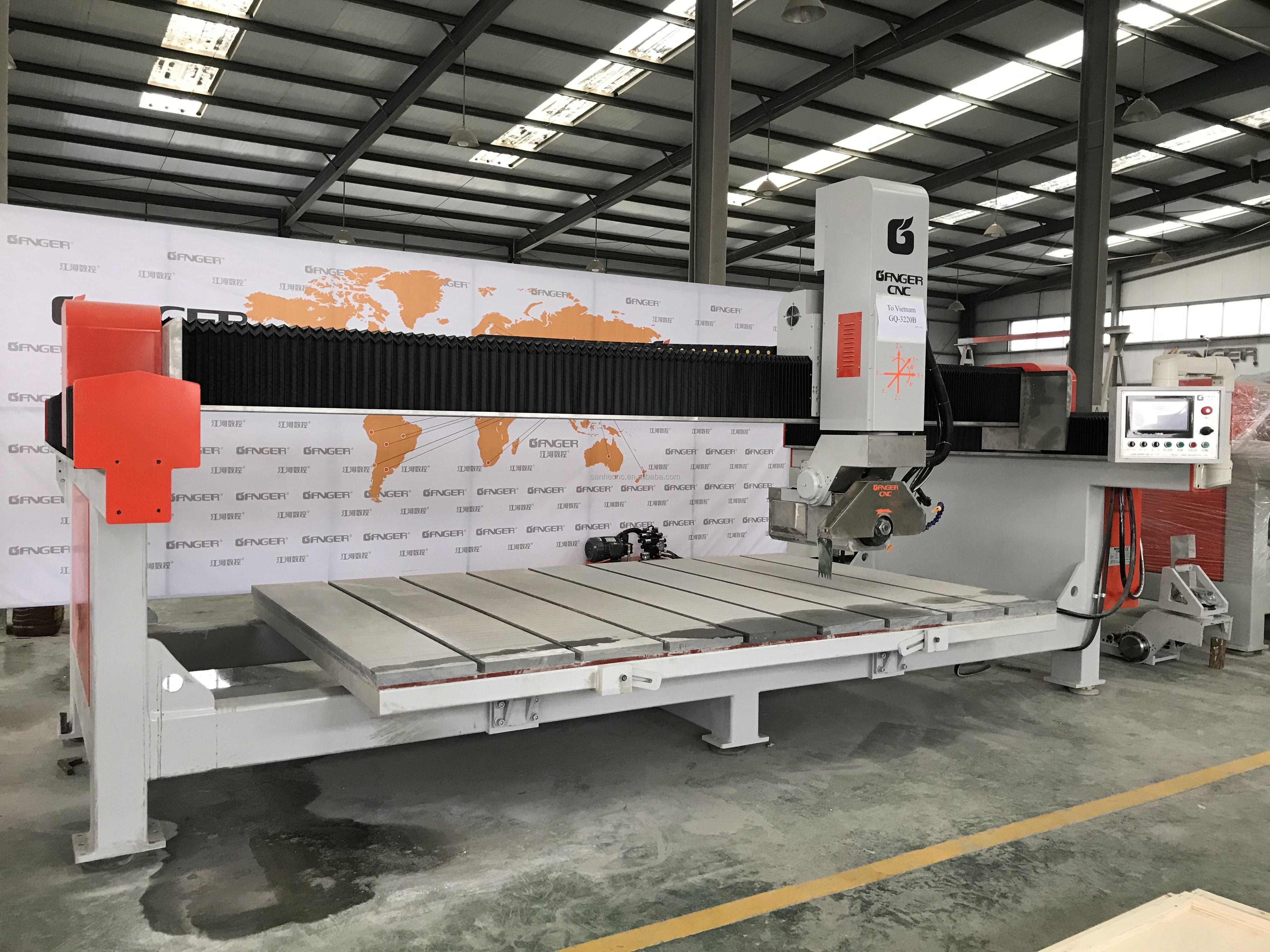

Feature details 1

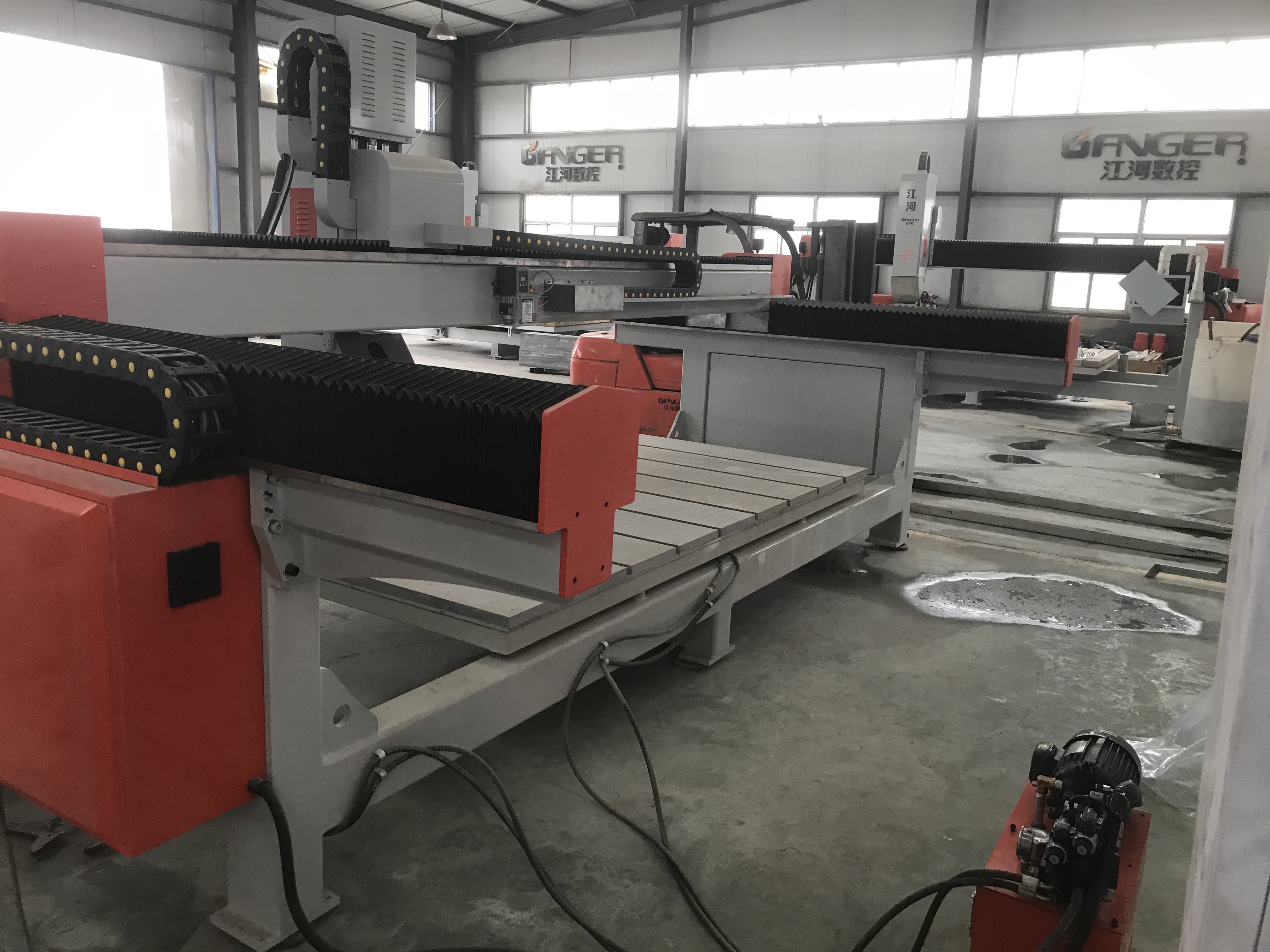

Feature details 2

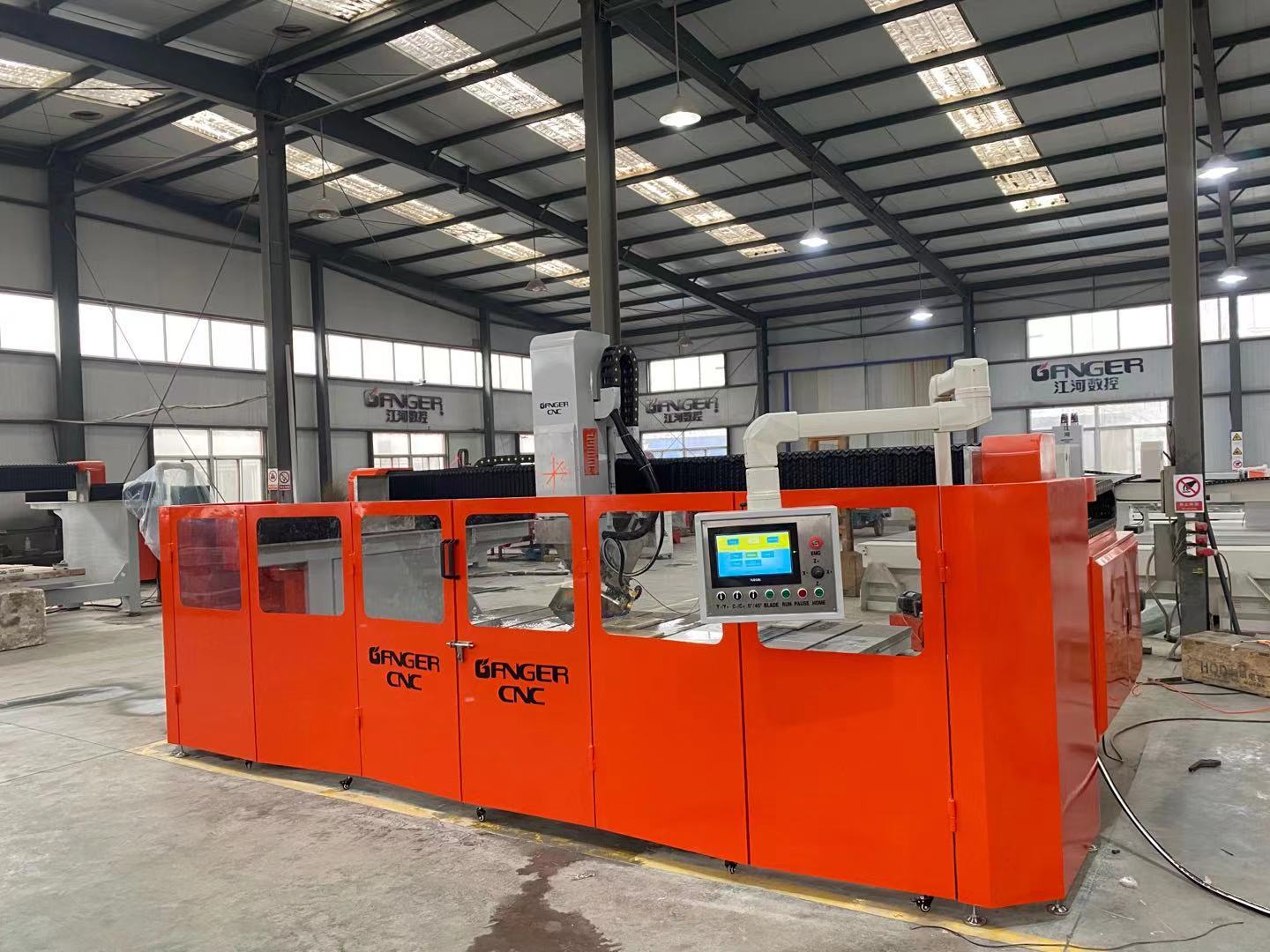

Feature details 3
Advanced Design
English language Safe door Laser guiding cutting Hydraulic tilting table Remote control handle Mono block structure & Small footprint

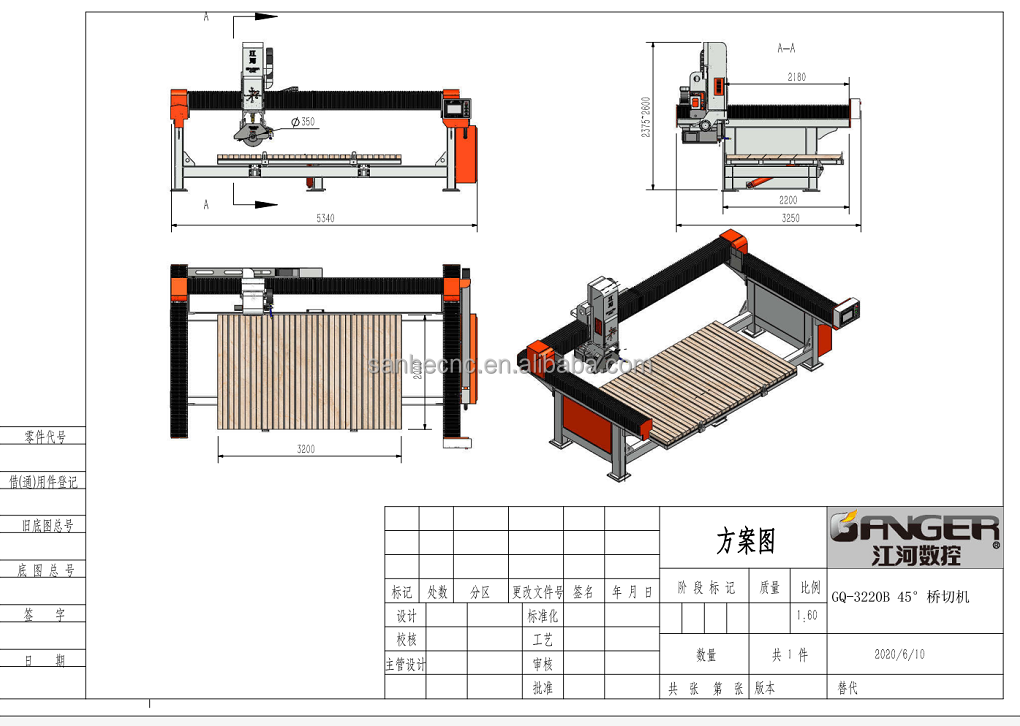

Advanced Design Image

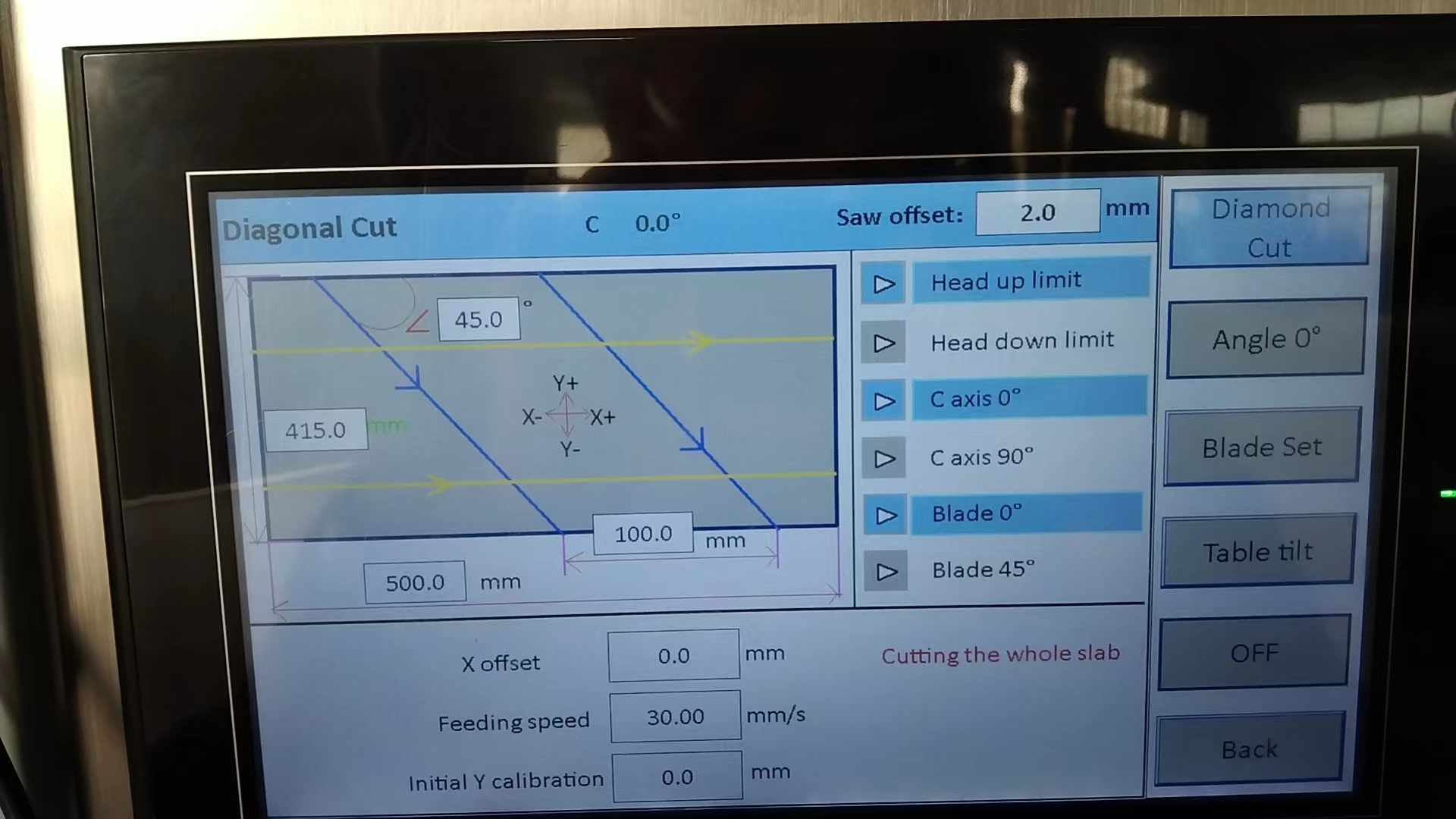

English language
English language

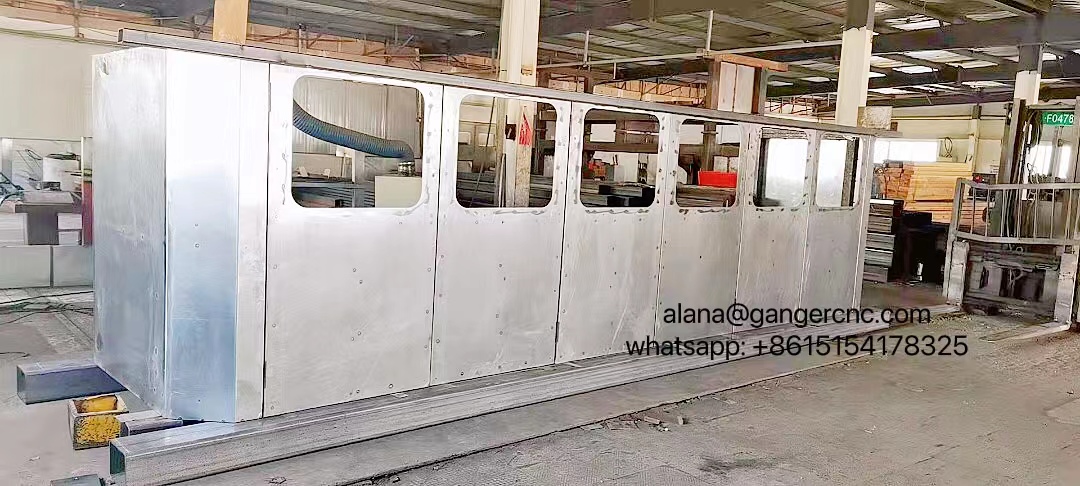

Safe door
Safe door
Easy-load tilting table
Easy-load tilting table max 85°
Product Specifications
1 Model GQ-3220B
2 X/Y/Z Axis working size 3200*2000*200mm
3 Diameter of blade 350mm
4 Working table size 3200x2000mm
5 Rotation speed of blade 3000/6000rpm (optional, adjustable)
6 Blade motor power 11KW
7 Total power 25KW
8 Chamfer 45°
9 C axis rotation angle 0°- 135°
10 Table Tilting angle 85°
11 Control system GANGER
12 Gross weight 4500KGS

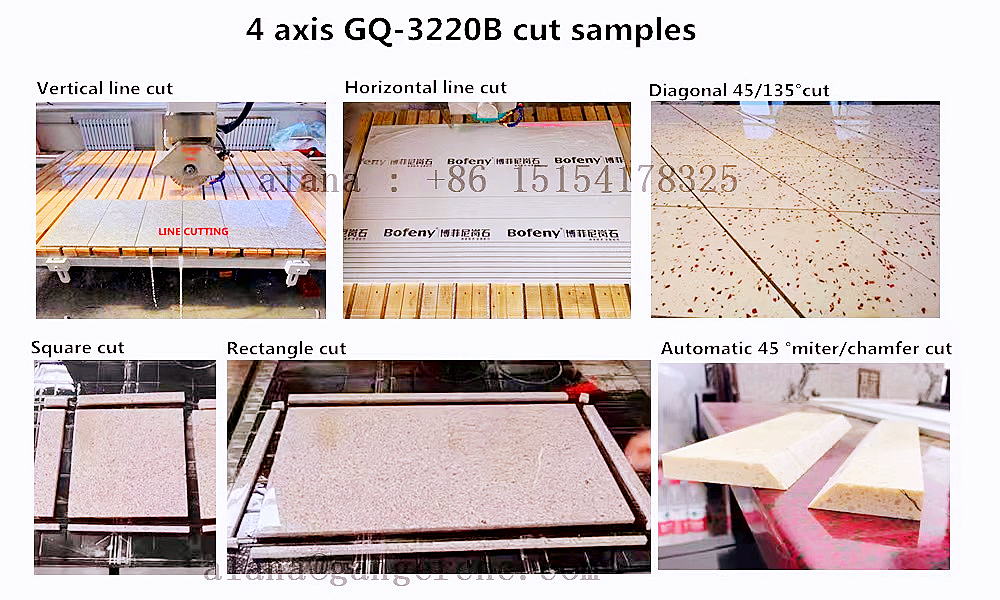

GQ-3220B Functions

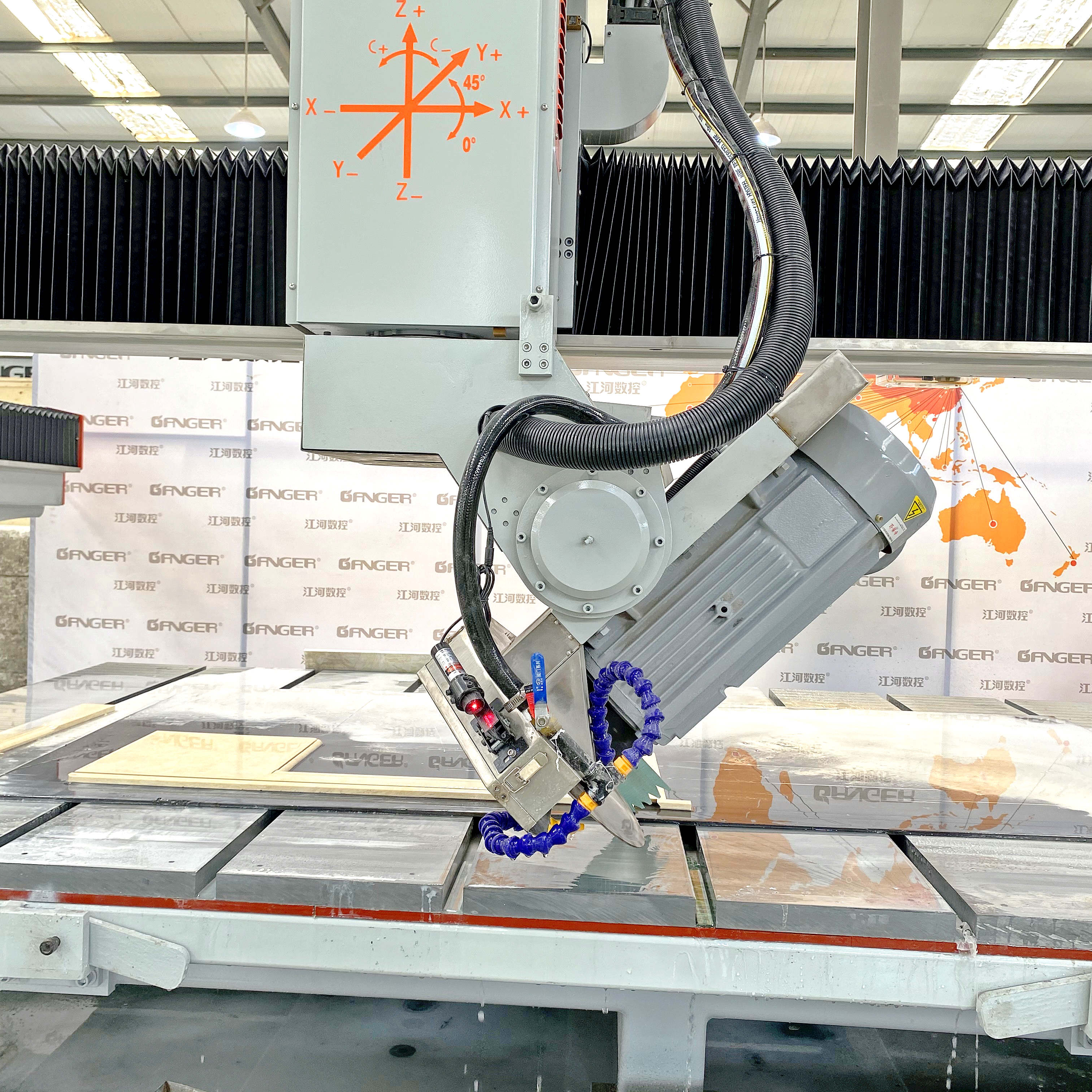

Miter (chamfer) 45 degree Horizontal / vertical Diagonal cut 45° / 135° Square cut / Rectangle cut
GQ-3220B Functions Image
Sales and Service Network
Sales and Service Network
Successful Project

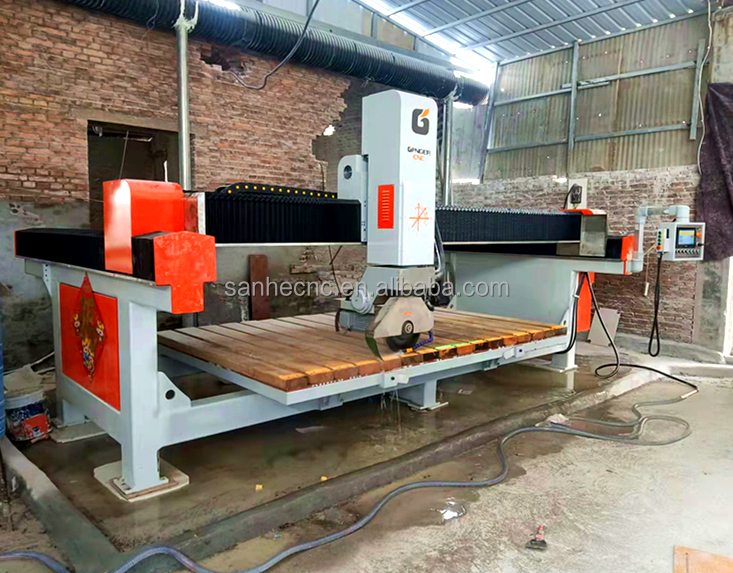

Project in Thailand
Project in Thailand

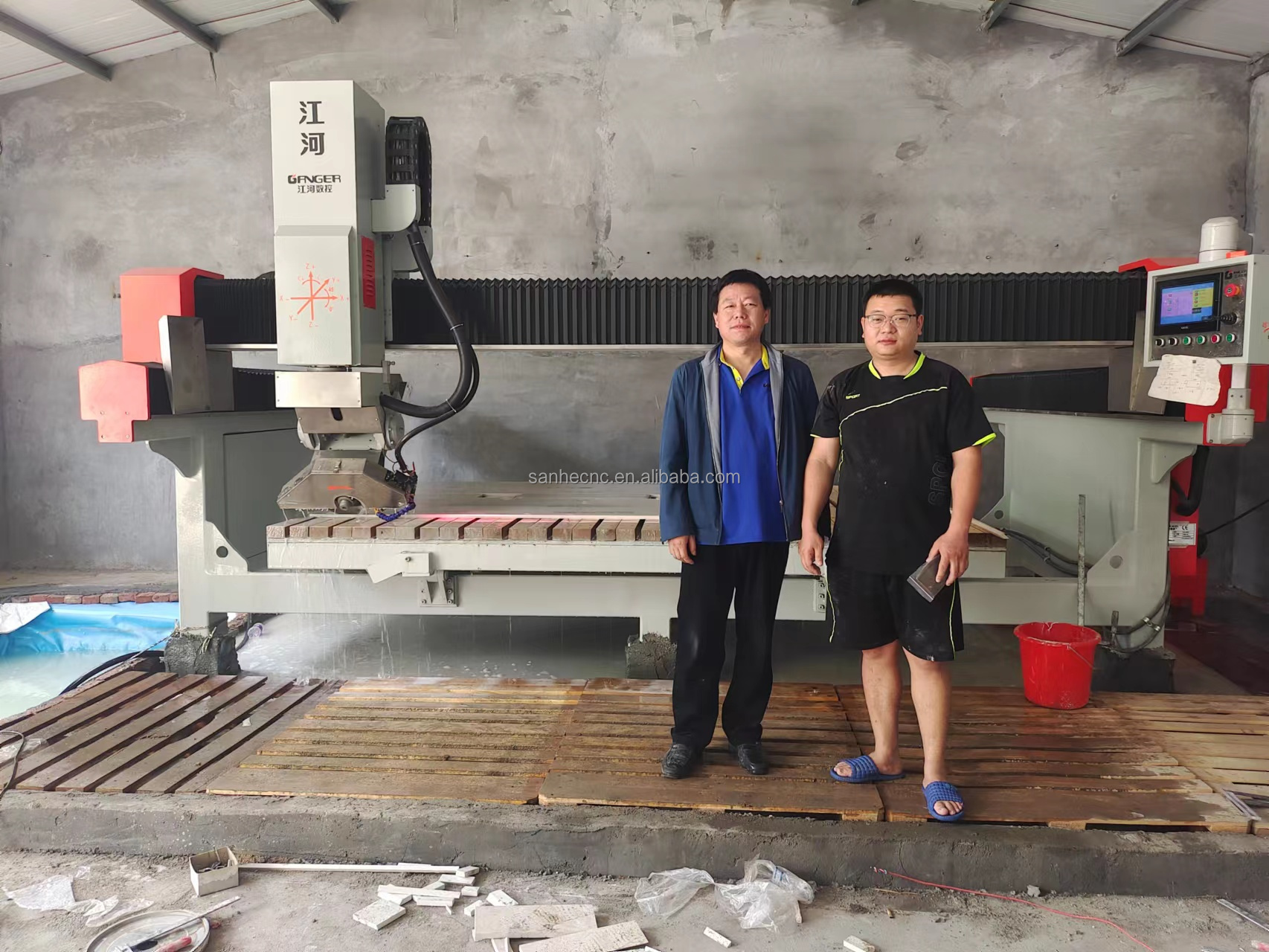

Project in India
Project in India

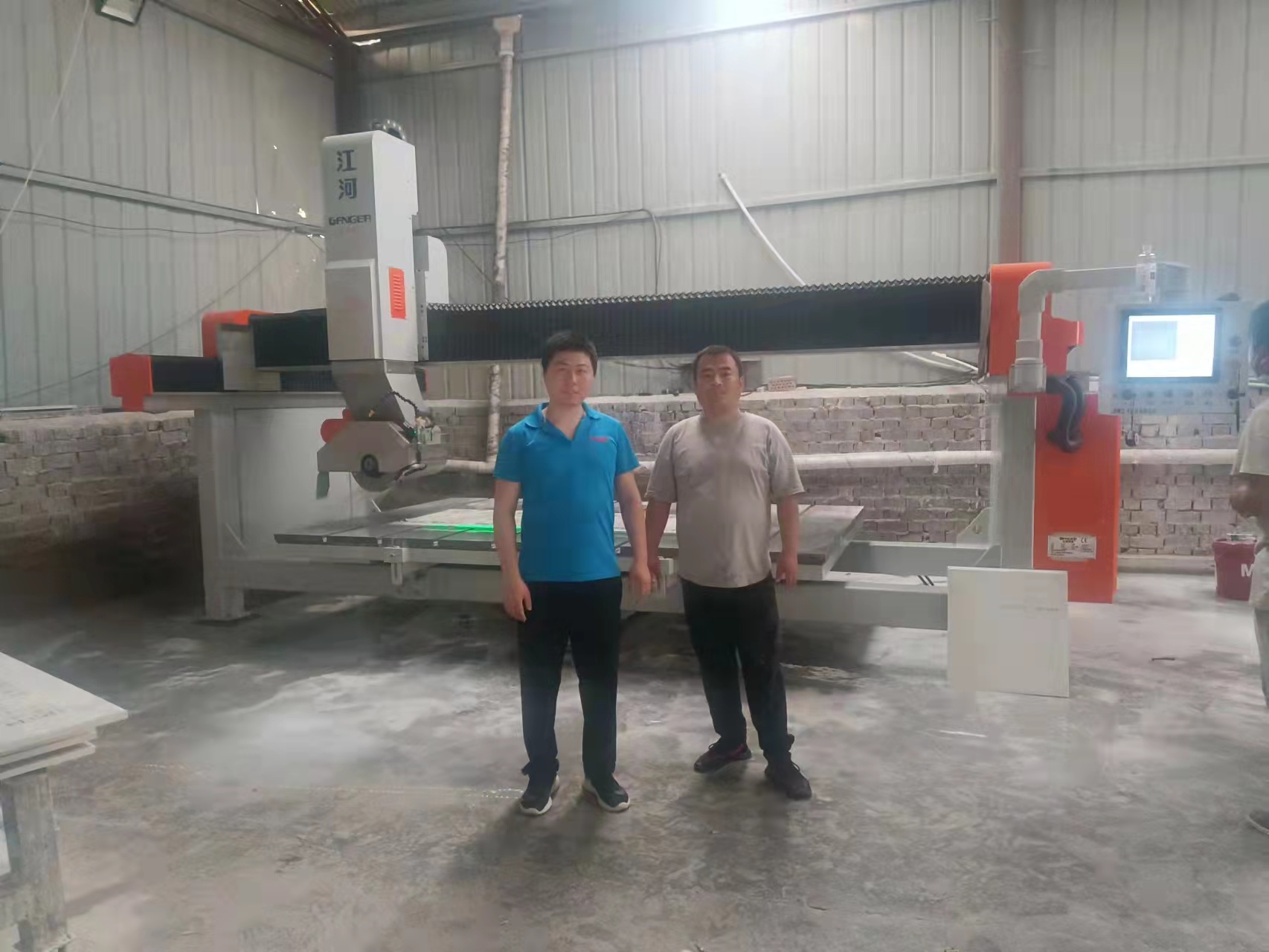

Project in Russia
Project in Russia
Similar Products

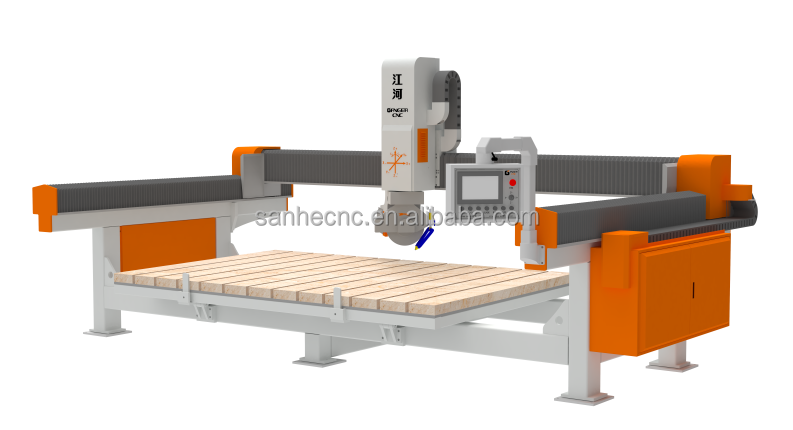

Similar Product 1

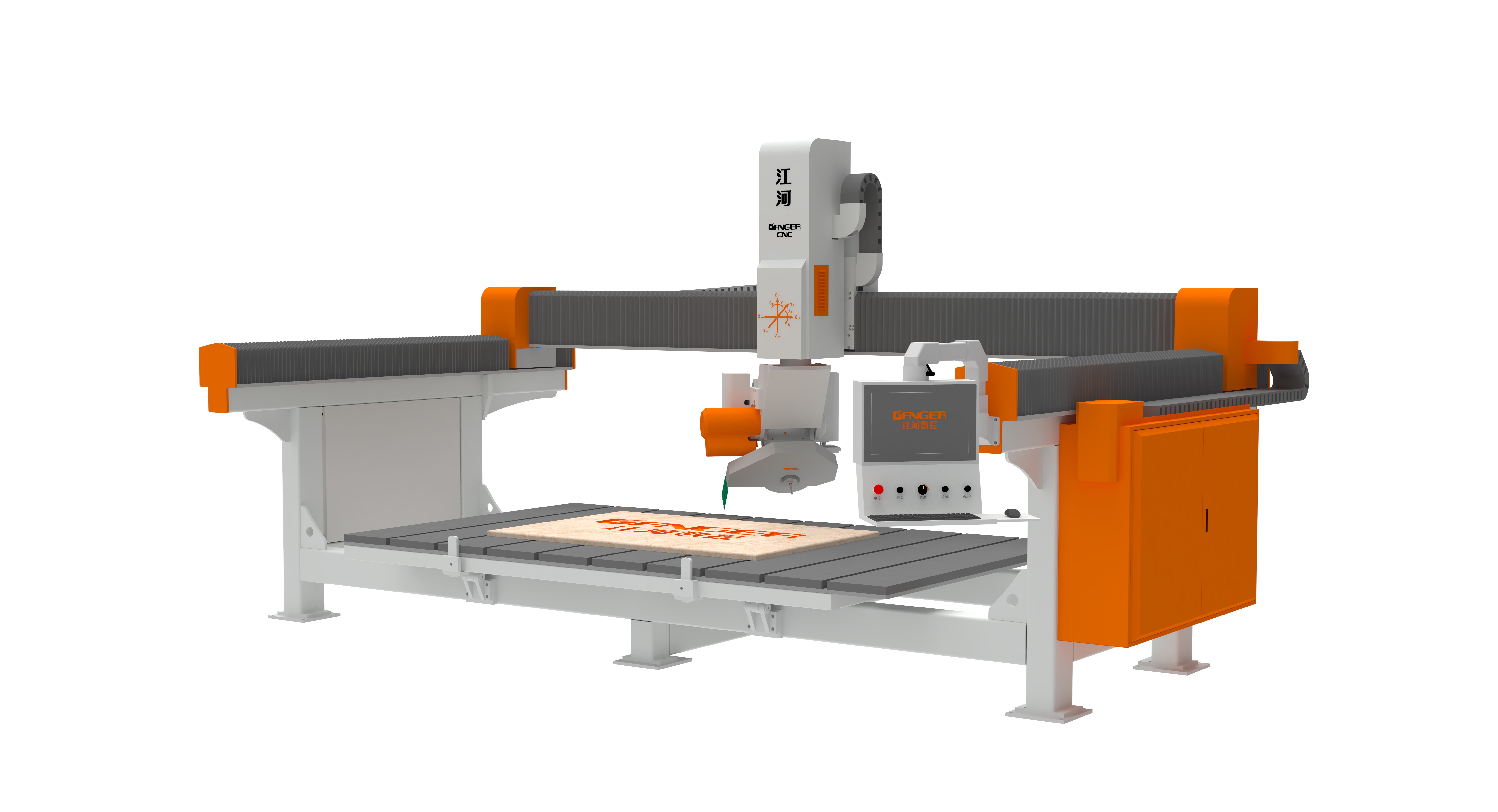

Similar Product 2

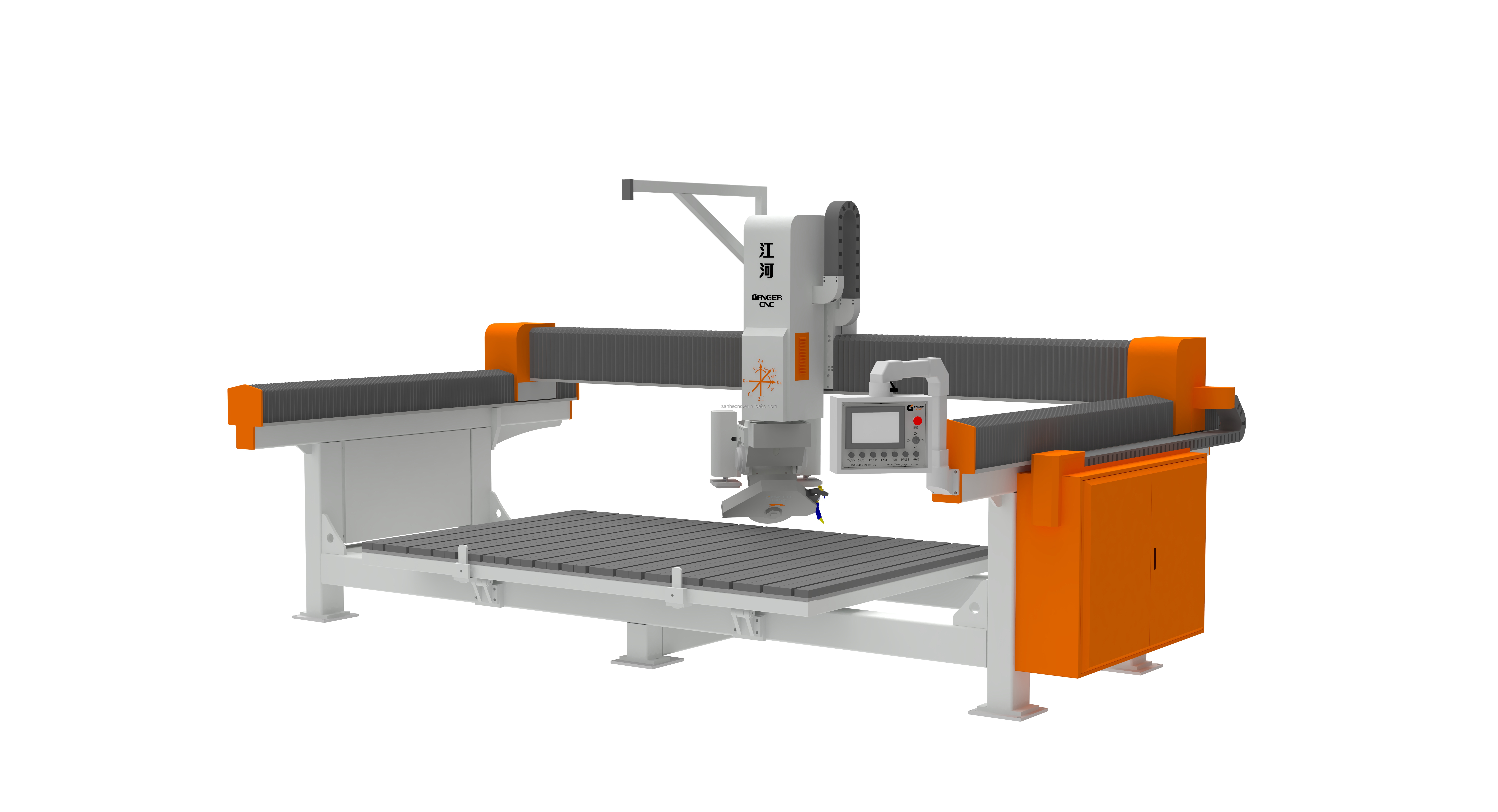

Similar Product 3
FAQ
QAre you a manufacturer or a trading company?
We are manufacturer.
QCan we customize logo and machine features?
Yes, we support logo customization, and we are very pleased to customize high quality stone machine features for you.
QHow do we control the quality?
Once order confirmed, we will prepare machine drawing and double confirm all details with you. Doing 100% inspection during production, packing and loading.
QWhat is the payment method and delivery time?
Payment method: 30% deposit + 70% balance before delivery. Delivery time: 25-30 working days (customized models delivery time needs final confirmation).
QWhat is the working voltage configuration?
Standard configuration is 380V/50HZ/3 phases. It can also be customized with a voltage transformer (extra payment) like 240V/220V/415V, etc.
QWhat is your after-sale service policy?
We provide 1 year warranty, in-time online troubleshooting, paid engineer on-site installation/training, and free replacement parts for non-human damage within the warranty.
