IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
1 / 5
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

Send Inquiry

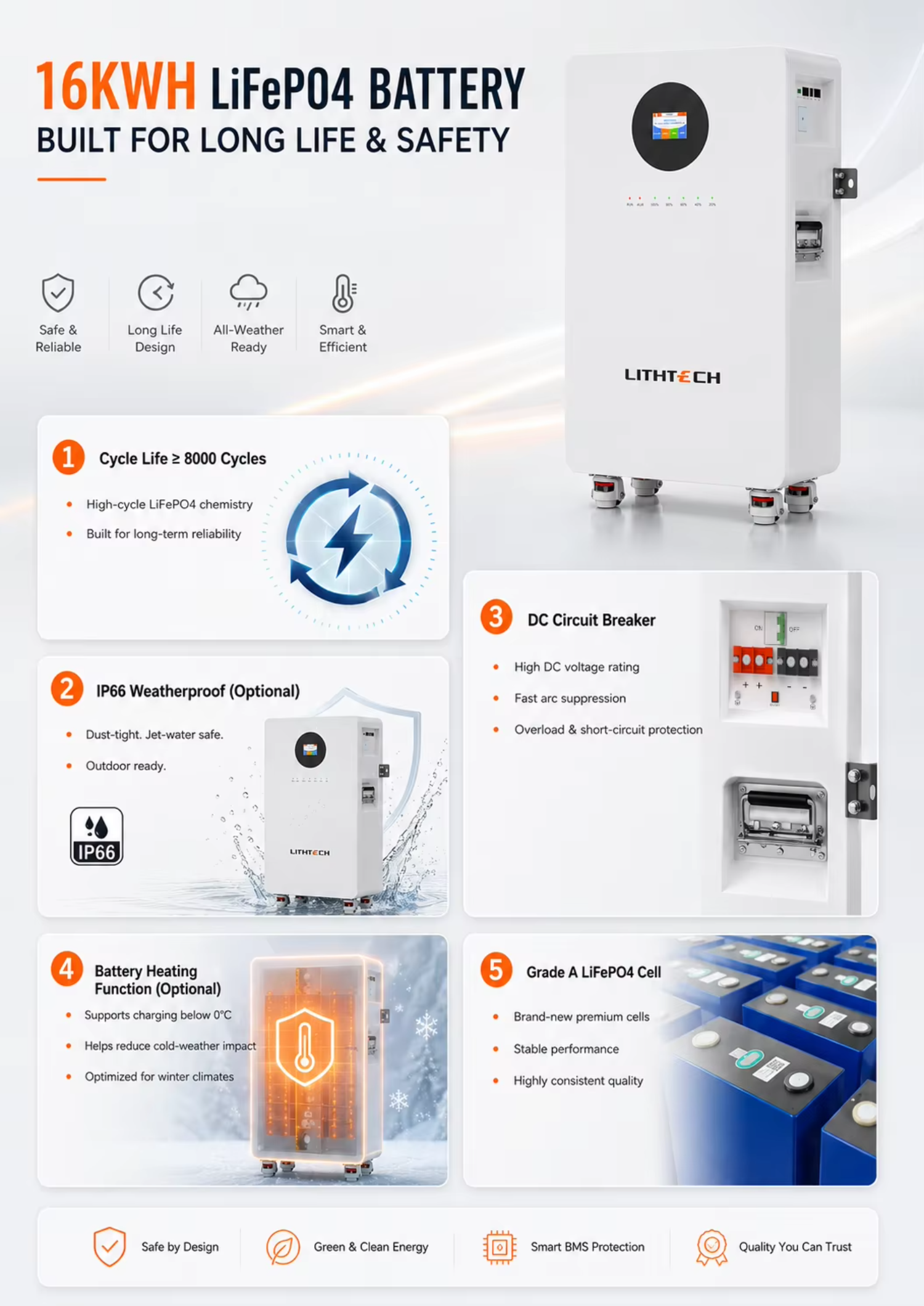

Product Description

Product Highlights
5kWh 10kWh 16kWh Scalable Capacity
48V / 51.2V 100AH 200AH 314Ah, expandable to 240kWh with 15 parallel units
≥ 8000+ Cycles
Grade A LiFePO4 cells, 80% capacity retention after 8,000 cycles
10-Year Warranty
Built for long-term reliability and low lifetime cost
Full Global Certifications
CE, CE-EMC, IEC62619, IEC61000, UN38.3, MSDS, RoHS and more
EU China Fast Stock
Warehouse stock ready, 3-day delivery across Europe
WiFi & Bluetooth Dual Monitoring
Real-time status via app, remote diagnostics
Optional IP54/IP66 Rating
High dust and water protection for indoor/outdoor use
Optional Battery Heating
Safe charging in sub-zero conditions
Optional DC Circuit Breaker
Integrated overload and short circuit protection
Corrosion-Resistant Enclosure
Durable in humid or coastal environments
Low MOQ & Custom Logo
Fast 3-day sample design, dealer-friendly branding
Plug & Play Modular Design
Pre-assembled rack mount, install in minutes
Smart BMS Protection
Multi-layer safety against overcharge, over-discharge, and overheating
Wide Compatibility
Works with leading inverter brands, seamless integration
Silent Operation
Fanless design, 0 dB noise, perfect for residential use
Wide Temp Range
Reliable performance from -20°C to 60°C
Global Stock · 3-Day Delivery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Seeking Global Partners — Home Energy Storage
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Why Partner with Us?

Lifepo4 lithium solar battery Global warehouses with 3-day delivery — no inventory pressure, no cash tied up in stock. Fully certified across CE, UL9540, UL9540A, UL1973, IEC62619, IEC61000, CEC, UN38.3, MSDS, and RoHS. Free samples, low MOQ with custom logo, 10-year warranty, and strict regional protection to secure your margins. Factory-direct partnership built for profit.

Customization Capabilities
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

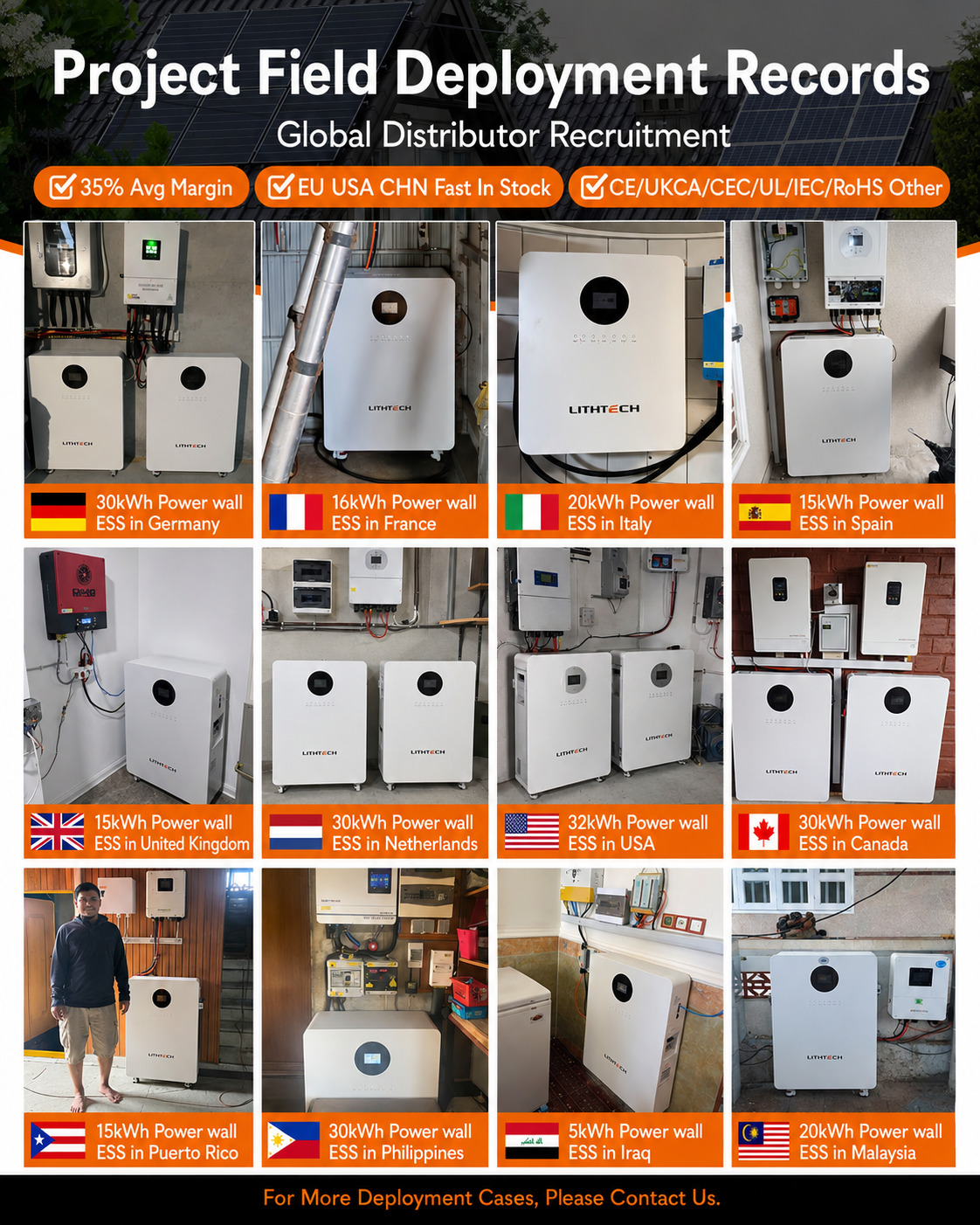

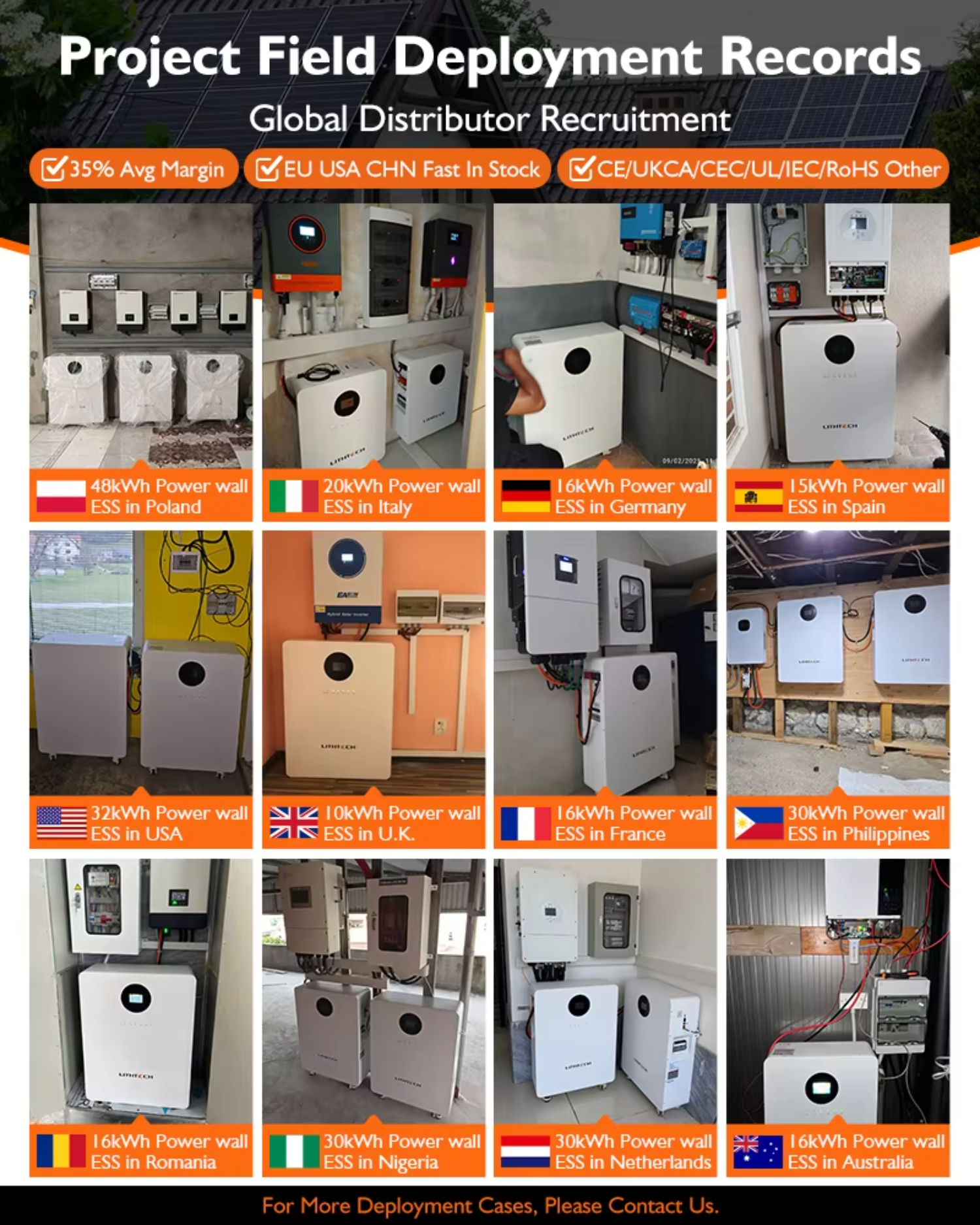

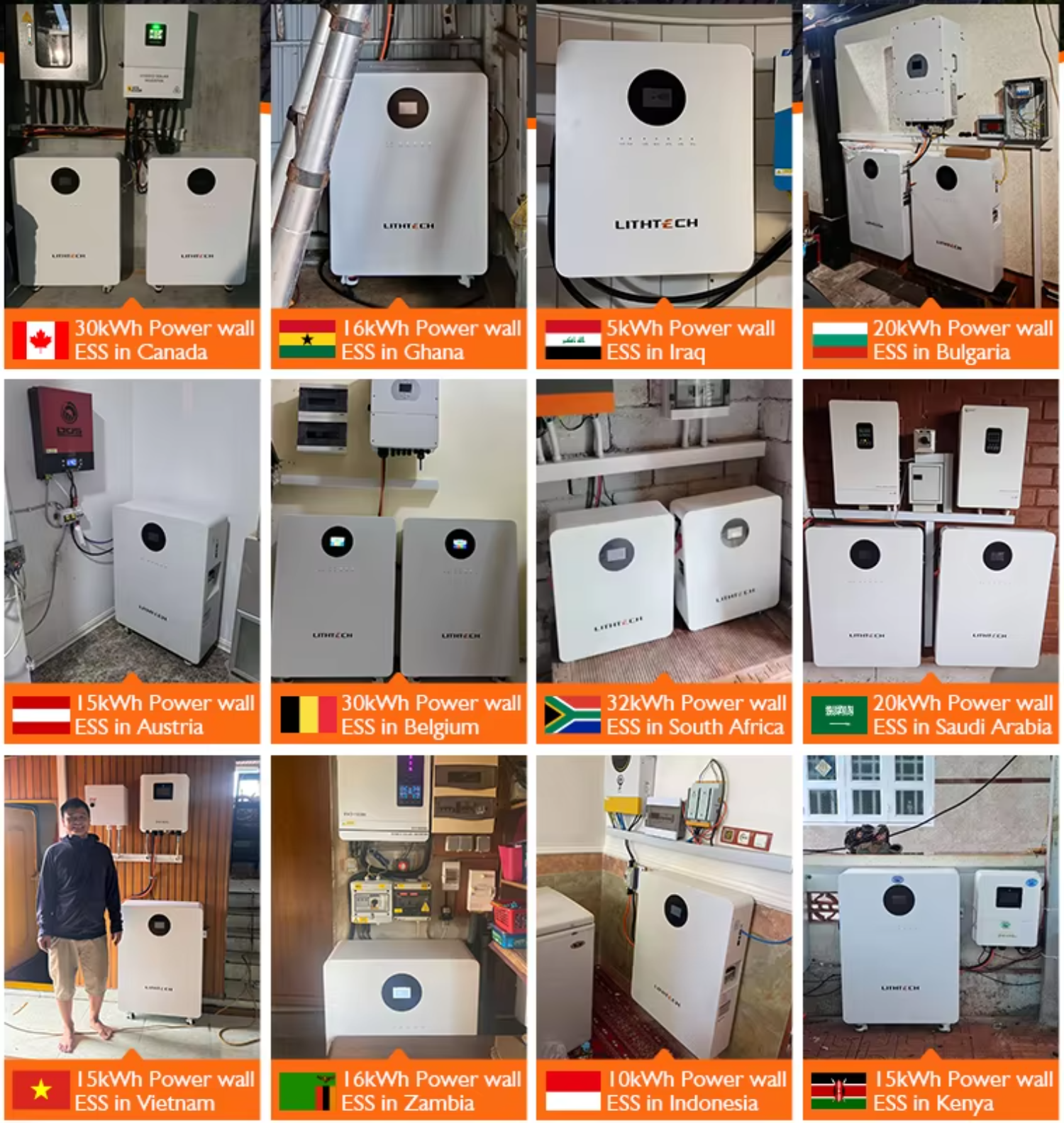

Global Success Stories
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Delivery & After Sales Response Time
Delivery Time
Item 1-50PCS 50-100pcs 1000+pcs 5000+pcs
Need Dangerous Goods Transport Certificate 5 days 10-15 days 20 days 30 days
Not Need Dangerous Goods Transport Certificate 5 days 7-15 days 15-20 days 30 days
After Sales Response Time
Beijing Time 9:00-22:00 Weekday Saturday Sunday Statutory Holidays
Sales Response ≤1 Hour ≤2 Hour ≤ 4 Hour /
Escalated Support ≤1 Hour ≤2 Hour ≤ 4 Hour ≤1 Day

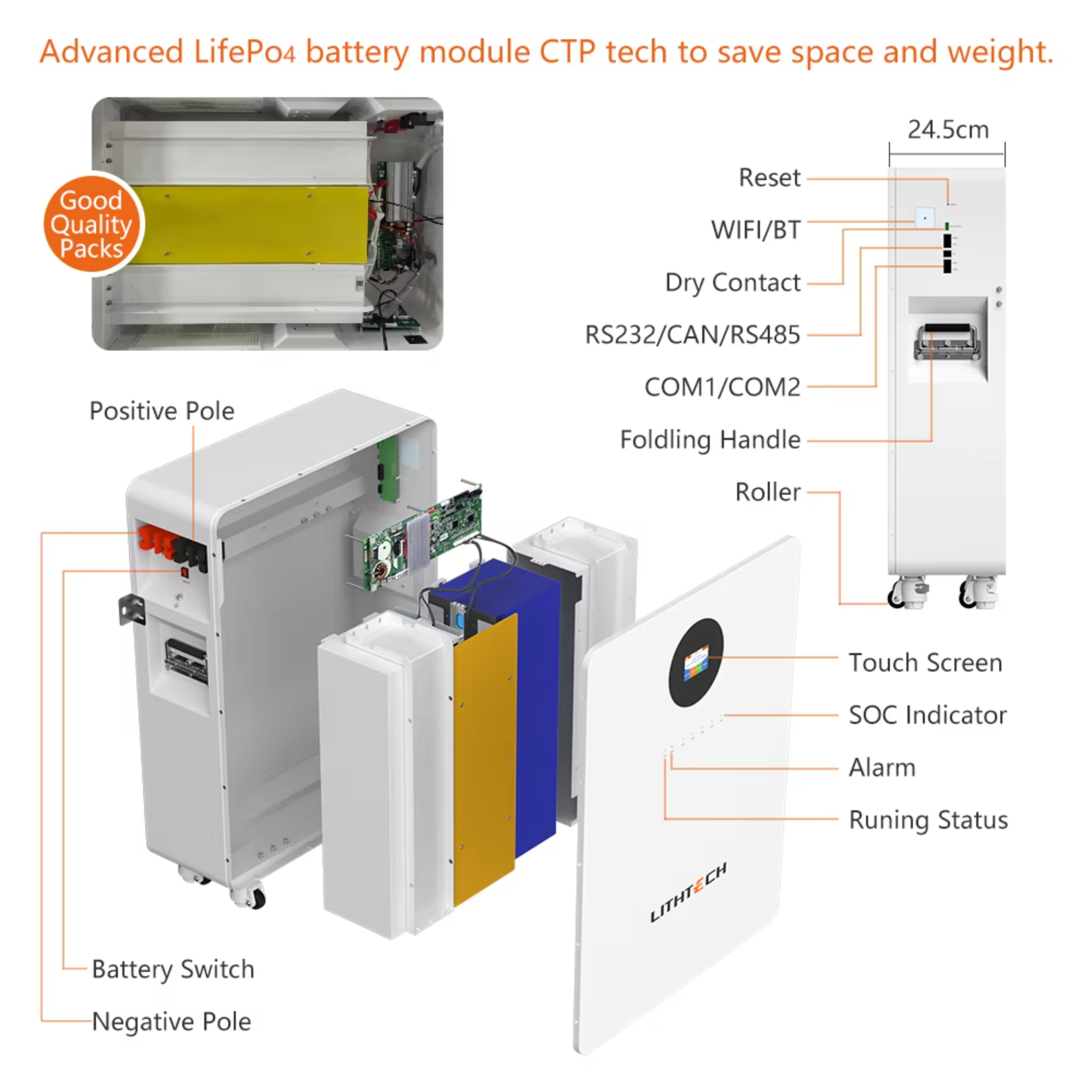

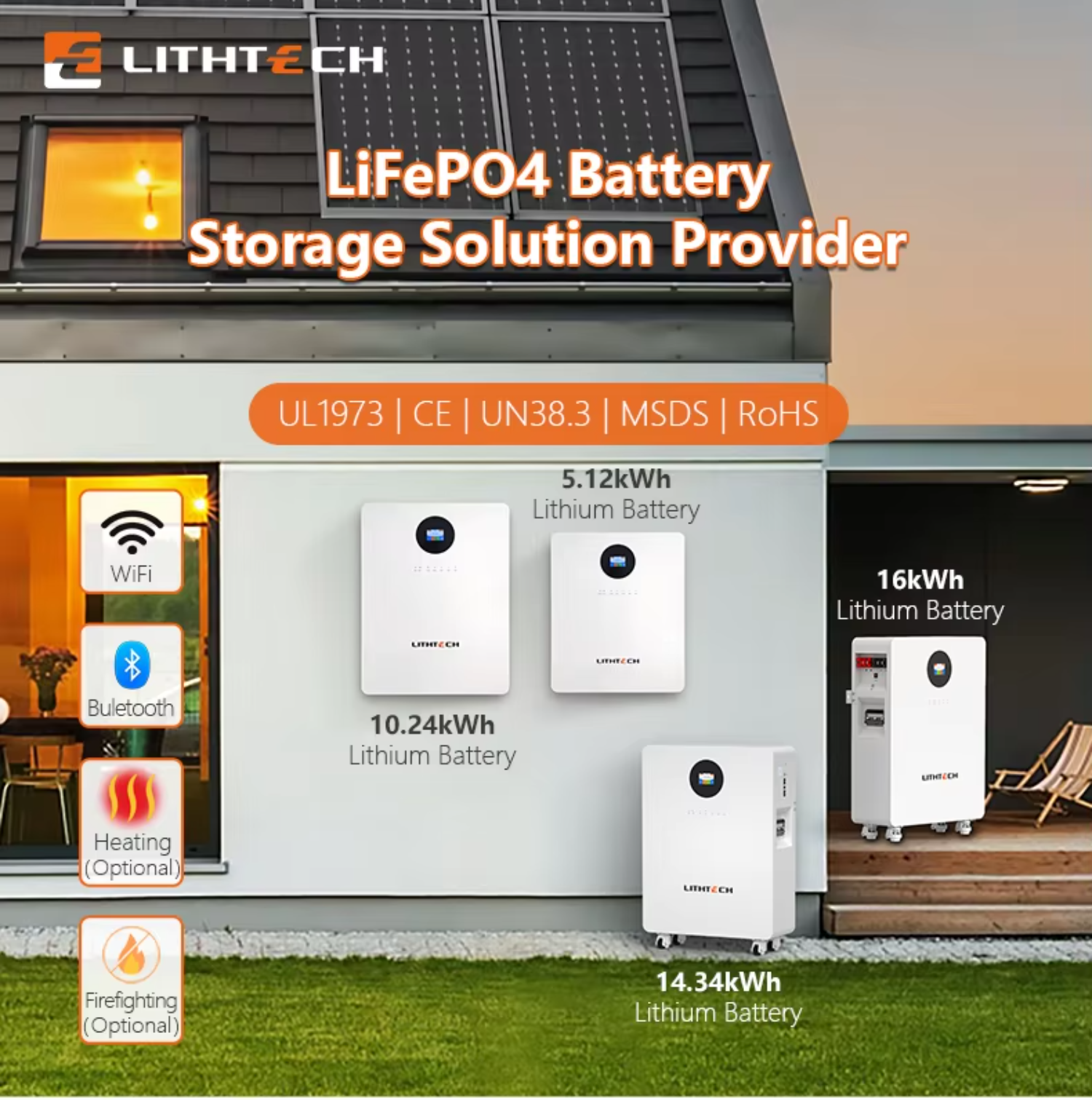

Product Overview
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Performance Specifications
PERFORMANCE SPECIFICATIONS
Model TR4000WX TR6000WX TR8000WX TR8500WX
Rating Voltage 48V / 51.2V 48V / 51.2V 48V / 51.2V 48V / 51.2V
Cell model/Configuration 3.2V100Ah/16S1P 3.2V100Ah/16S2P 3.2V280Ah/16S1P 3.2V314Ah/16S1P
Rating Capacity 100Ah 200Ah 280Ah 314Ah
Rated Energy (kWh) 5.12kWh 10.24kWh 14.34kWh 16.07kWh
Max. Charge/Discharge Current (A) 100A 200A 200A 200A
Voltage Range (Vdc) 44.8V ~ 58.4V
Scalability Up to 15 parallel
Communication CAN / RS485 / RS232 / Bluetooth / WIFI
Cycle Life ≥8000 Cycles @ 25°C
Design Life ≥15 Years (25°C)
Warranty 10-Year Warranty
MECHANICAL SPECIFICATIONS
Weight (Net/Gross) (KG) 53kg 99.5kg 132.5kg 115KG
Dimension (W/D/H) (mm) 600*500*167mm 850x650x167mm 650x650x245mm 650x650x245mm (±5mm)
IP Grade IP66 (optional)
SECURITY AND CERTIFICATION
Safety (Pack) CE, UN38.3, MSDS, IEC62619(CB), CE-EMC
Safety (Cell) UN38.3, MSDS, IEC62619, CE, UL1973, UL2054
Protection Smart BMS, Breaker and Aerogel Fireproofing (optional)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature (°C) Charge: 0°C ~ 65°C ; Discharge: -20°C ~ 65°C
Altitude (m) ≤3000m
Humidity ≤95% (Non-condensing)
99% Inverter Compatibility
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Compatible with 99% of Inverters

Seamlessly Compatible with 99% of Inverters: Solis, Growatt, Goodwe, SMA, Victron, Sofar, Solplanet, Sinexcel, SRNE, Must, Luxpower, Voltronic, Megarevo, Pylontech, Sorotec, SENERGY, etc.

Product Advantages
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Competitive Advantages
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

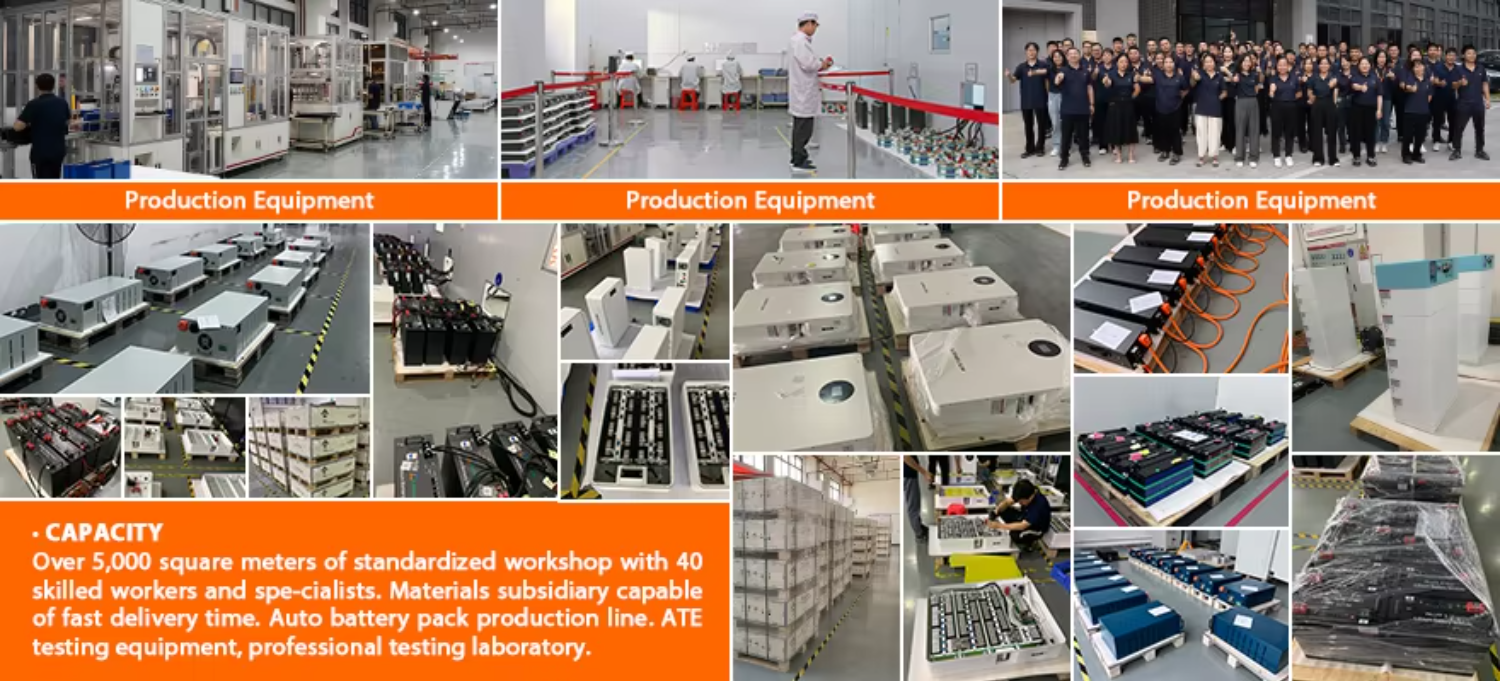

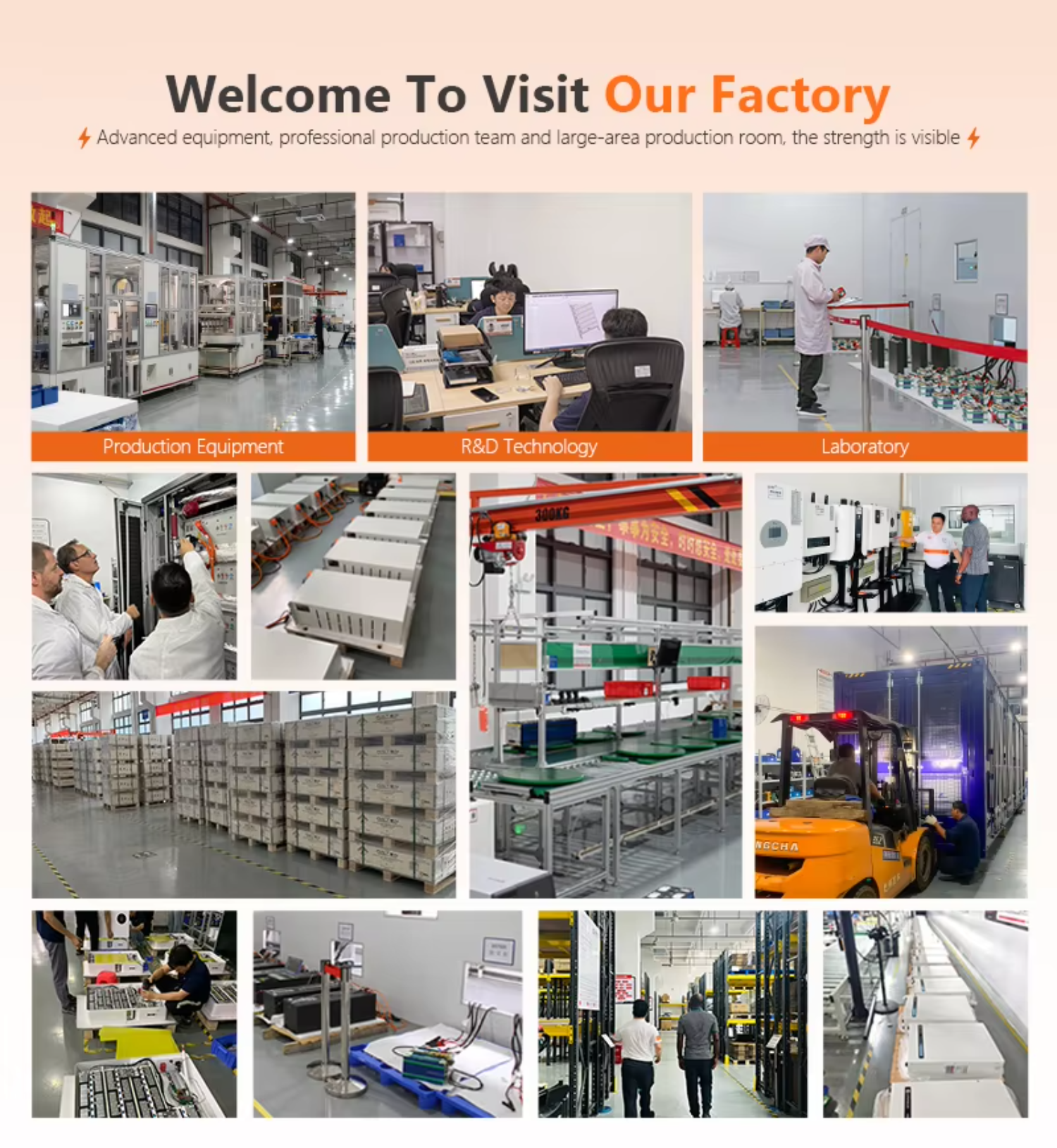

Factory Profile
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Trade Show Participation
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

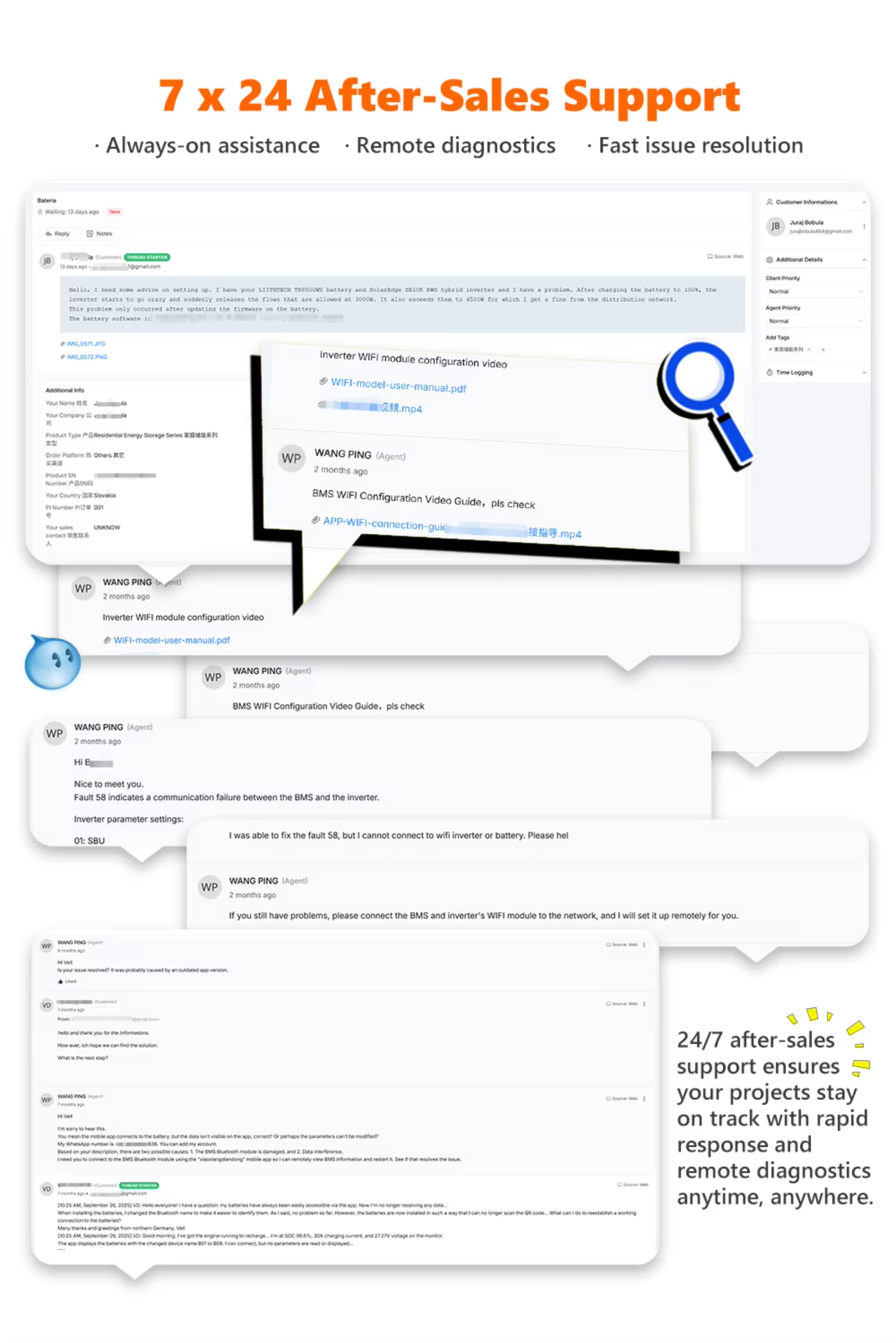

After-Sales Support
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery

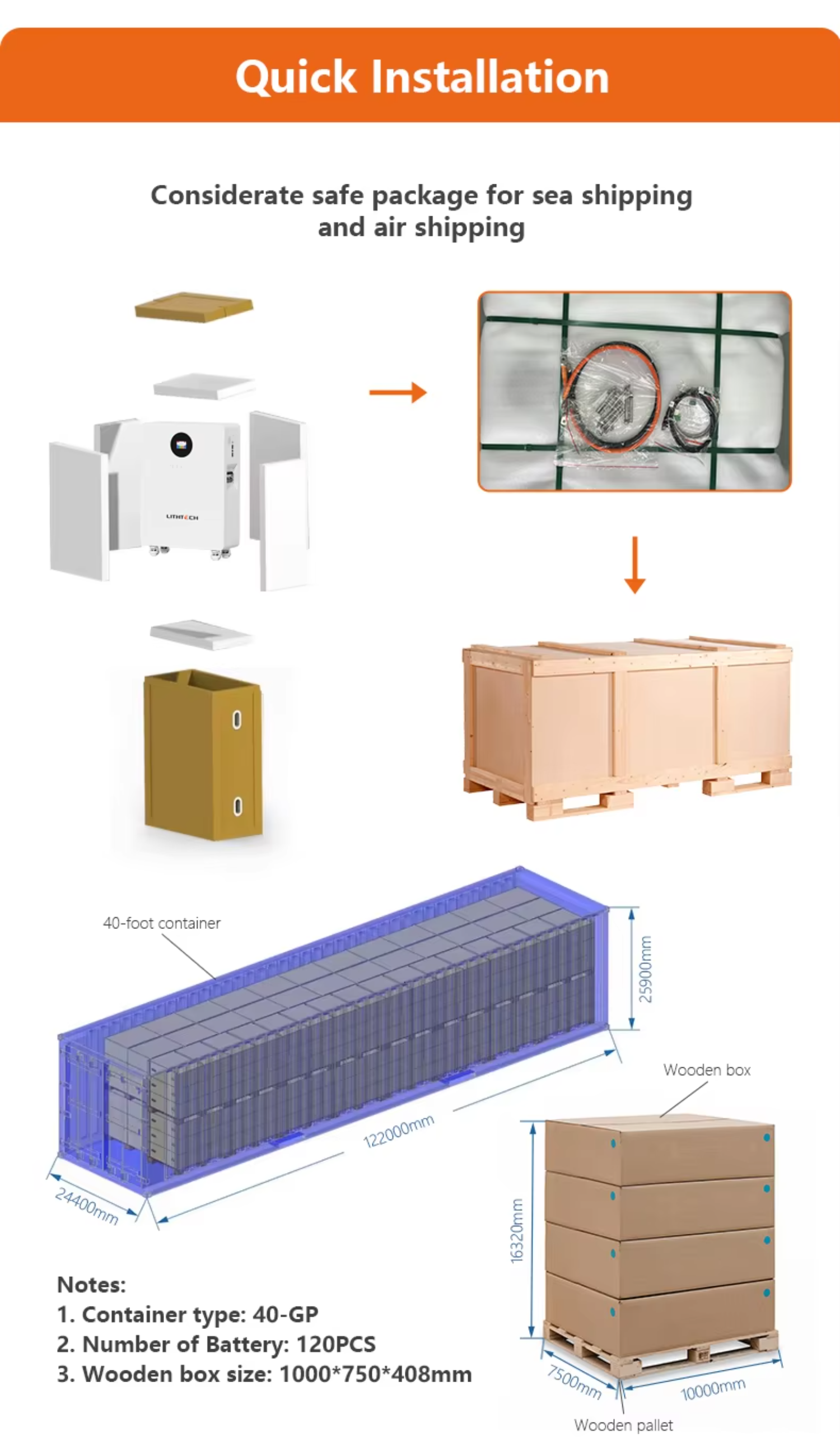

Packaging & Shipping Specifications
IP65 Waterproof Dustproof Large Capacity 15kwh Vertical Lifepo4 Solar Power System 51.2 Volt 300ah 314ah Lithium Ion Battery
Frequently Asked Questions
How long is the delivery time of your products?

Overseas Warehousing: Up to 3 days delivery. China: Usually about 30 days.

What kind of certificates do your products have?

Our battery products have acquired CE, UL, UN38.3, MSDS, CEC, RoHS and other certificates, which are able to satisfy most countries' importing requirements.

Can you supply OEM & ODM service?

Yes, but there is a minimum order quantity required.

How long is the warranty?

Our warranty is from 5 to 10 years.

Are your batteries compatible with other inverters?

Our batteries are compatible with most major inverters in the market, including Solis, Sinexcel, Growatt, Goodwe, SMA, Victron, and more.

Are your energy storage products manufactured in your own factory?

Yes, we have a 100% owned factory and offer direct factory sales. This ensures full control over product quality from production to delivery, with no middlemen involved.
