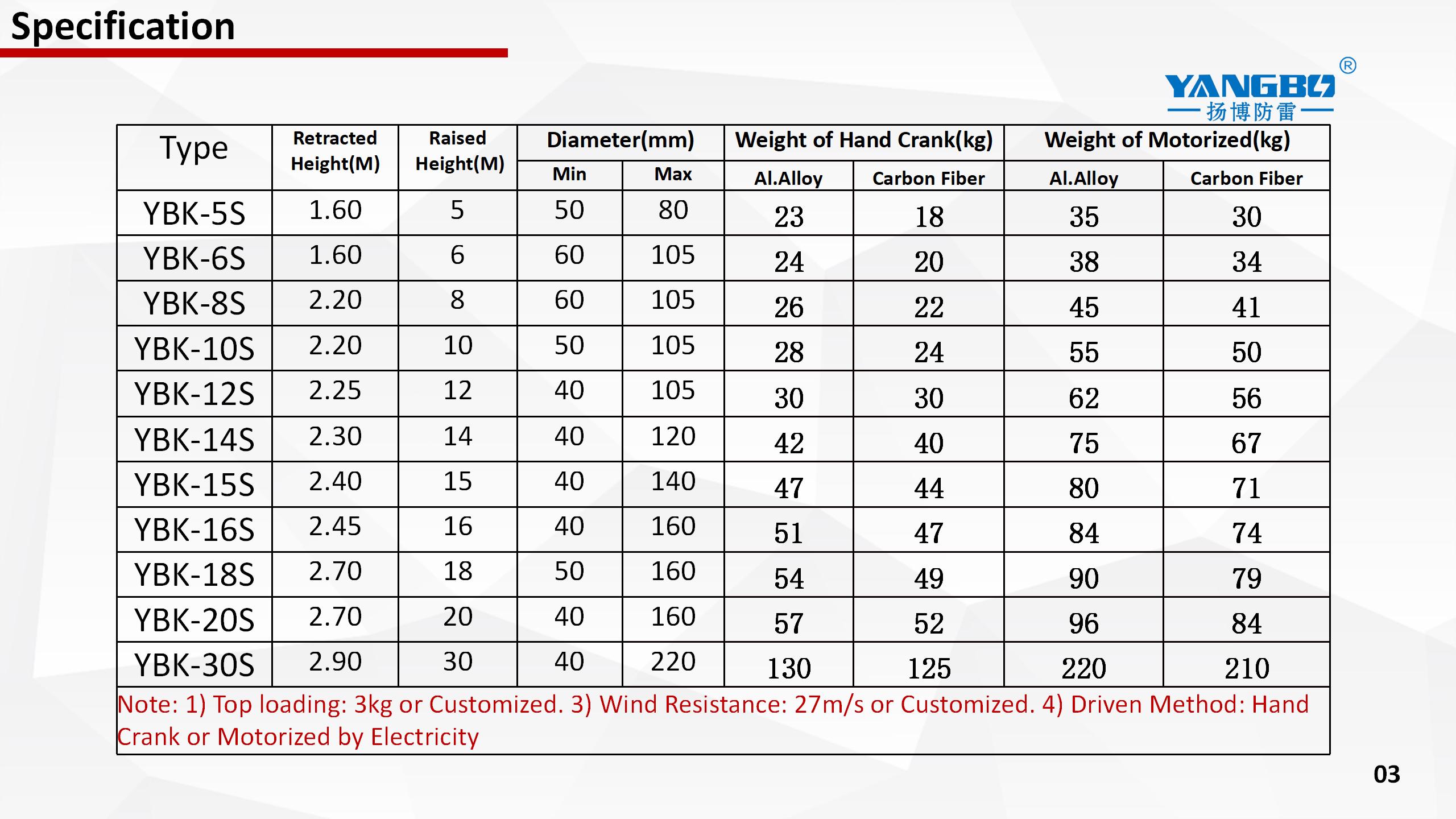

SPECIFICATION
| Type |
Retracted Height(M) |
Raised Height(M) |
Diameter(mm) |
Weight of Hand Crank(kg) |
Weight of Motorized(kg) |
| Min |
Max |
Al.Alloy |
Carbon Fiber |
Al.Alloy |
Carbon Fiber |
| YBK-5S |
1.60 |
5 |
50 |
80 |
23 |
18 |
35 |
30 |
| YBK-6S |
1.60 |
6 |
60 |
105 |
24 |
20 |
38 |
34 |
| YBK-8S |
2.20 |
8 |
60 |
105 |
26 |
22 |
45 |
41 |
| YBK-10S |
2.20 |
10 |
50 |
105 |
28 |
24 |
55 |
50 |
| YBK-12S |
2.25 |
12 |
40 |
105 |
30 |
30 |
62 |
56 |
| YBK-14S |
2.30 |
14 |
40 |
120 |
42 |
40 |
75 |
67 |
| YBK-15S |
2.40 |
15 |
40 |
140 |
47 |
44 |
80 |
71 |
| YBK-16S |
2.45 |
16 |
40 |
160 |
51 |
47 |
84 |
74 |
| YBK-18S |
2.70 |
18 |
50 |
160 |
54 |
49 |
90 |
79 |
| YBK-20S |
2.70 |
20 |
40 |
160 |
57 |
52 |
96 |
84 |
| YBK-30S |
2.90 |
30 |
40 |
220 |
130 |
125 |
220 |
210 |
Note:
1) Top loading: 3kg or Customized.
2) Materials: Al Alloy or Carbon Fiber.
3) Wind Resistance: 27m/s or Customized.
4) Driven Method: Hand Crank or Motorized by Electricity
FUNCTIONS AND FEATURES

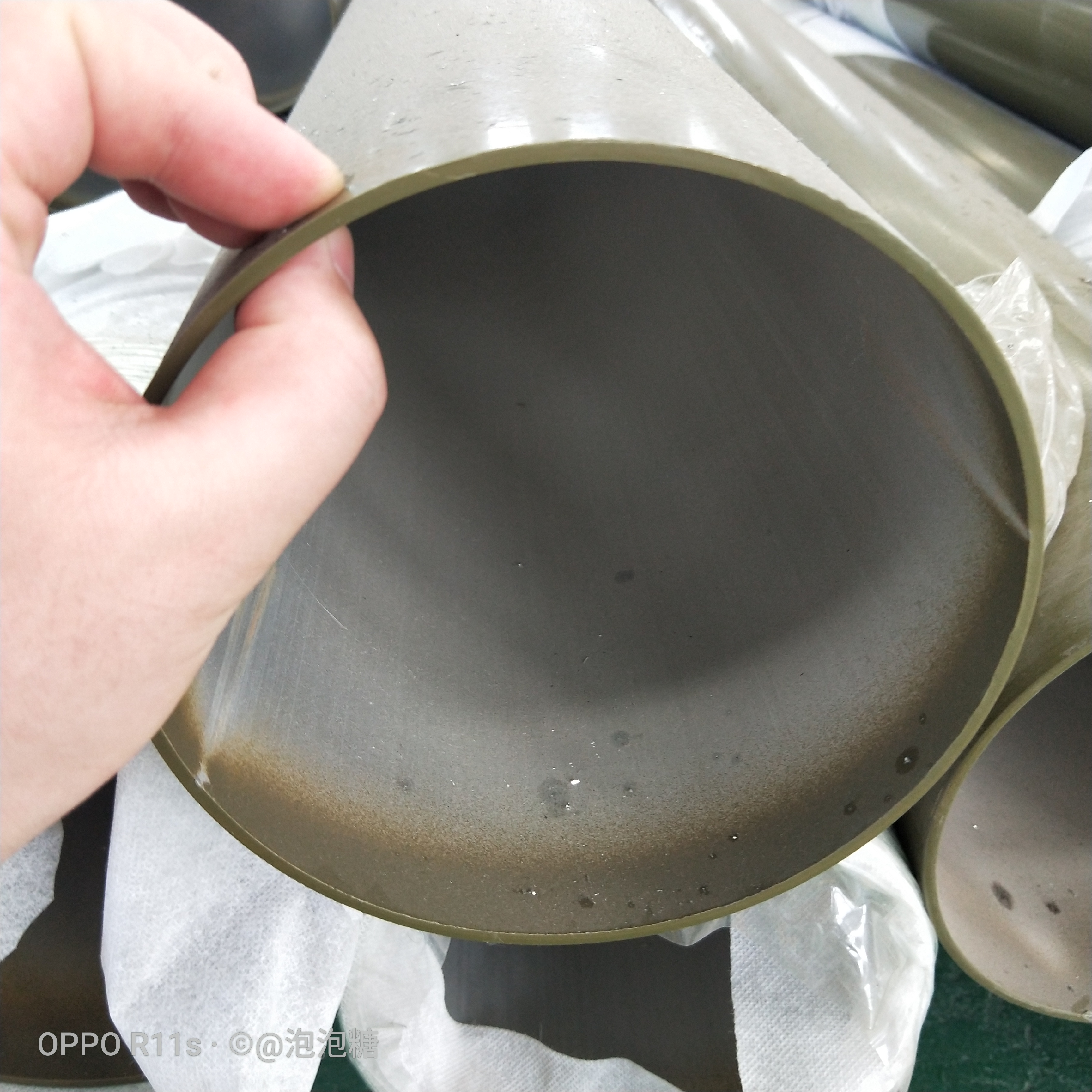

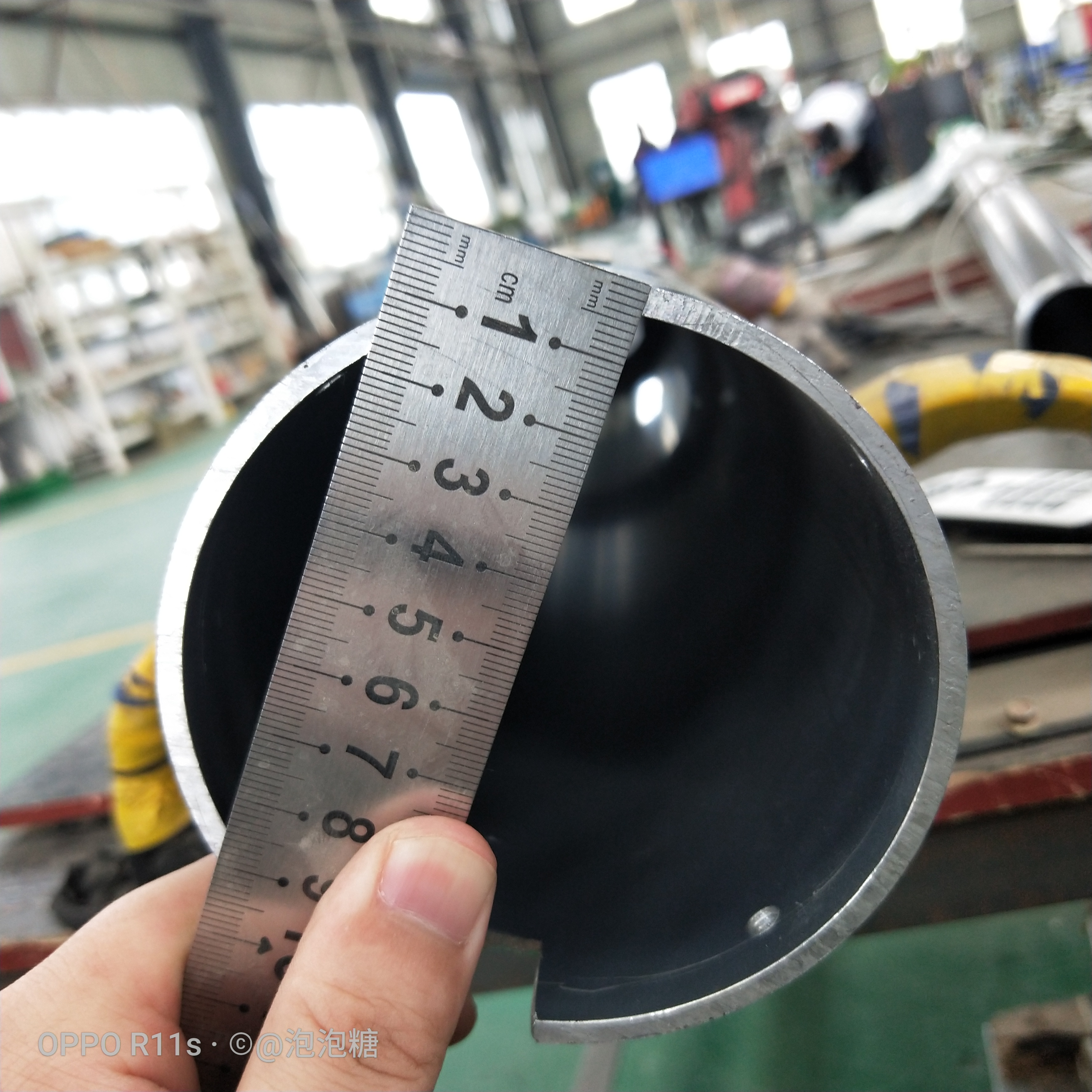

1. High-strength aluminum alloy profiles are used, which are highly corrosion-resistant; the inner wall of the cylinder is sealed and connected by high-pressure wear-resistant porcelain treatment.
2. It has a strong anti-rotation function.
3. With self-installation function, it is convenient to move and transport. It can detect and maintain the tip device to make it work normally.
4. Strong wind resistance, capable of resisting wind of 27m/s.
5. It has the structural characteristics of high anti-corrosion, waterproof and dustproof, and long service life.

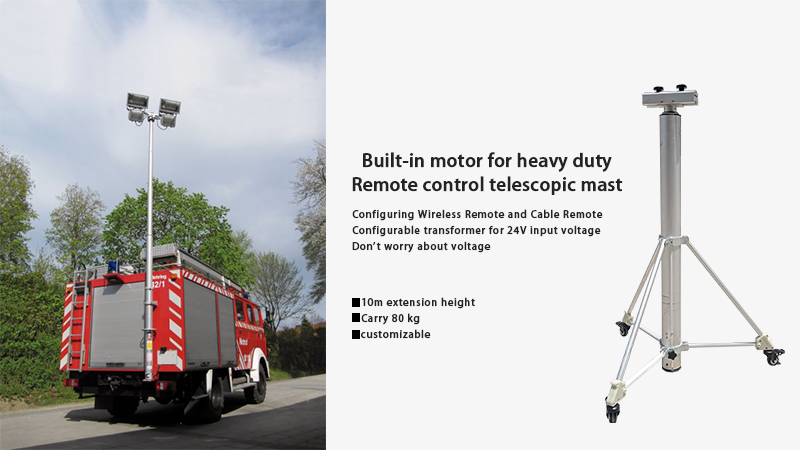

6. The lifting mode can be manual or electric alone, or integrated manual and electric.
FAQ
?
1. What is the wind resistance rating when fully extended?
0.4kn/m², and 0.7kn/m² is customizable.
?
2. Do you have an option with 30-40kg payload?
Our payload is 3kg-30kg, others are customizable.
?

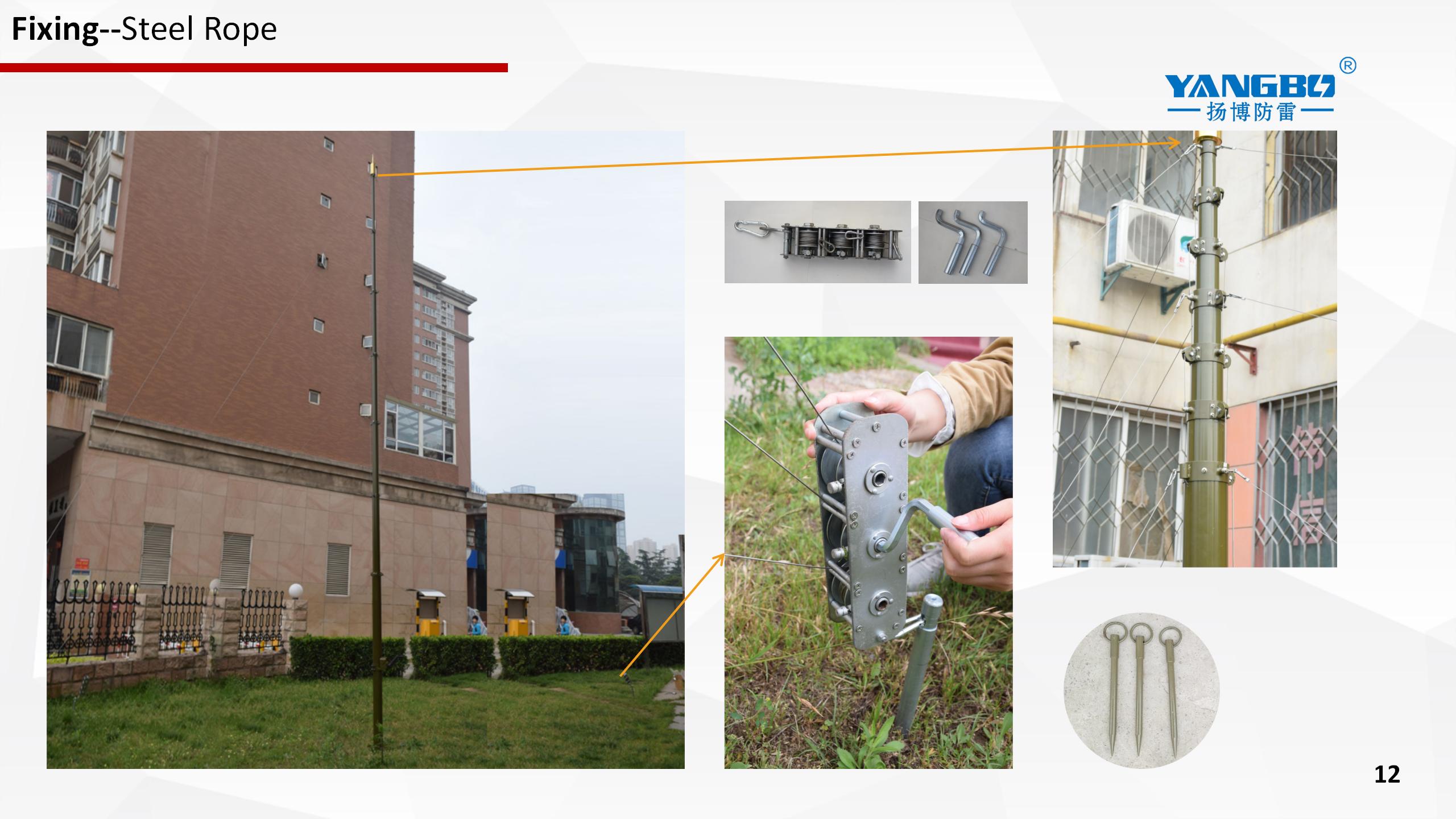

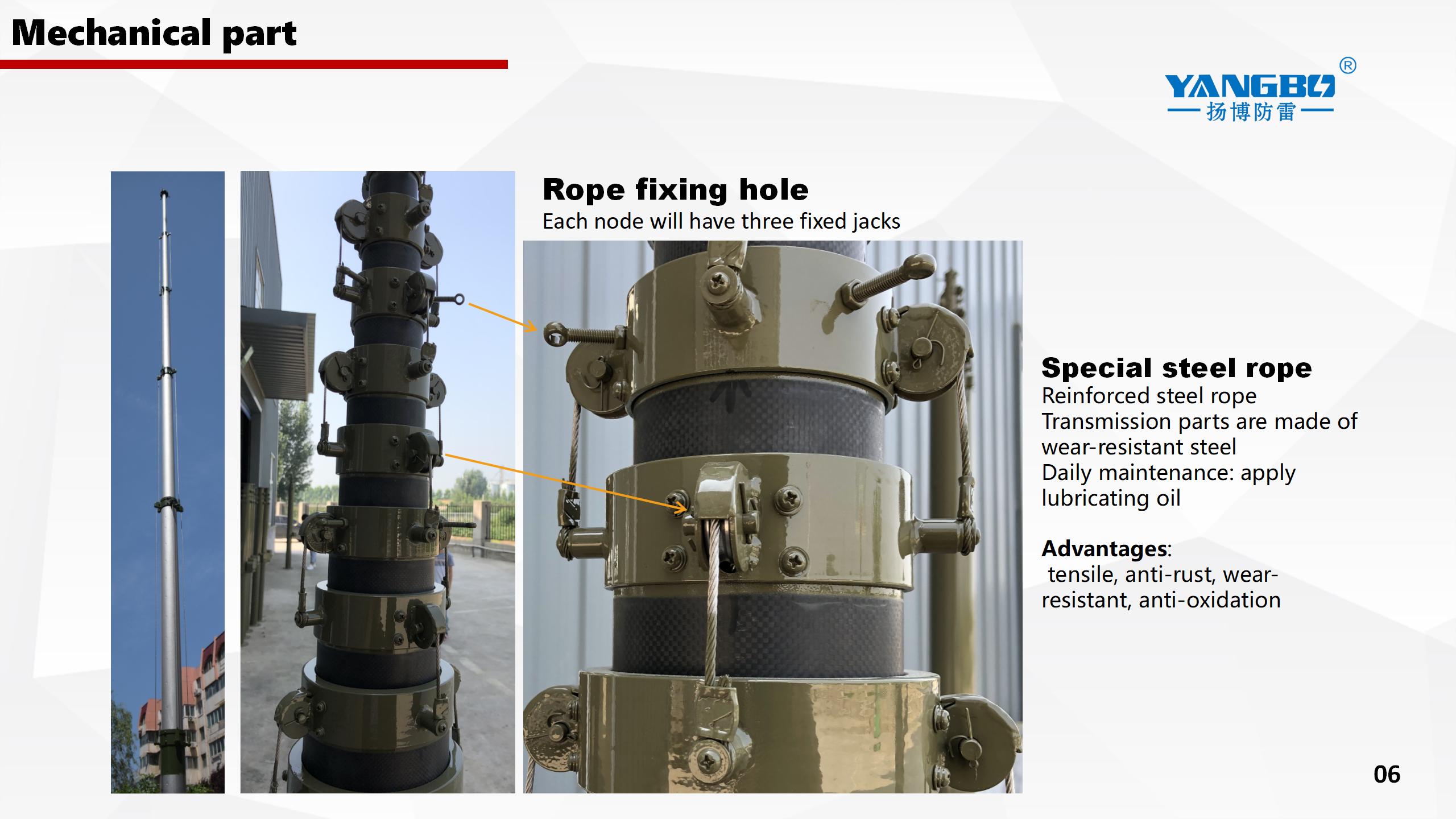

3. When do we need steel rope to fix the mast?
Generally, when the height is more than 6m, steel rope is necessary.
?
4. Are only 220V available, or 12v can be ordered?
Our mast is at 220V, others are customizable.
?

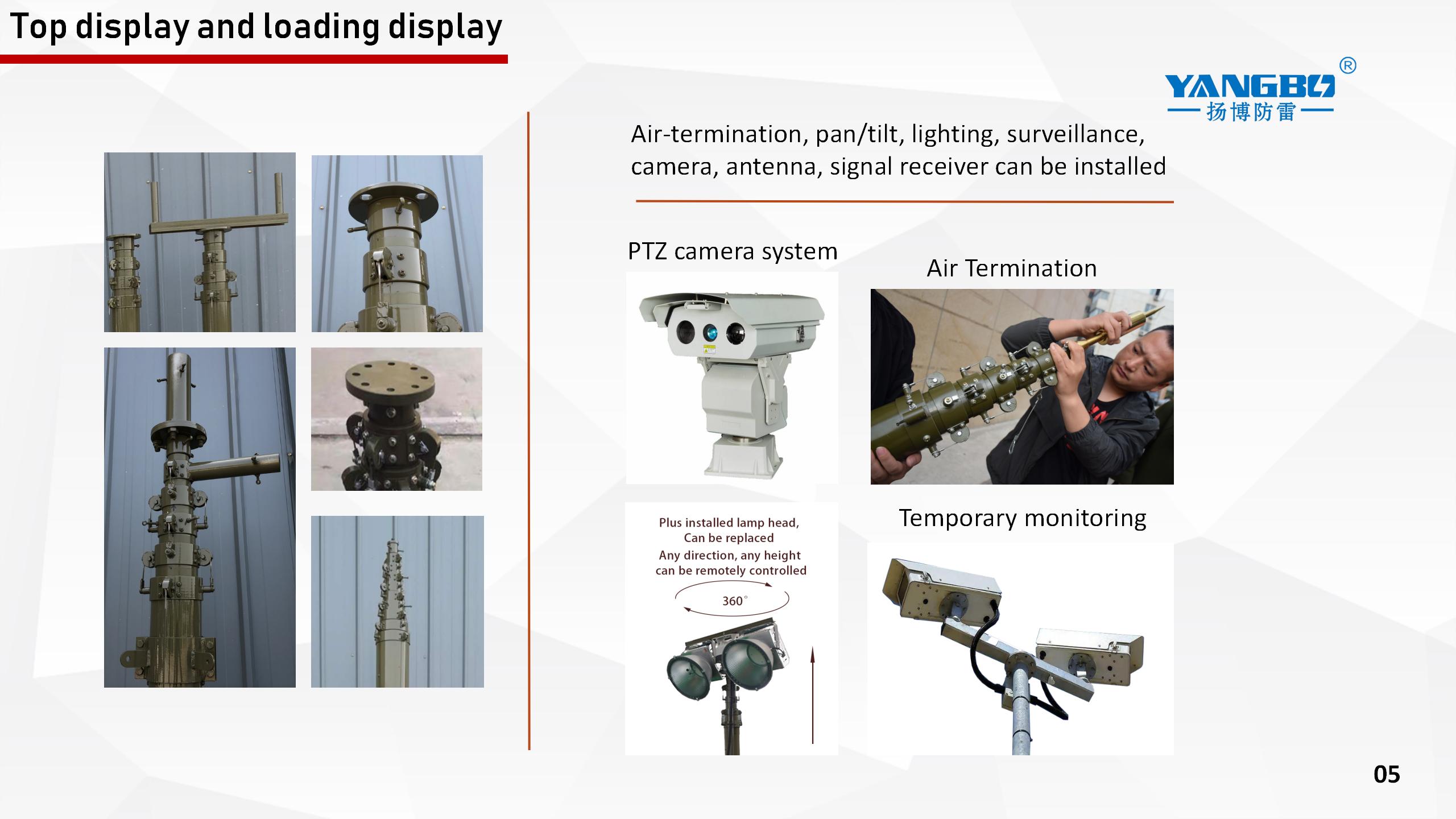

5. Are motorized rotational platforms available?
Yes, you can equip it with a PTZ.
?
6. Can the mast be stable mid section?
Yes, it can be stopped anywhere.
