Introduction: Pneumatic/Hydraulic Riveting Tool Series
INNOVATION & UNIQUE FEATURE
The most remarkable features of the tools are the unique design of the tool bodies - air cylinders. With vertical hexigon-shaped air cylinder design, it changes the traditional way of production. The air cylinders are closed, from top and bottom, by six screws instead of traditionally tapping the thread around the cylinder body which requires considerable material thickness. With the unique cylinder closing method, it makes the tools comparatively lighter.
The unique design also results in efficient production using raw materials of long tubular shaped profiles. Without non-flexible moldings, the height of the cylinders can be flexibly adjusted to apply a wide range of tool strokes in the most economic way. The strength is proven by aviation-grade aluminium alloy materials. This unique cylinder design is patented.
BENEFITS & MODULAR DESIGN
Our modular design approach reduces costs and necessary stock items for production, maintenance, and repair. The pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models, remarkably helping distributors in service management.
Tool Series Classification

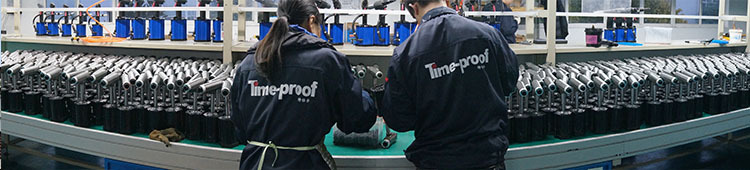

COMMERCIAL SERIES (-Z Models)
Positioned for DIY and semi-industrial segments. Models like Z5000, Z5000V, and Z6400 are designed for setting blind rivets up to 6.4mm. The "-V" suffix indicates a vacuum sucking system for mandrel collection. Life tests show the Z5000 can handle approximately 120,000 rivets with basic maintenance.

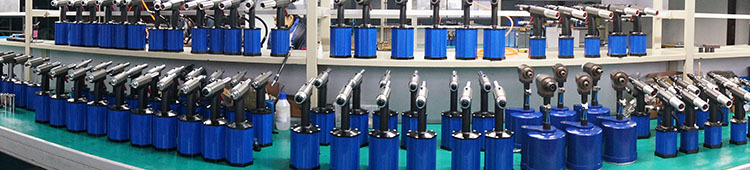

INDUSTRIAL SERIES (-N & -M Models)
Aims at general industrial and professional applications. Includes N240 for rivets up to 4.0mm and M2314 for rivet nuts up to M14. Models feature specialized designs for extra-long strokes (suffix -C) or extra traction power (suffix -G) for heavy-duty fasteners like Monobolt or Hemlok.
PROFESSIONAL SERIES
Includes specialized models like QH264 for Lockbolts and TK164 for speed-rivets. These tools are developed based on specific customer requirements for high-end installation solutions, often featuring blue-colored air cylinders as default.
Product Details & Applications
Frequently Asked Questions

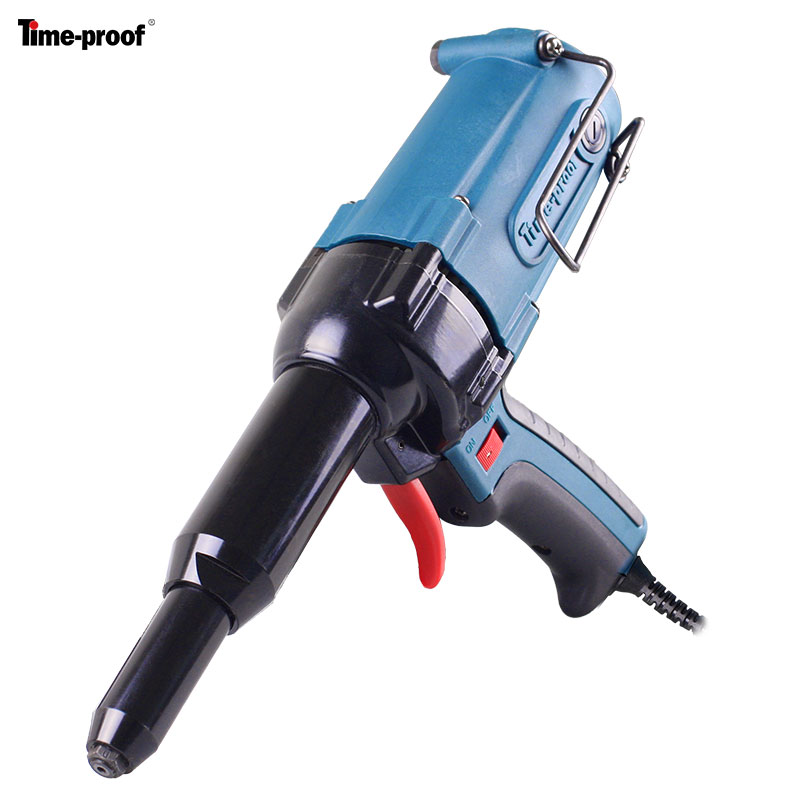

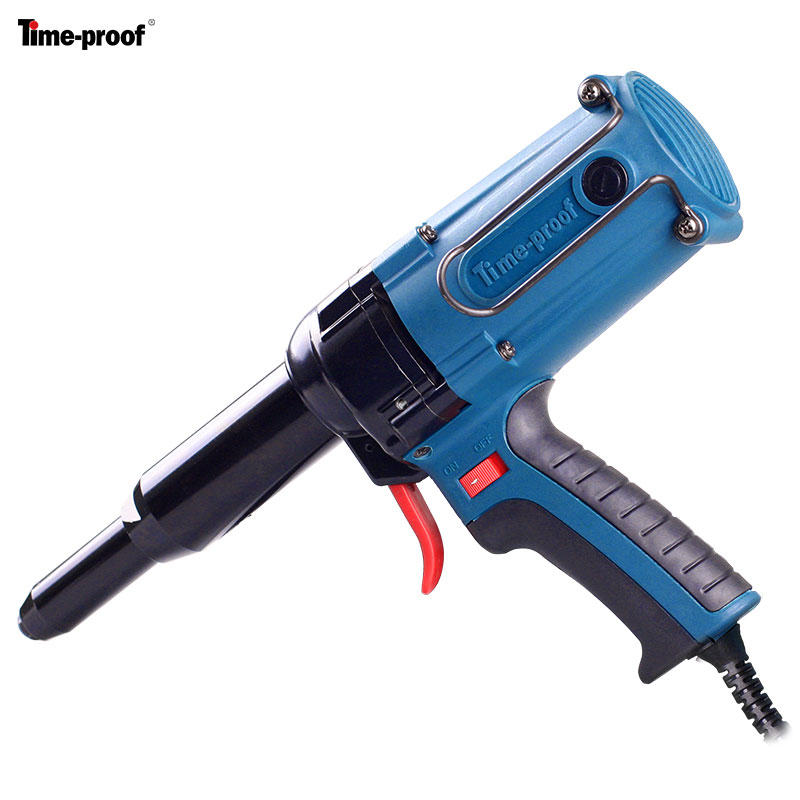

Q1: What materials can the TAC500 rivet gun process?
The TAC500 is capable of setting blind rivets of all materials, including aluminum, steel, and stainless steel, for sizes ranging from 3.0mm to 5.0mm.
Q2: What are the benefits of the patented hexigon-shaped air cylinder?
This unique design allows the tools to be significantly lighter by using aviation-grade aluminum and a screw-closing method, rather than thick threaded cylinder bodies.
Q3: What does the suffix "-V" mean in the model numbers?
The "-V" indicates that the tool is equipped with a vacuum sucking system that holds the rivet in place and automatically blows out the mandrel after setting.
Q4: How durable are these tools for industrial use?
The tools are designed for longevity. For example, the Z5000 model has been tested to set approximately 120,000 multi-grip rivets before requiring major stroke maintenance.

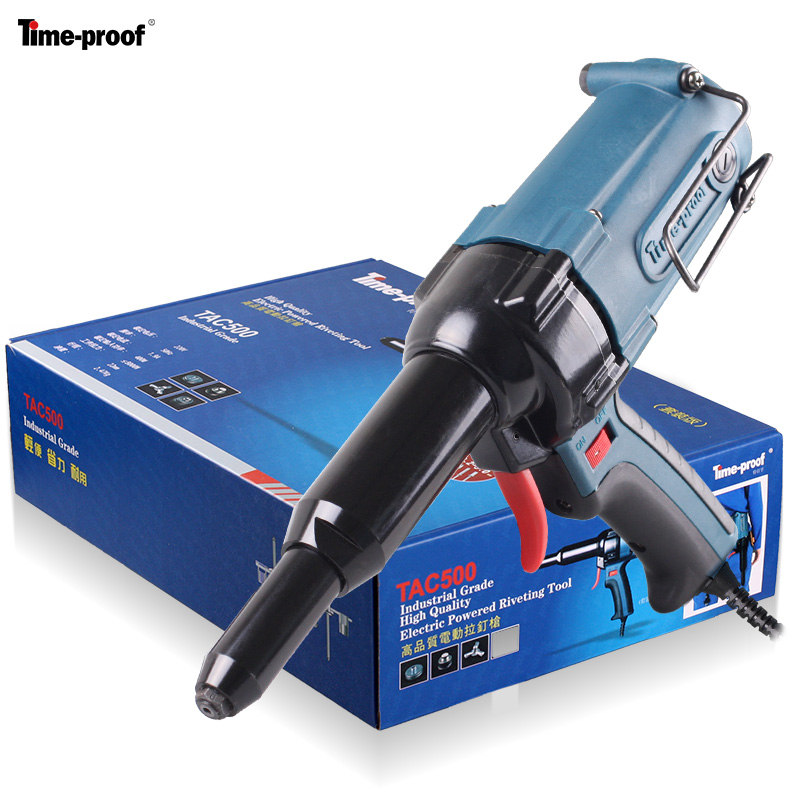

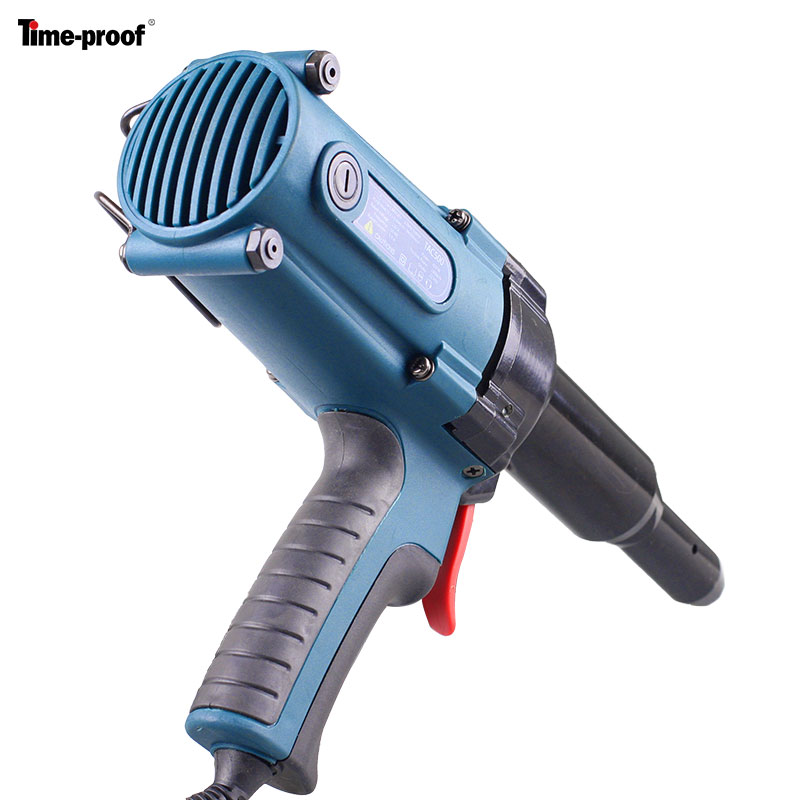

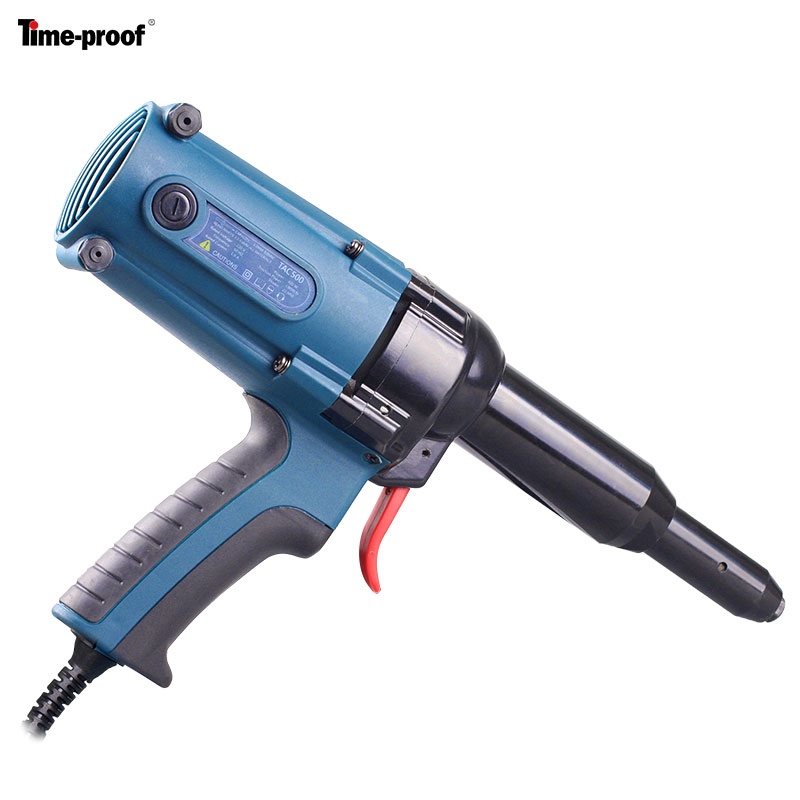

Q5: Is the TAC500 a pneumatic or electric tool?
The TAC500 specified in the technical data is an electric power source riveting tool, operating at 220V with a rated input power of 400W.
Q6: Are the parts interchangeable between different models?
Yes, our tools feature a Modular Design (MD) technology, meaning many internal part assemblies are interchangeable, which simplifies maintenance and stock management for distributors.
